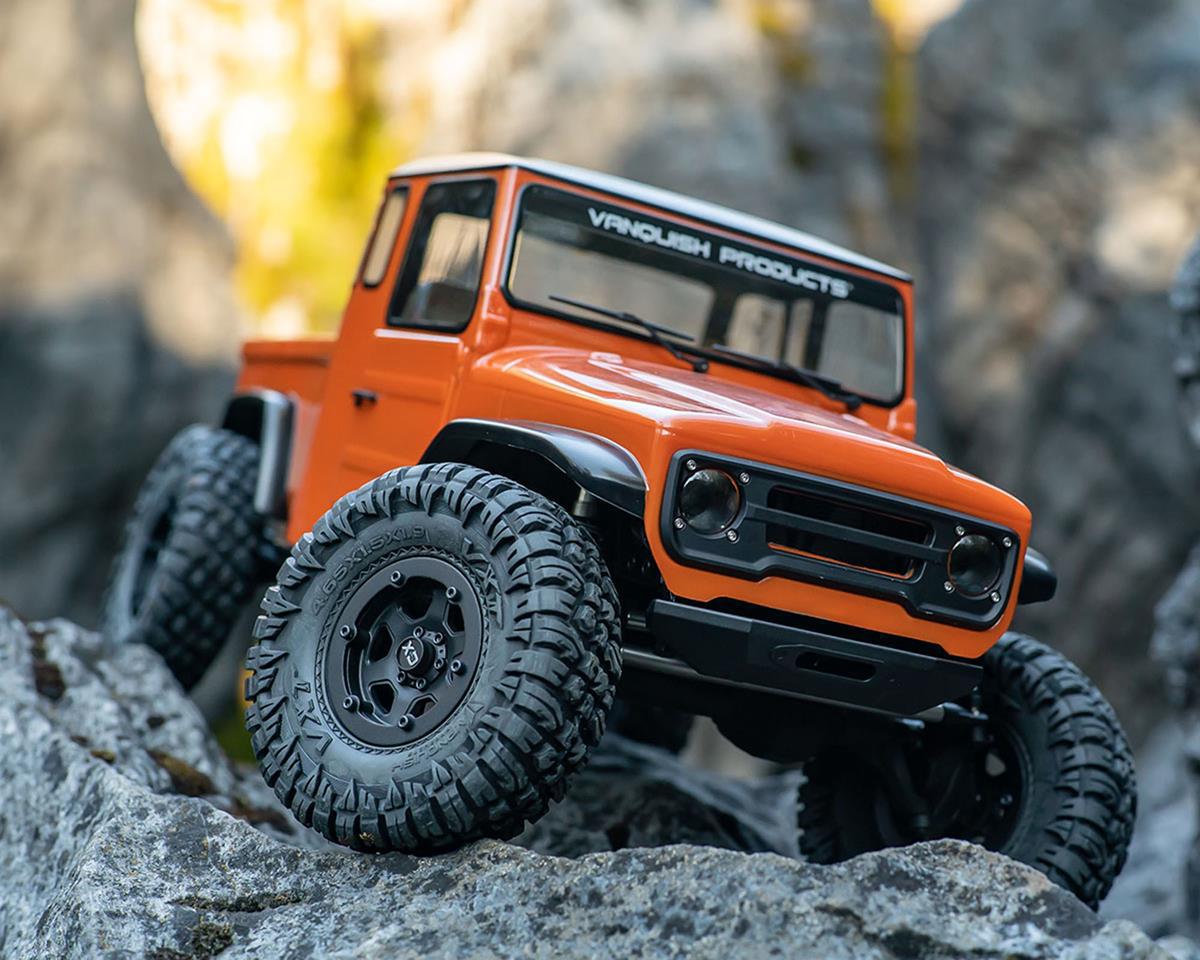

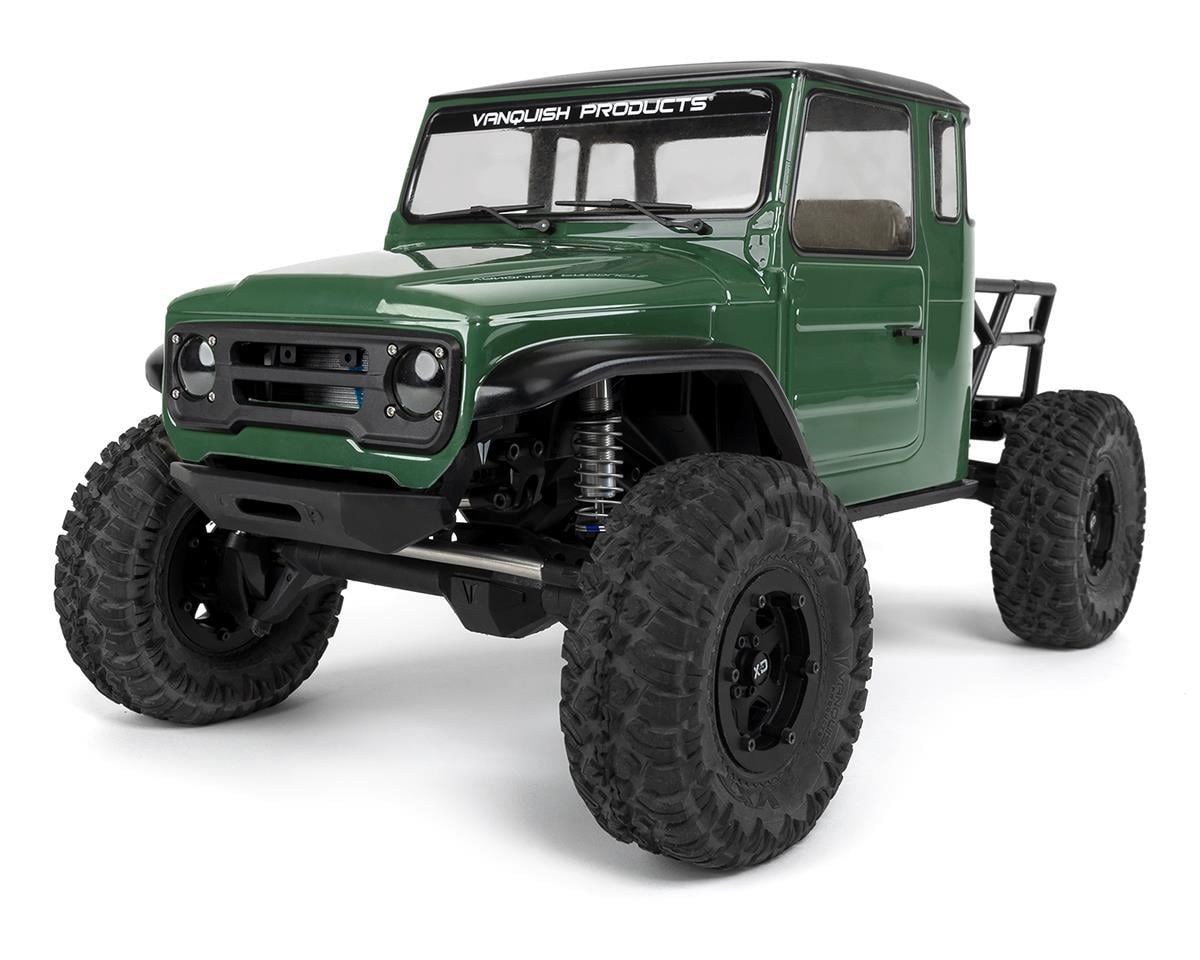

Vanquish Products VS4-10 Phoenix Portal Rock Crawler Kit w/Falken Wildpeak MT

The Vanquish Products VS4-10 Phoenix Portal 1/10 Rock Crawler Kit combines a VFD Twin transmission, F10 portal axles, a steel C-channel chassis, and a detailed Phoenix body. The kit includes 1.9-inch Falken Wildpeak MT tires mounted on Incision KMC KM237 Riot molded beadlock wheels.

Features

• On-the-fly selectable overdrive from 6.5% to 46%
• Three-position dig for drivetrain tuning
• 2WD operation through the overdrive neutral position
• High-clearance F10 portal axle design with brass axle reinforcement tubes
• Forward-mounted, low-positioned motor placement
• 49 degrees of front steering
• Adjustable lower shock mounting positions
• Dual X-ring Incision S8E shocks with 8mm bores

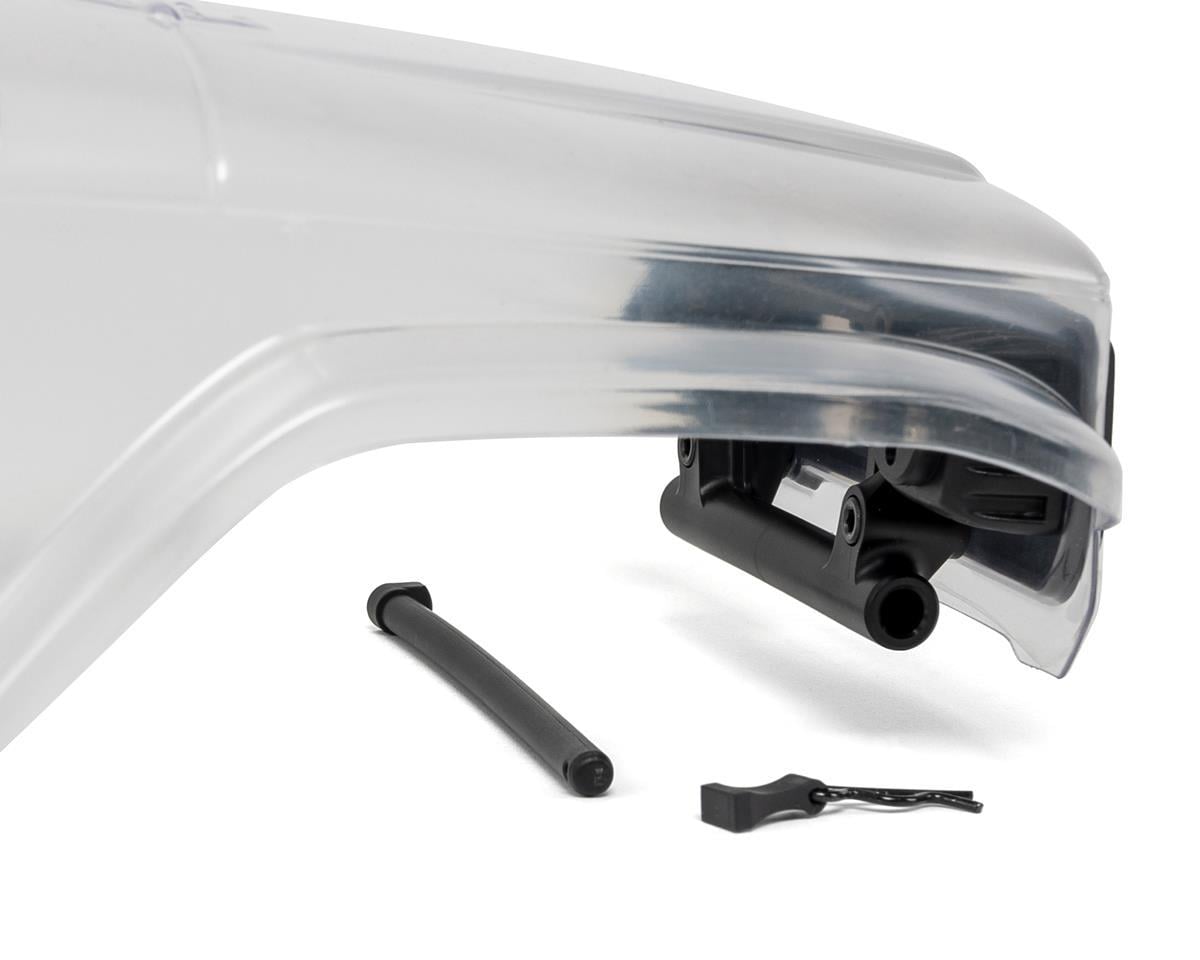

• Hidden body clips with quick-release front pivot pin

Transmission and Axles

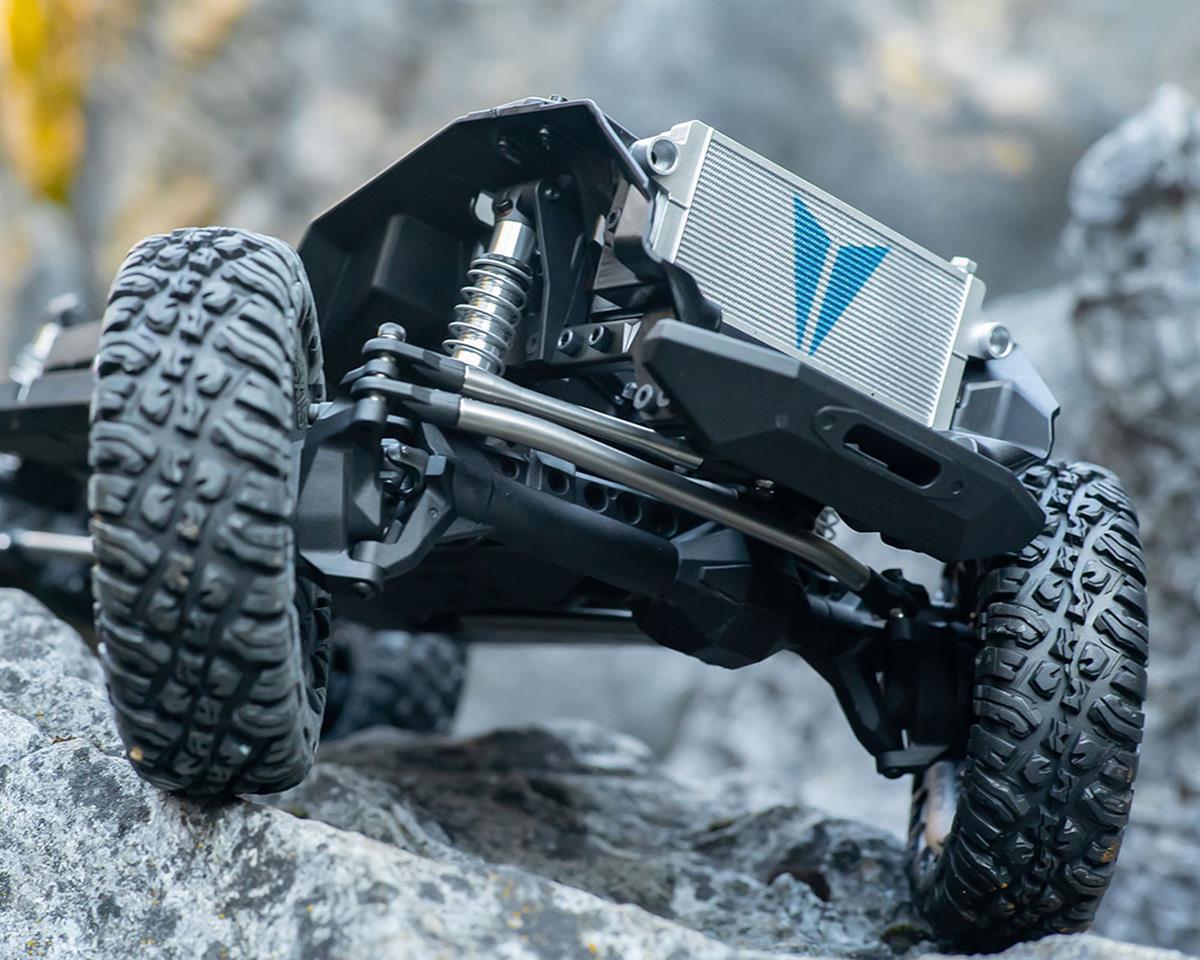

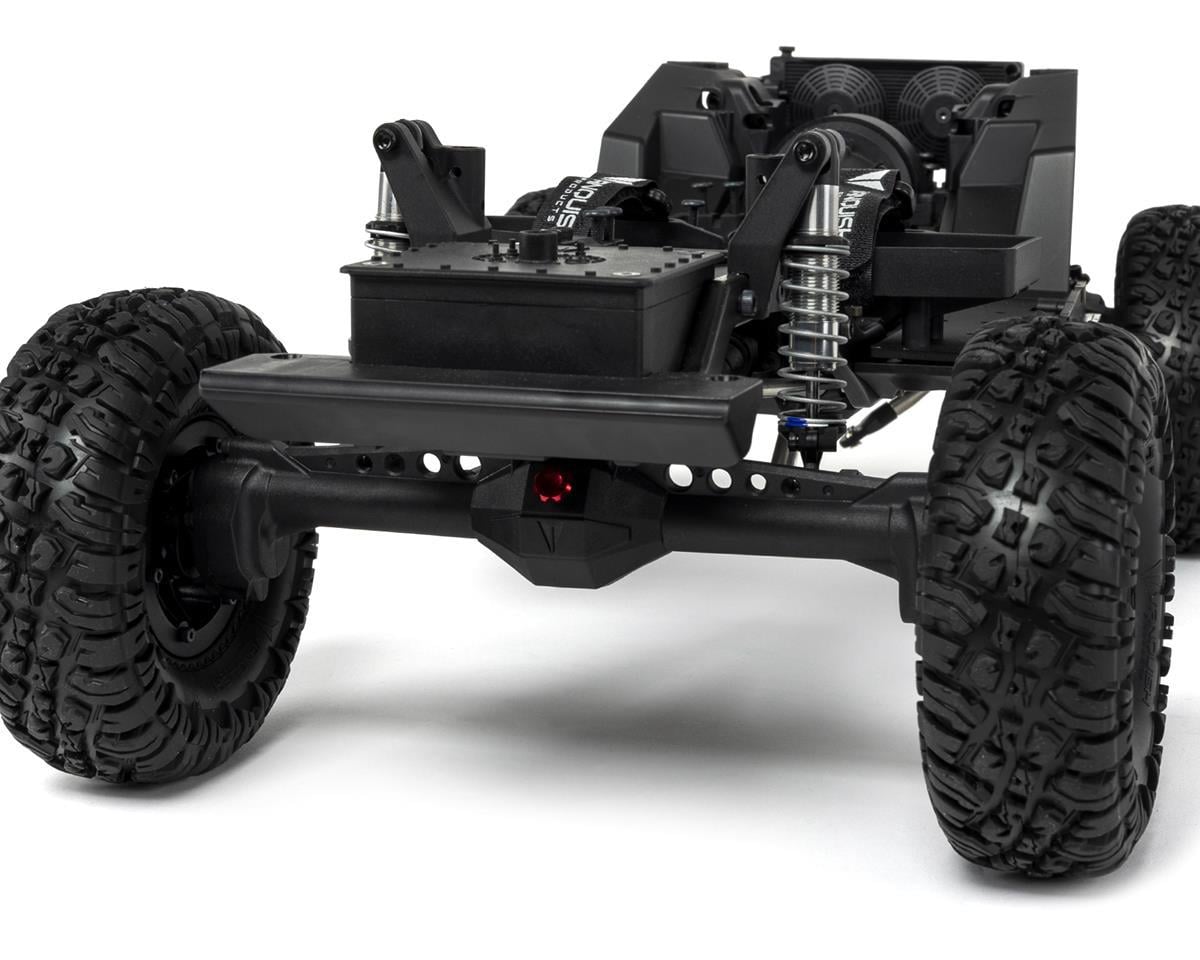

The VFD Twin transmission combines selectable overdrive and rear dig in one assembly. Its overdrive settings include 6.5% standard overdrive, 46% high overdrive, and a neutral position for 2WD operation. The F10 portal axles feature a high-clearance design, integrated truss, brass inner reinforcement tubes, machined chromoly portal gears, high-pinion hypoid axle gears, and universal-style axle shafts.

Chassis and Body

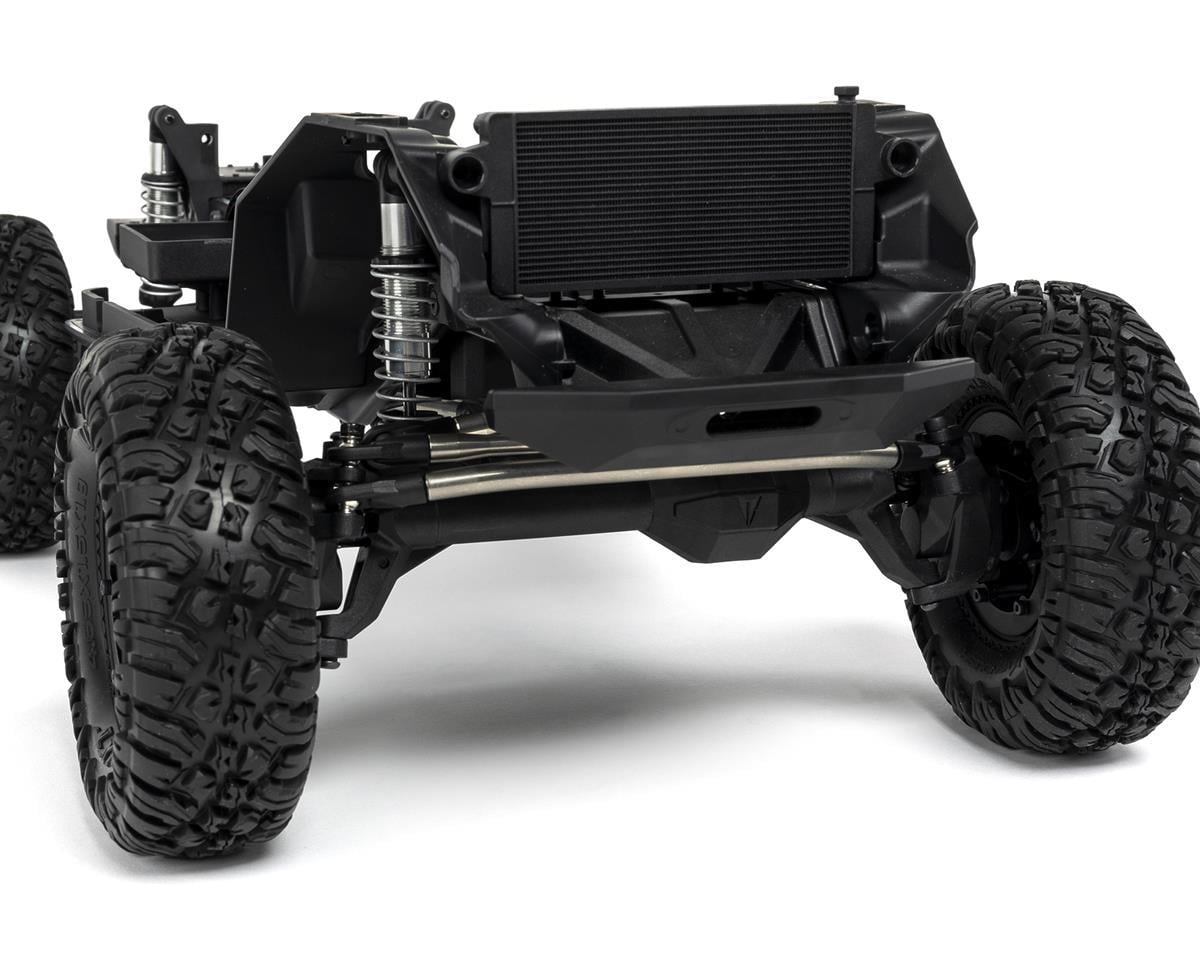

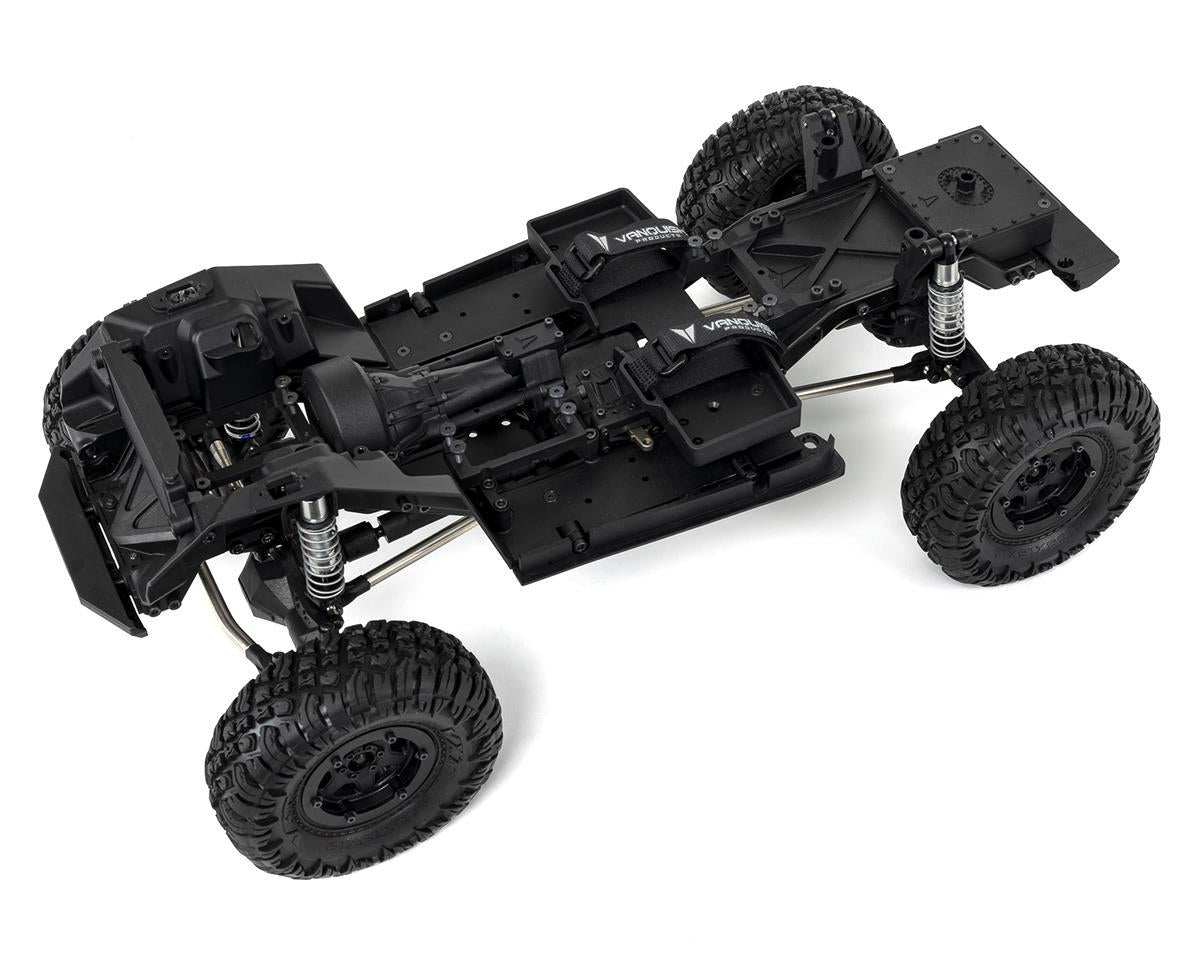

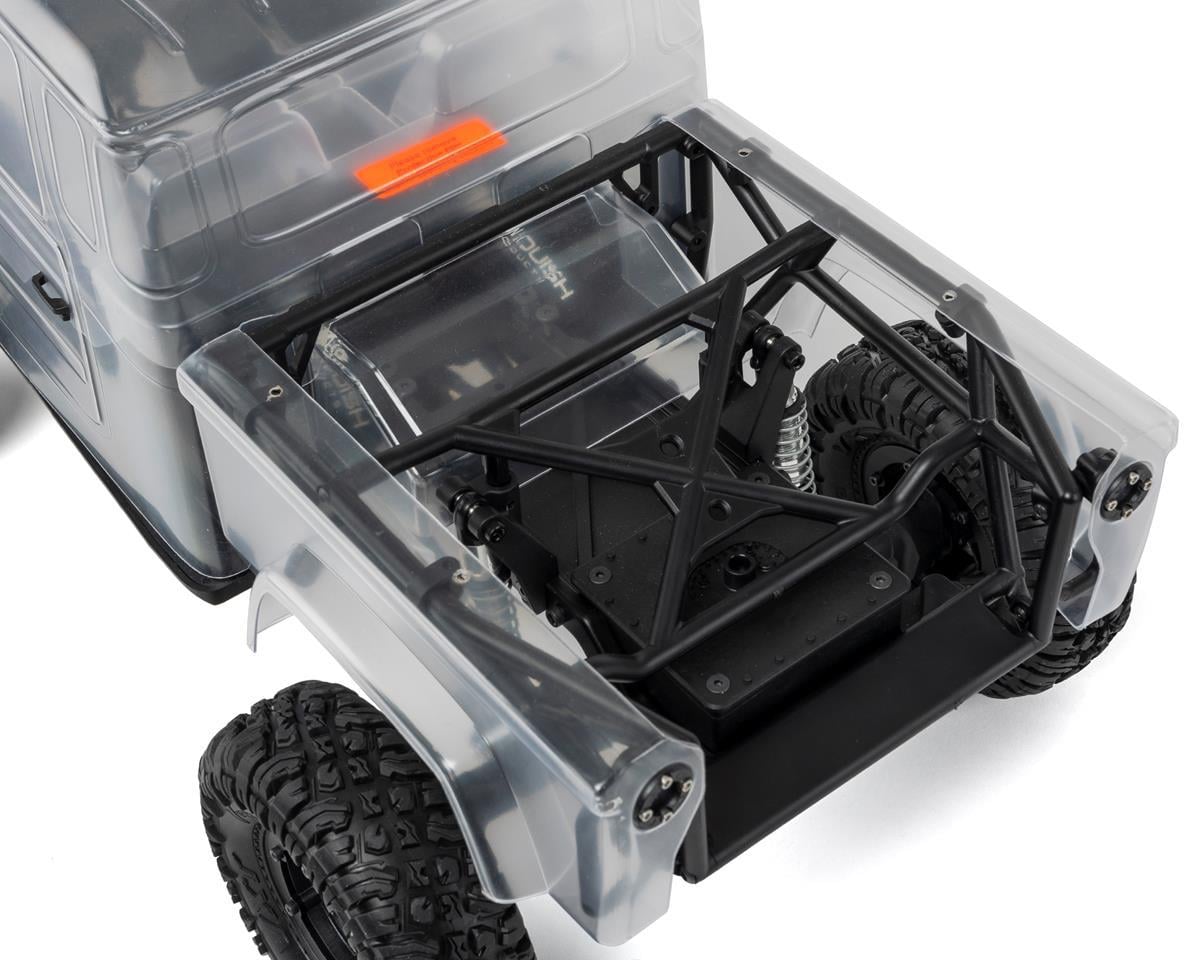

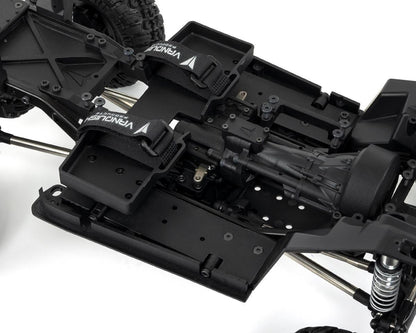

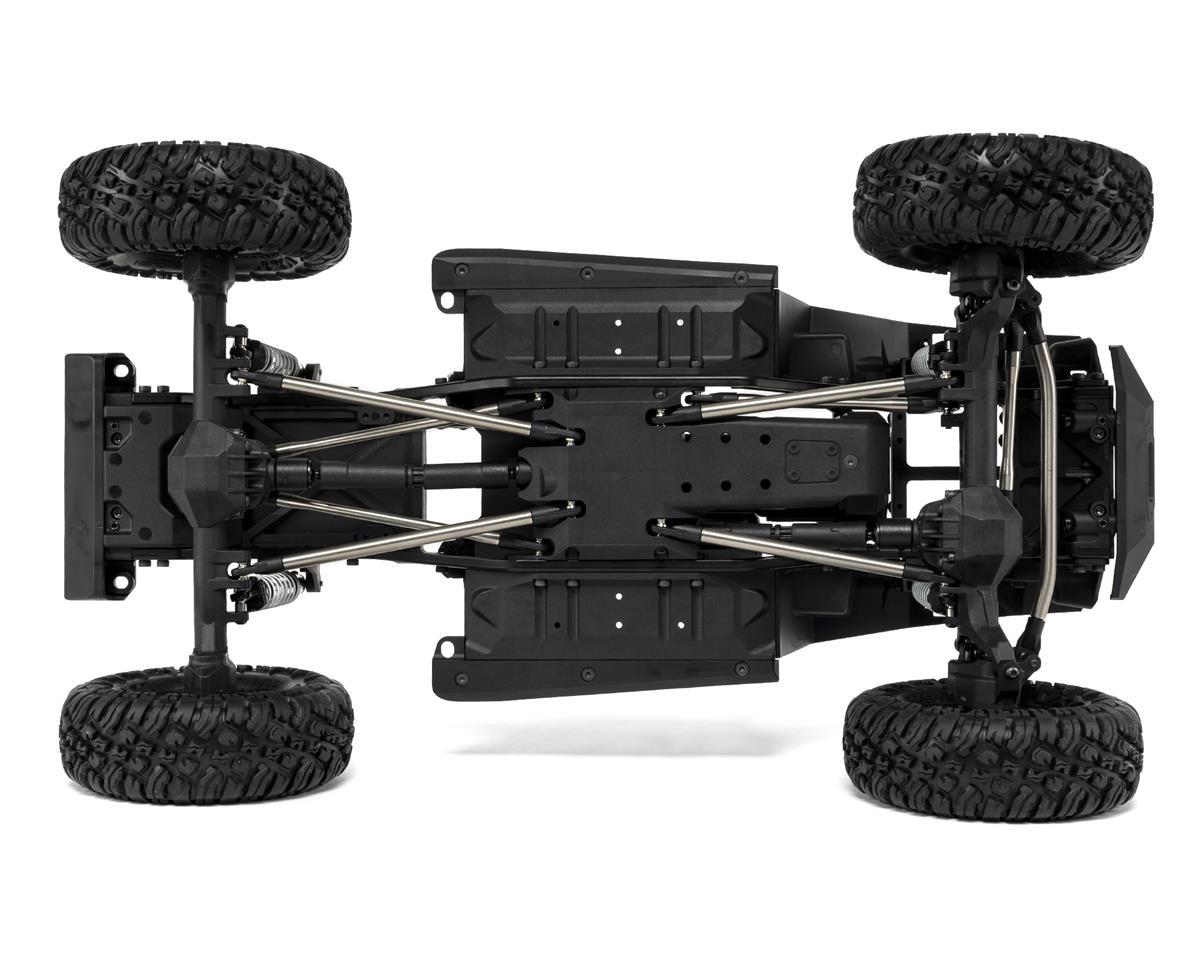

The steel C-channel VS4-10 chassis uses molded front and rear cross members, Phoenix rock sliders, and high-clearance bumpers. Incision 80mm S8E shocks feature 8mm bore threaded bodies, dual X-rings, and polished steel shafts. The three-piece Phoenix body includes removable bed sides, a hinged design, hidden body clips, a full interior, and molded detail parts.

Includes

• VS4-10 Phoenix Portal 1/10 Rock Crawler Kit
• VFD Twin Transmission Assembly
• (4) Incision 80mm S8E Shocks

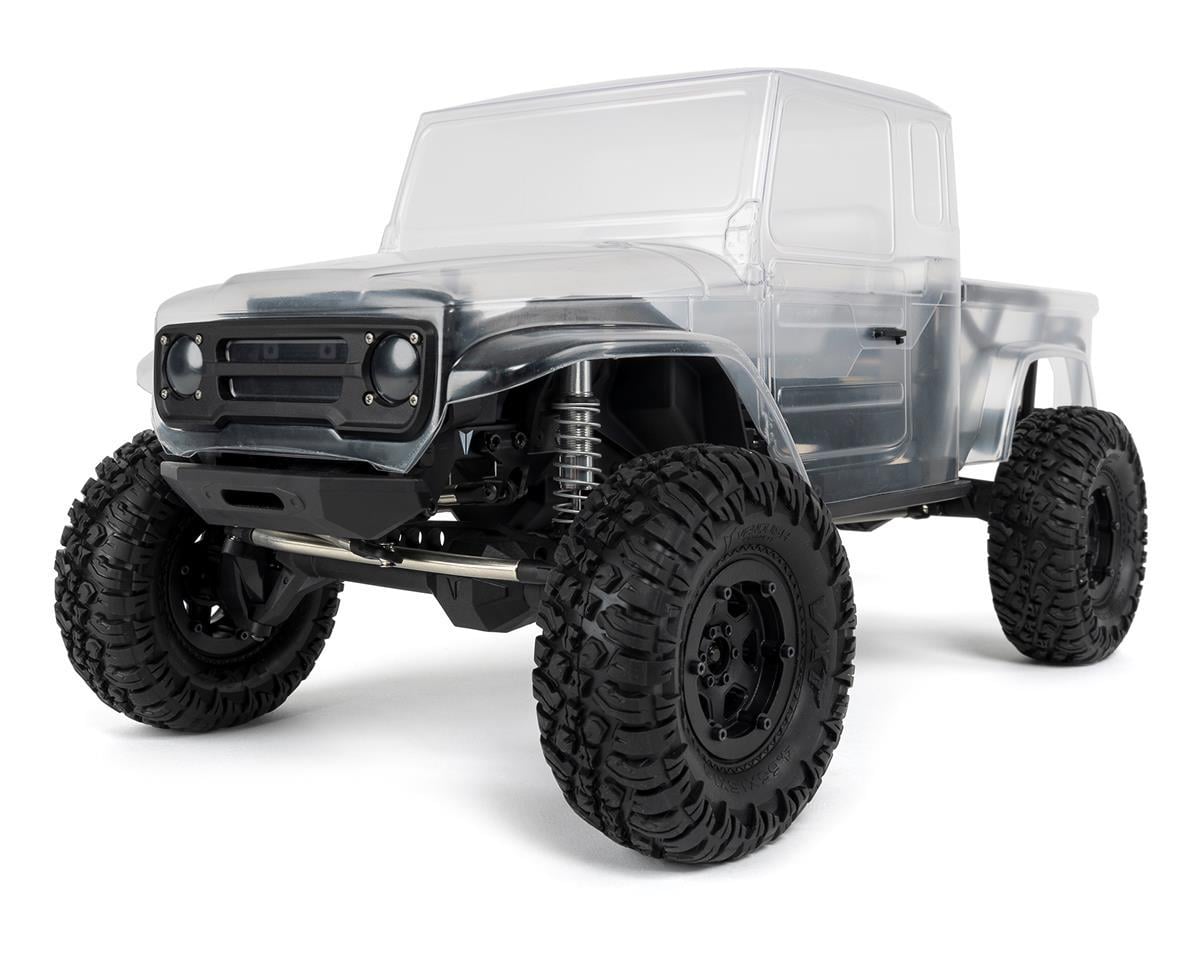

• Clear Phoenix Body
• (4) 1.9-inch Falken Wildpeak MT Tires
• (4) 1.9-inch Incision KMC KM237 Riot Molded Beadlock Wheels
• 15T 32P Pinion Gear
• 52T 32P Spur Gear
• 30wt Shock Oil Bottle
• Threadlock Container
• Grease Container
• Product Manual

Needed to Complete

• 4+ Channel Transmitter/Receiver System
• Battery
• 540 Class Motor
• ESC (Electronic Speed Control)
• Compatible Steering Servo (Vanquish 20mm servo horn recommended)
• Compatible Battery Charger
• (2) Standard or Low Profile Servos for Dig/Overdrive (for VFD Twin Functionality)
• (2) 24mm Servo Horns (for VFD Twin Functionality)
• Paint for Body
• Assembly Tools

Specifications

• Scale: 1:10
• Drive: 4WD
• Power Source: Electric
• Wheelbase: 12.32in (313mm)
• Width: 9.84in (250mm)
• Height: 9.84in (250mm)
• Assembly Level: Kit

This is an unassembled RC model kit requiring assembly, selected electronics, and other racer-provided items.
