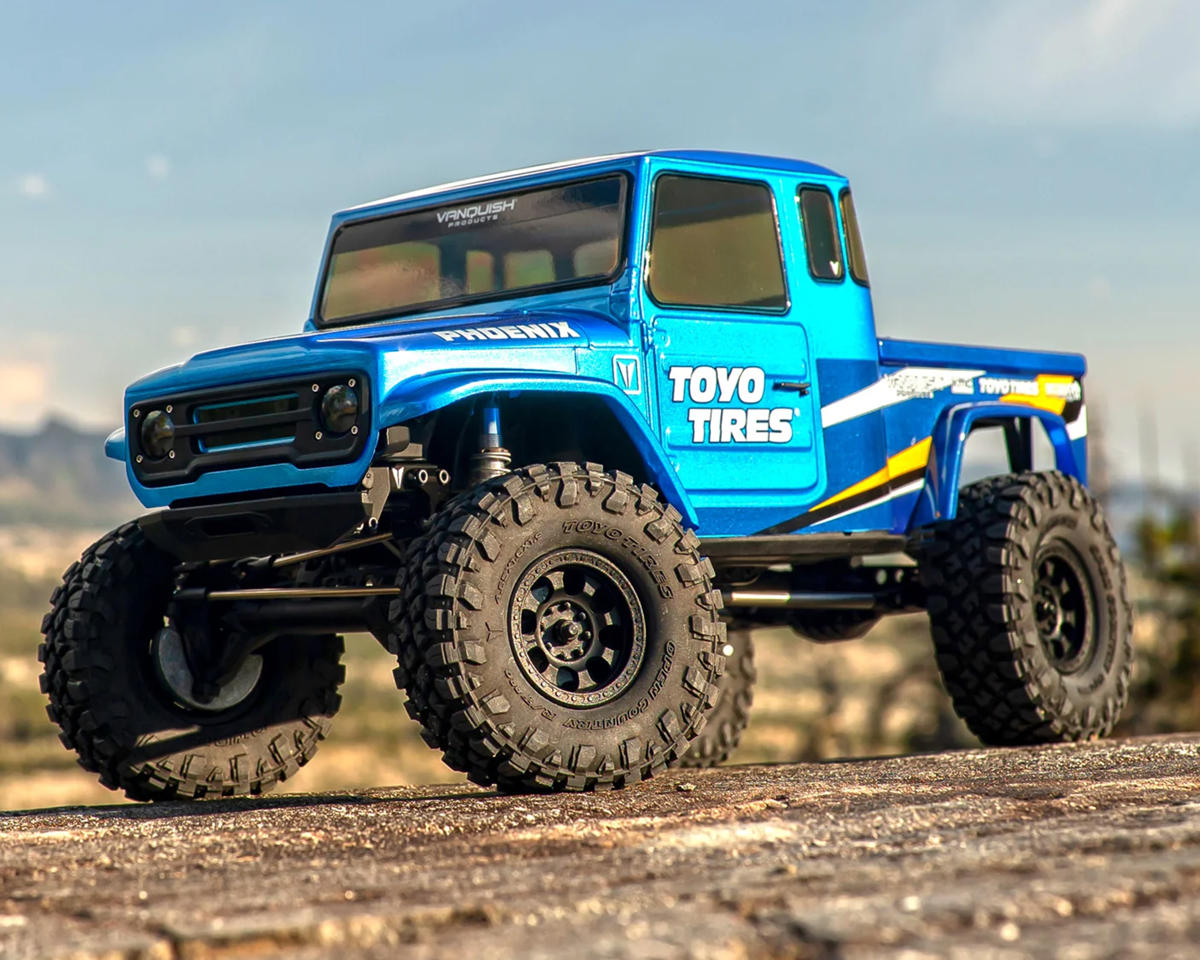

Vanquish Products VS4-10 Phoenix Portal 1/10 RTR Brushed Rock Crawler

The Vanquish Products VS4-10 Phoenix Portal 1/10 RTR Brushed Rock Crawler combines scale-inspired Toyo Edition styling with a capable portal-axle drivetrain and ready-to-run electronics. Its VFD Spec transmission features 6.5% overdrive and a forward-mounted motor for improved weight distribution, while the 35T VM-1 brushed motor provides the power for trail and technical crawling.

Features

• 6.5% overdrive built into the VFD Spec transmission
• Forward-mounted motor for improved weight distribution
• Chromoly universal axle shafts with 49° steering angle
• Brass inner axle tube reinforcements for added strength and low center of gravity
• Full metal internal transmission gears
• High-pinion hypoid machined gear design
• CV-style driveshaft joints for smooth articulation and reduced torque twist
• Hidden body clip system with quick-access hinged front design
• High-clearance bumpers and rock sliders
• Double shear shock mounts for increased suspension strength and stability

Scale Details

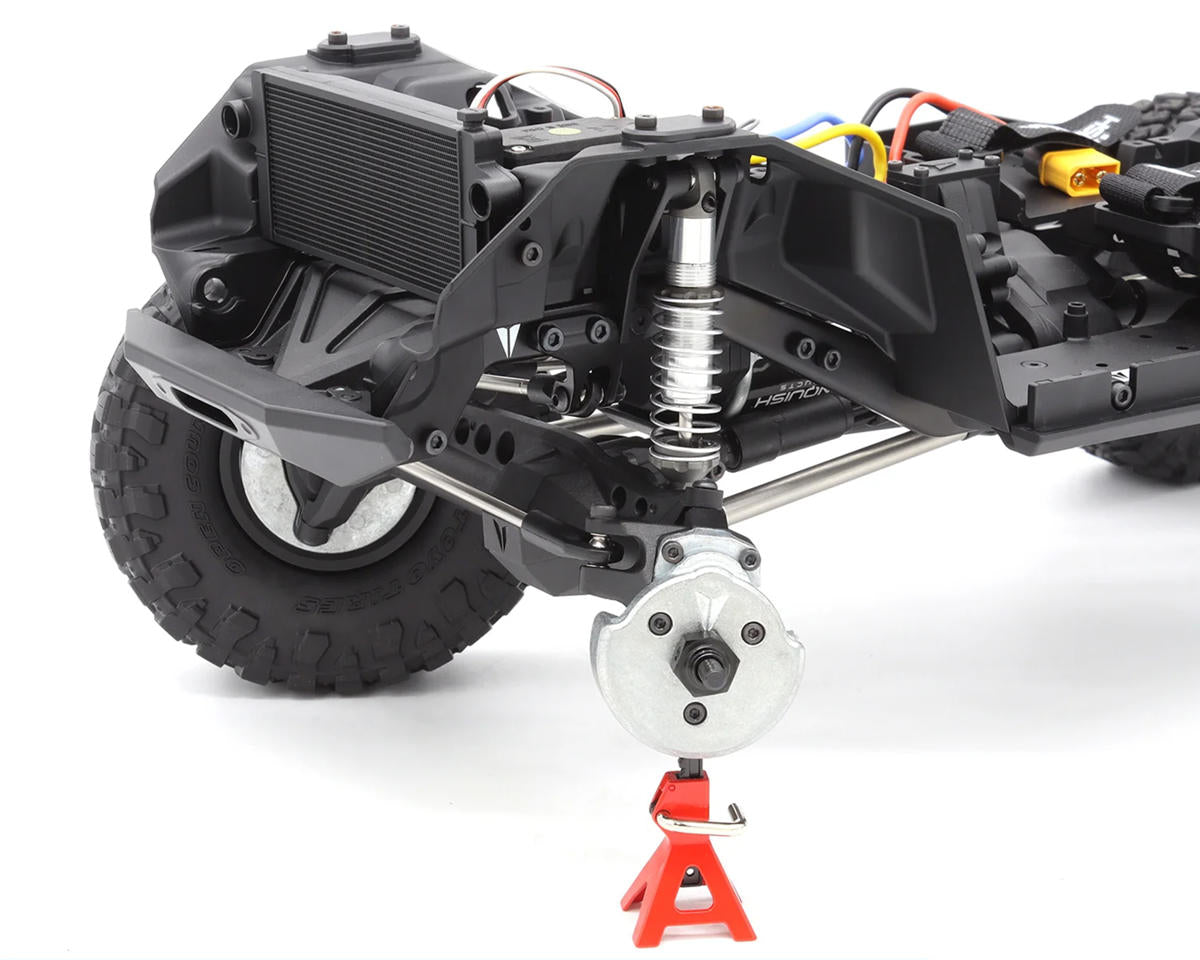

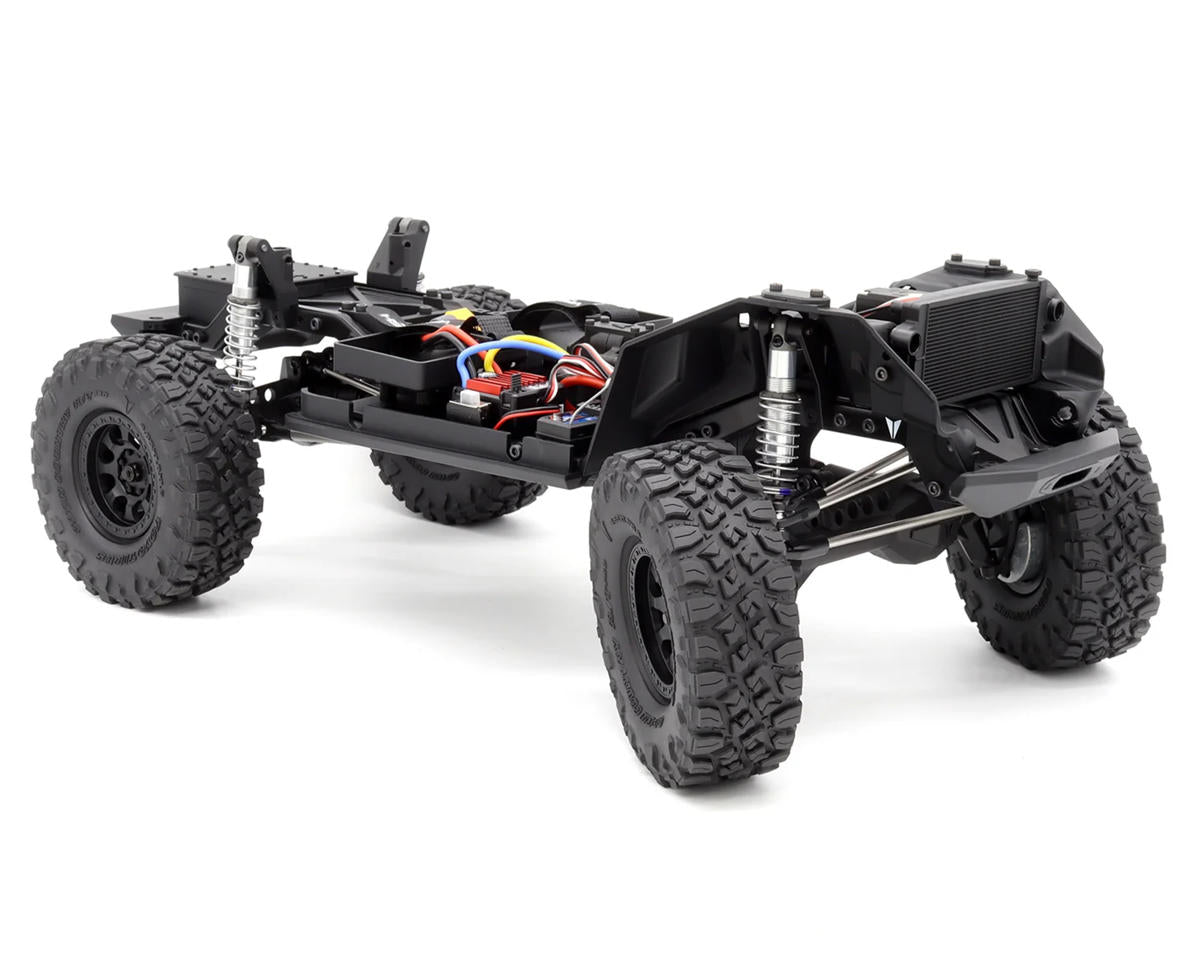

The pre-painted three-piece body includes a VRD1 rear cage, painted cab and bedsides, molded grille, headlight and tail light buckets, and hidden body clips. The 1.9 Toyo Tires Open Country R/T Pro tires are mounted on Incision KMC KM237 Hex Beadlock wheels. Molded F10 portal axles, stainless steel suspension links, machined aluminum panhard mount, and S8E shocks complete the trail-focused chassis.

Electronics

• Pre-installed 3S-capable VE-1 ESC with XT60 connector
• Pre-installed VM-1 35T brushed motor
• Pre-installed VS-1 metal gear servo
• VT-1 4-channel transmitter

Includes

• VS4-10 Phoenix Portal 1/10 RTR Brushed Rock Crawler
• Pre-installed 3S Capable VE-1 ESC with XT60 Connector
• Pre-installed VM-1 35T Brushed Motor
• Pre-installed VS-1 Metal Gear Servo
• VT-1 4-Channel Transmitter
• Product Manual

Needed to Complete

• 2-3S LiPo or 6-Cell NiMH Battery with XT60 Connector
• Compatible Battery Charger
• 4 AA Batteries for Transmitter

Specifications

• Scale: 1:10
• Power Source: 2S-3S LiPo (7.4-11.1V)
• Wheelbase: 12.32in (313mm)
• Width: 9.84in (250mm)
• Height: 9.84in (250mm)
• Weight: 95.24oz (2700g)
• Motor: Brushed
• ESC: Brushed
• Connector: XT60
• Servo: VS-1 Metal Gear
• Front Tires: Toyo Tires Open Country R/T Pro
• Rear Tires: Toyo Tires Open Country R/T Pro
• Hex: 12mm
• Assembly Level: RTR*

*Tech Note: Ready-to-Run models come equipped with all electronics and include the transmitter needed for use. Check the Needed to Complete list for the remaining equipment required.
