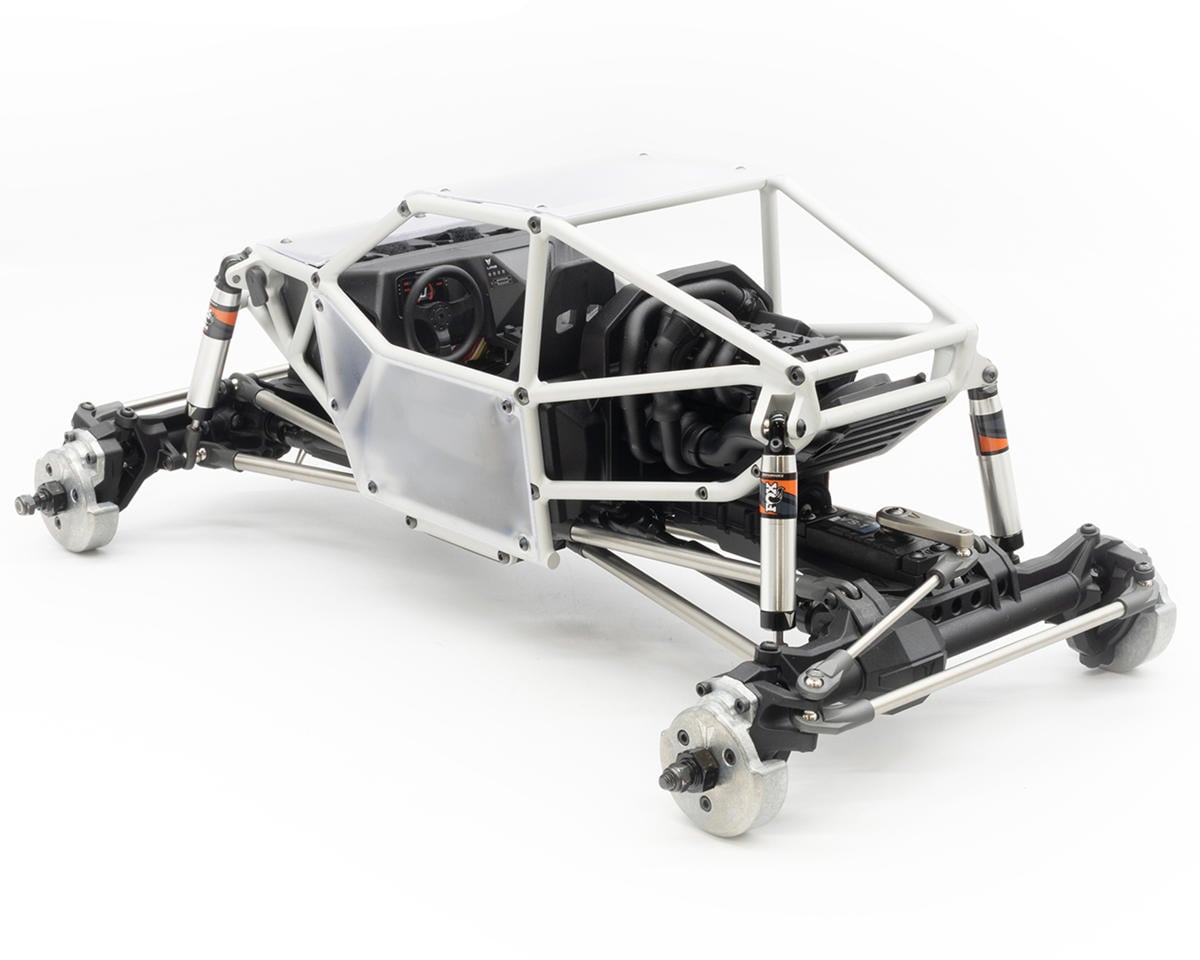

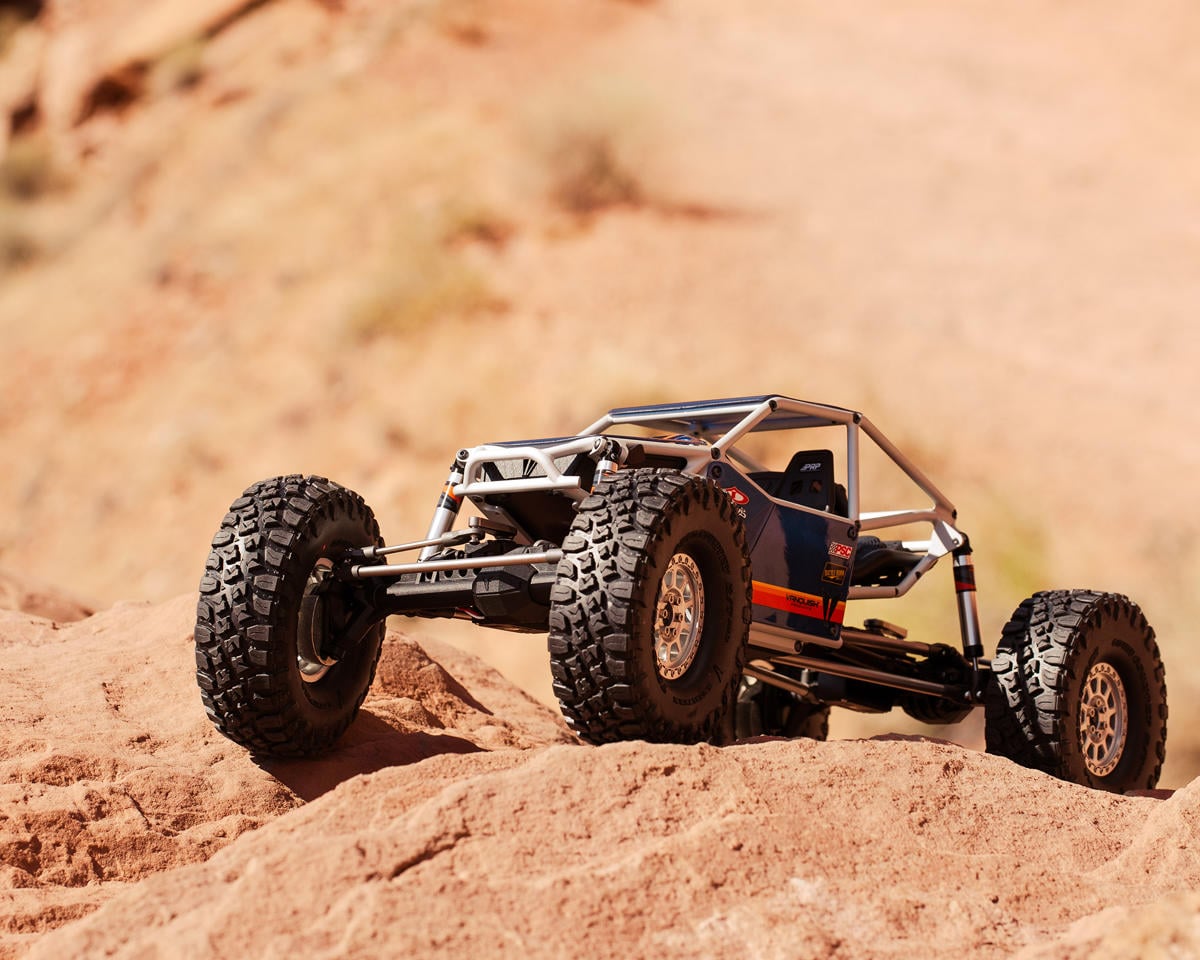

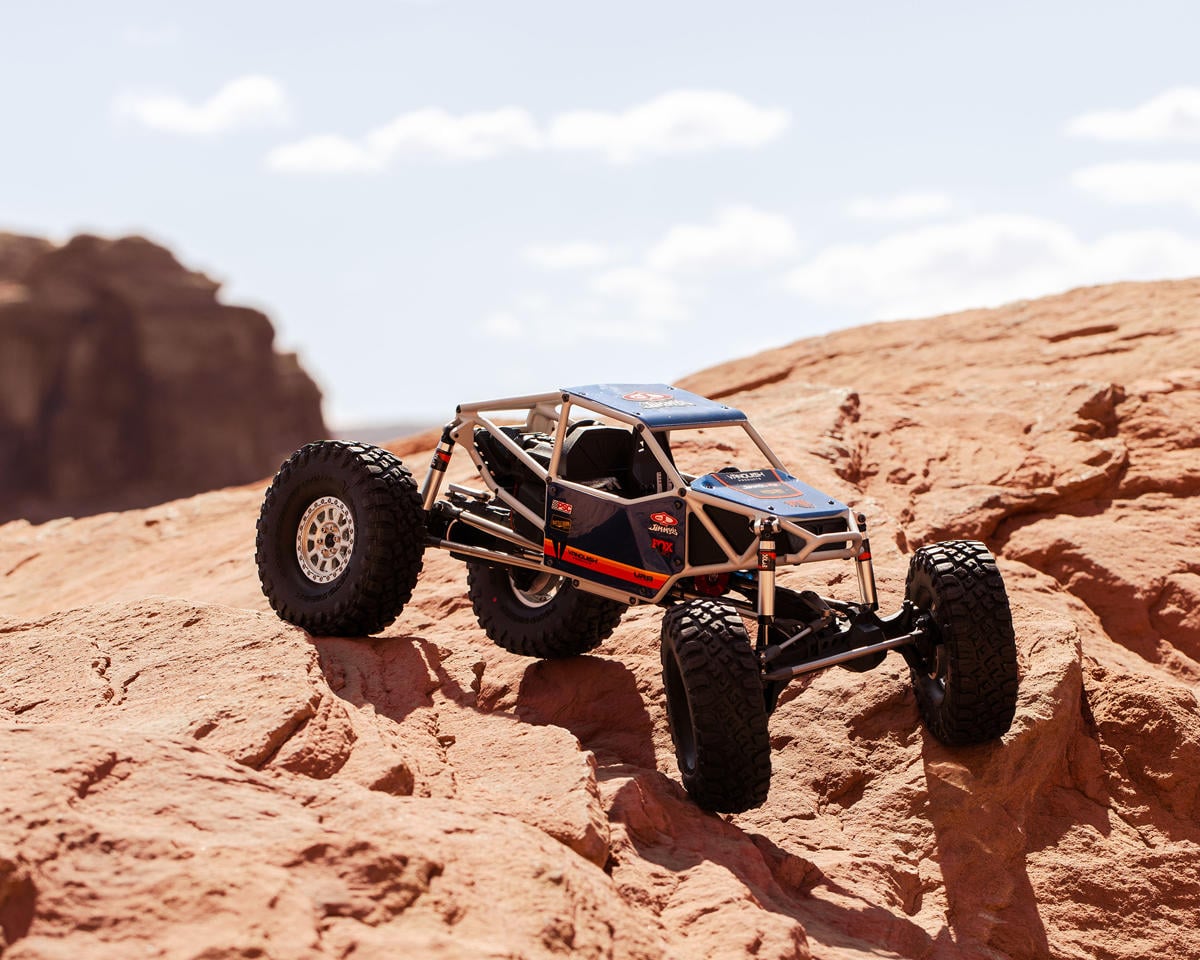

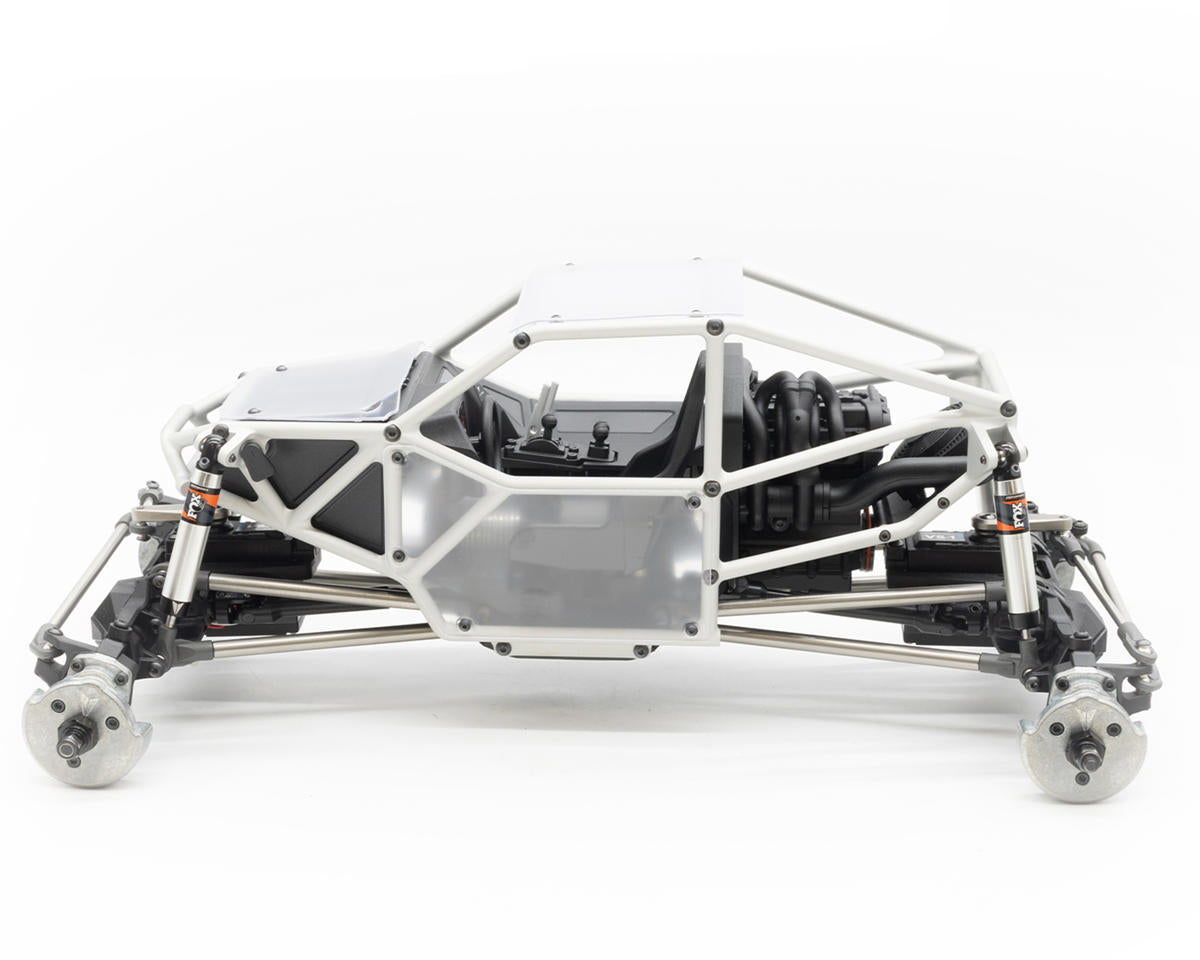

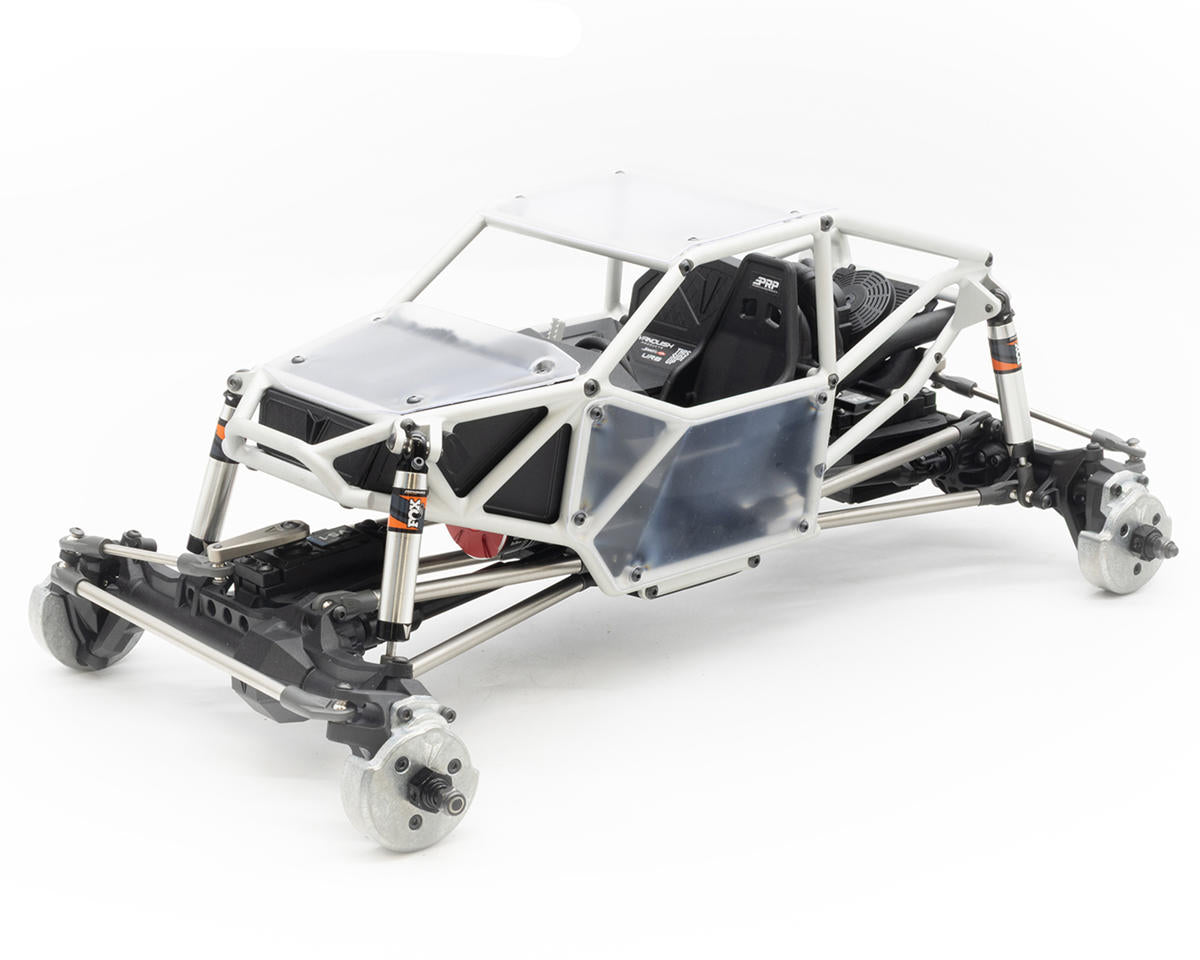

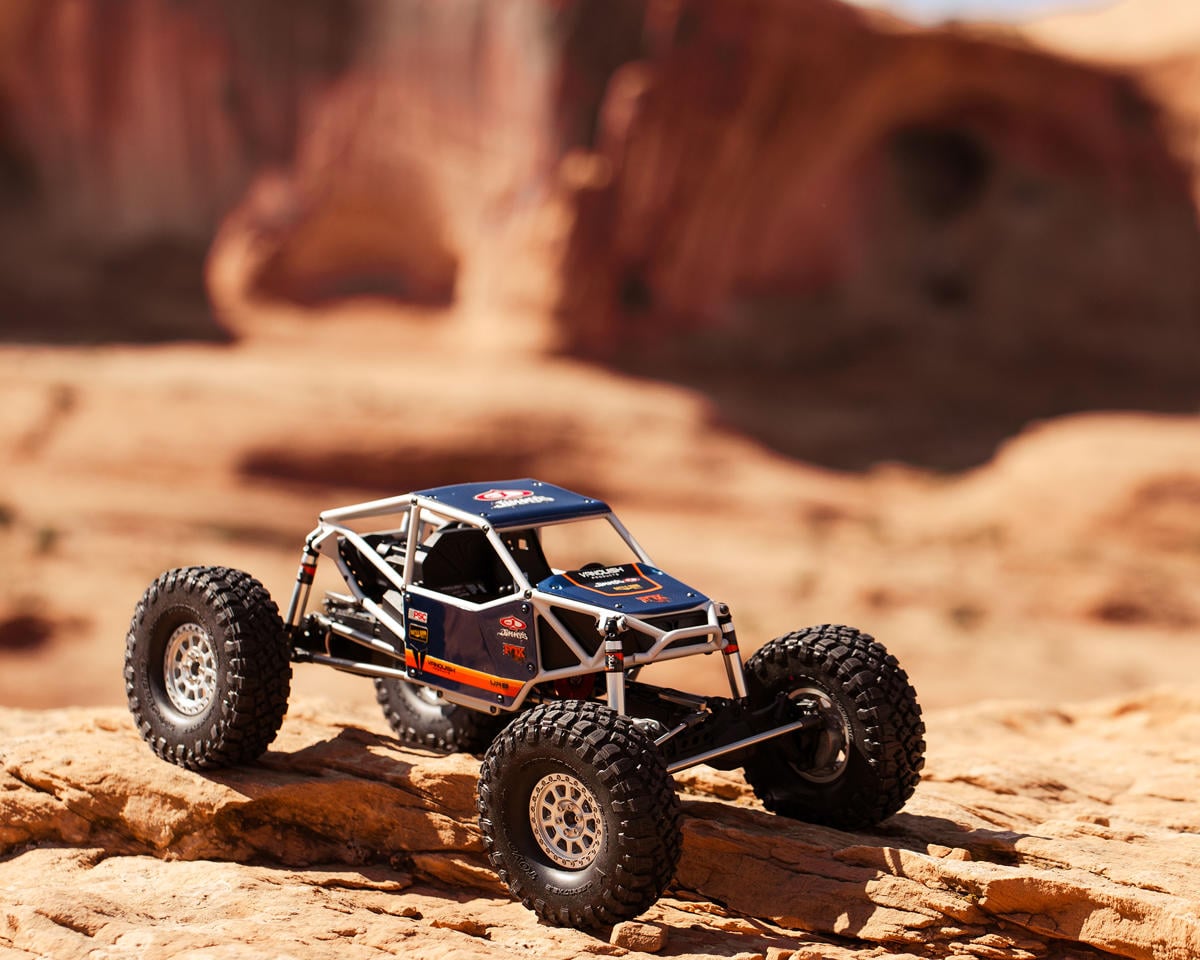

The Vanquish Products URB “Jimmys Moonbuggy” Rock Crawler Kit is a 1:10, 4WD rock buggy kit with four-wheel steering capability, an LFD transmission with integrated dig unit, plastic Currie F10W axles and FOX S8I oil-filled shocks.
Features
Officially licensed Jimmy's 4x4 aluminum cage
LFD transmission with integrated dig unit
Hardened steel gears and shafts
Plastic Currie F10W axles
Wider axle stance for stability
Driver-side offset pumpkin design
FOX S8I oil-filled shocks
Dual internal spring suspension setup
High-offset Crawl Spec Sierra wheels
Four-wheel steering capability
Includes
(1) URB Rock Crawler Kit

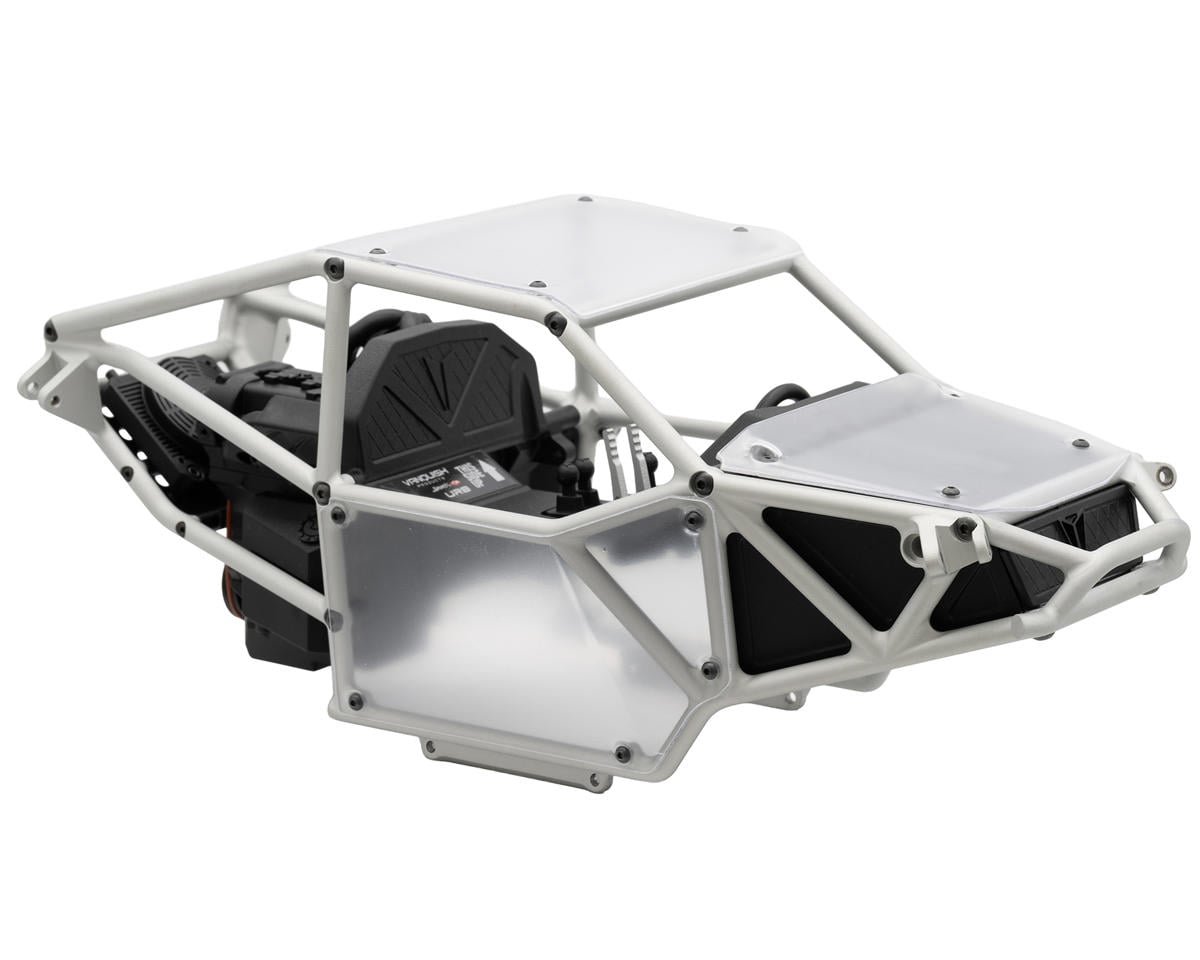

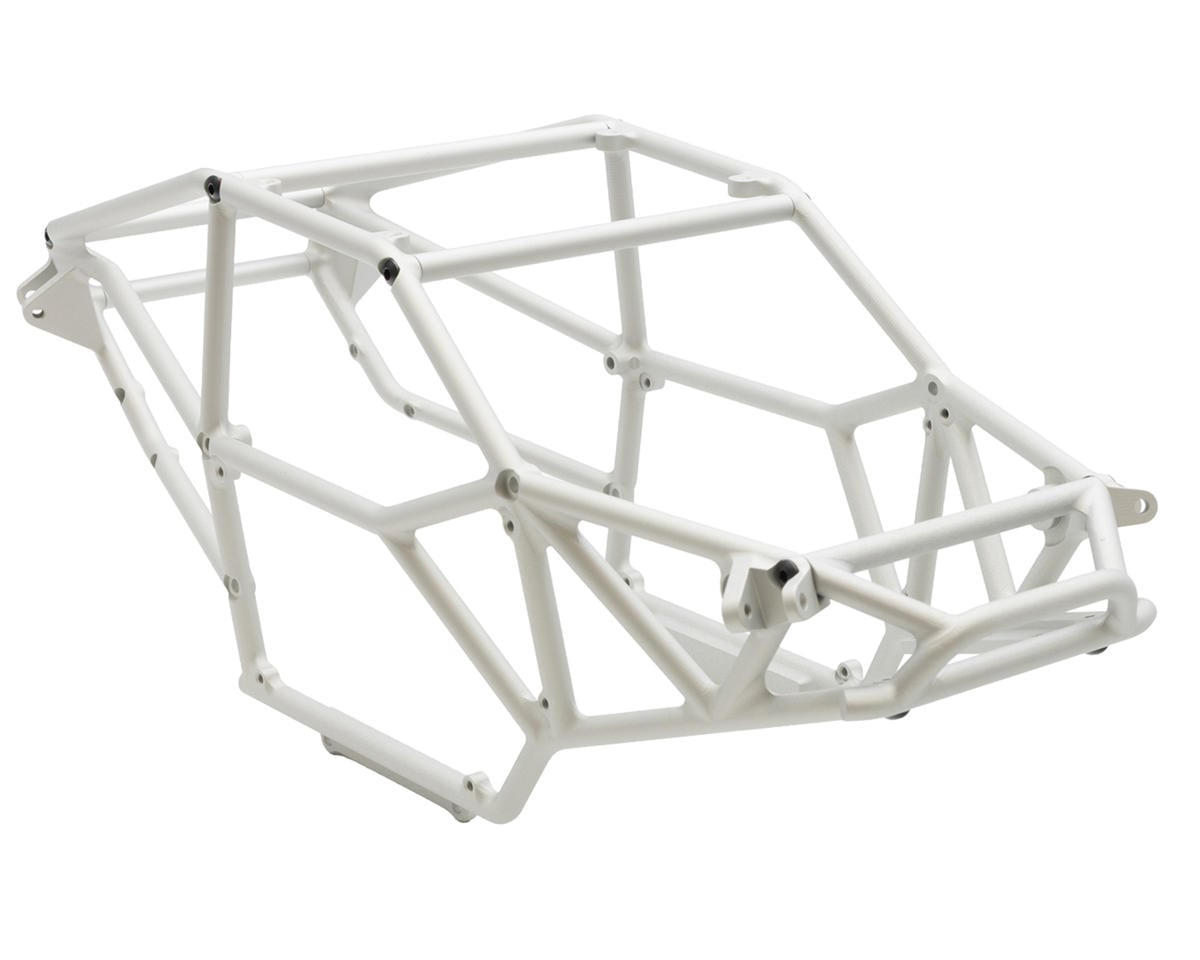

(1) Jimmy's 4x4 Aluminum Cage
(1) LFD Transmission
(2) F10W Axles
(4) FOX S8I Shocks

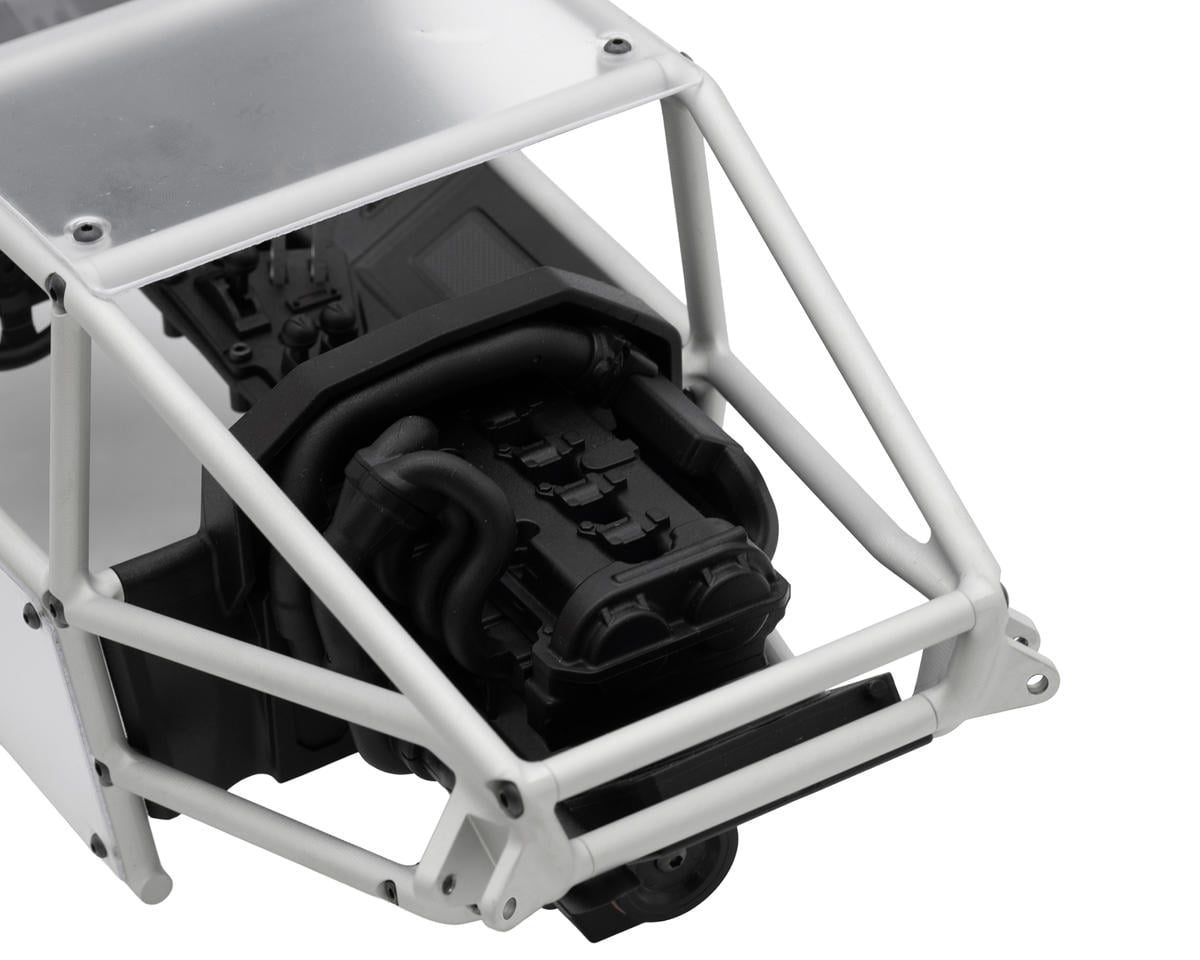

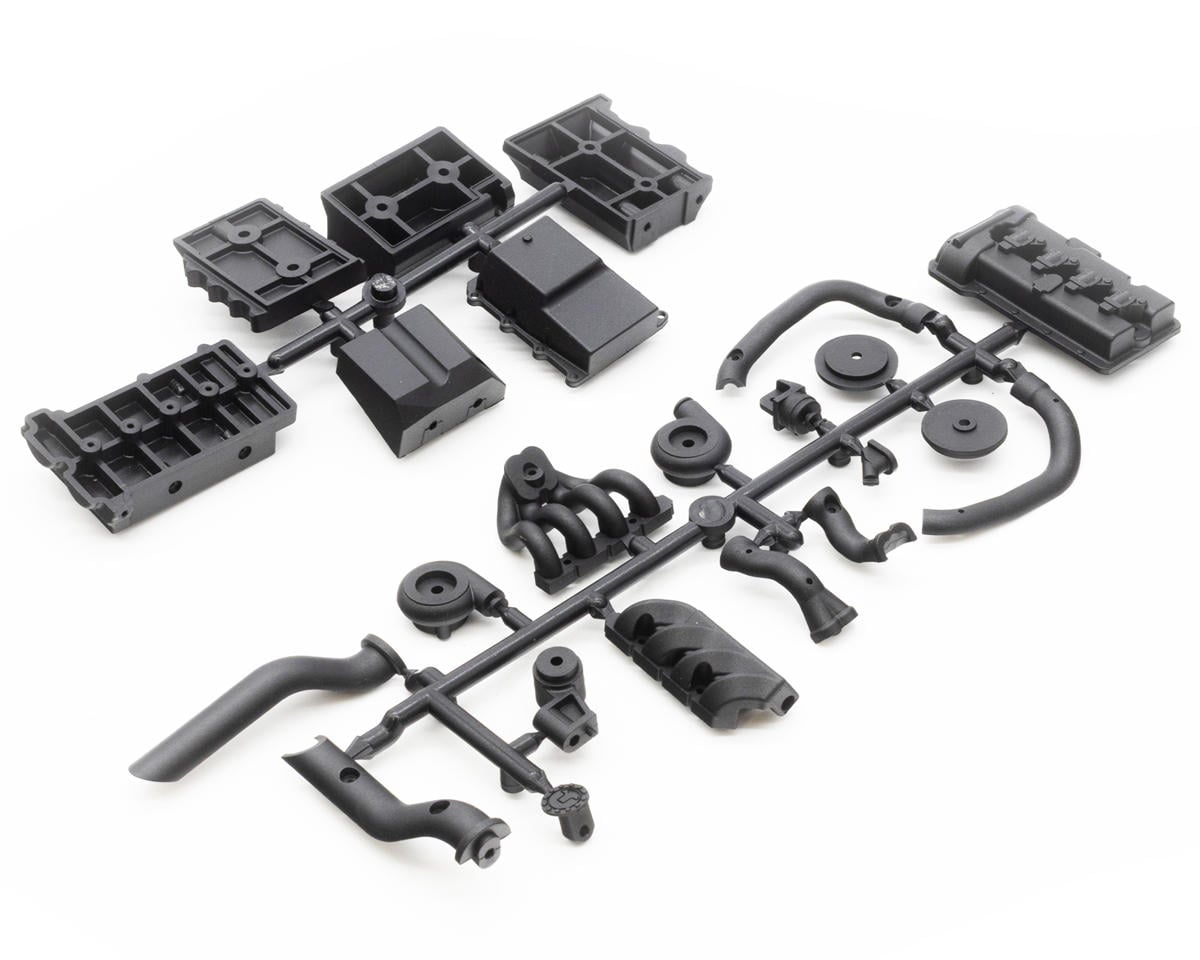

(1) Detailed Engine Model

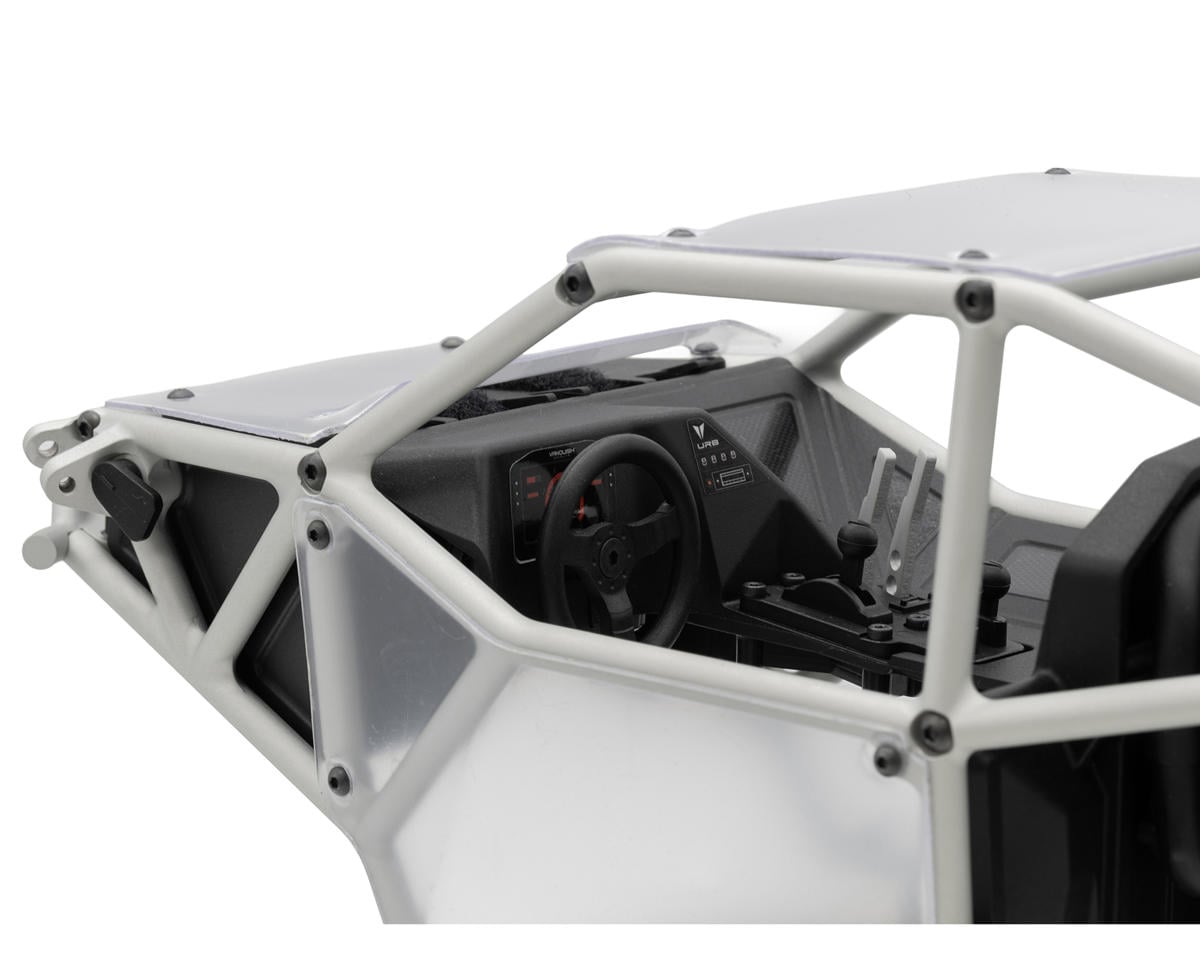

(1) Interior And Driver Figure
(3) 25T Aluminum Servo Horns
(1) Product Manual
Specifications
Scale: 1:10
Drive: 4WD
Power Source: 2-4S LiPo (7.4V-20V)
Wheelbase: 13.3in (339mm)
Width (Hex to Hex): 8.4in (215.5mm)
Assembly Level: Kit*
Needed to Complete
(1) 2+ Channel Transmitter/Receiver System
(1) 2-4S (7.4V - 20V) LiPo Battery
(1) 540 Class Motor
(1) ESC (Electronic Speed Control)
(2) High-Torque Steering Servos (25T Servo Horn is Included)
(1) DIG Low-Profile Servo (25T Servo Horn is Included)
(4) 2.2" Tires
(4) 2.2" Wheels
Paint for Body
Assembly Tools
Tech Note: A low-Profile servo with a 25T output spline is required for the DIG unit.
