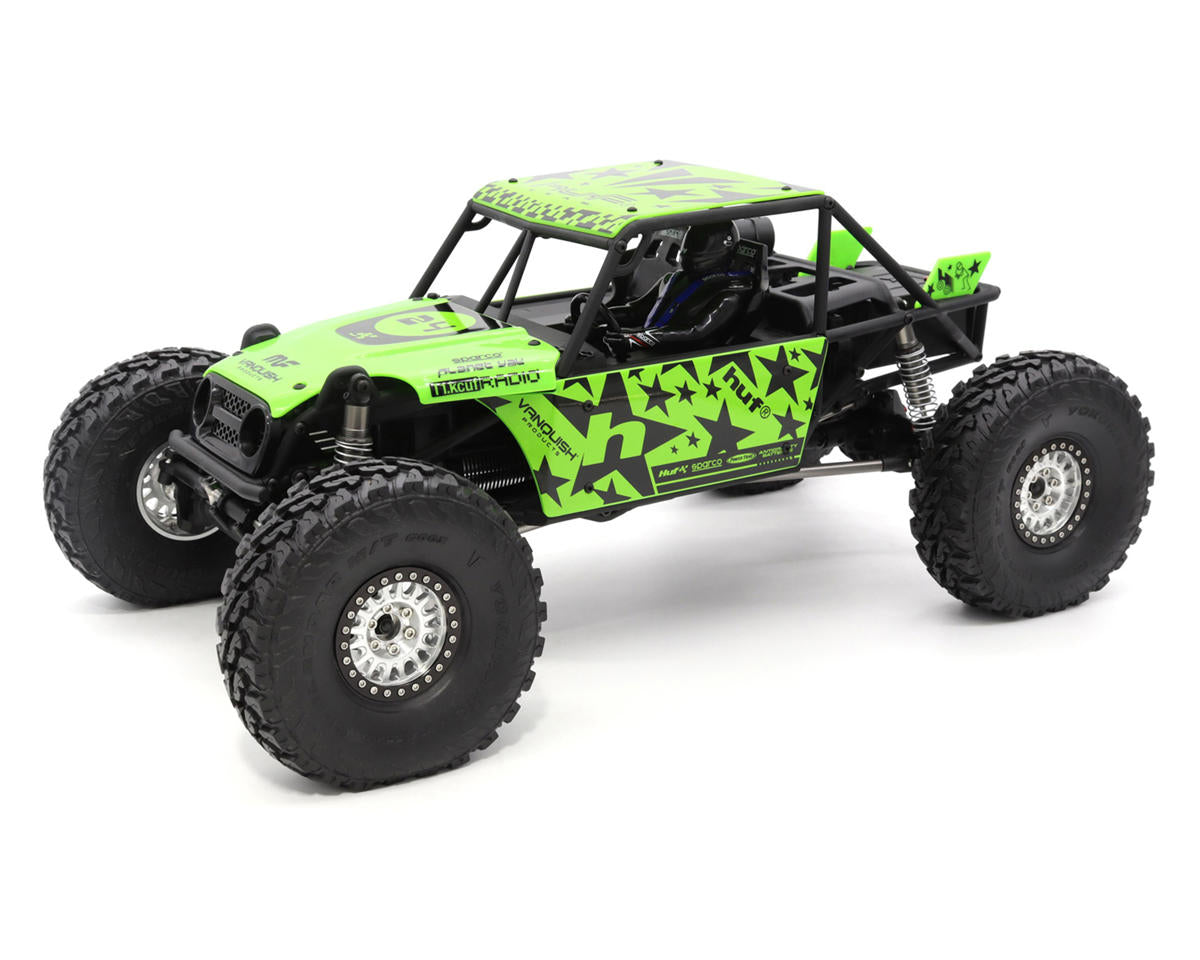

Vanquish Products H10 Optic 1/10 4WD Rock Crawler Kit (ALL SALES FINAL)

The Vanquish Products H10 Optic 1/10 4WD Rock Crawler Kit features a molded cage chassis, randomly selected hard body design and scale body panels with a hidden battery tray. Its VFD transmission uses machined aluminum motor and bearing plates, while the H10 axles combine hidden servo placement, a scale steering ram, machined hypoid gears and chromoly spools.

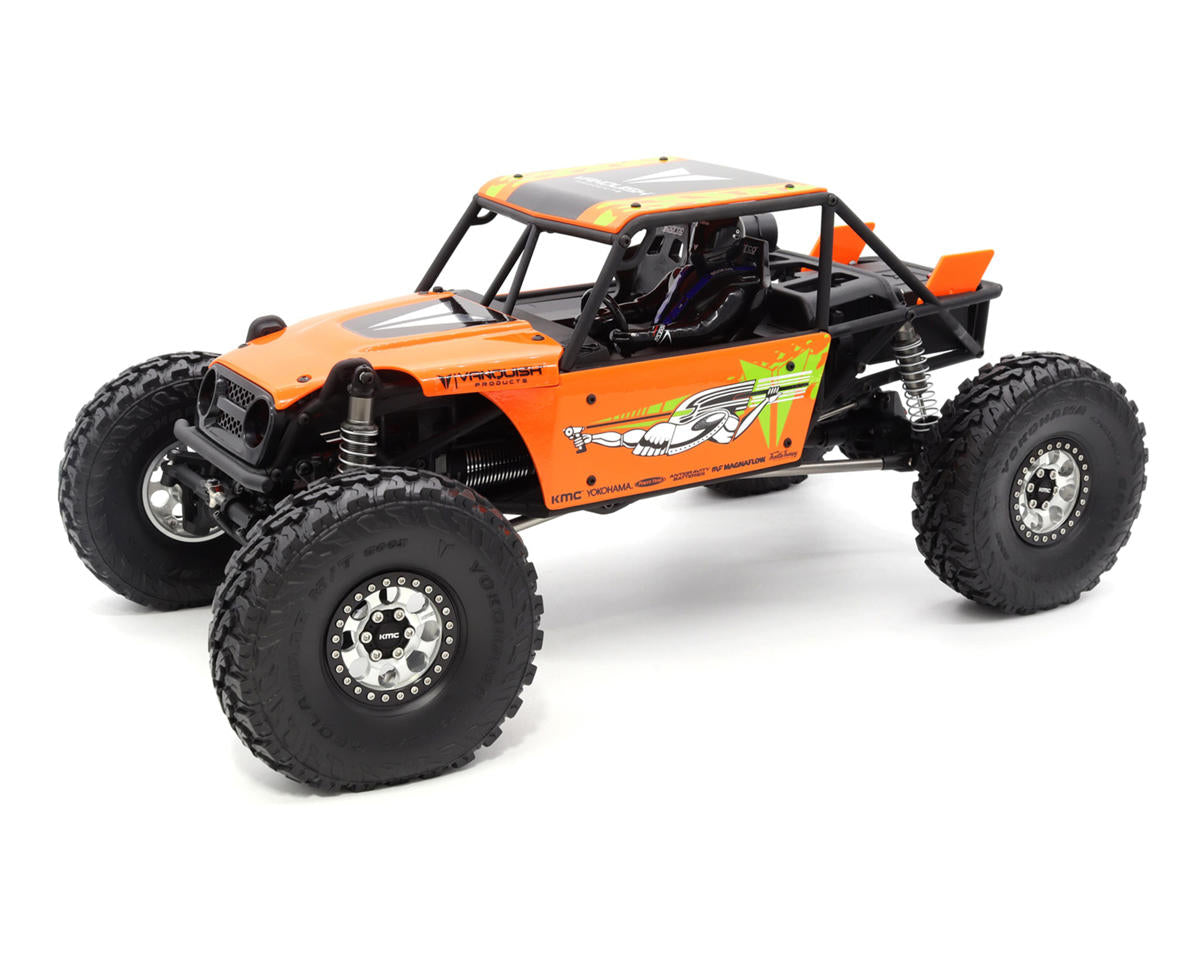

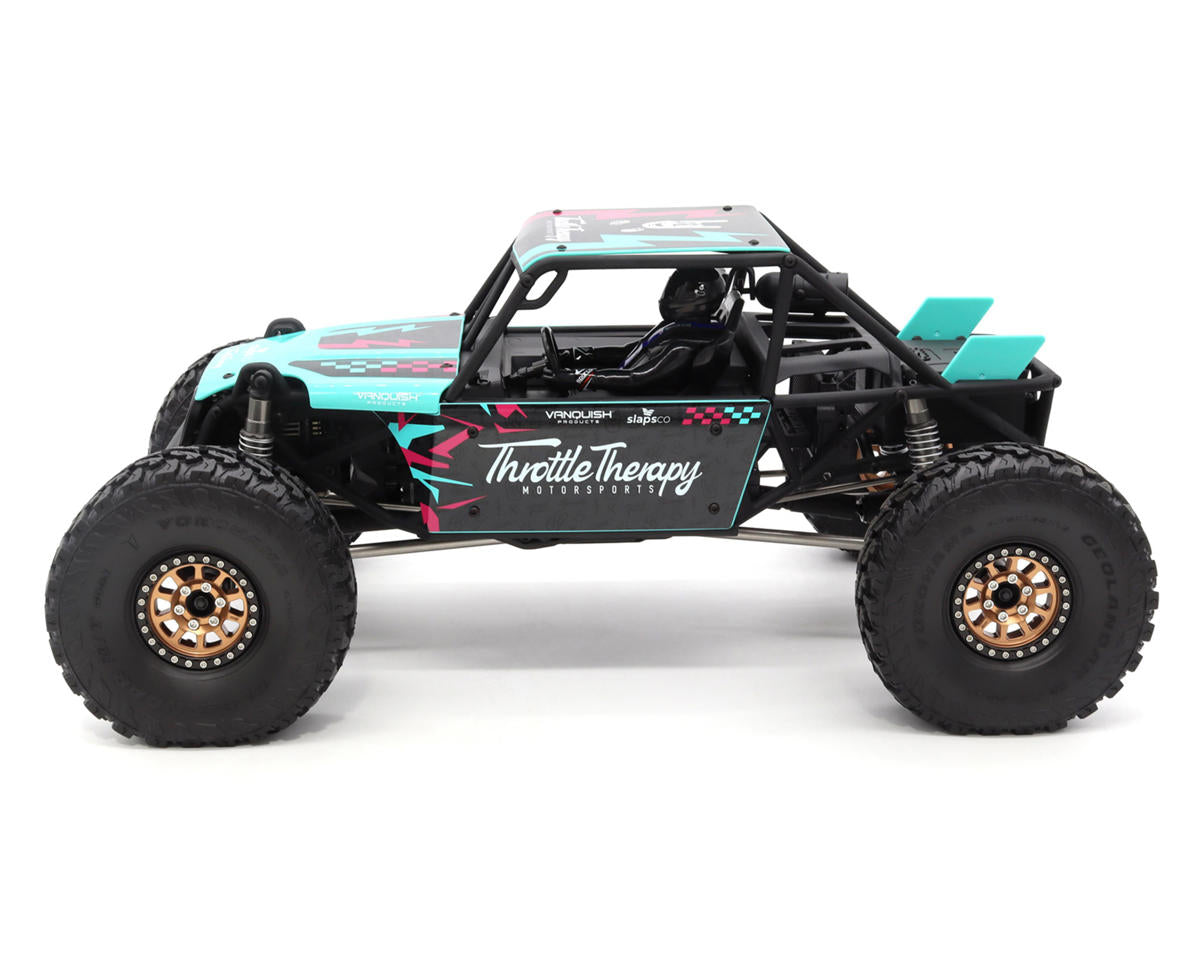

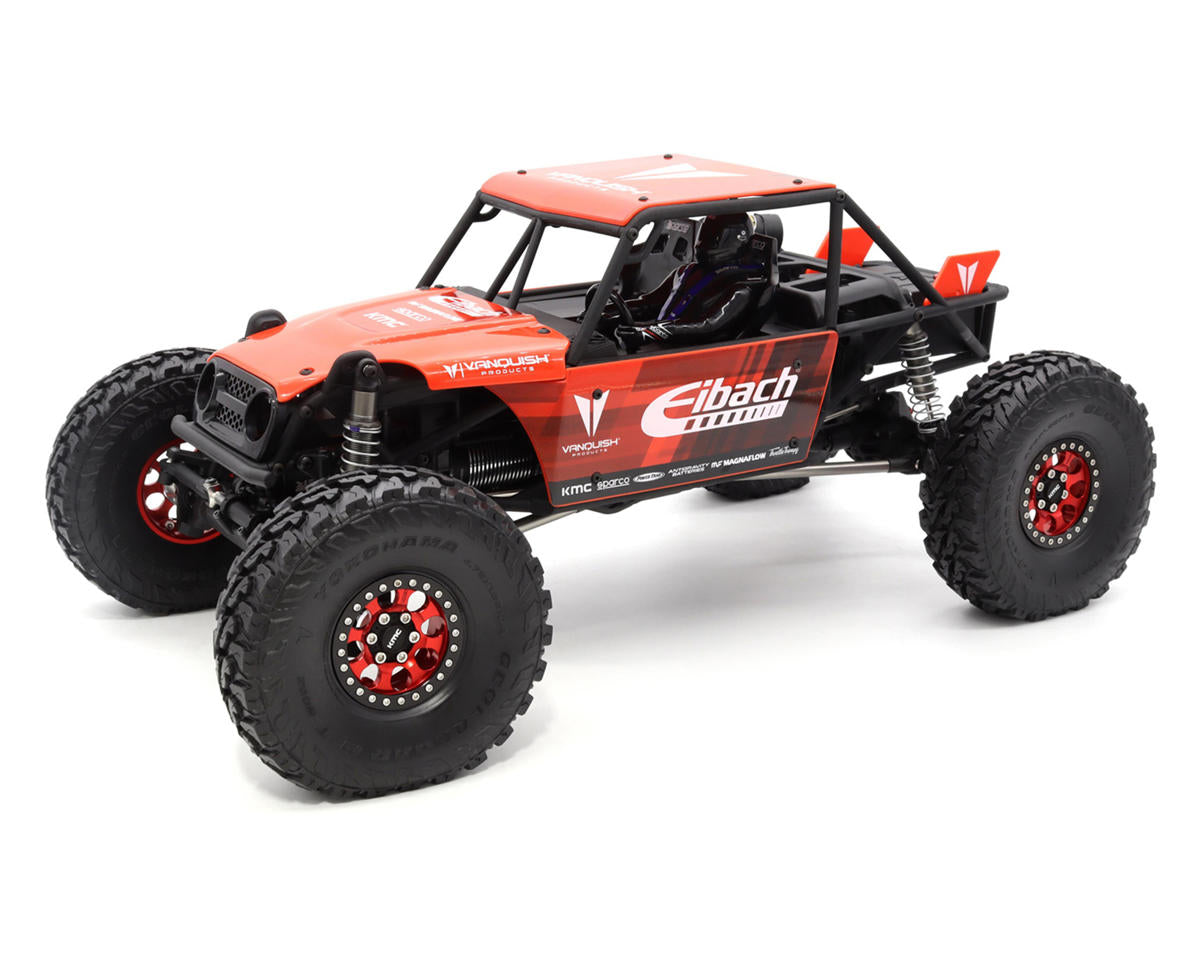

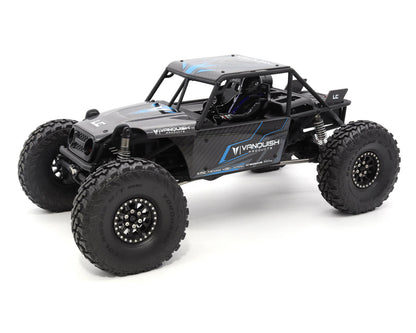

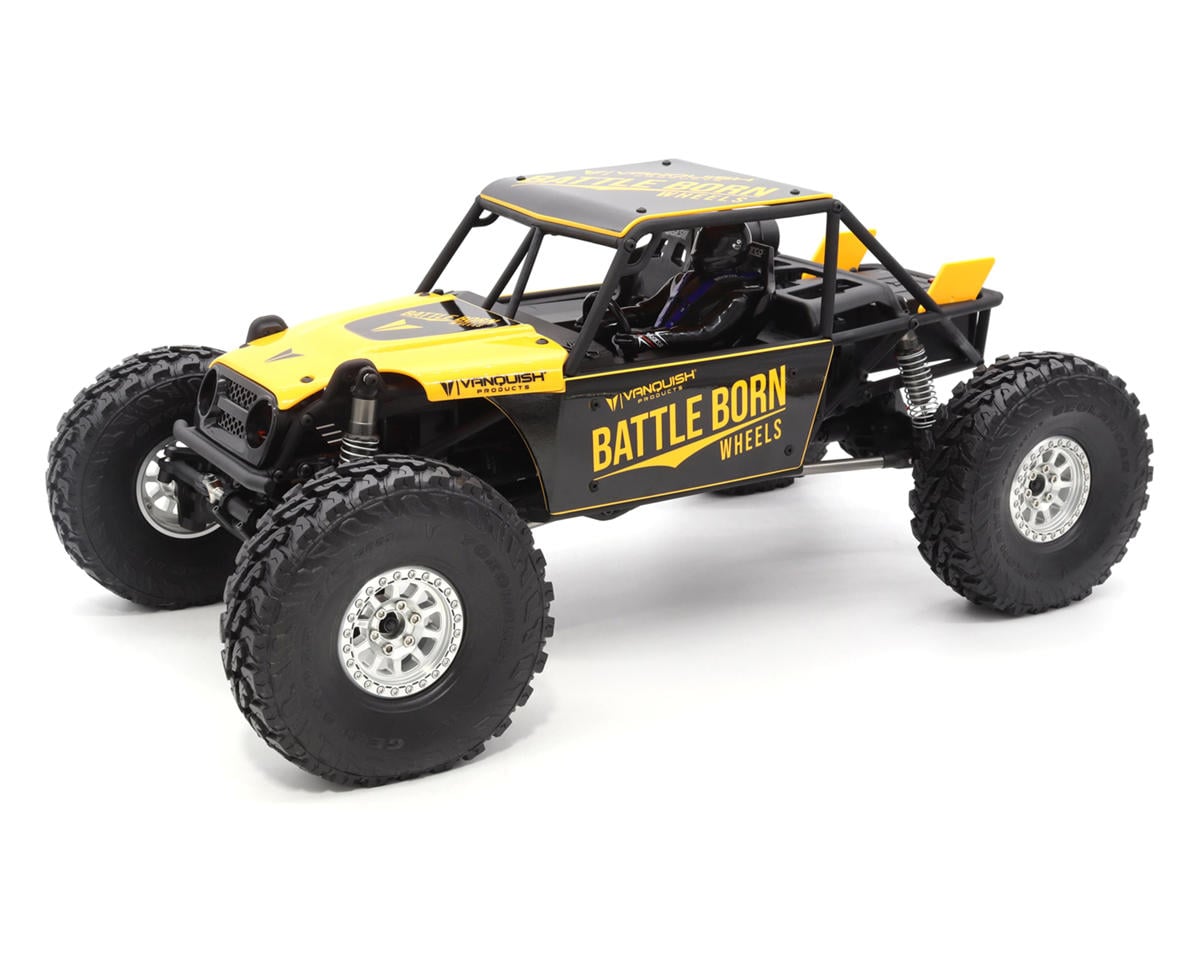

Each kit includes a randomly selected livery, with the possibility of an exclusive secret variant. Specific color requests cannot be accommodated. All sales are final, and returns or exchanges are not accepted.

Features

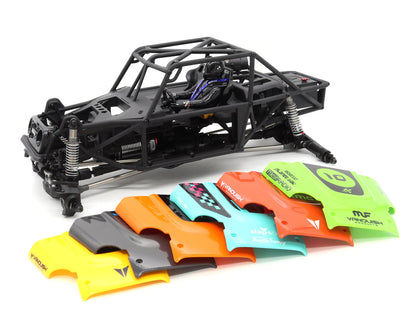

• Random hard body design and scale body panels
• Molded cage chassis
• Hidden battery tray and electronics mounting locations
• VFD transmission with machined aluminum motor plate and bearing plates

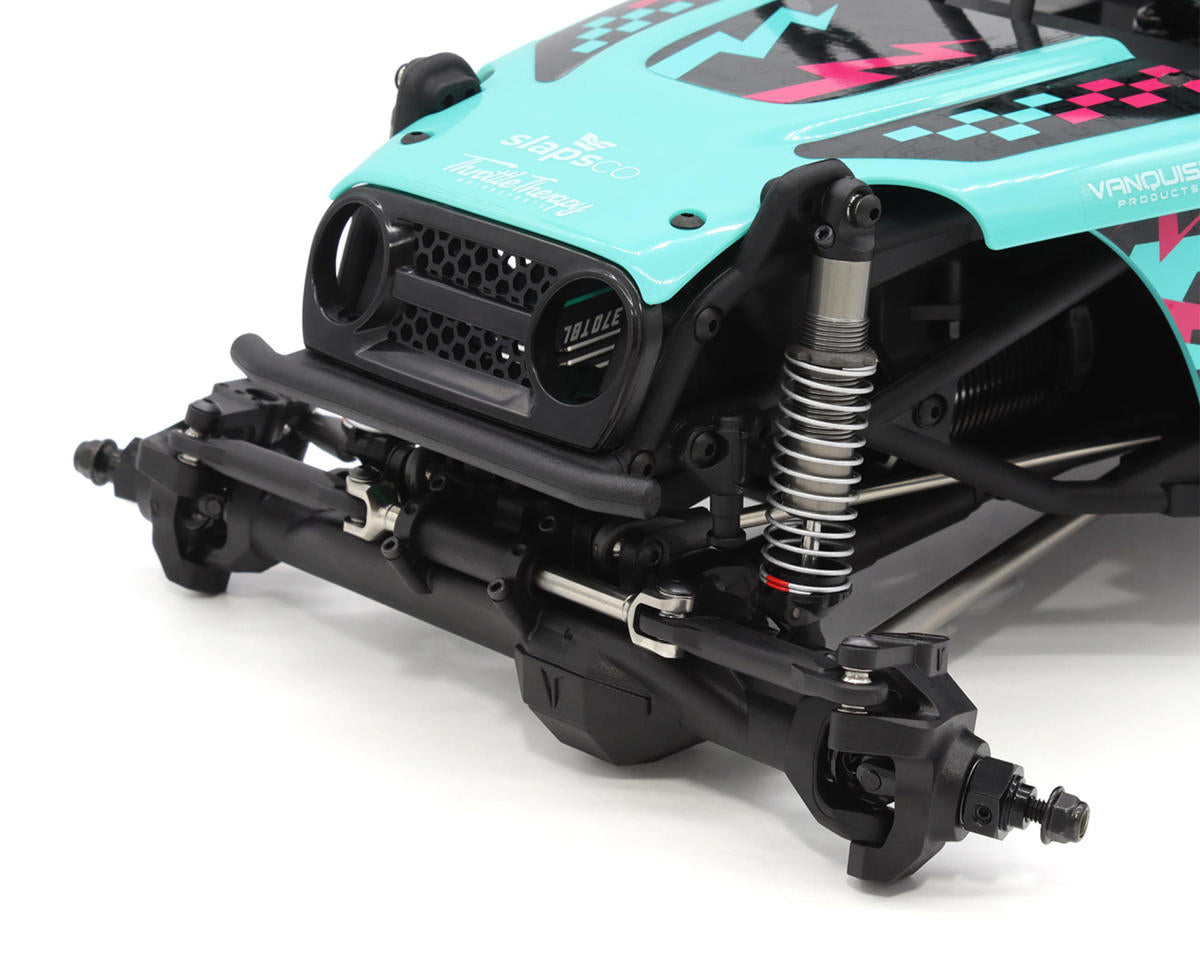

• H10 axles with hidden servo and scale steering ram
• Incision S8E shocks
• Stainless steel front and rear 4-link design
• Machined hypoid gears and chromoly spools

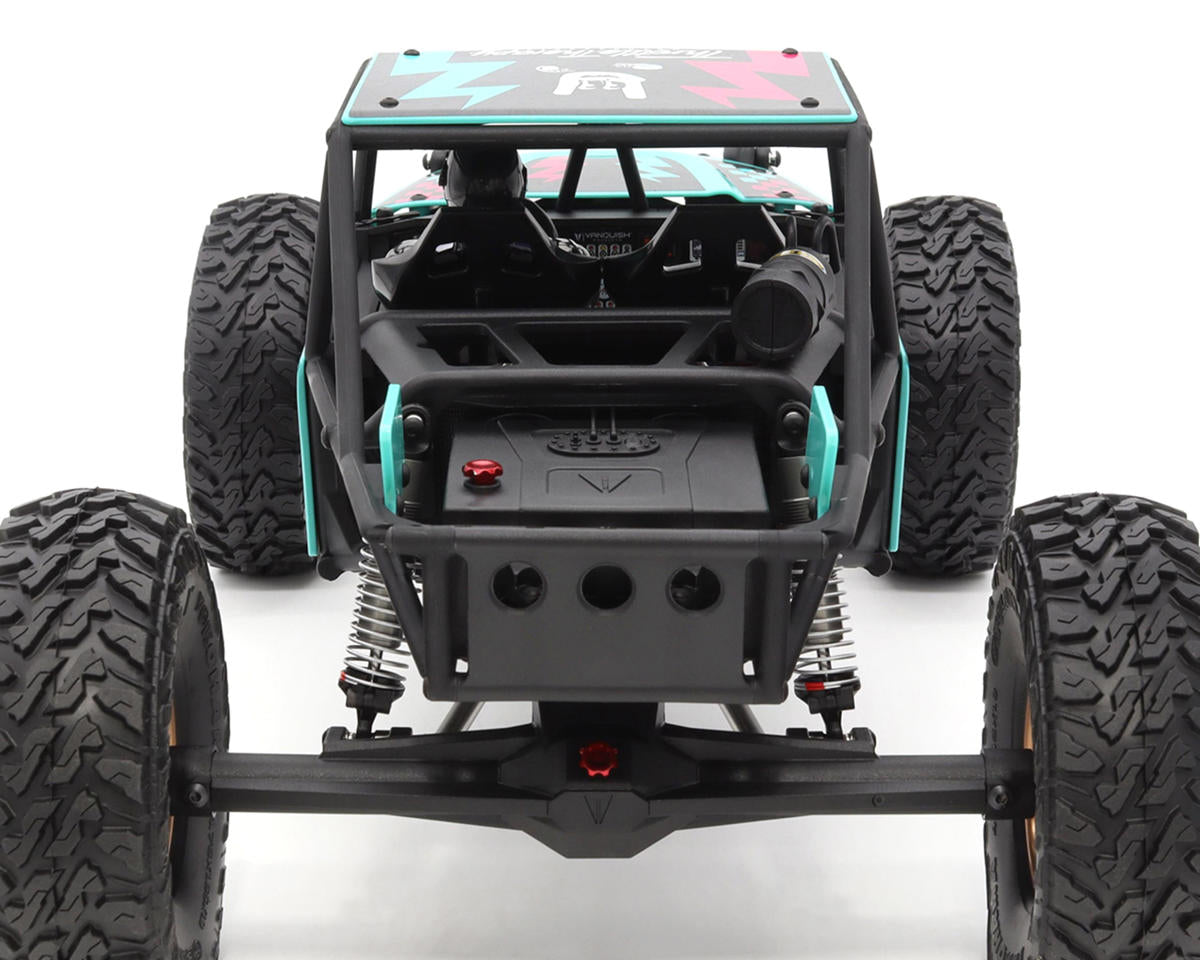

• Scale Powertank and fuel cell in the bed of the cage

Specifications

• Scale: 1:10
• Drive: 4WD
• Power Source: 2-3S LiPo
• Length: 18in (457.2mm)
• Wheelbase: 13.26in (337mm)
• Width: 8.11in (206mm)
• Height: 7.8in (198mm)
• Battery Compartment: 3.66x1.42x1.65in (93x36x42mm)

Includes

• H10 Optic 1/10 4WD Rock Crawler Kit
• Manual

Needed to Complete

• 3+ Channel Transmitter/Receiver System
• Compatible Steering Servo; a 25T spline 20mm Servo Horn is included
• ESC (Electronic Speed Controller)
• 540 Size Motor
• 2-3S LiPo Battery (7.4-11.1V)
• Compatible Battery Charger
• Four 1.9" Wheels; Vanquish Products or SLW Hub Compatible wheels required
• Four 1.9x4.75" Tires (recommended)

This is an unassembled RC kit requiring assembly, user-selected electronics and other user-provided items. Photos of the assembled kit are for illustrative purposes only.
