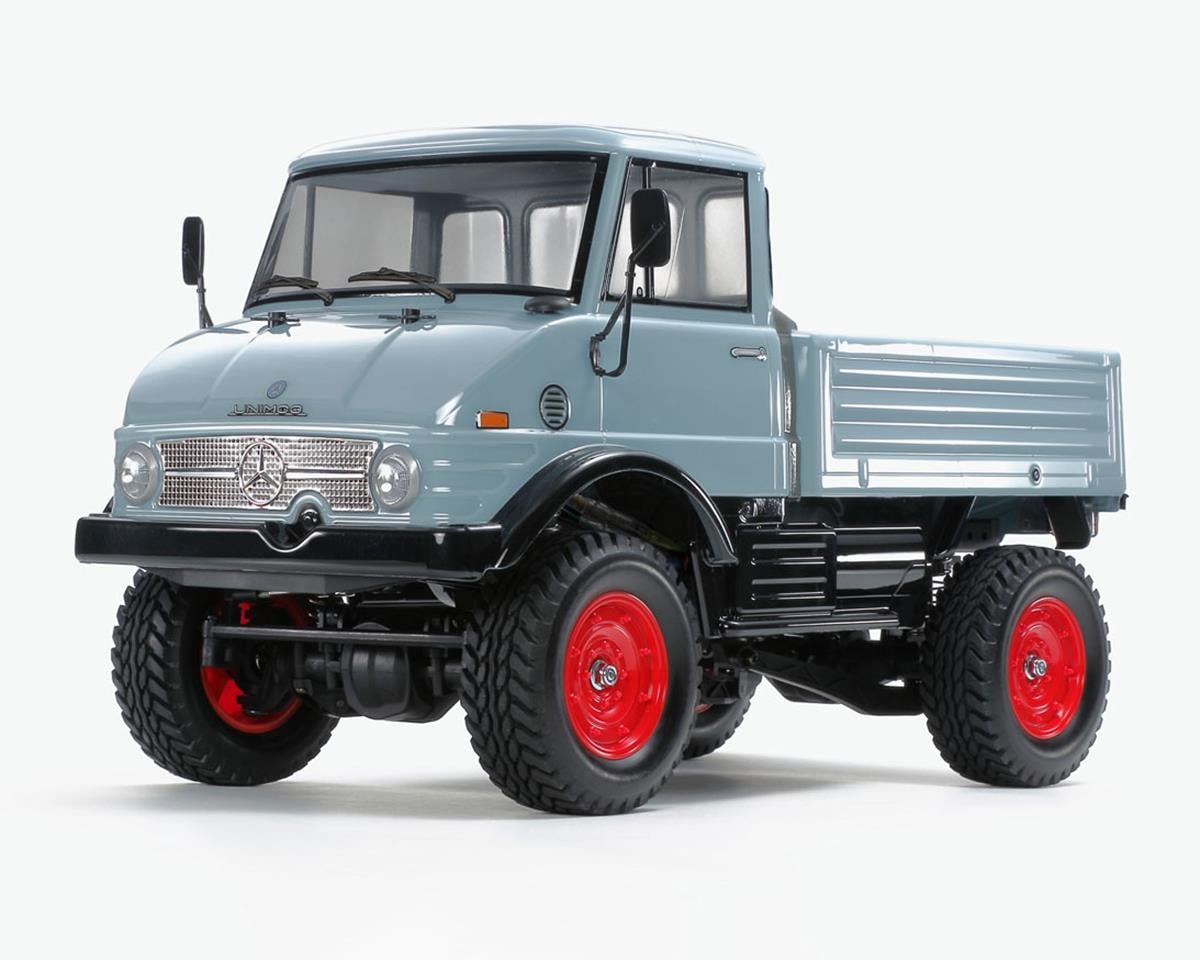

Tamiya Mercedes-Benz Unimog 406 1/10 4WD Scale Truck Kit (CC-02)

Build a 1/10 scale replica of the Mercedes-Benz Unimog 406 with Tamiya's CC-02 4WD chassis. Designed for a variety of off-road scenes, the CC-02 features a full-size-vehicle-inspired ladder frame, longitudinal motor placement, separate gearbox and transfer case, and power transmission to front and rear differentials.

Model Features

• 1/10 R/C assembly kit
• Polycarbonate body with separate side mirror and fuel tank parts
• Metal-plated front grille and emblem
• Red ABS wheels with bead lock-style detailing
• Block pattern tires
• CC-02 chassis with 4WD drivetrain
• Four-link rigid suspension front and rear
• CVA oil-filled dampers
• Propeller shafts, including a 76mm short shaft
• 540-brushed type motor included
• TBLE-04S ESC included; compatible with sensored brushless motors of 21.5 turns and higher, and brushed motors 25 turns and over

Specifications

• Length: 384mm
• Width: 196mm
• Height: 224mm
• Wheelbase: 242mm
• Chassis: CC02, FRP Fiberglass Reinforced Plastic
• Drive: 4WD
• Differential: Gear
• Bearings: Plastic bushings & metal bearings
• Body: Polycarbonate
• Suspension: 4-Link Rigid Suspension (Front & Rear)
• Shock Damper: CVA Oil Filled
• Adjustable Gear Ratio: Yes
• Body Stickers: Included
• Terrain Use: Multi-Purpose

Required to Complete

This is an assembly kit. Completion requires a 2-channel radio, servo, ESC, 7.2 volt battery, compatible battery charger with Tamiya Connector, and polycarbonate paint for the body.
