Tamiya Mercedes-Benz G 500 1/10 4WD Scale Truck Kit (CC-02)

Build a detailed 1/10 scale Mercedes-Benz G 500 model on Tamiya’s CC-02 4WD chassis. Designed for off-road terrain, the kit combines a ladder-frame chassis with solid axles, 4-link suspension and CVA dampers.

Features

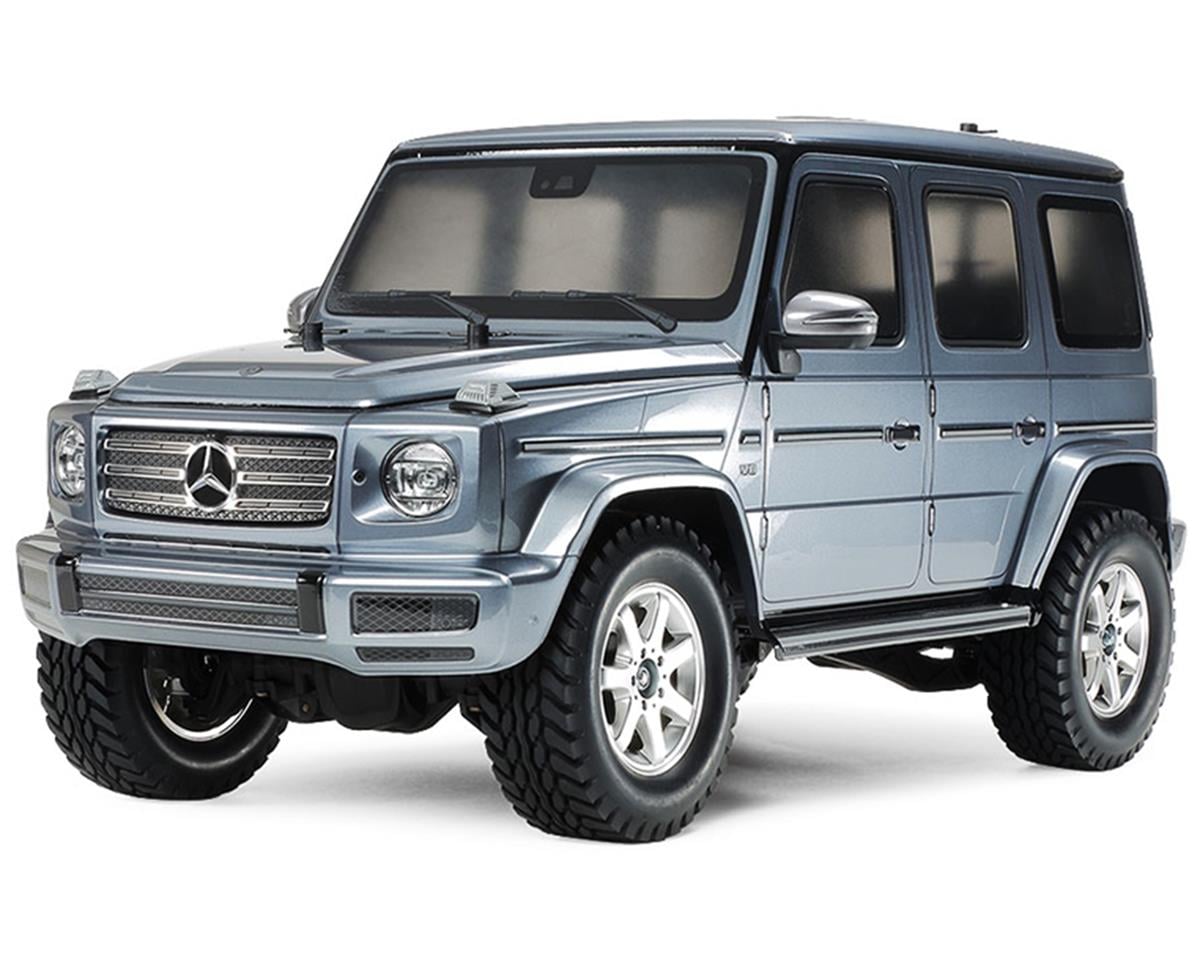

• Accurately recreated Mercedes-Benz G 500 polycarbonate body
• Separately molded front grille, side mirrors and spare tire cover

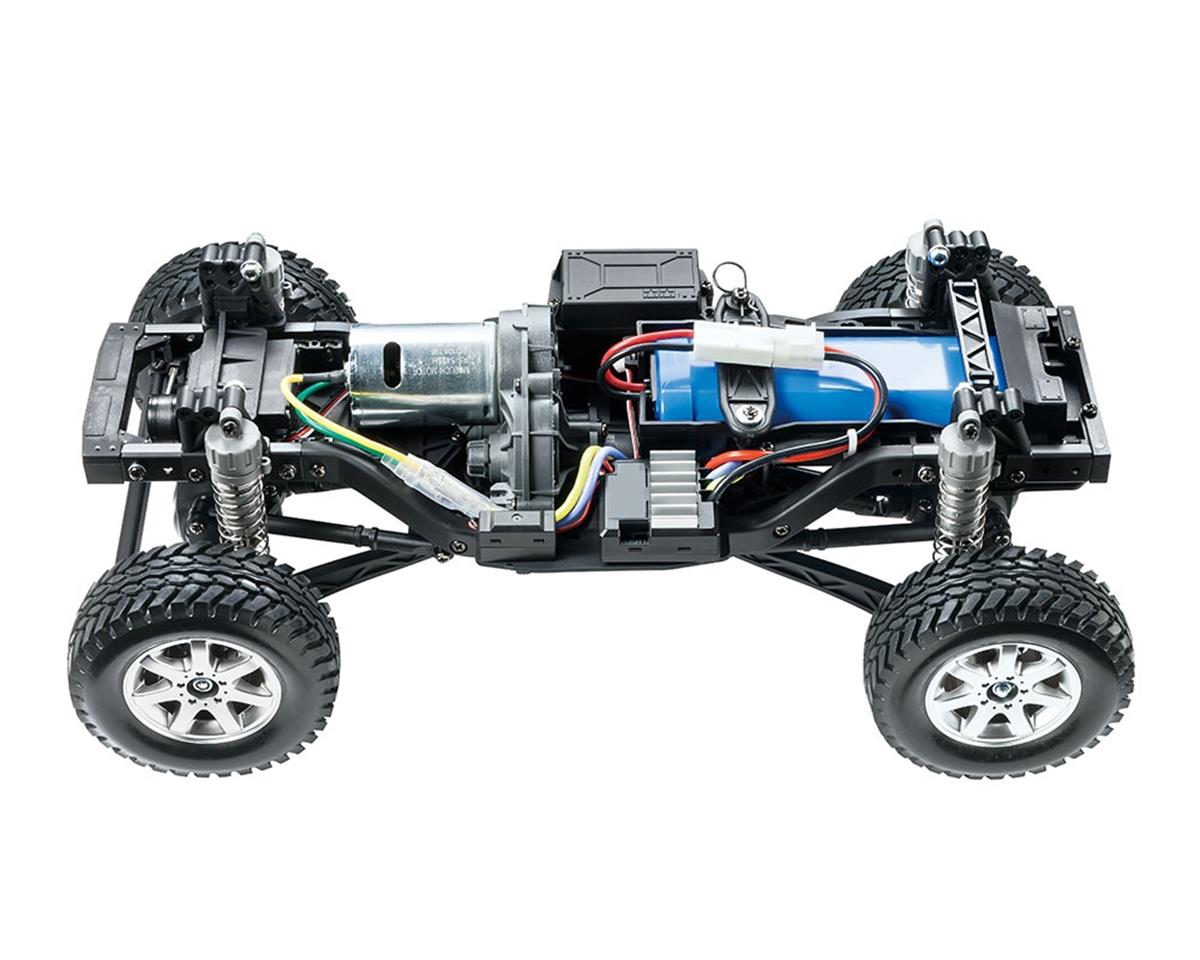

• Full-time 4WD drivetrain with separate gearbox and transfer case

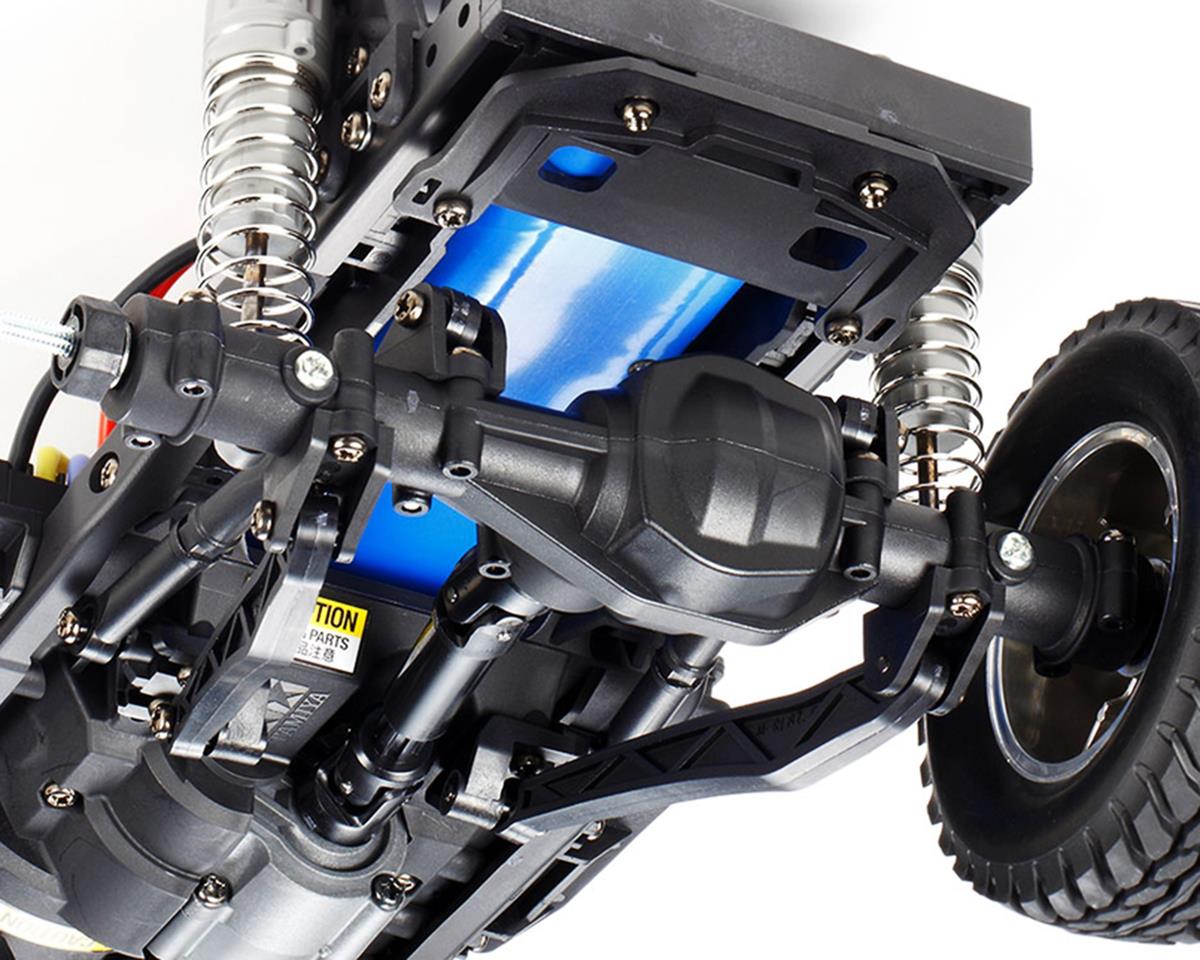

• Solid axles with 4-link suspension and CVA dampers
• Three-bevel differential gears provide smooth driving and can be locked with reassembly for poor surfaces
• Twenty gear ratios from 11.09:1 to 29.28:1 are possible using separately sold pinion gears
• Includes Hobbywing THW-1060 ESC for 2-3s

Specifications

• Scale: 1/10
• Length: 455mm
• Width: 196mm
• Height: 207mm
• Wheelbase: 267mm

Needed to Complete

• 2-channel radio and receiver
• Steering servo
• 7.2-7.4V battery with Tamiya Connector
• Compatible charger
• Tamiya PS paint
• Misc. building tools
