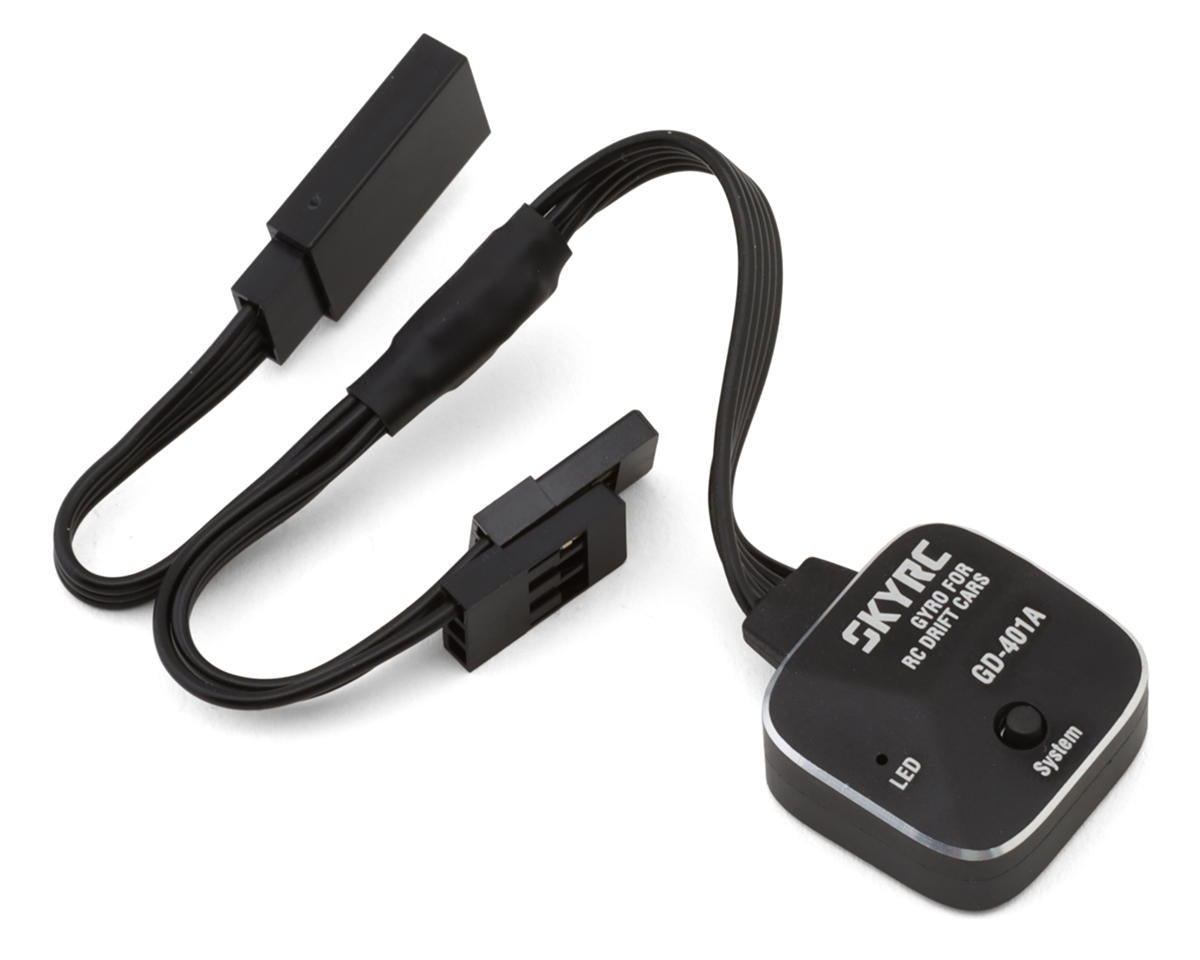

SkyRC GD-401A Drift Steering Gyro

The SkyRC GD-401A Drift Steering Gyro is a compact steering control module for RC drift vehicles. It combines a high-precision MEMS gyro with a 32-bit processor to calculate and correct steering deviations in real time.

Choose from nine preset drift curves and fine-tune control with adjustable gain, sensitivity algorithms, and 180° servo endpoint adjustment. One-button setup, one-touch steering reverse, integrated wiring, and LED indicators support a clean installation and straightforward tuning.

Features

• CNC aluminum construction for durability and cooling
• High-precision MEMS gyro with 32-bit processor
• Nine preset drift curves for tuning control
• One-button setup and curve selection
• One-touch reverse steering direction function
• Adjustable gain and sensitivity algorithms
• 180° servo endpoint adjustment (EPA)
• Integrated cable for clean installation
• LED indicators for status and curve display

Specifications

• Input Voltage: 4.8-7.4V
• Servo Output: 1520?s (50–333Hz)
• Dimensions (LxWxH): 0.87x0.83x0.35in (22x21x9mm)
• Weight: 0.42oz (12g)

Includes

• (1) GD-401A Drift Steering Gyro

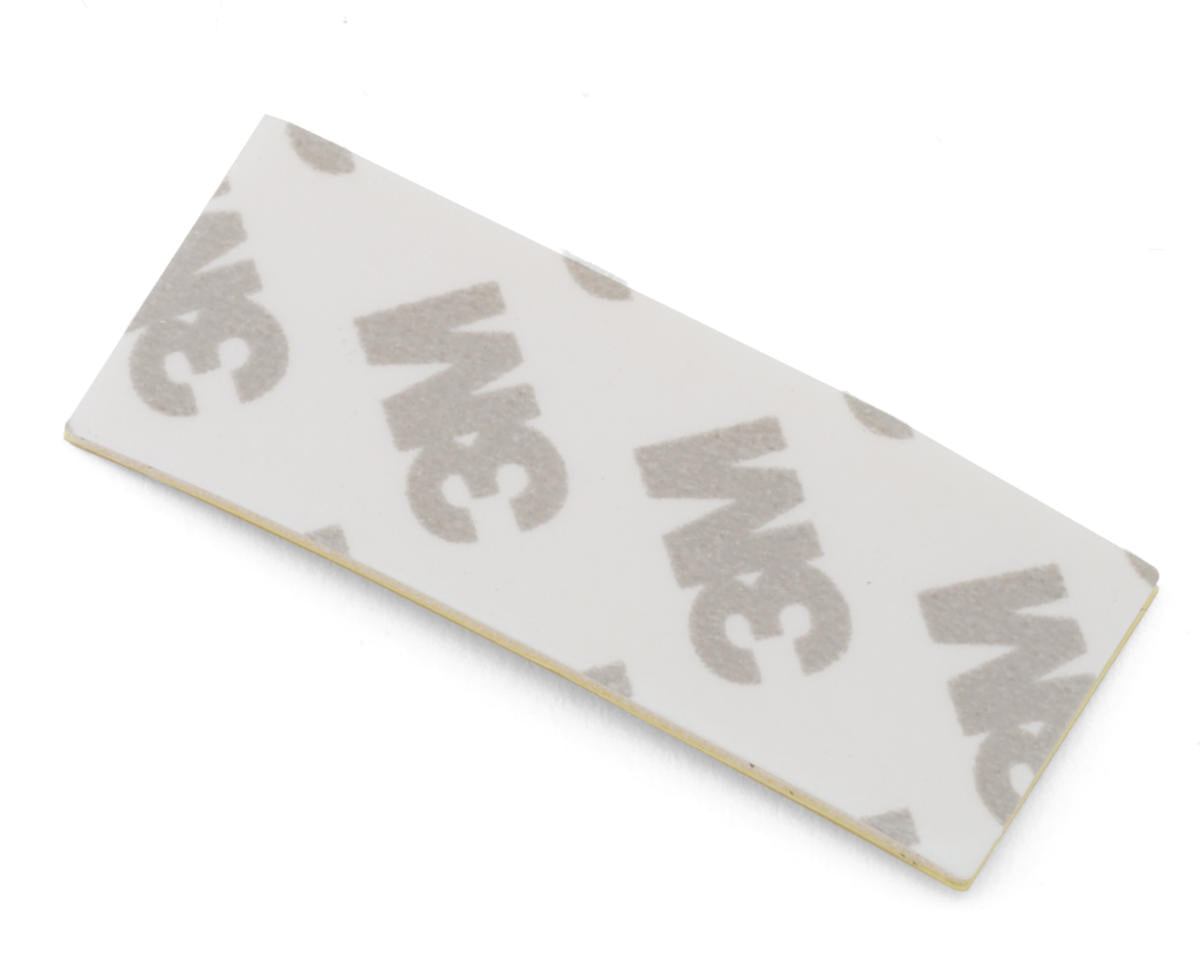

• (1) Mounting Tape
