RX28SE Gen 3 – 1/28 Scale RC Chassis Kit

Precision. Versatility. Style.

Get ready to take your racing program to the next level with the RX28SE Gen 3 — the ultimate 1/28th-scale RC car chassis designed for enthusiasts who demand performance without compromise. This third-generation platform is built to dominate any surface with fine-tuned handling, premium materials, and unmatched tuning potential.

Key Features & Upgrades

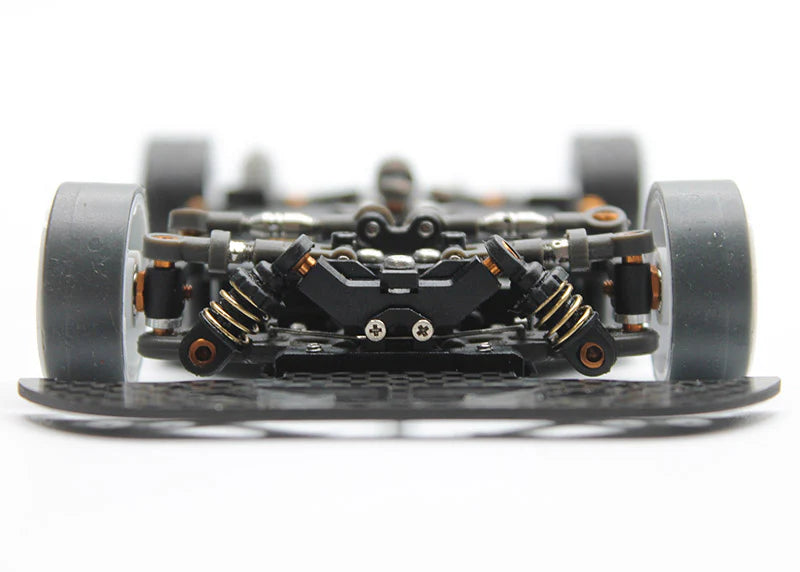

Revamped Front-End:

• 1mm longer front arms for enhanced stability
• All-new sway bar system for sharper cornering response
• Adjustable caster (3-screw system)
• Integrated front shock tower with shim adjustment
• Adjustable upper arm hinge pin height for custom camber gain and roll center tuning
• Low-profile big bore shocks & springs for buttery-smooth handling and high grip

Rear-End Innovations:

• Lower CG Rear Design for increased agility
• New motor mount – lowers motor by 0.8mm
• 3-screw damper mount – simplifies rear suspension maintenance
• Tweak brace dropped by 1.25mm for enhanced cornering performance
• Shorter side springs & thinner perches
• Side dampers lowered by 3mm, now screw-mounted to motor mount
• Smaller center shock spring, collar, and perch
• Pinned Rear Motor Pod Plate – improved precision and durability

Signature SE Upgrades:

• 24mm Steel Tub Chassis – Industry-leading rigidity, low CG, and durability
• Includes both Premium Ball Differential & Gear Differential
• Two sets of plastics included: Black & Gray (excluding lower arms)

What's Included:

• RX28SE Gen 3 Chassis Kit
• One Set of Wheels & Tires
• Steel Tub Chassis
• Ball & Gear Differential
• Black & Gray Plastic Parts (excluding lower arms)

Note: Electronics, body, and mounting hardware are NOT included.

Specifications:

• Wheelbase: 98mm
• Weight (RTR): 145g–170g (depending on body & electronics)
• Rear Track Width: 69mm–78mm
• Front Track Width: 72mm–75mm

Required to Complete (Not Included):

• Body & Mounting Hardware
• Electronics:
  • Motor
  • LiPo Battery
  • ESC (Electronic Speed Controller)
  • Receiver
  • Servo

Servo Compatibility:

Reflex Racing RRE007 (20T Spline) – Recommended

• AGFC A06CLS V1
• GL Racing Servo
• PN Anima
• Atomic Servo (tight fit, but correct spline size)

Important Notes:

ELECTRONICS ARE NOT INCLUDED
