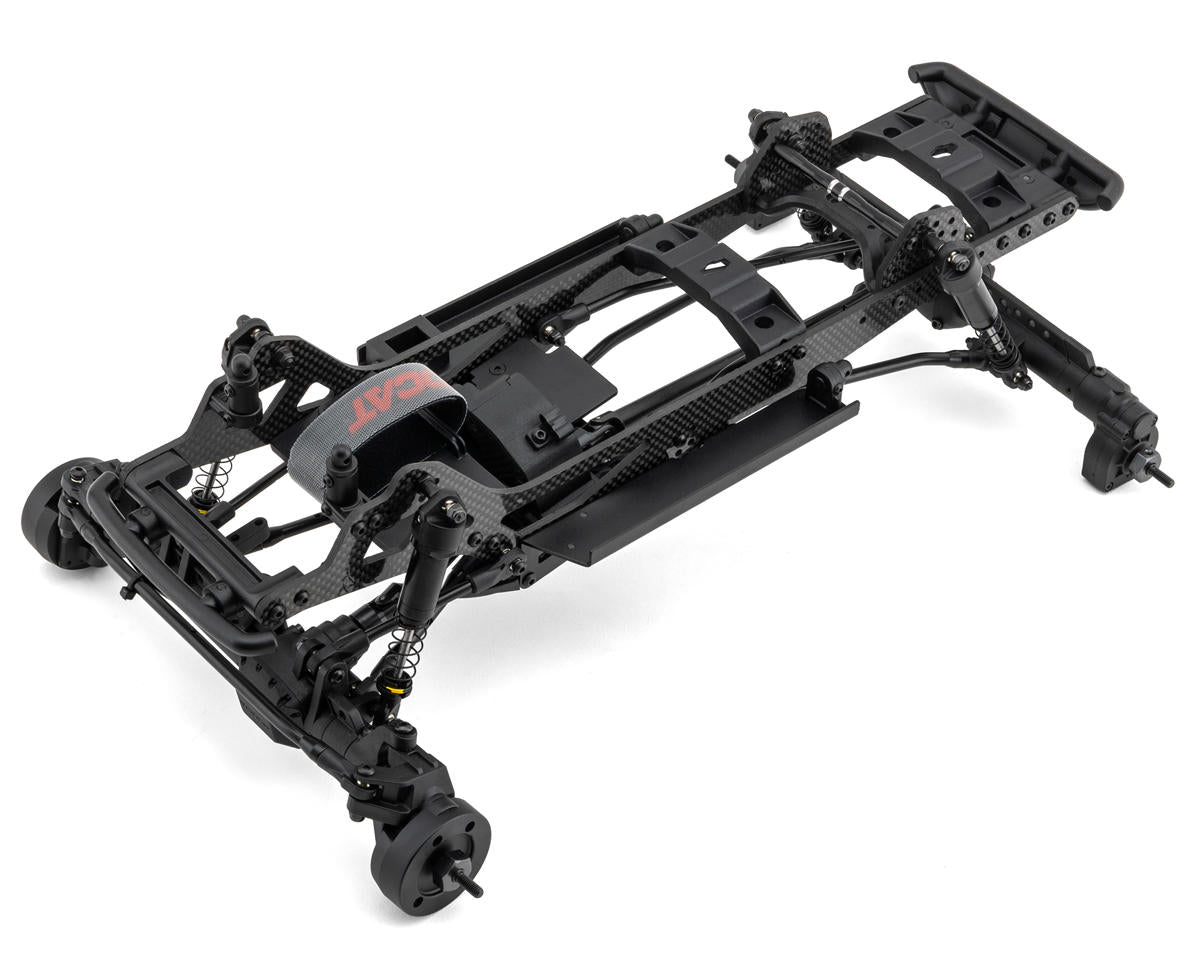

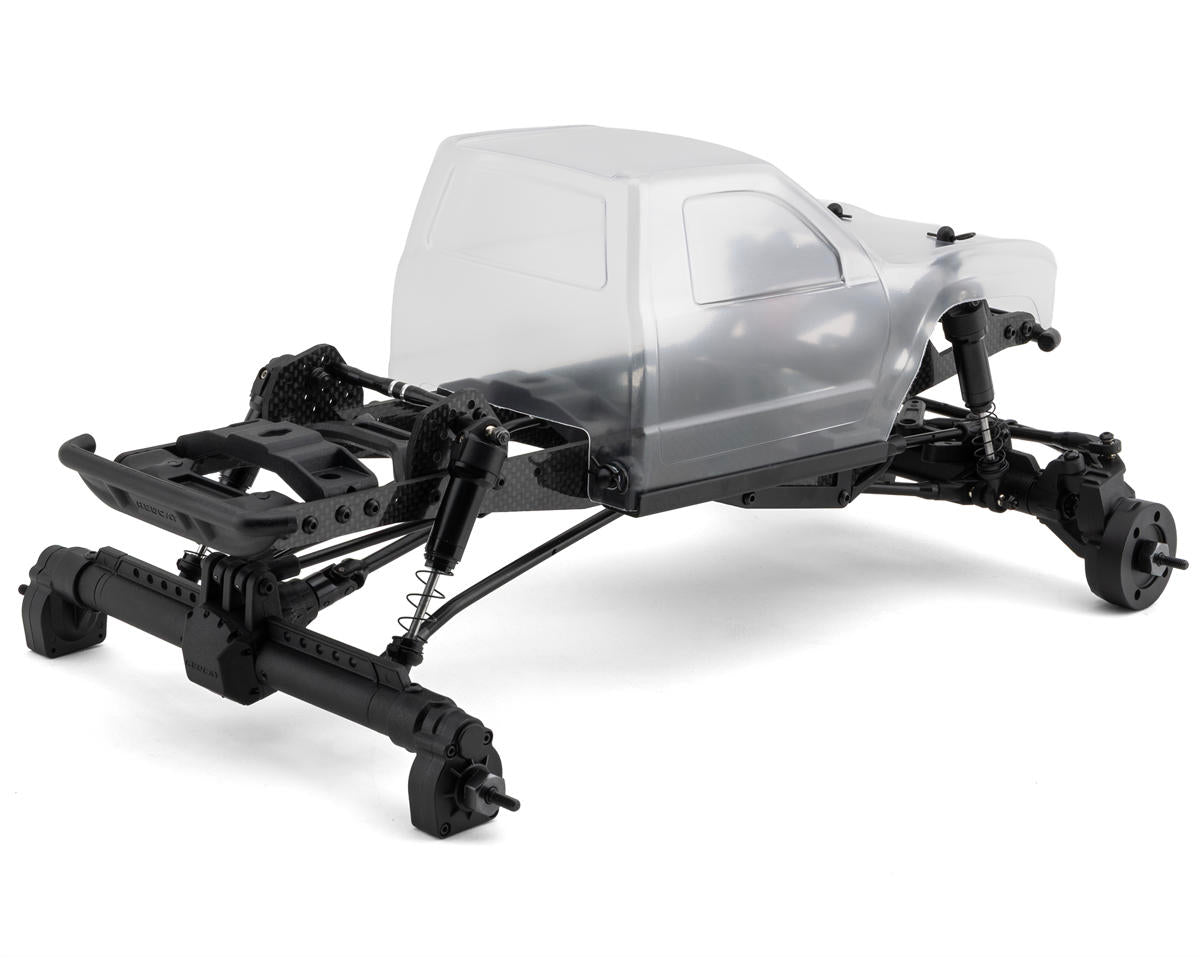

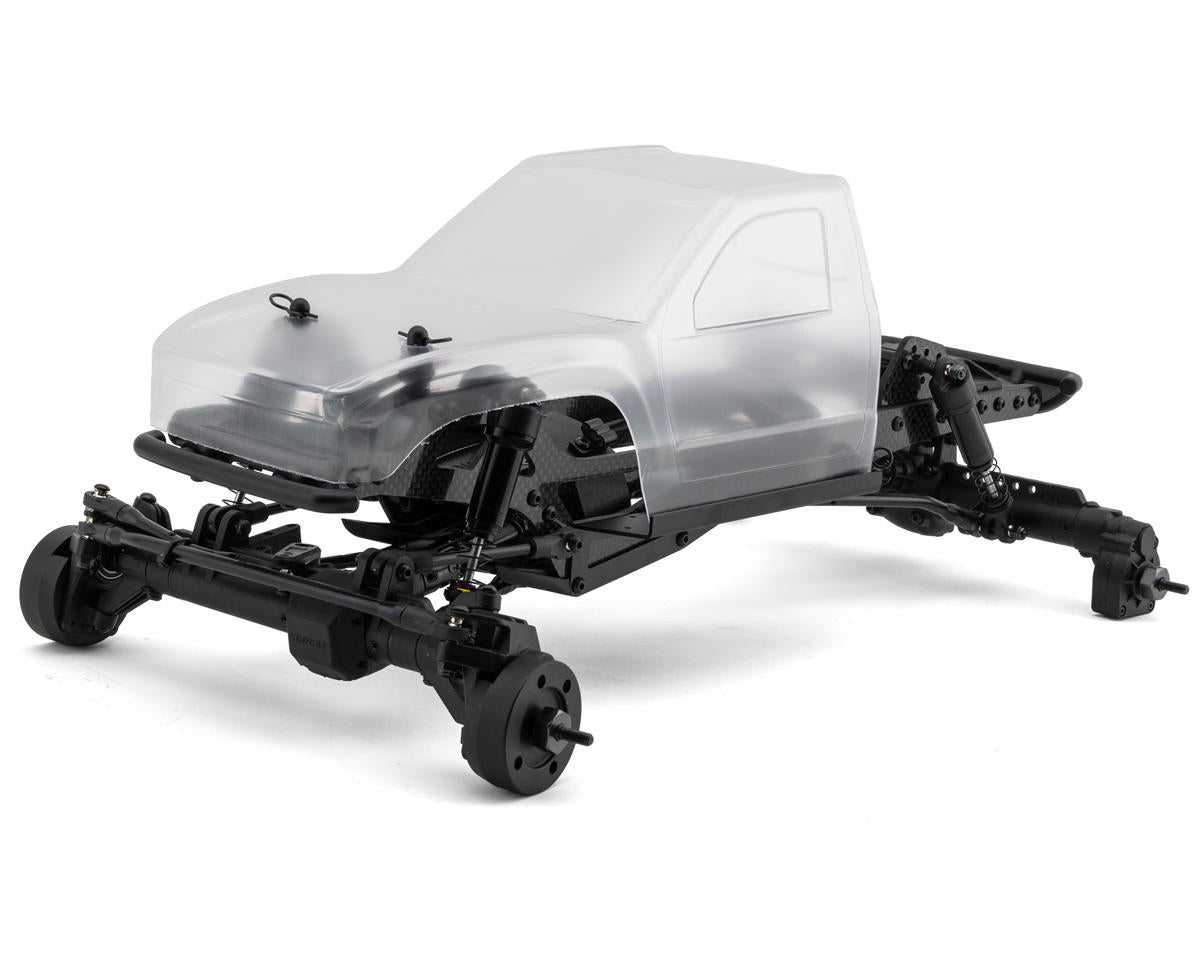

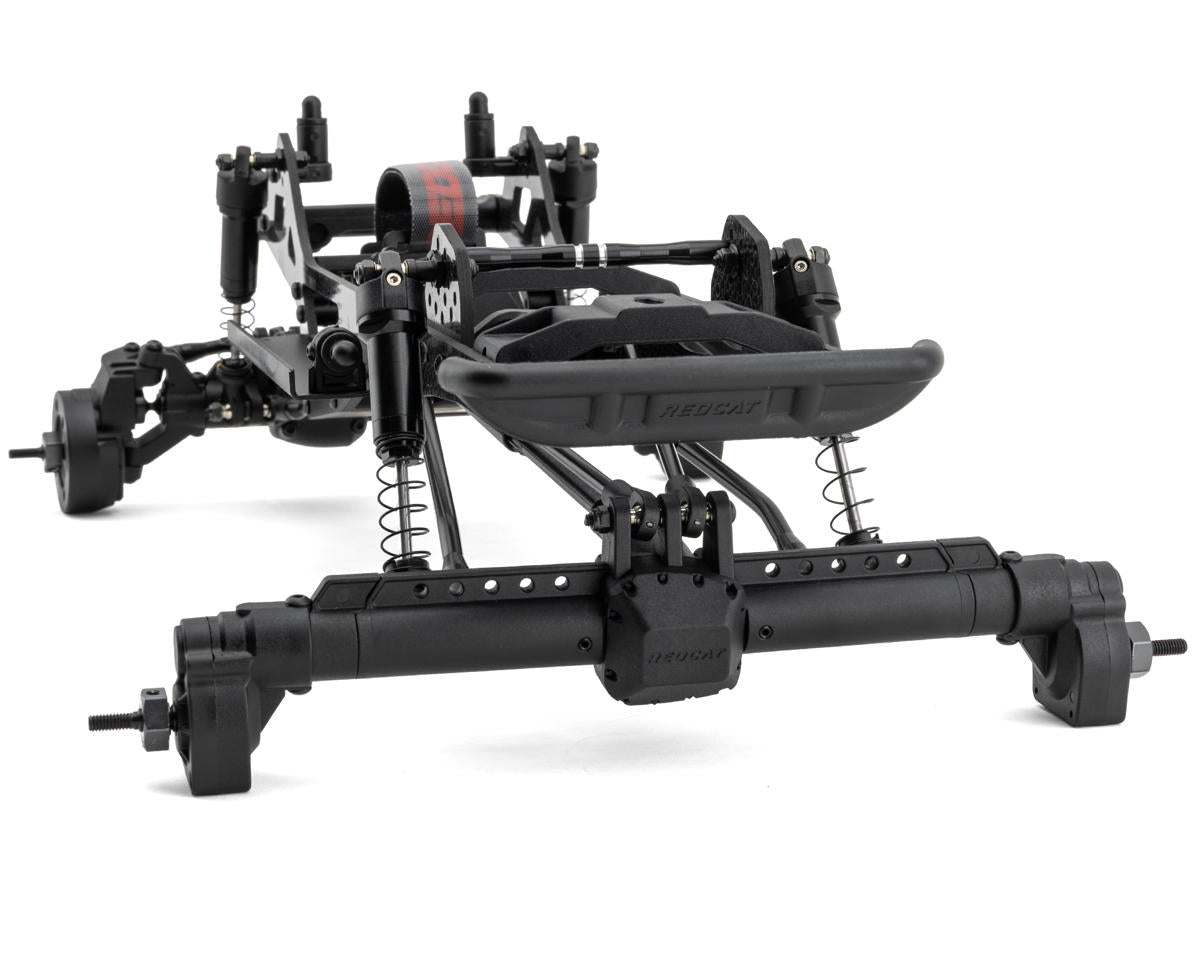

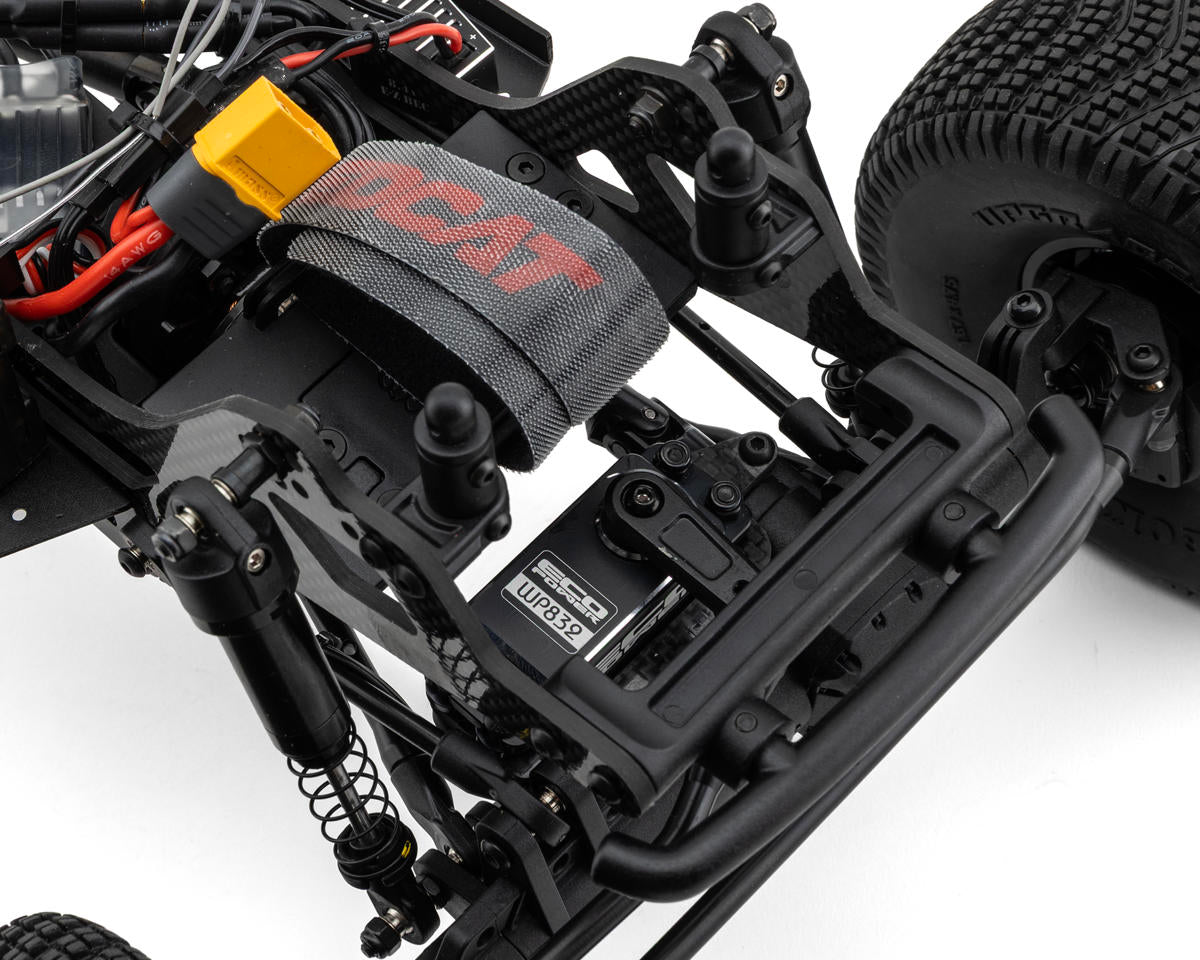

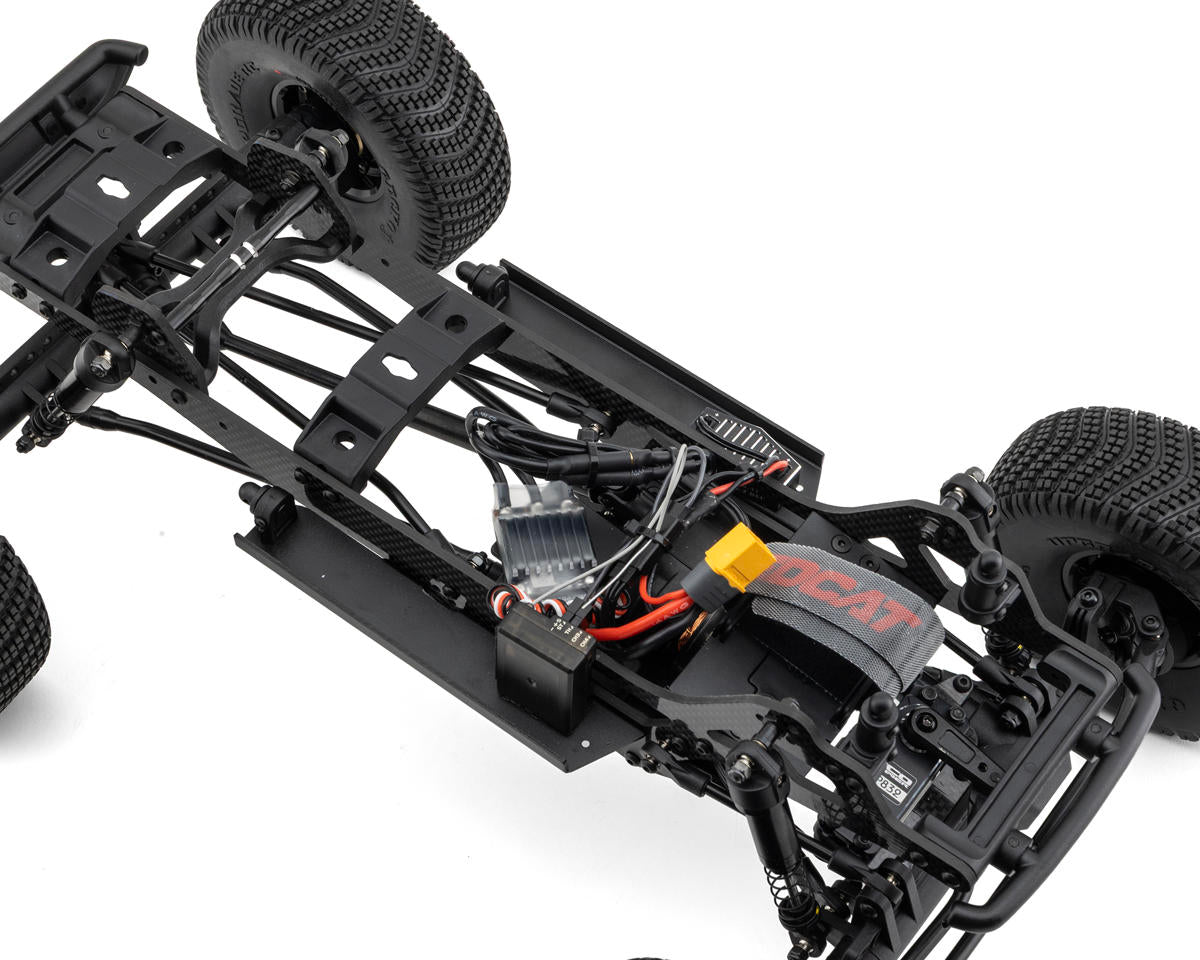

The Redcat Vertex-10W Slider is a 1/10-scale, 4WD rock crawler kit designed as a customizable comp-crawling platform. It features a low center of gravity carbon chassis, forward-mounted motor, reinforced solid axles with steel tube inserts, and suspension geometry for controlled articulation on challenging terrain.
Features

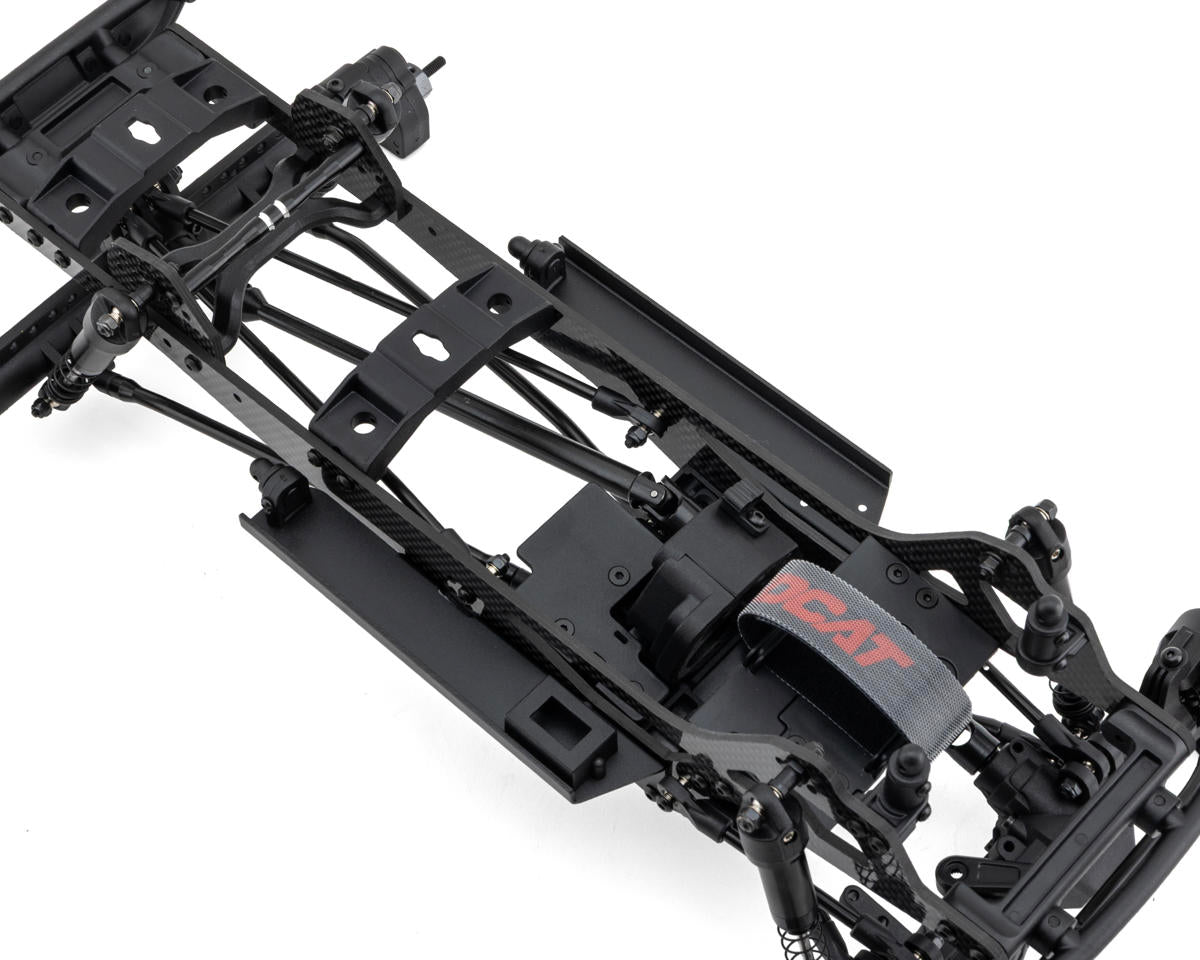

3mm Carbon Fiber Frame rails
10 degree skid plate angle
High clearance links
Multiple battery mounting locations

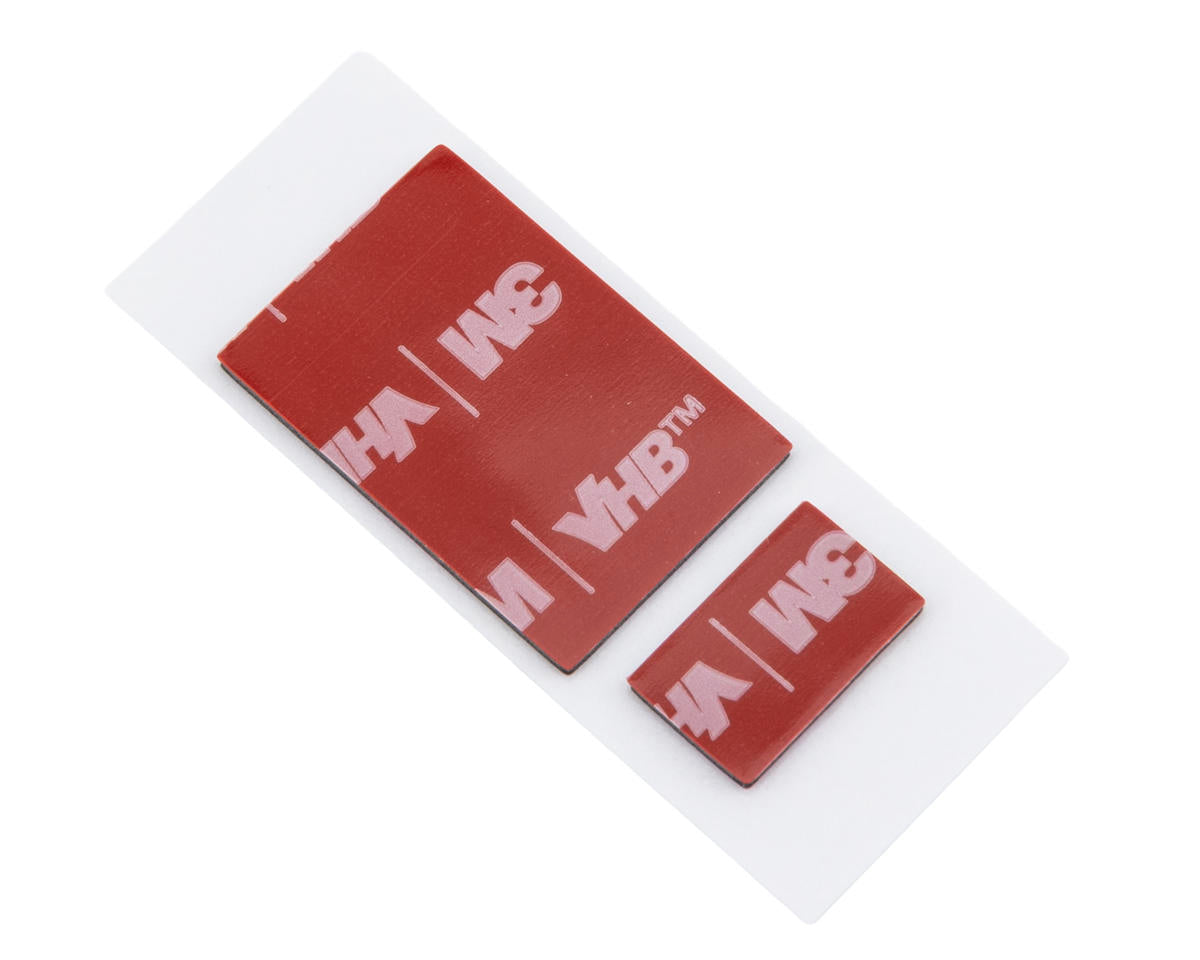

Clipless body mounting

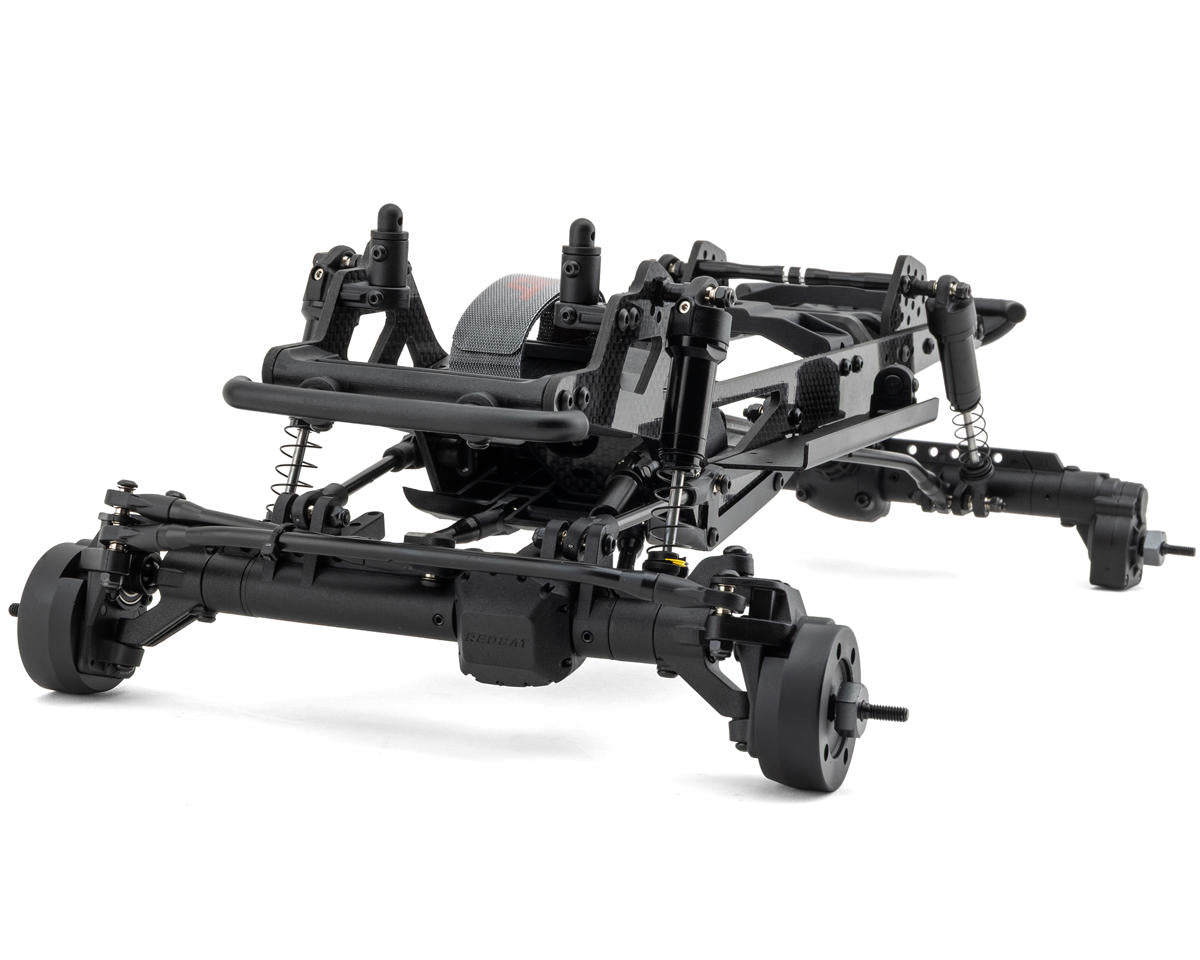

Heavy duty axles with steel tube inserts
Weighted front portal box
58 Degrees of steering angle
+24mm wider axles
2.2" Sized wheels
Air emulsion, oil-filled shocks with X-ring seals
Double CV joints
Splined metal driveshafts
Hypoid-style ring and pinion gears
Specifications
Scale: 1:10
Drive: 4WD
Length: 17.5in (445mm)
Wheelbase: 13in (330mm)
Width: 10.9in (278mm)
Assembly Level: Kit
Includes

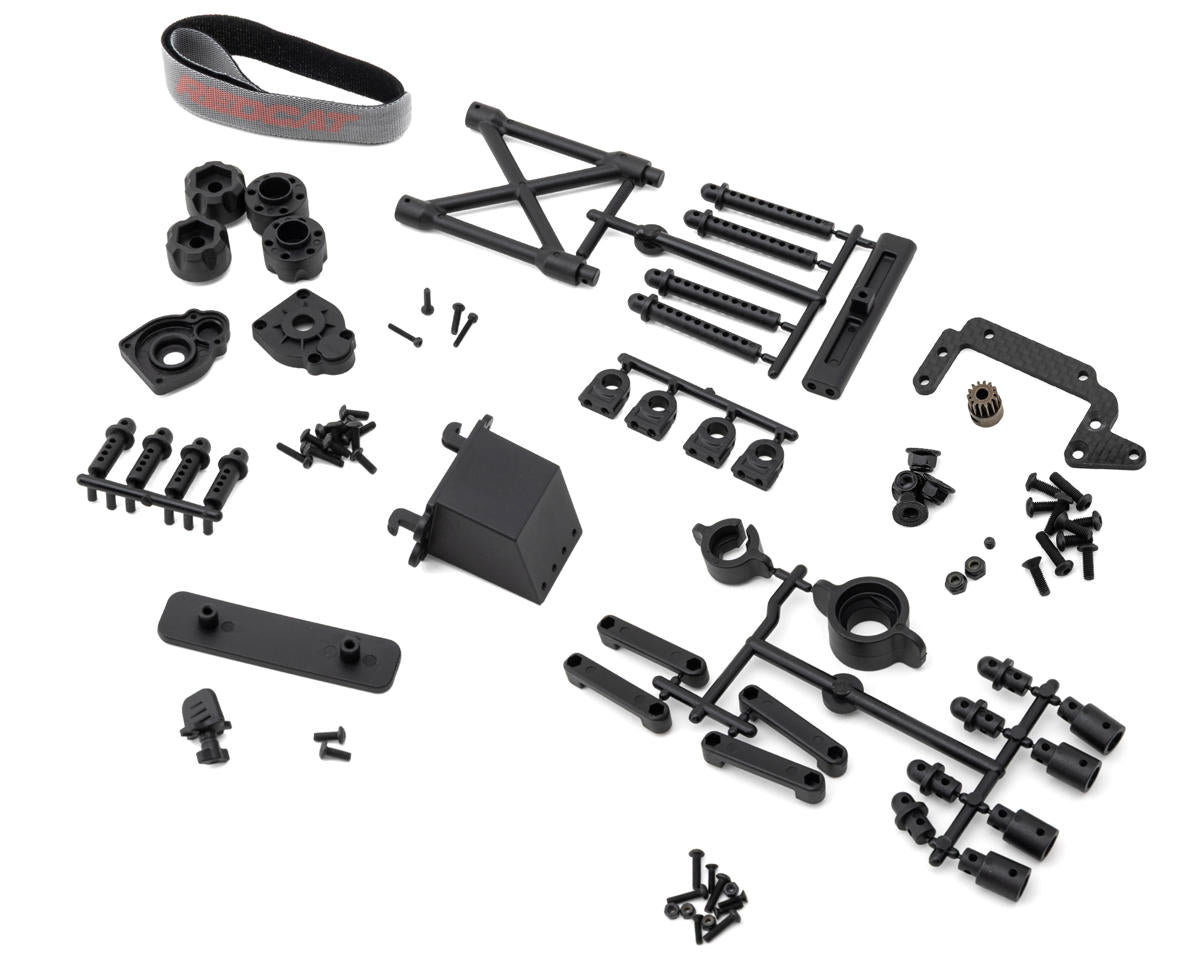

(1) Vertex-10W Slider 1/10 4WD Rock Crawler Kit
Needed to Complete
(1) 2-Channel+ Transmitter & Receiver System
(1) Outrunner Motor (36mm Diameter x 31mm Length)
(1) ESC
(1) High Torque Steering Servo
(1) LiPo Battery & Compatible Charger
(1) Paint for Body

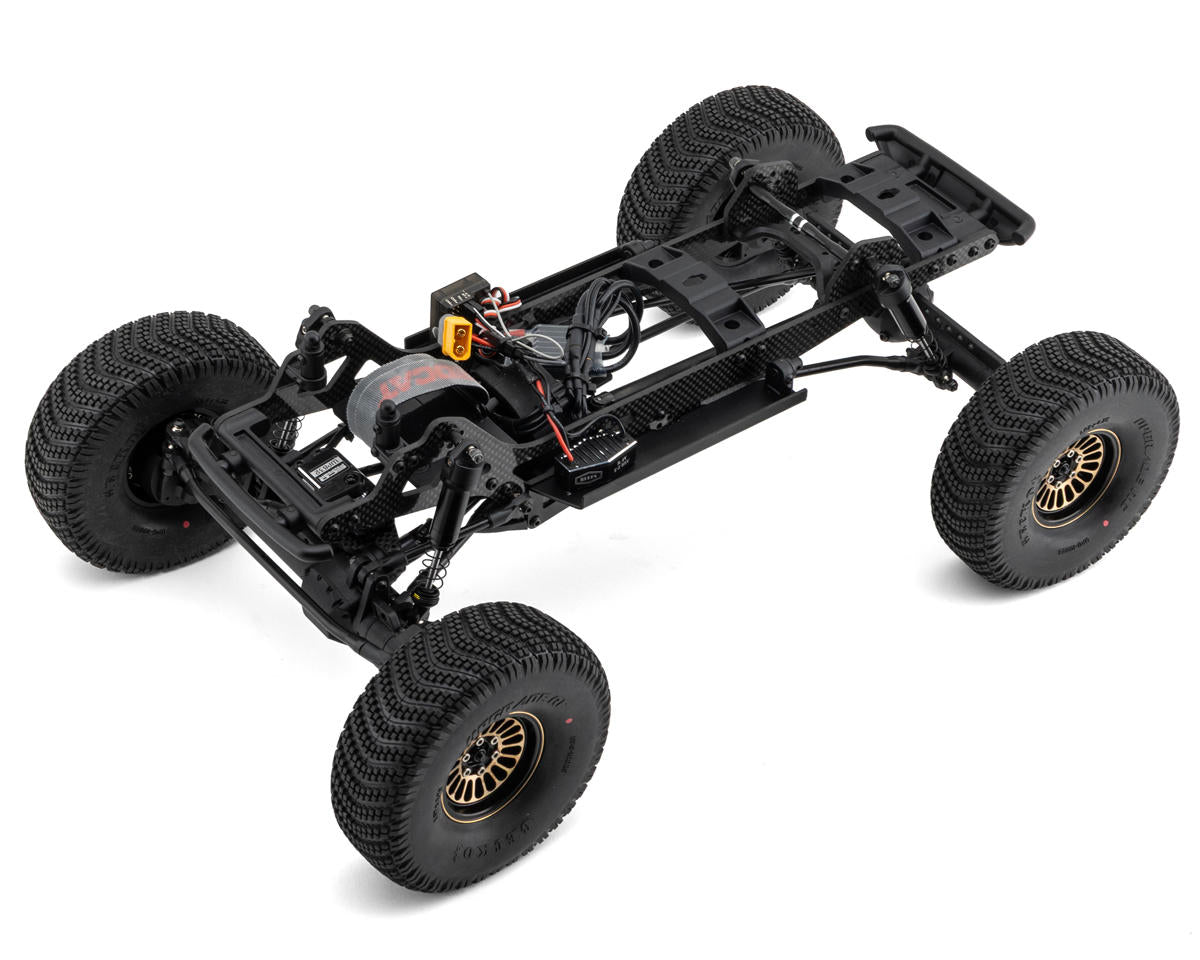

This is an unassembled RC model kit requiring assembly, racer-selected electronics, and other racer-provided items. Photos of the assembled kit are for illustrative purposes only.
