The Redcat Vertex-10W is a 1/10 RTR 4WD electric brushless rock crawler with a 3mm carbon fiber frame, +24mm wider axles, and 2.2" sized wheels. Its brushless power system, adjustable suspension geometry, and heavy-duty axle construction are designed for controlled crawling over challenging terrain.
Power and Electronics
2812 1700KV brushless motor
Programmable 60A brushless ESC
3-4S LiPo power source
8.4V BEC
HX-50BL digital servo with metal gears and 694oz/in of torque
XT60 connector
2.4GHz 4-channel radio system included

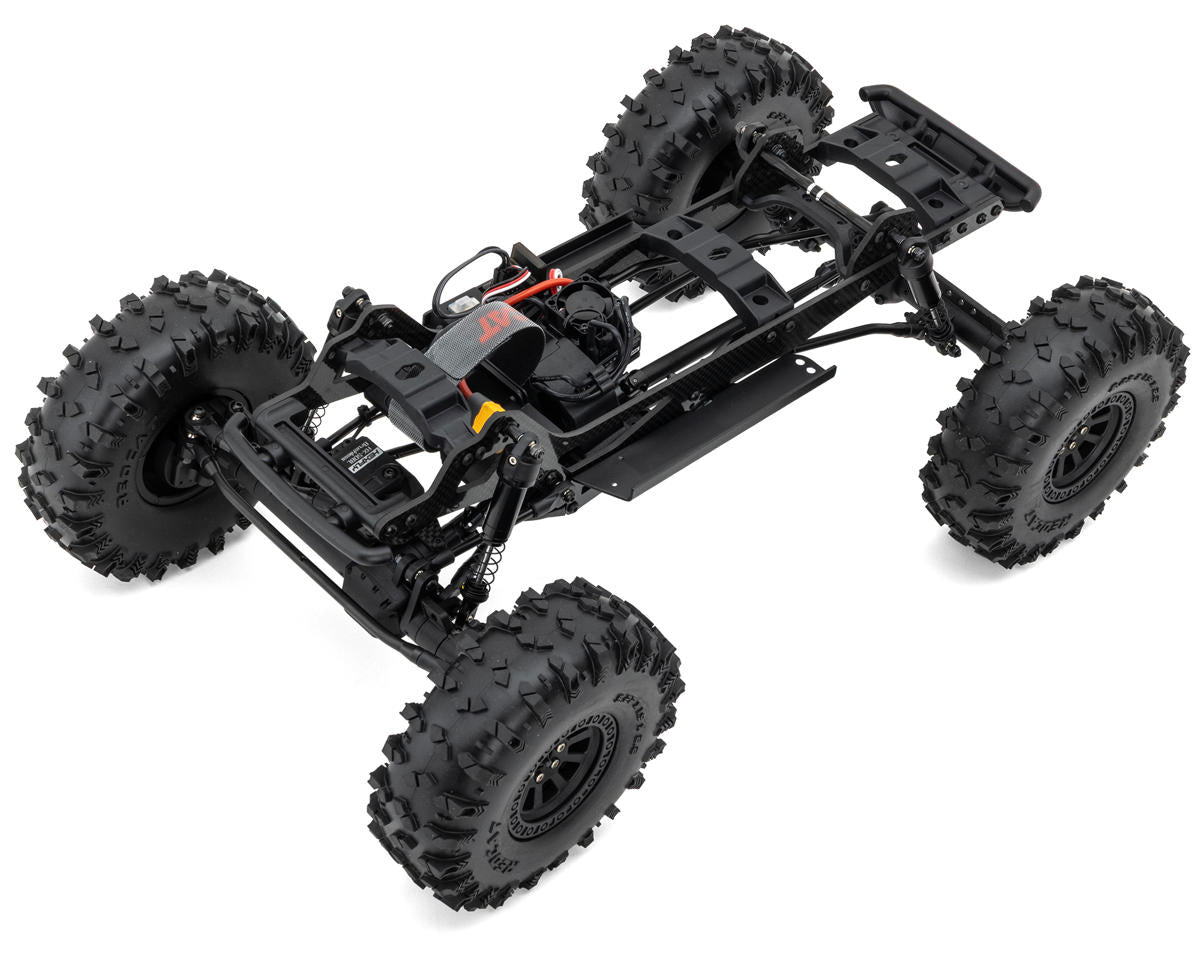

Chassis, Suspension and Drivetrain
3mm carbon fiber frame rails
10 degree skid plate angle
High clearance links and adjustable suspension geometry
Air emulsion, oil-filled shocks with X-ring seals
Double CV joints
Heavy duty axles with steel tube inserts
Weighted front portal box
Hypoid-style ring and pinion gears
Splined metal driveshafts
Clipless body mounting
Multiple battery mounting locations
58 Degrees of steering angle
Specifications
Scale: 1:10
Drive: 4WD
Length: 17.5in (445mm)
Wheelbase: 13in (330mm)
Width: 10.9in (278mm)
Servo: HX-50BL 50kg
Wheels: Front 2.2", Rear 2.2"
Hex: 12mm
Assembly Level: RTR
Includes
(1) Vertex-10 1/10 RTR 4WD Electric Brushless Rock Crawler
