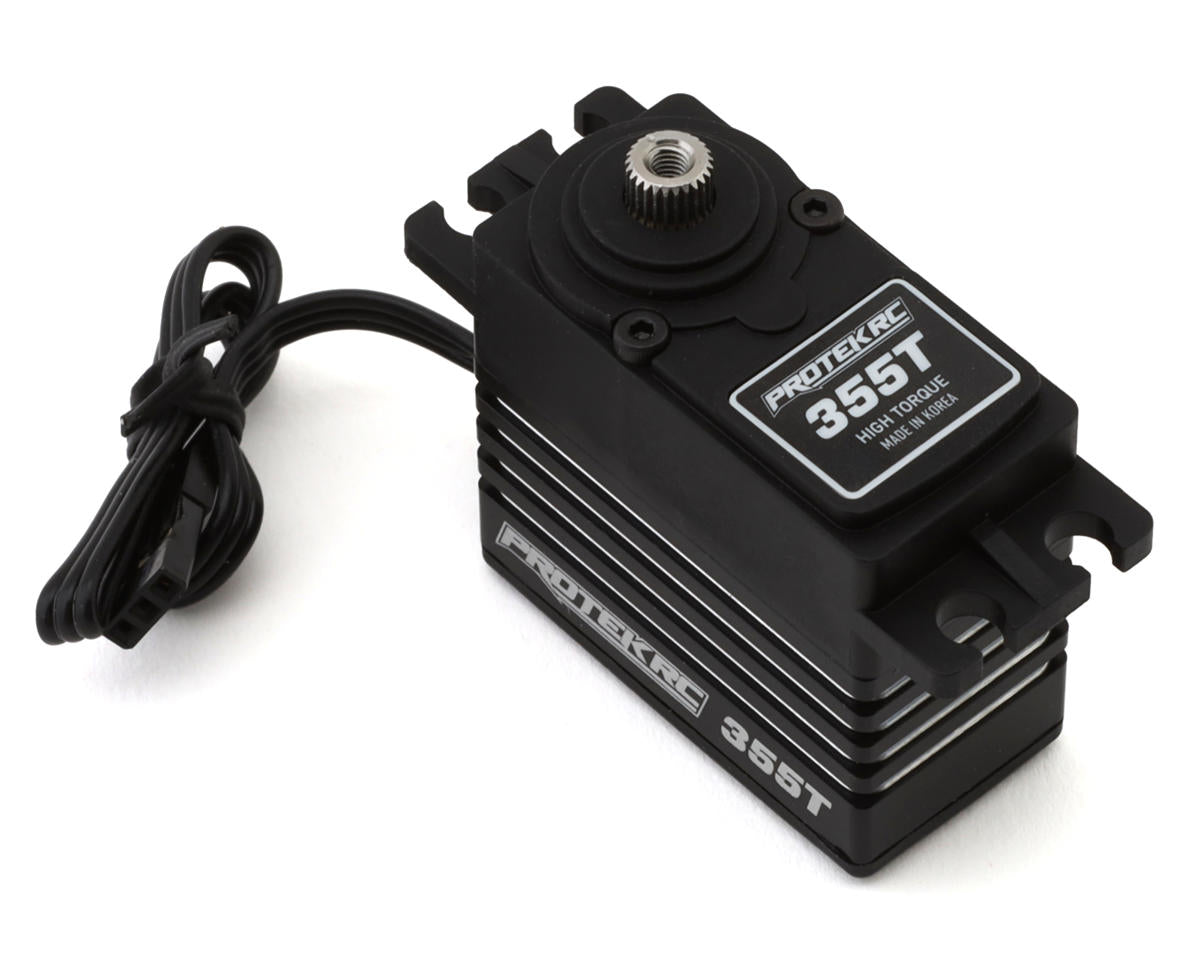

ProTek RC 355T Standard Digital "High Torque" Brushless Metal Gear Servo

The ProTek RC 355T Standard Digital “High Torque” Brushless Metal Gear Servo delivers high-voltage performance for 1:10 and 1:8 off-road applications. Its brushless motor, full metal gear train, dual ball bearings, and aluminum middle case provide a durable, responsive steering solution.

Features

• Brushless motor technology
• Dynamic torque of 502.7 oz-in (36.2 kg-cm) at 7.4V
• Operating speed of 0.10/60° sec at 7.4V
• Full metal gear train with Lifetime Gear Warranty
• Dual ball bearings
• Aluminum middle case
• High-voltage circuitry
• 25T output shaft
• Includes an aluminum clamping servo horn

Specifications

• Application: 1:10 & 1:8 Off-Road
• Operating Voltage: 6.0V - 7.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 6.0V: 0.13/60° sec
• Operating Speed @ 7.4V: 0.10/60° sec
• Dynamic Torque @ 6.0V: 393oz-in (28.3 kg-cm)
• Dynamic Torque @ 7.4V: 502.7oz-in (36.2 kg-cm)
• Motor Type: Brushless
• Output Shaft: 25T
• Gears: Metal w/Lifetime Gear Warranty
• Weight: 2.15oz (61g)
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 1.55x1.51x0.78in (39.50x38.60x20mm)
• Length (Bottom to Mount): 1.04in (26.60mm)

Includes

• (1) Lifetime Gear Warranty
• (1) 355T Standard Digital “High Torque” Brushless Metal Gear Servo

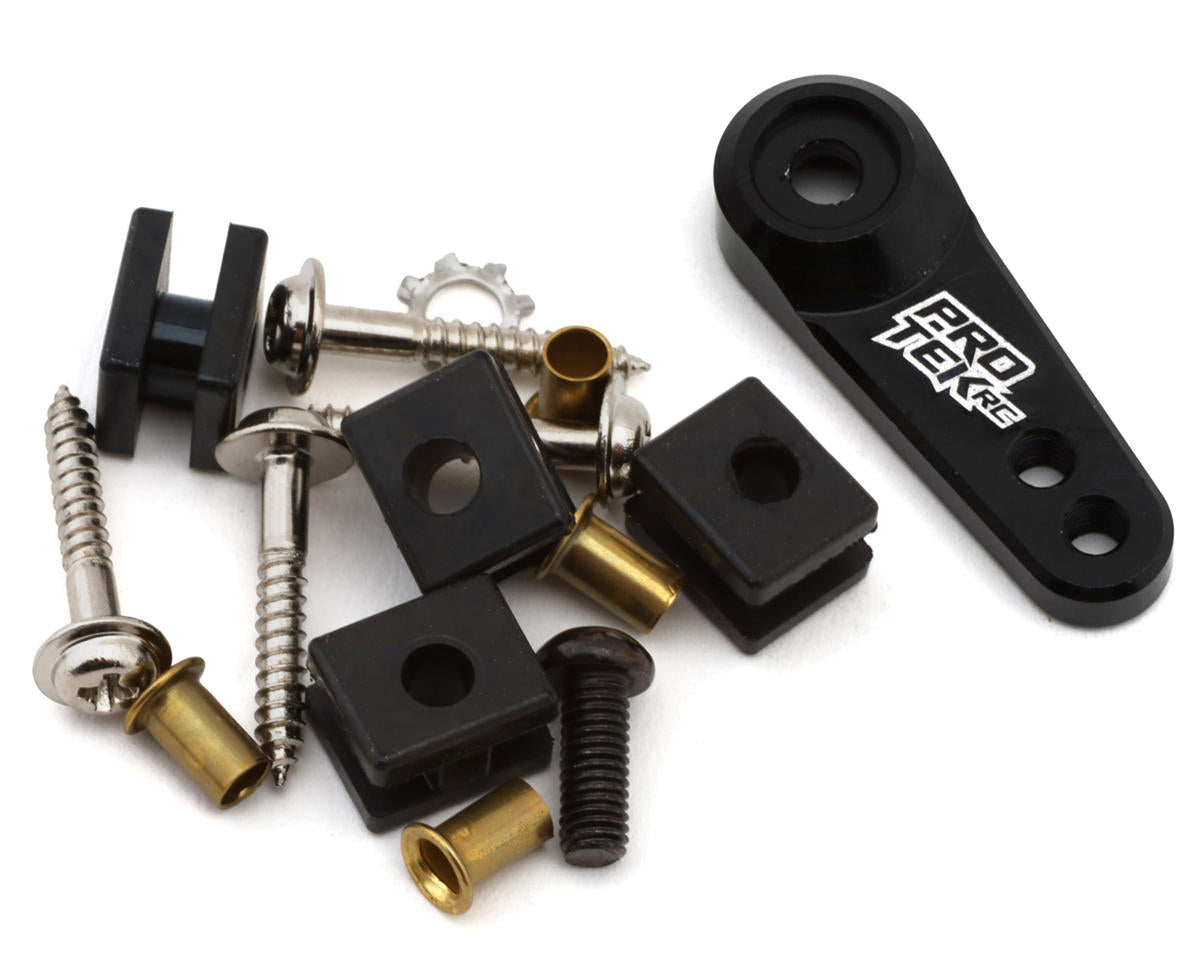

• (1) Aluminum Clamping Servo Horn

Installation Note

This ProTek R/C servo requires an m3x10mm screw to attach the servo horn to the output shaft. If another screw is used, it must be 10mm in length. Use of a shorter screw can cause failure and will void the warranty.
