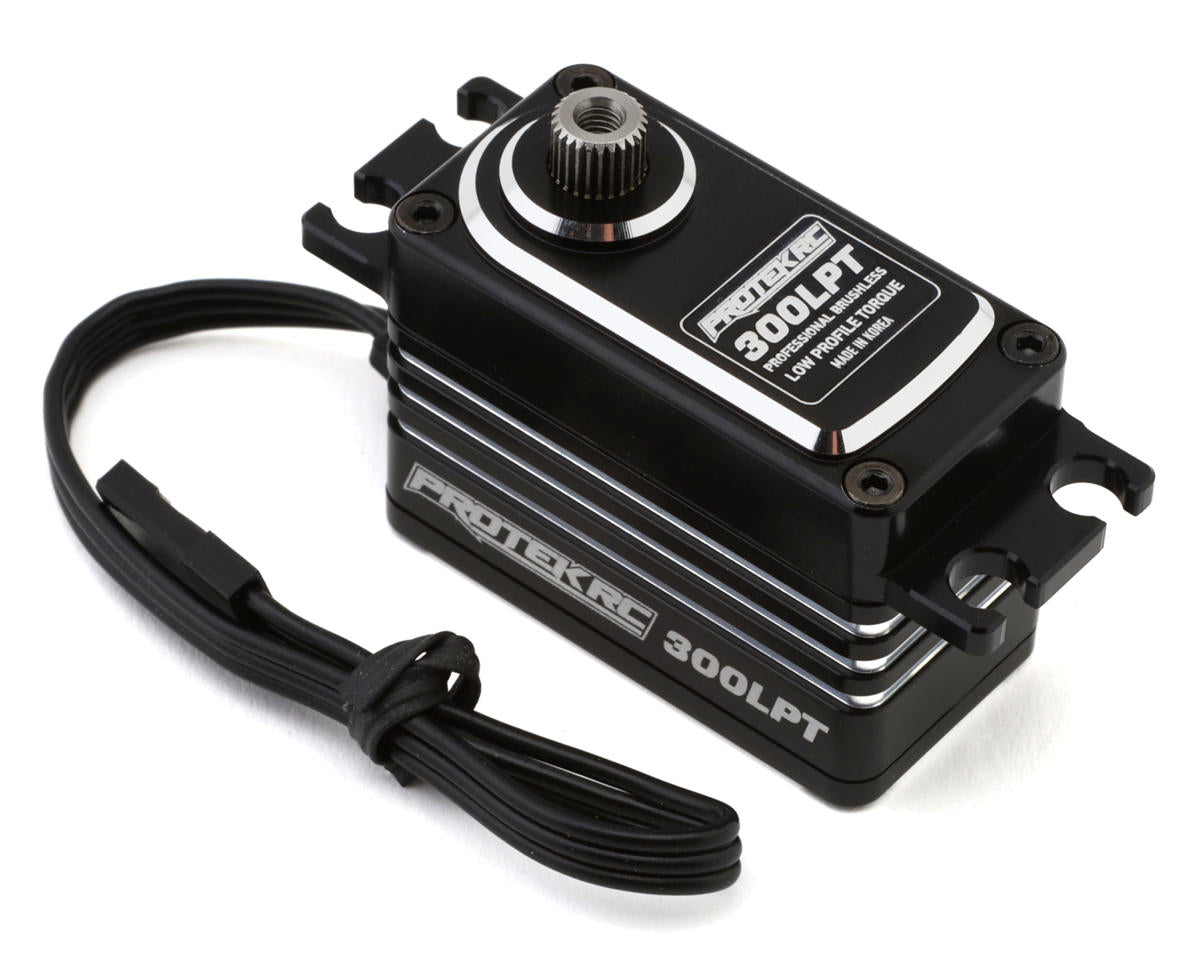

ProTek RC 300LPT Low Profile High Torque Brushless Servo

The ProTek RC 300LPT Low Profile High Torque Brushless Servo is designed for competitive 1:10 scale racing. It combines a brushless motor, 0.06/60° sec operating speed at 7.4V, and up to 290oz-in (20.9 kg-cm) of dynamic torque in a lightweight 1.94oz (55g) package.

Features

• Low-profile race servo refined from the ProTek RC 160TBL servo
• Brushless digital motor
• Operating speed of 0.06/60° sec at 7.4V
• Dynamic torque up to 290oz-in (20.9 kg-cm) at 7.4V
• Full black anodized aluminum case with gold accents
• Heat-sink center case
• Full metal gears and dual ball bearings
• 25T output shaft
• Metal gears with Lifetime Gear Warranty

Specifications

• Application: 1:10 Scale
• Operating Voltage: 6.0V - 7.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 6.0V: 0.08/60° sec
• Operating Speed @ 7.4V: 0.06/60° sec
• Dynamic Torque @ 6.0V: 230oz-in (16.5 kg-cm)
• Dynamic Torque @ 7.4V: 290oz-in (20.9 kg-cm)
• Weight: 1.94oz (55g)
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 1.55x0.79x1.2in (39.5x20x30.6mm)
• Length (Bottom to Mount): 0.76in (19.35mm)

Includes

• (1) Lifetime Gear Warranty
• (1) 300LPT Low Profile High Torque Brushless Servo

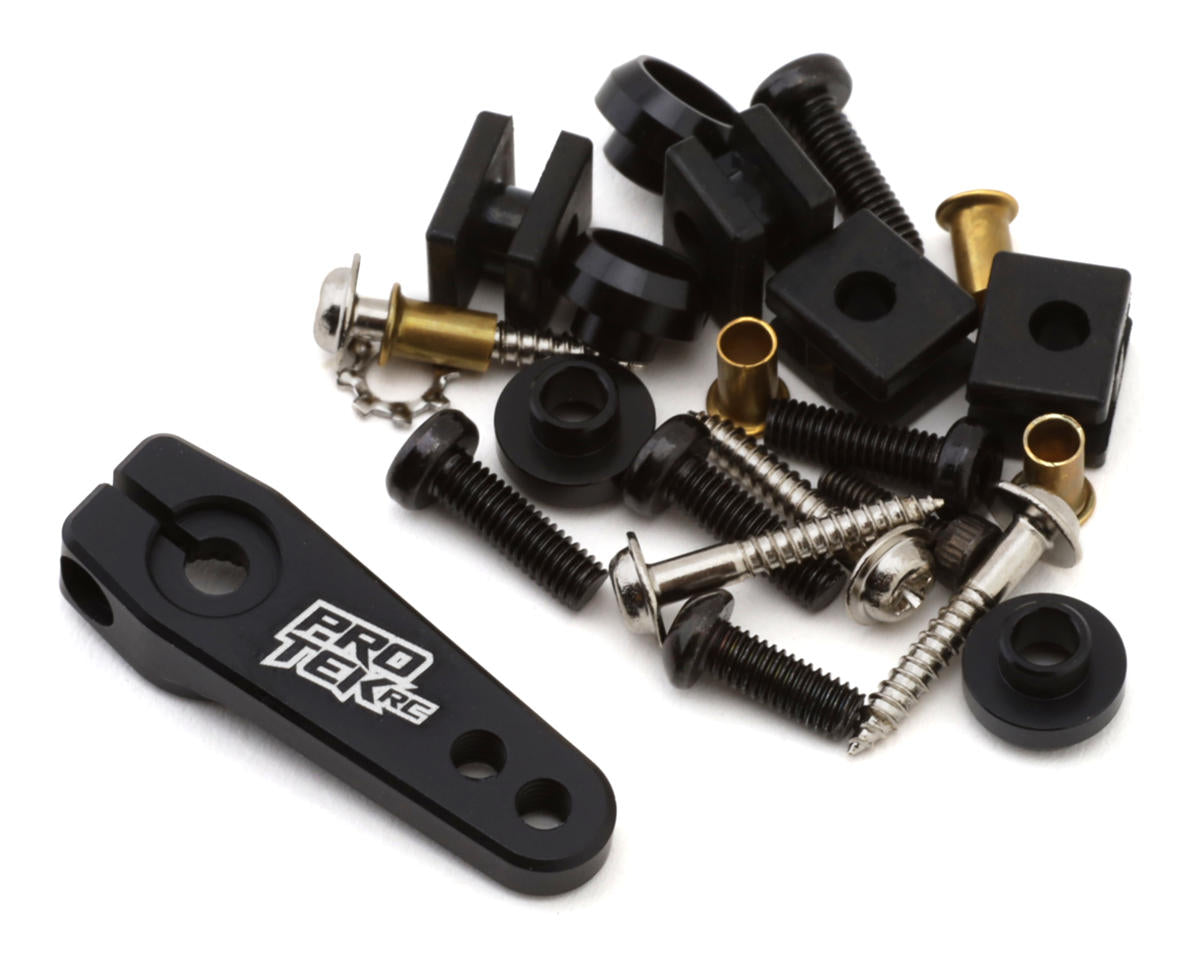

• (1) Aluminum Clamping Servo Horn
• Servo Hardware and Grommets

Tech Note: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
