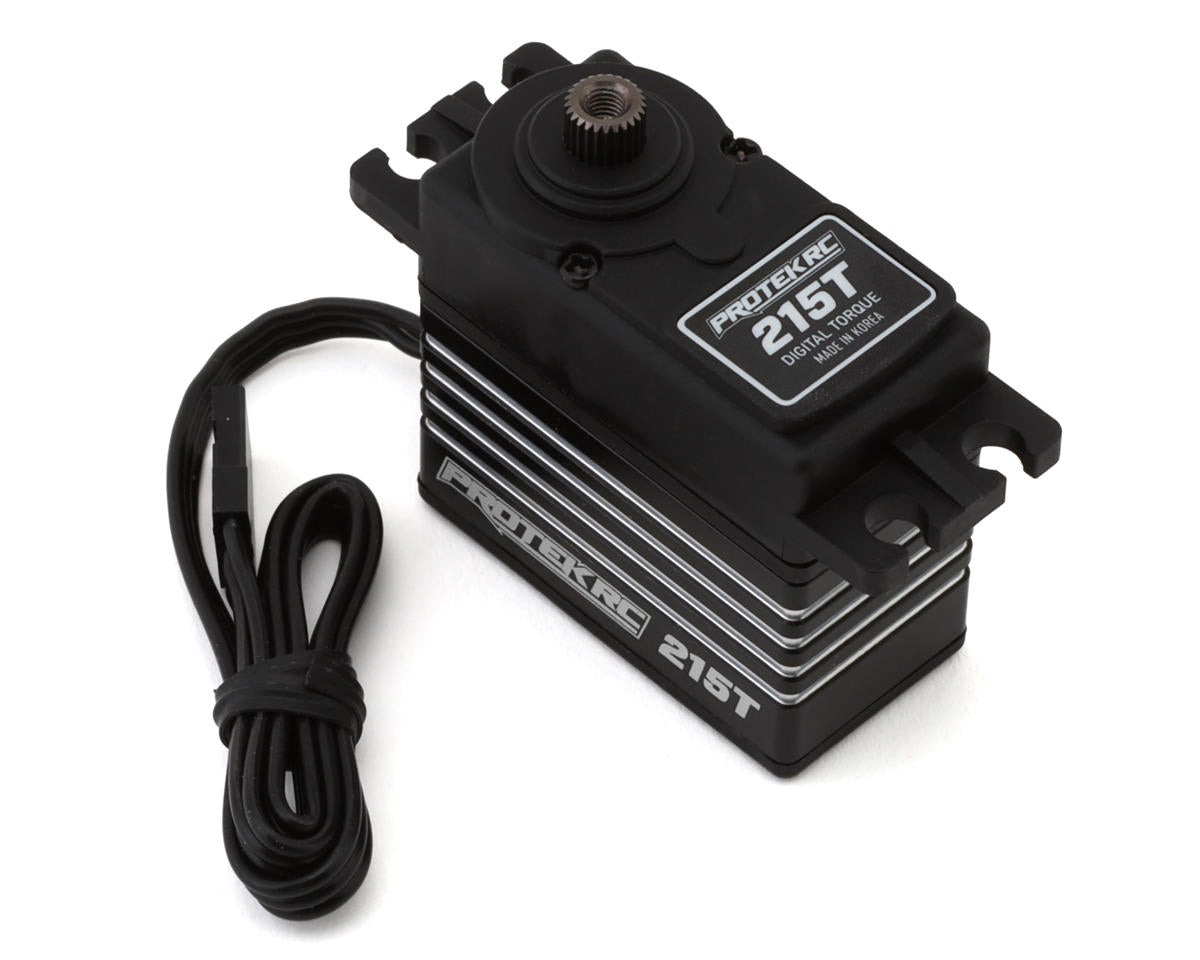

ProTek RC 215T Standard Digital "High Torque" Metal Gear Servo

The ProTek RC 215T Standard Digital “High Torque” Metal Gear Servo delivers 216 oz-in of dynamic torque at 6.0V, a 0.14/60° sec operating speed, and a durable metal gear train for RC applications.

Features

• Lifetime Gear Warranty
• Full metal gear train
• Dual ball bearings
• Aluminum middle case
• Cored DC motor
• Gold-plated connectors

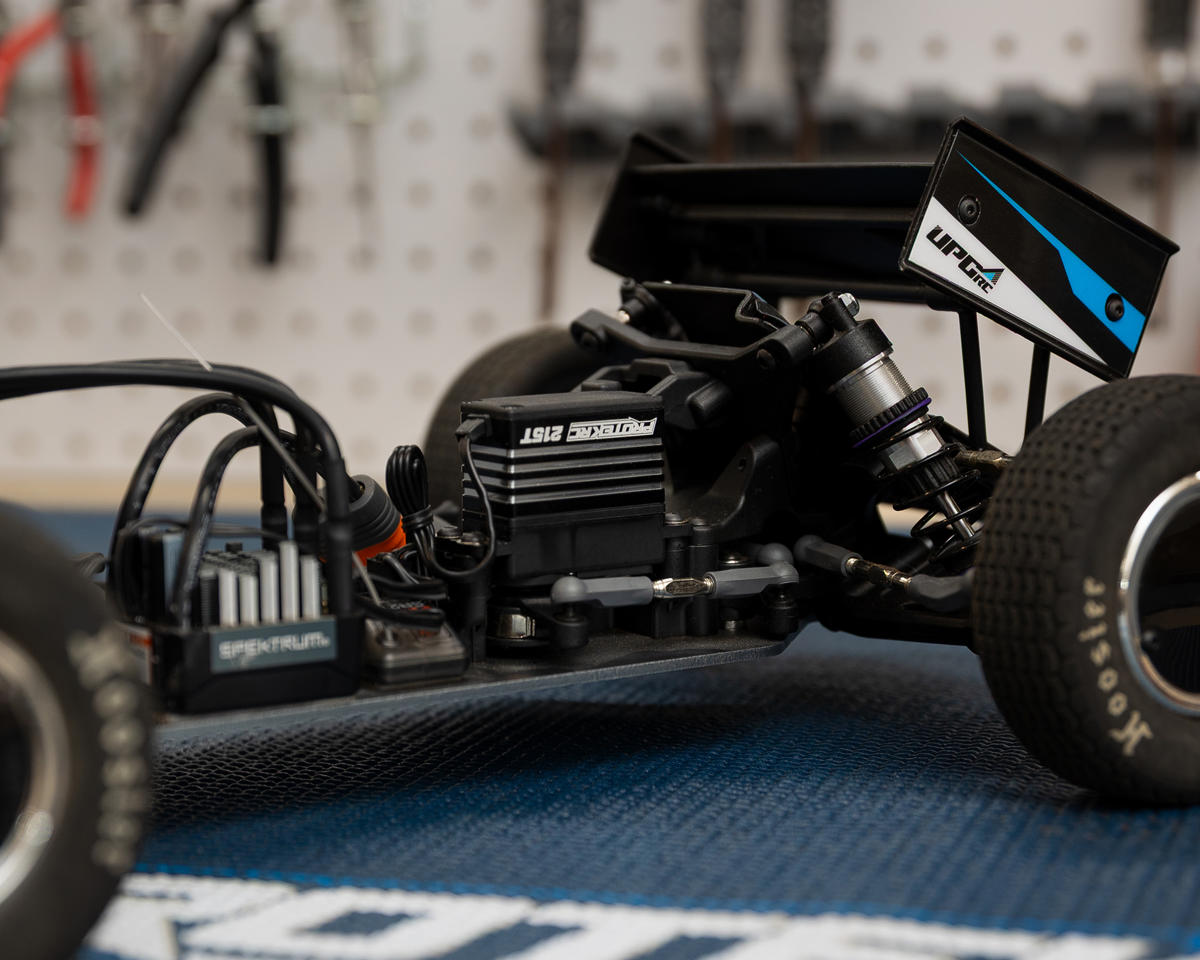

• Designed for 1/10 scale on-road and off-road vehicles

Specifications

• Application: 1:10 & 1:8 Off-Road
• Operating Voltage: 4.8V - 6.0V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 4.8V: 0.17/60° sec
• Operating Speed @ 6.0V: 0.14/60° sec
• Dynamic Torque @ 4.8V: 173 oz-in (12.5 kg-cm)
• Dynamic Torque @ 6.0V: 216oz-in (15.6 kg-cm)
• Motor Type: Cored DC
• Output Shaft: 25T
• Gears: Metal w/Lifetime Gear Warranty
• Weight: 1.93oz (54.9g)
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 1.55x1.51x0.78in (39.50x38.6x20mm)
• Length (Bottom to Mount): 1.04in (26.6mm)

Includes

• (1) Lifetime Gear Warranty
• (1) 215T Standard Metal Gear Servo

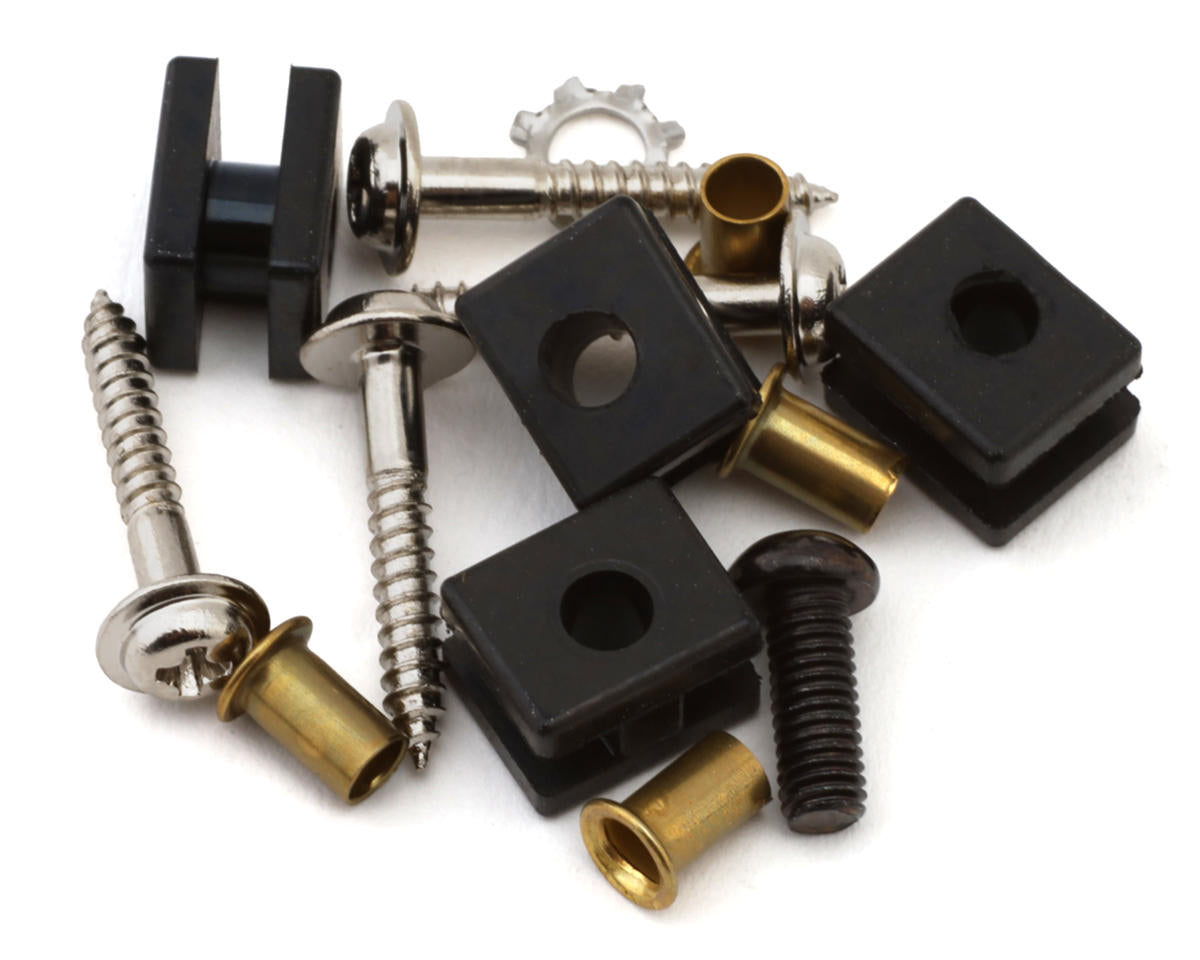

• Servo Hardware and Grommets

Tech Note

This ProTek R/C servo requires a m3x10mm screw to attach the servo horn to the output shaft. If using another screw, use a 10mm length screw. A shorter screw can cause failure and will void the warranty.
