ProTek RC 215LPT Low Profile High Torque Metal Gear Servo (High Voltage)

The ProTek RC 215LPT Low Profile High Torque Metal Gear Servo delivers high torque and fast response in a compact design for applications with limited installation space. Its full metal gear train, dual ball bearings, aluminum center case and coreless motor support dependable operation for racing use.

Features

• Low-profile design saves space and reduces weight
• Up to 230 oz-in of torque at 8.4V
• 0.07-second operating speed at 8.4V
• Full metal gear train with Lifetime Gear Warranty
• Dual ball bearings
• Aluminum center case helps improve heat dissipation
• High-voltage circuitry
• Coreless motor
• 25T output shaft

Specifications

• Application: 1:10 & 1:8 Off-Road
• Operating Voltage: 6.0V - 7.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 6.0V: 0.010/60° sec
• Operating Speed @ 7.4V: 0.08/60° sec
• Operating Speed @ 8.4V: 0.07/60° sec
• Dynamic Torque @ 6.0V: 185oz-in (13.3 kg-cm)
• Dynamic Torque @ 7.4V: 215 oz-in (15.5 kg-cm)
• Dynamic Torque @ 8.4V: 230oz-in (16.6 kg-cm)
• Motor Type: Coreless Motor
• Output Shaft: 25T
• Gears: Metal w/Lifetime Gear Warranty
• Weight: 1.75oz (49.8g)
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 1.55x1.2x0.78in (39.50x30.5x20mm)
• Length (Bottom to Mount): 0.77in (19.7mm)

Includes

• (1) Lifetime Gear Warranty
• (1) 215LPT Low Profile Metal Gear Servo
• (1) Aluminum Clamping Servo Horn

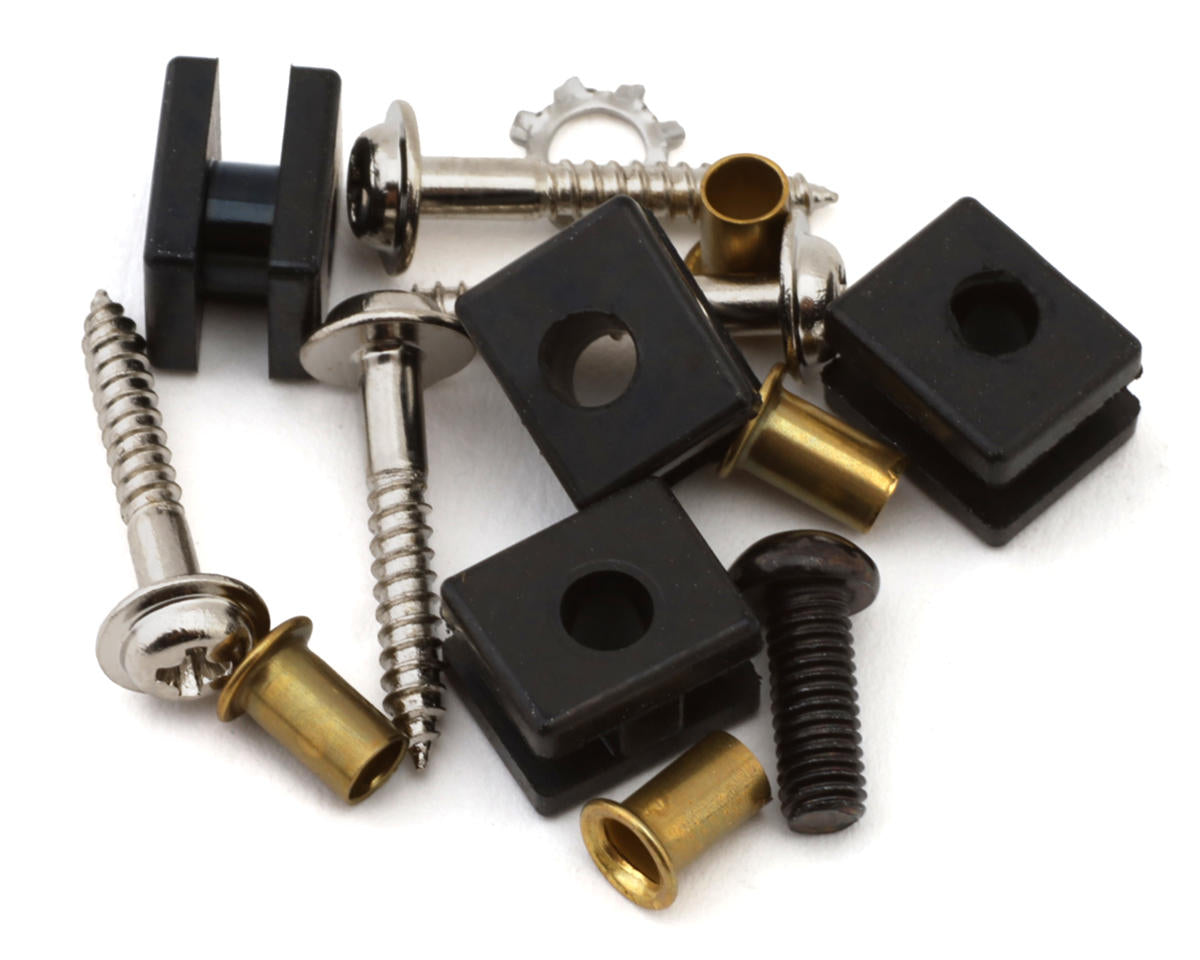

• Servo Hardware and Grommets
