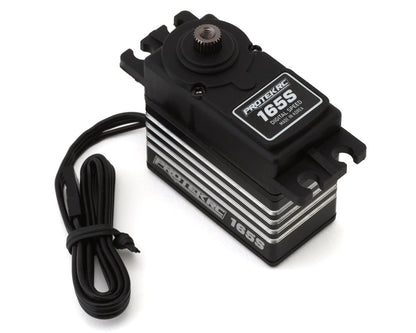

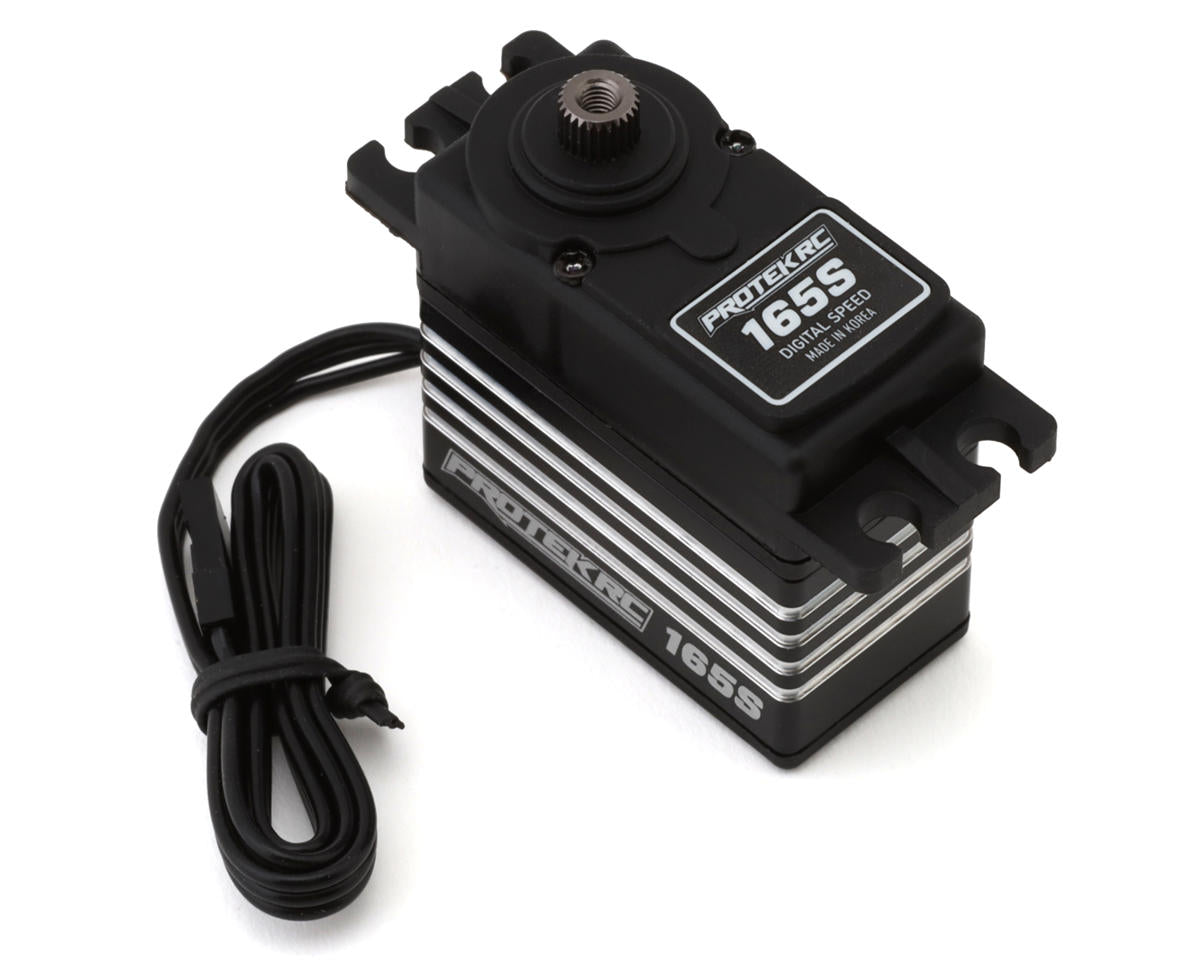

ProTek RC 165S Standard Digital "Super Speed" Metal Gear Servo

The ProTek RC 165S Standard Digital “Super Speed” Metal Gear Servo delivers fast, precise control for 1/10 on-road and off-road vehicles. It combines a 0.09/60° sec operating speed at 6.0V with 168oz-in (12.1 kg-cm) of dynamic torque, a full metal gear train, dual ball bearings, and a cored DC motor.

Features

• Lifetime Gear Warranty
• Operating speed of 0.11/60° sec at 4.8V and 0.09/60° sec at 6.0V
• Dynamic torque of 134 oz-in (9.6 kg-cm) at 4.8V and 168oz-in (12.1 kg-cm) at 6.0V
• Full metal gear train
• Dual ball bearings
• Aluminum middle case
• Cored DC motor
• Gold-plated connectors
• 25T output shaft

Specifications

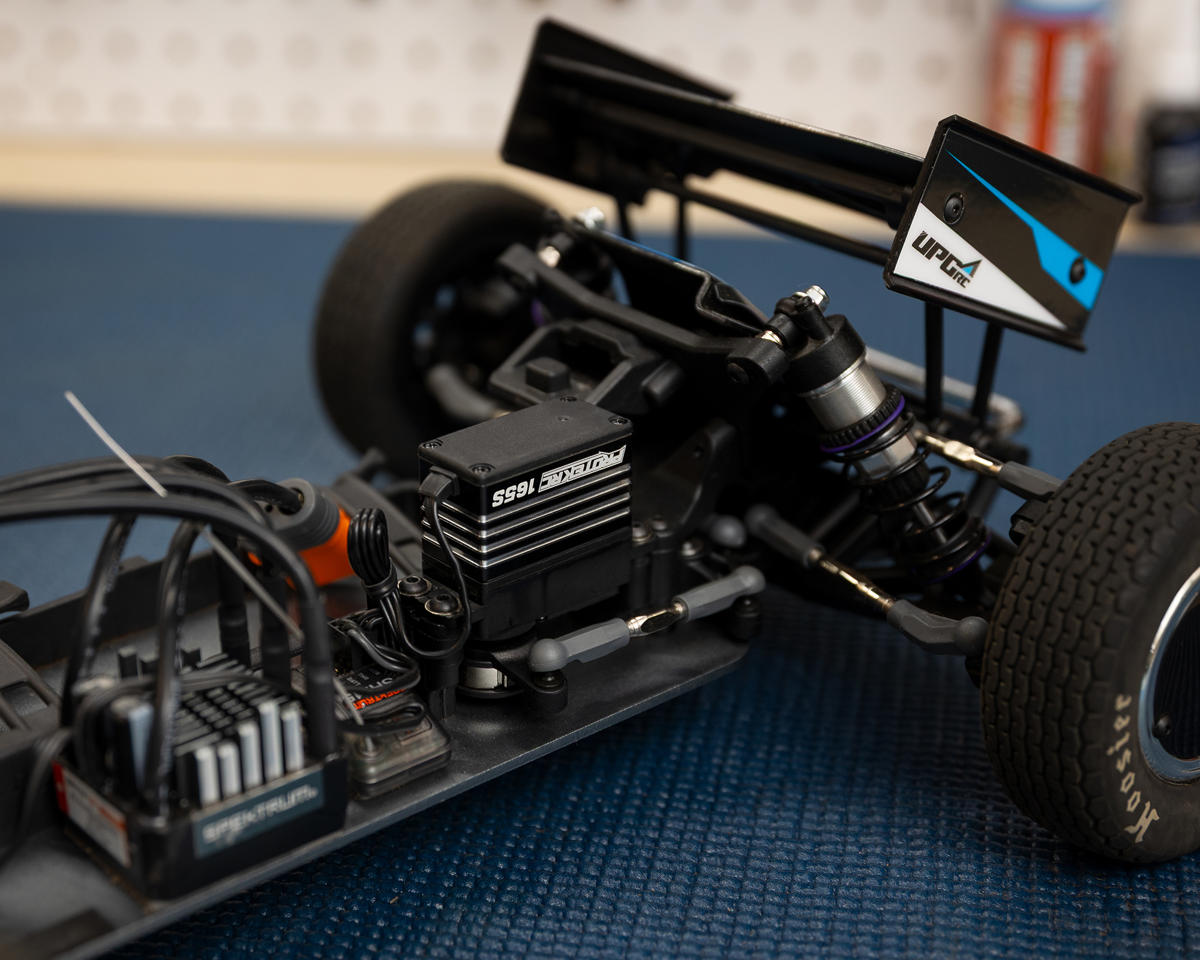

• Application: 1:10 On-Road & Off-Road
• Operating Voltage: 4.8V - 6.0V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Motor Type: Cored DC
• Gears: Metal w/Lifetime Gear Warranty
• Weight: 1.93oz (54.9g)
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 1.55x1.51x0.78in (39.50x38.6x20mm)
• Length (Bottom to Mount): 1.04in (26.6mm)

Includes

• (1) 165S Standard Metal Gear Servo
• (1) Aluminum Clamping Servo Horn

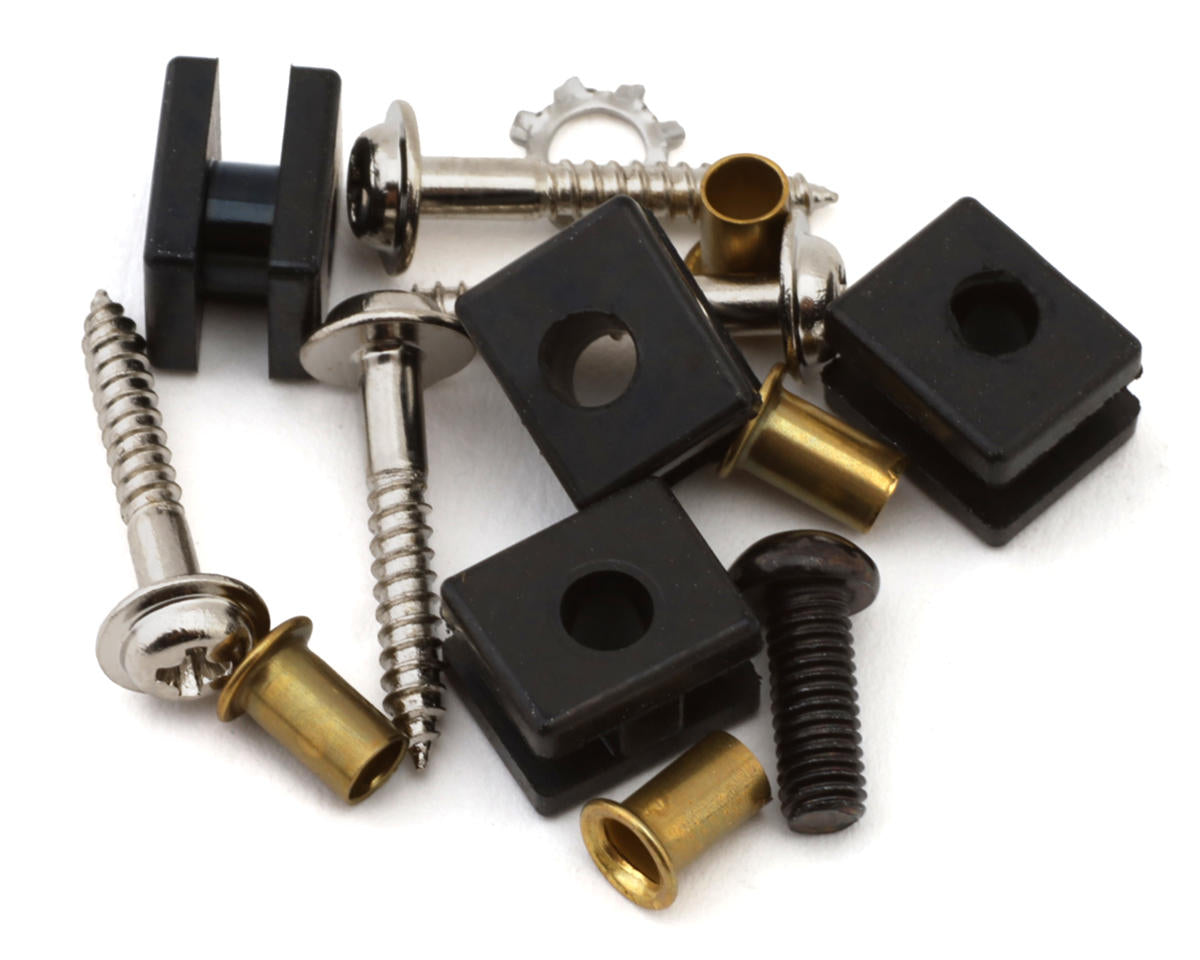

• Servo Hardware and Grommets
• Lifetime Gear Warranty

Tech Note: This ProTek R/C servo requires a m3x10mm screw to attach the servo horn to the output shaft. If you choose another screw, use a 10mm length screw. Use of a shorter screw can cause failure and will void your warranty.
