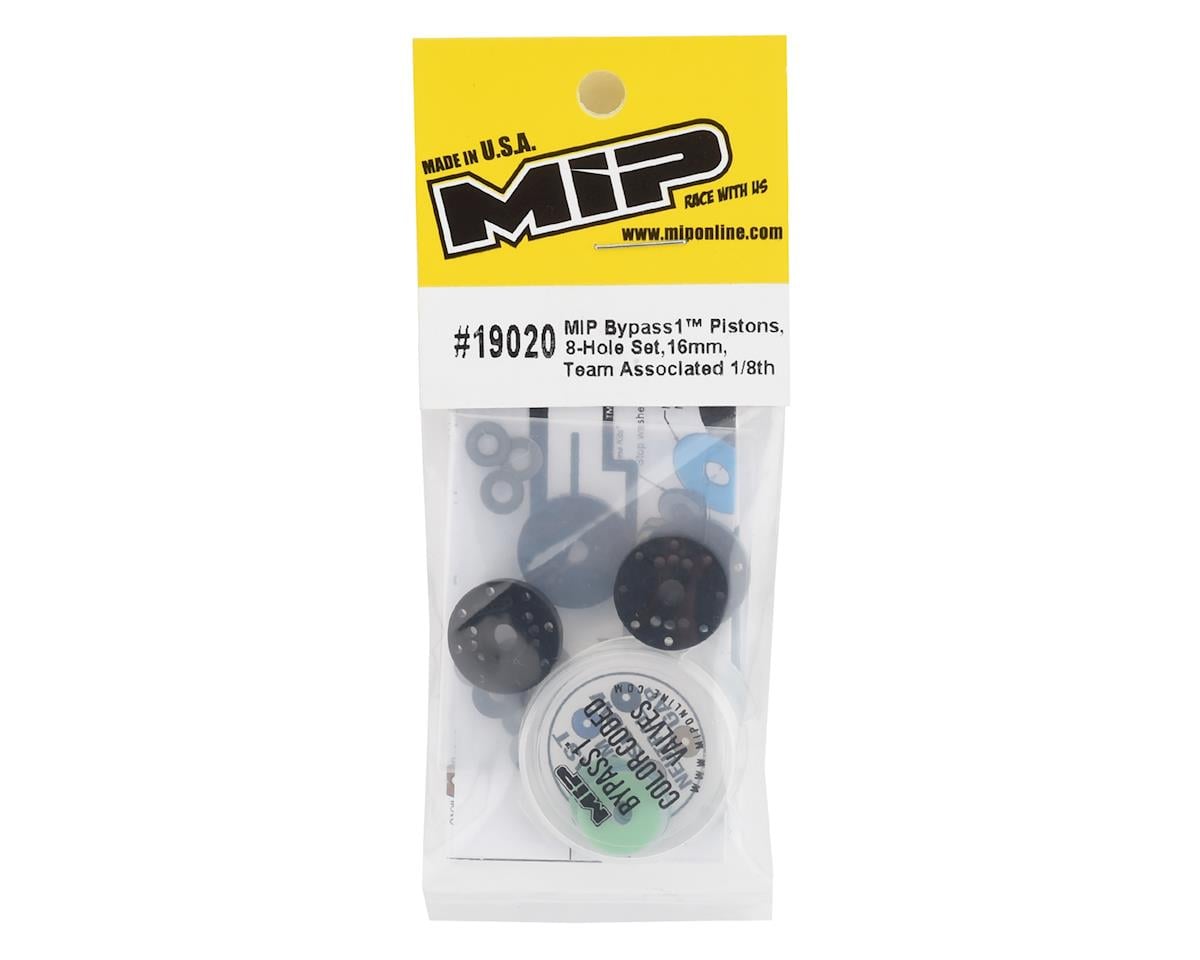

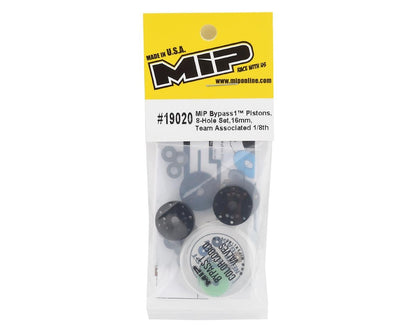

MIP Associated 16mm 8 Hole Bypass1 Shock Piston Set (4)

The MIP Associated 16mm 8 Hole Bypass1 Shock Piston Set provides adjustable rebound tuning through color-coded valves. The pistons feature 1.2mm pre-drilled holes that can be drilled to custom hole sizes, while valve thickness and stacking allow further rebound-speed adjustment.

Features

• 1.2mm pre-drilled holes for adjustment to your normal hole-size setup
• MIP Color Coded Valves for rebound-speed control
• Different valve thicknesses provide adjustable rebound speeds
• Stacking valves enables additional fine-tuning
• Precision machined bearing grade shock pistons
• Precision stamped valves
• Manufactured 100% in the USA

Valve Designations

• .003 Green: Fast Rebound Valve
• .005 Blue: Medium Rebound Valve
• .007 Clear: Slow Rebound Valve

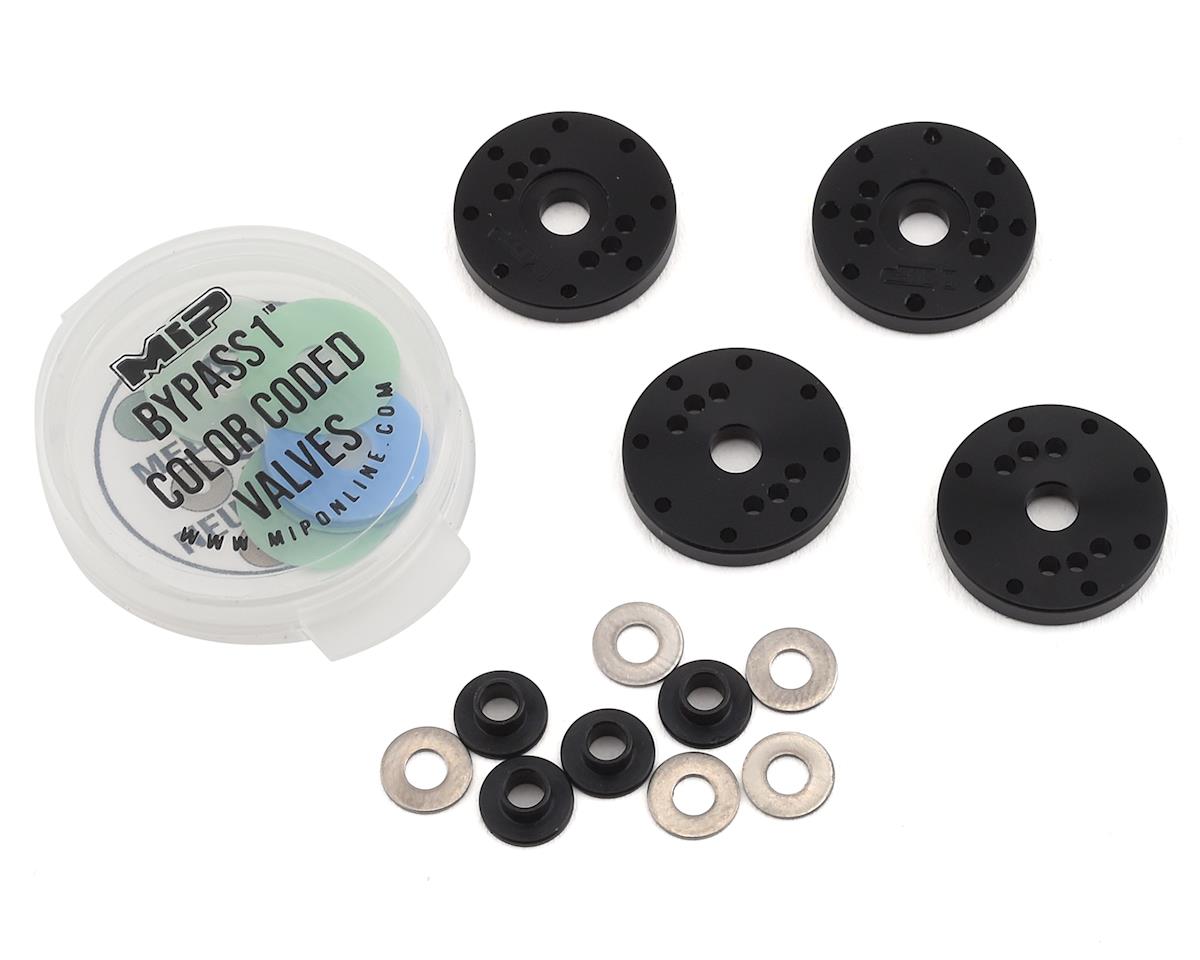

Includes

• (4) 8 - Hole 1.2 mm MIP Bypass1™ Shock Pistons
• (5) .003 Green Fast Rebound Valves
• (5) .005 Blue Medium Rebound Valves
• (5) .007 Clear Slow Rebound Valves
