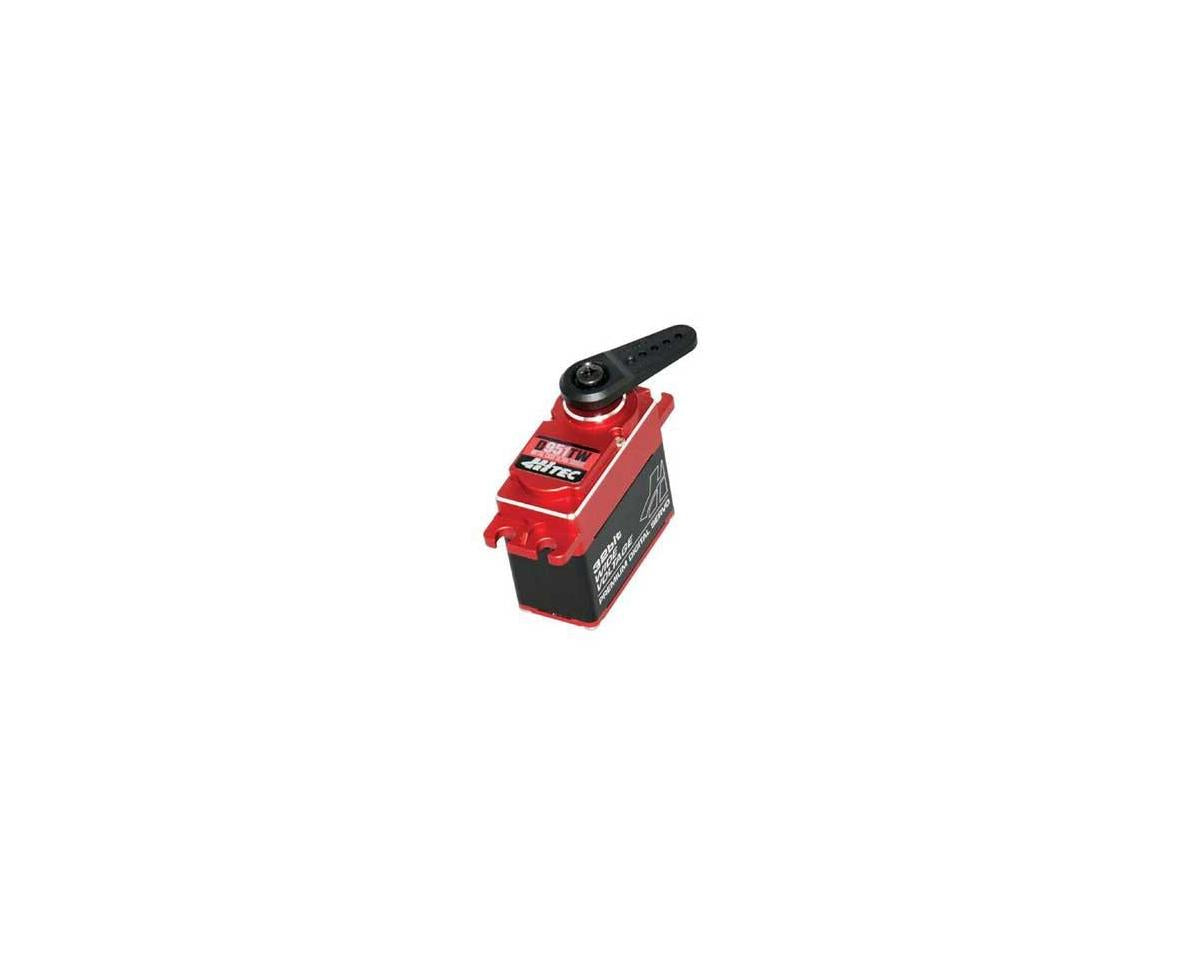

Hitec D951TW D-Series Ultra Torque Titanium Gear Digital Servo (High Voltage)

The Hitec D951TW D-Series Ultra Torque Titanium Gear Digital Servo combines high-response circuitry, wide-voltage operation, and programmable control in a durable aluminum case. Its 32-bit MCU, 12-bit ADC, Smart Sense technology, titanium gears, and 25-tooth output spline are designed for radio control applications.

Features

• High-response circuitry
• Operating voltage range of 4.8V ~ 6.0V ~ 7.4V
• 32-bit MCU technology and 12-bit ADC
• Full programmability
• Smart Sense technology for servo analytics
• Titanium gear material
• Dual ball bearing
• H25T output shaft
• Aluminum case
• Splash proof

Programmable Functions

• End point adjustments
• Direction
• Fail safe
• Dead band
• Speed (slower)
• Soft start
• Rate
• Overload protection
• Data save / load
• Program reset

Specifications

• Speed (Second @ 60°): 0.23 ~ 0.17 ~ 0.14
• Maximum Torque Range oz./in.: 292 ~ 403 ~ 486
• Maximum Torque Range kg./cm.: 21.0 ~ 29.0 ~ 35.0
• Current Draw at Idle: 30 mA
• No Load Operating Current Draw: 500 mA
• Stall Current Draw: 6,200 mA
• Dead Band Width: 1 µs
• Dimensions (Inches): 1.57 x 0.79 x 1.50
• Dimensions (Metric): 40.0 x 20.0 x 38.0
• Weight (Ounces): 2.4
• Weight (Gram): 68.0
• Circuit Type: 32bit Programable Digital
• Motor Type: Coreless Metal Brush
• Gear Material: Titanium
• Bearing Type: Dual Ball Bearing
• Output Shaft (type / Ømm): H25T
• Case Material: Aluminum
• Dust/Water Resistance Splash Proof: Yes
• Connector Gauge (AWG)/Strand Count: 20/80

Warranty

Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall repair or replace defective equipment covered by this warranty; otherwise, the purchaser and/or consumer is responsible for repair or replacement charges.
