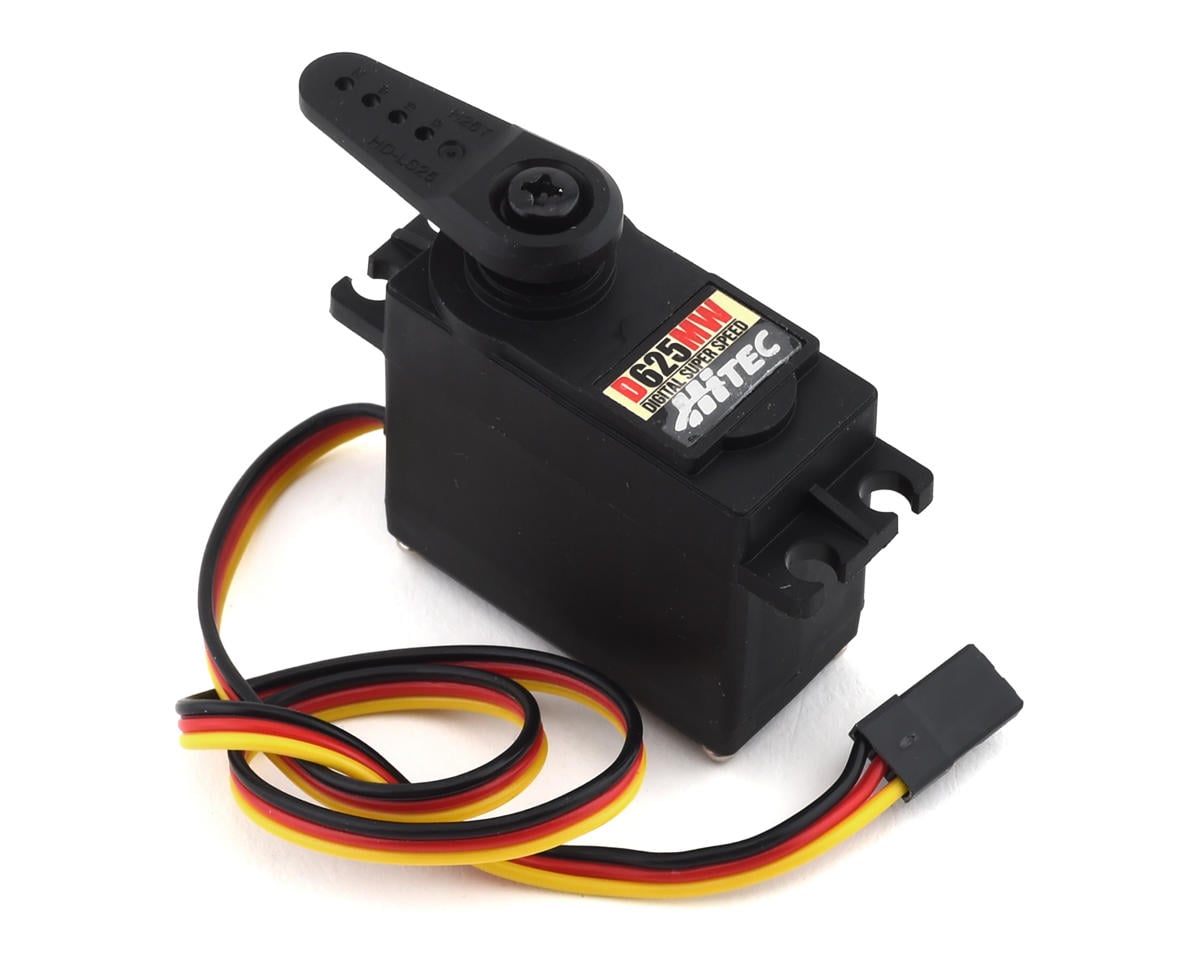

Hitec D625MW High Speed Metal Gear Servo (High Voltage)

The Hitec D625MW is a high-speed, high-voltage digital servo with metal gears, a dual ball-bearing-supported output shaft, and a 25-tooth H25T output spline with a 3mm hex screw. Its programmable design uses a 32-bit MCU, 12-bit ADC circuitry, and 4096 resolution for smooth movement and flexible setup.

Features

• Programmable PWM digital amplifier
• 32-bit MCU with 12-bit ADC circuitry
• 4096 resolution
• 1M cycle long-life potentiometer
• Wide operating voltage: 4.8 ~ 8.4 Volts DC
• Dual ball-bearing-supported output shaft
• 25-tooth output spline
• Metal gears
• Plastic case

Programmable Functions

• End point adjustments
• Direction
• Fail safe
• Dead band
• Speed (slower)
• Soft start
• Rate
• Overload protection
• Data save / load
• Program reset

Specifications

• Operating voltage range: 4.8V ~ 6.0V ~ 7.4V
• Speed (second @ 60°): 0.20 ~ 0.15 ~ 0.13
• Maximum torque range: 87 ~ 122 ~ 139 oz./in.
• Maximum torque range: 6.3 ~ 8.8 ~ 10.0 kg./cm.
• Current draw at idle: 30 mA
• No load operating current draw: 500 mA
• Stall current draw: 2,650 mA
• Dead band width: 2 µs
• Dimensions: 1.59 x 0.77 x 1.48 inches; 40.6 x 19.8 x 37.8 metric
• Weight: 2.11 ounces; 57.0 grams
• Circuit type: 32bit programmable digital
• Motor type: 3 Pole Metal Brush Ferrite
• Gear material: Metal
• Bearing type: Dual ball bearing
• Output shaft: H25T
• Case material: Plastic
• Dust/water resistance: N/A
• Connector gauge/strand count: 22/60 AWG

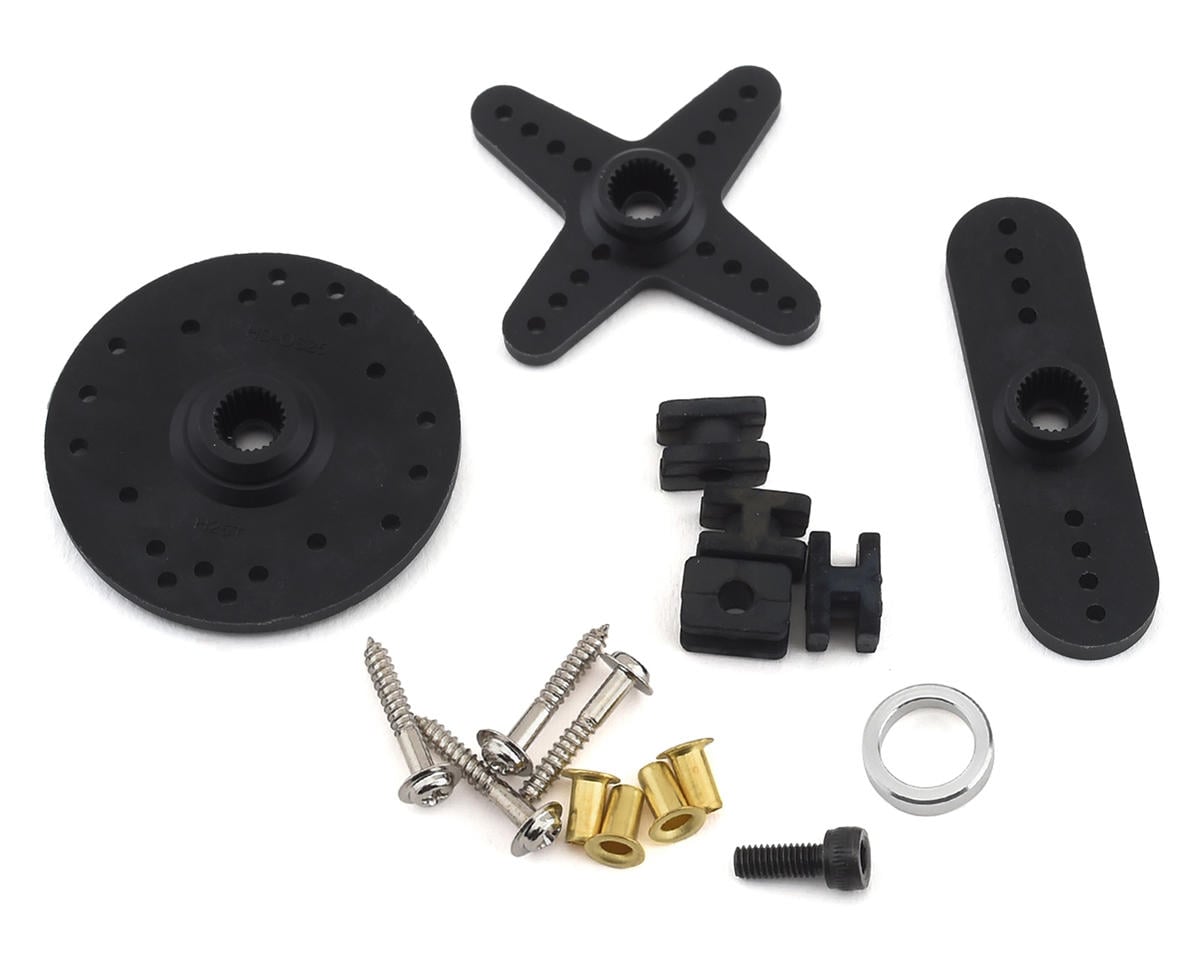

Includes

• Metal gears set
• Metal/plastic 1st gear set
• Plastic case set

Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall repair or replace defective equipment covered by this warranty; otherwise, the purchaser and/or consumer is responsible for repair or replacement charges.
