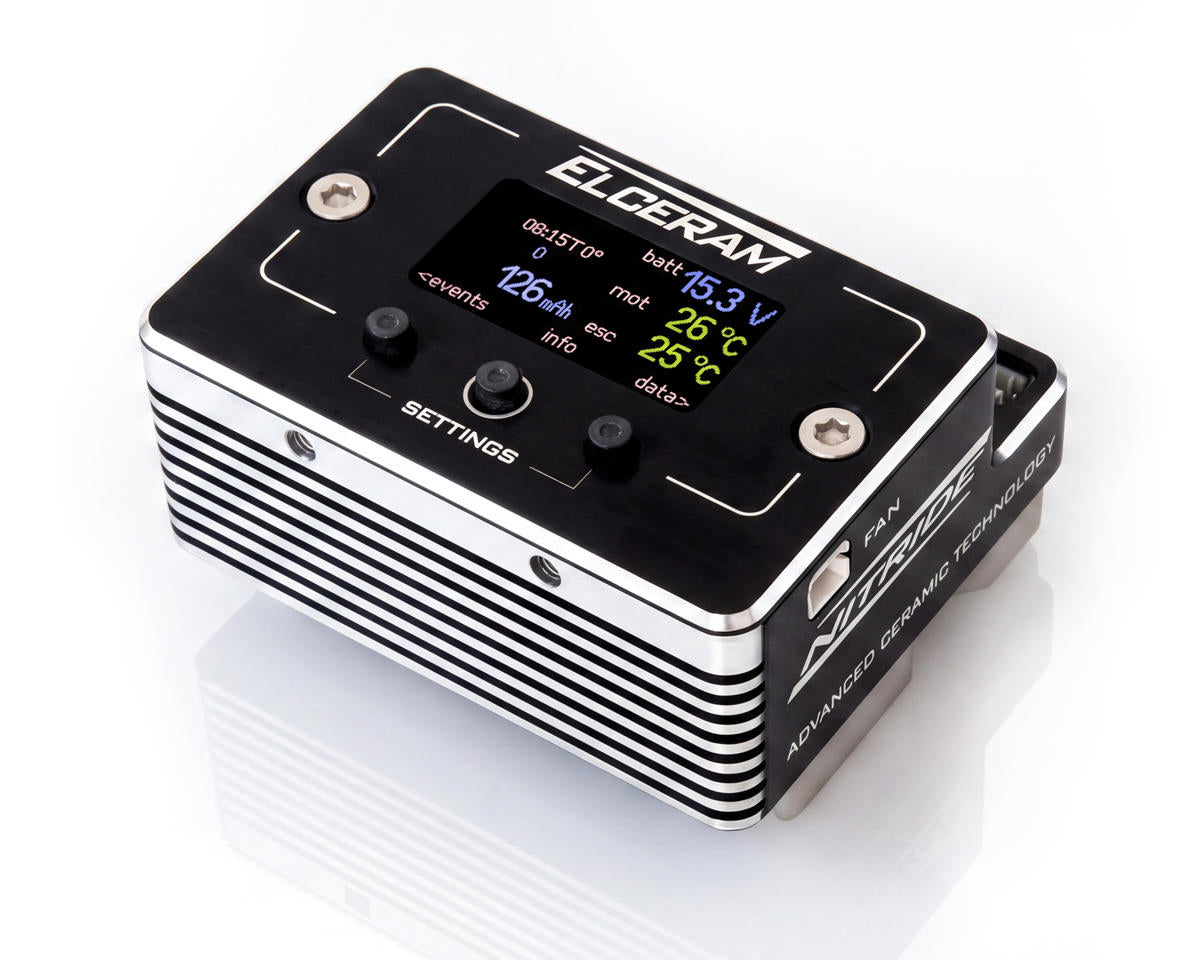

Elceram Nitride 1/8 Sensored Brushless ESC (2-4S)

The Elceram Nitride 1/8 Sensored Brushless ESC combines an integrated TFT color LCD display with Aluminum Nitride ceramic cooling for 1/8 RC vehicles using sensored brushless motors. It supports 2-4S LiPo power and motors up to 2800kV, with onboard programming, monitoring, diagnostics, and data logging.

Features

• Advanced Aluminum Nitride ceramic cooling system

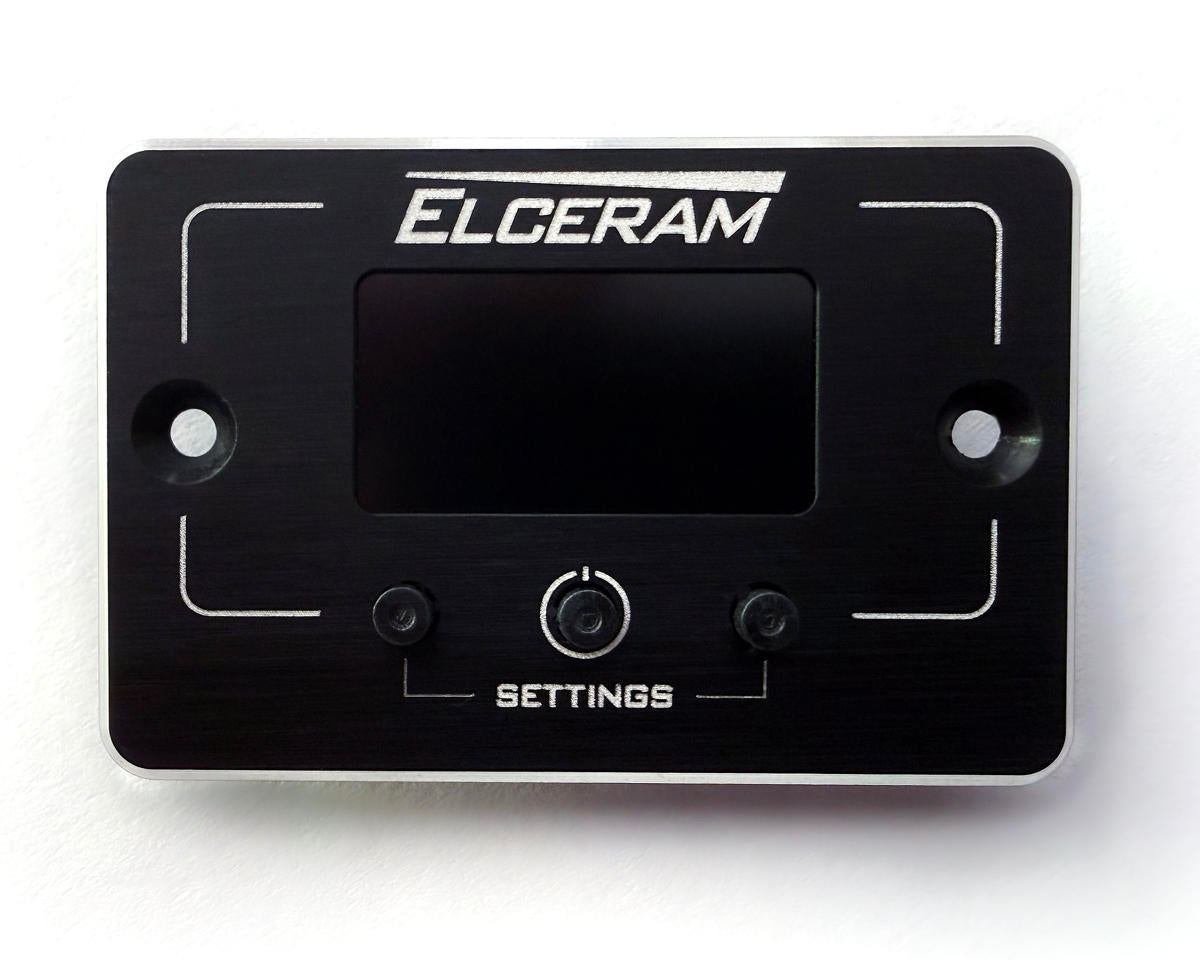

• Integrated TFT color LCD display
• Three-button onboard programming interface
• Supports sensored brushless motors up to 2800kV
• Real-time battery and ESC monitoring
• Built-in race data logging
• Intelligent ESC protection algorithms
• Reverse polarity protection
• Zero Timing (Blinky Mode) support
• Firmware update capability

Specifications

• Suggested Application: 1/8
• Motor Type: Brushless - Sensored
• Input Voltage: 2-4S LiPo (7.4-14.8V)
• Continuous Current: 220A
• Burst Current: 1500A
• Dimensions (LxWxH): 1.97x1.69x1.10in (50x43x28mm)
• Weight: 3.95oz (112g)
• Motor Limits: 2800kV
• BEC Voltage: 6.0-8.5V (Adjustable)
• BEC Continuous Current: 6A
• BEC Peak Current: 15A
• Motor Connector: Solder Type
• Battery Connector: Solder Type
• Motor Wire: -
• Battery Wire: -
• Programmable: Yes

Includes

• (1) Nitride 1/8 Sensored Brushless ESC
• (2) External Capacitors

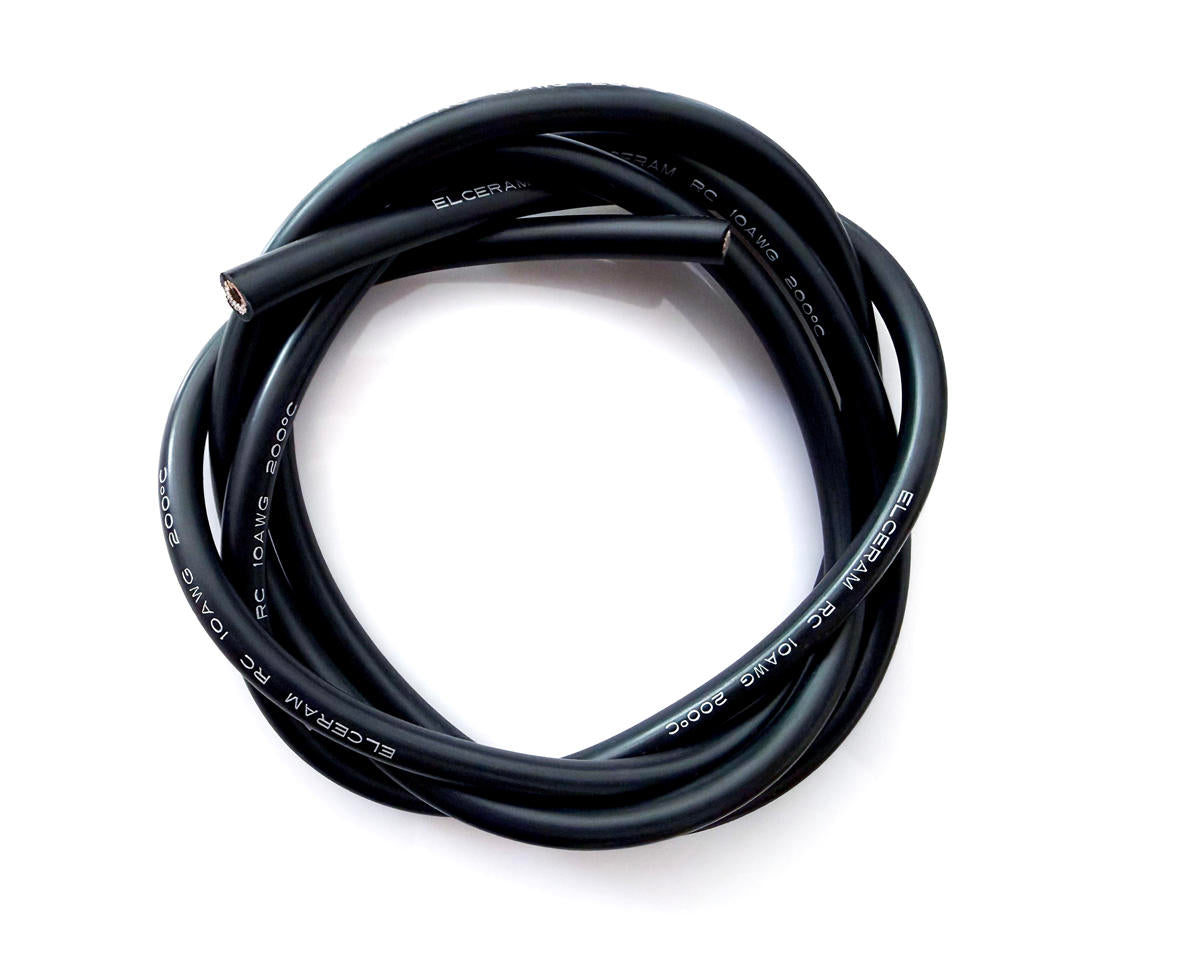

• (1) 10AWG Wire Set
• (1) BEC Cable (300mm, grey stripe is negative)
• (1) 25mm Cooling Fan
• Double-Sided Tape
• Product Manual
