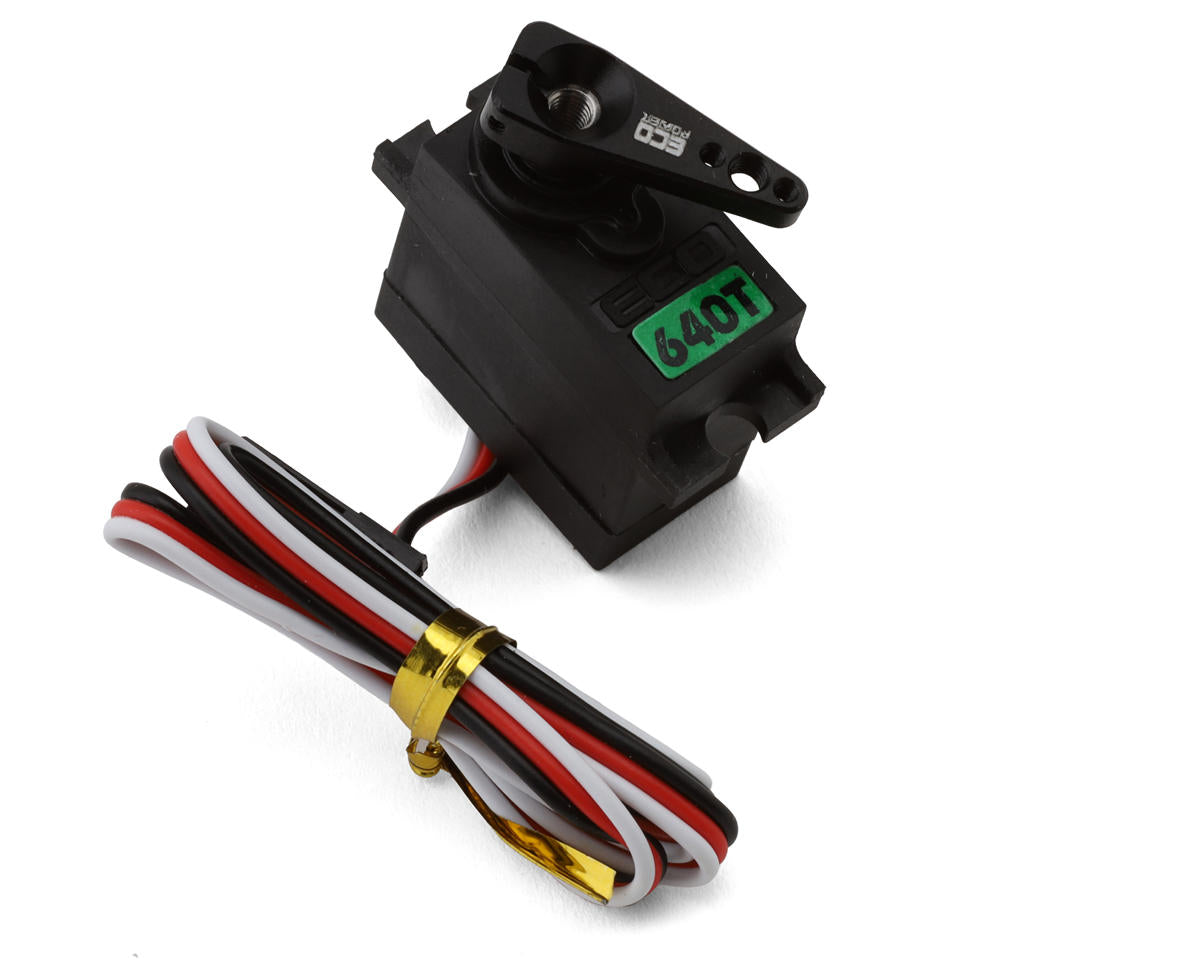

EcoPower 640T 13g Waterproof Metal Gear Digital Sub Micro Servo

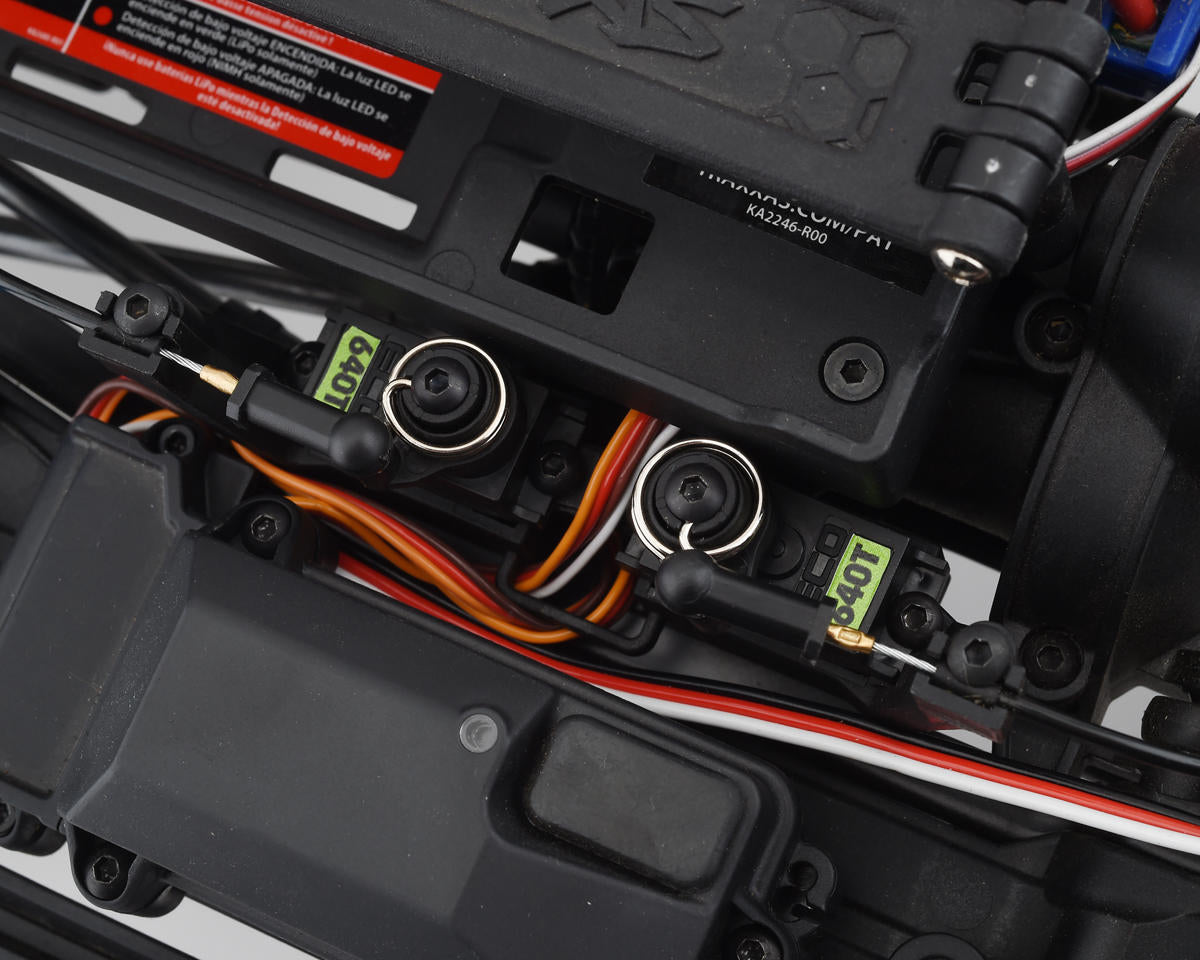

The EcoPower 640T is a 13g waterproof metal gear digital sub micro servo designed as a rugged upgrade for the Traxxas TRX-4 Dig/Shift application and other sub micro servo uses. It is also compatible with the Traxxas TRX-4M when paired with the optional Samix TRX-4M Brass Servo Mount (SAMTRX4M-4068, sold separately).

With 64 oz-in of dynamic torque and .09 operating speed at 6.0V, the 640T features digital circuitry, a cored motor, metal gears, and waterproofing up to 1 meter. It is a direct replacement for the Traxxas 2065 sub micro servo, but is a few millimeters taller and may not fit every application where the 2065 is used.

Features

• Lifetime Gear Warranty
• Waterproof up to 1 meter
• 64 oz-in of torque and .09 transit speed at 6.0V
• Digital circuitry
• Cored motor
• Metal gears
• 315mm servo lead

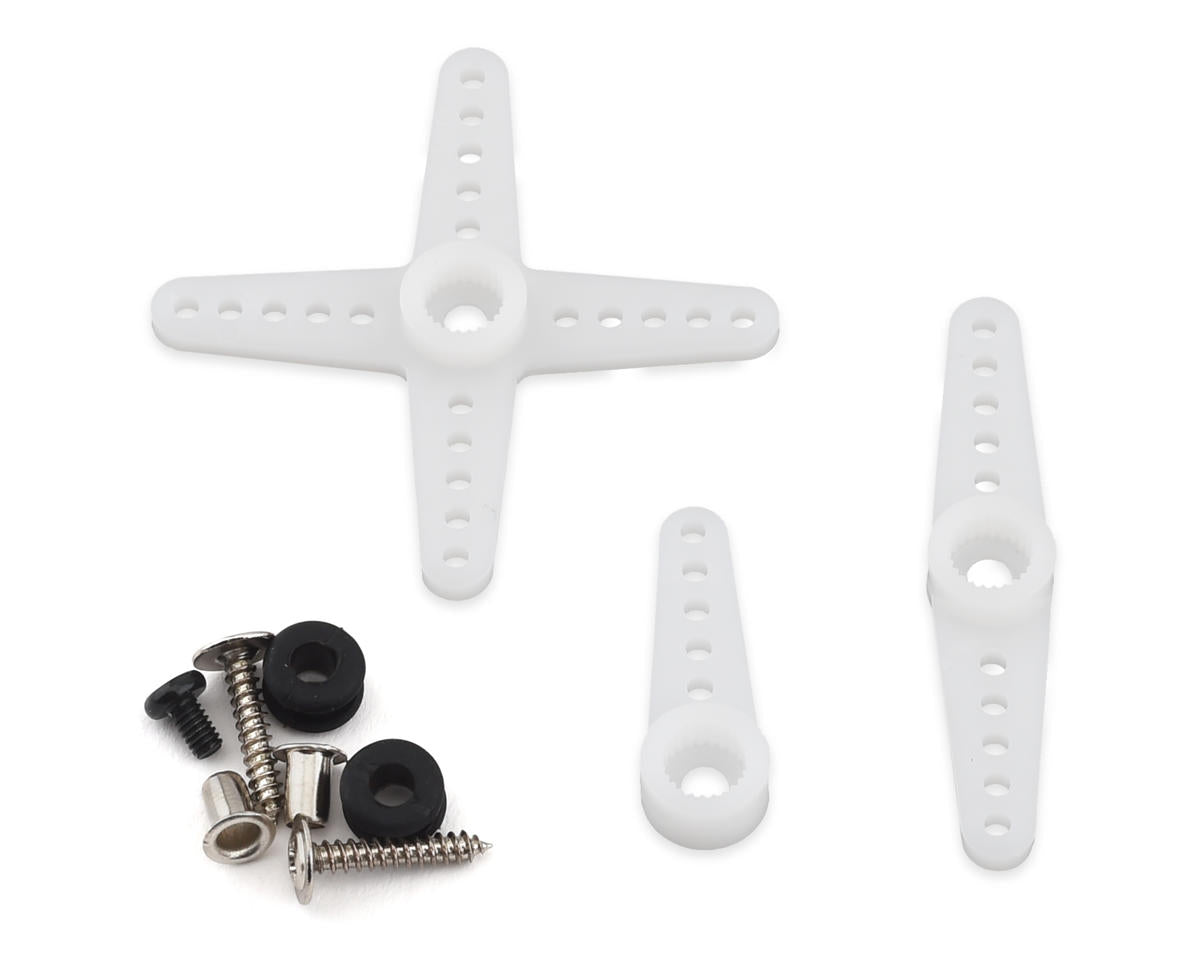

• Includes plastic 4-way, dual, and single arm servo horns and mounting hardware

Specifications

• Operating Voltage: 4.8-6.0V
• Operating Speed: .09 @ 6.0V
• Dynamic Torque: 64 oz in @ 6.0V (4.6kg cm)
• Weight: 13 grams
• Output Shaft: 25T
• Motor Type: Cored
• Wire Length: 315mm

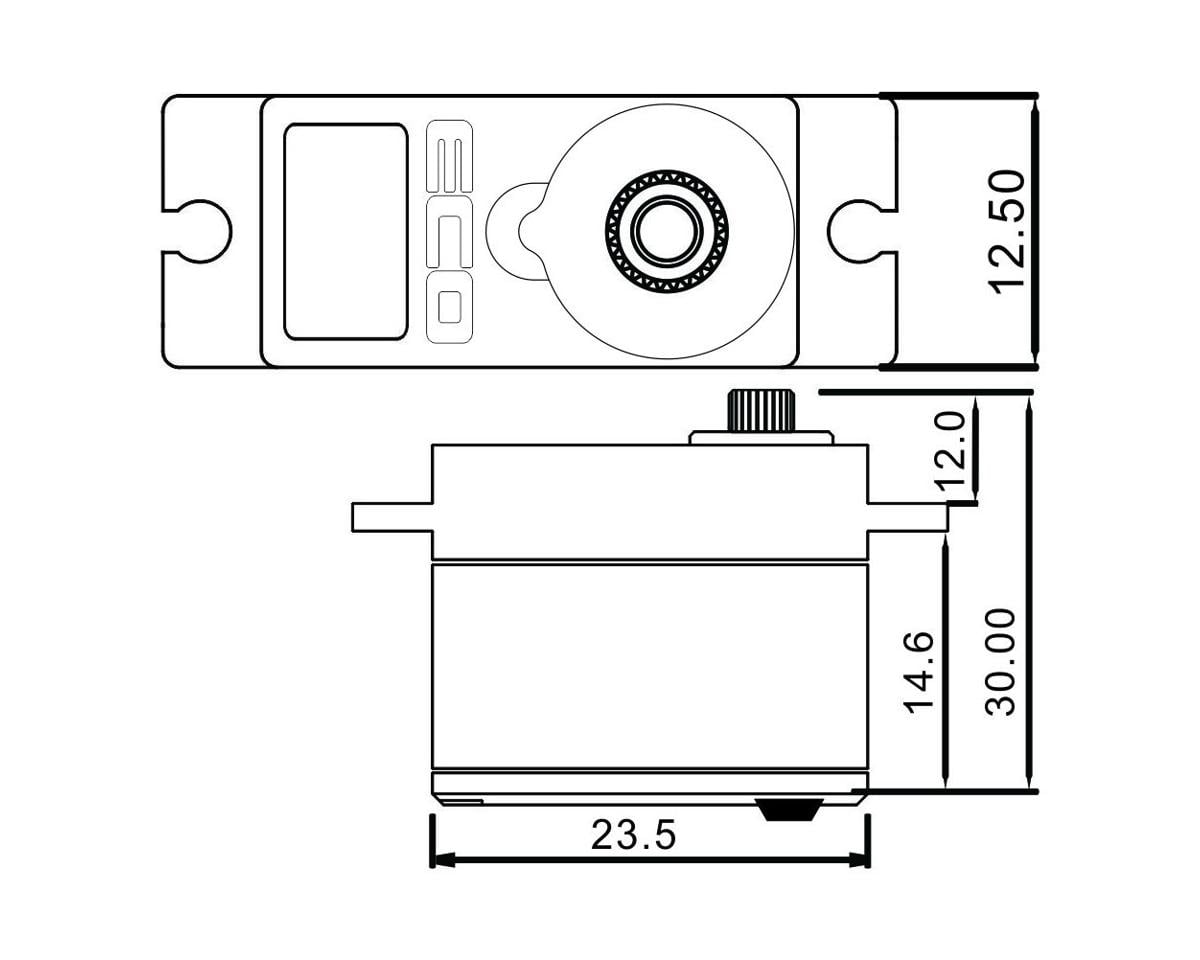

• Dimensions: 23.5x12.50x25mm (30mm tall @ output)

A 1 Year warranty against manufacturer defects is included. Warranty does not cover stripped gears or damage caused by abuse. Set your End Point Adjustments when using this servo to ensure long life and performance.
