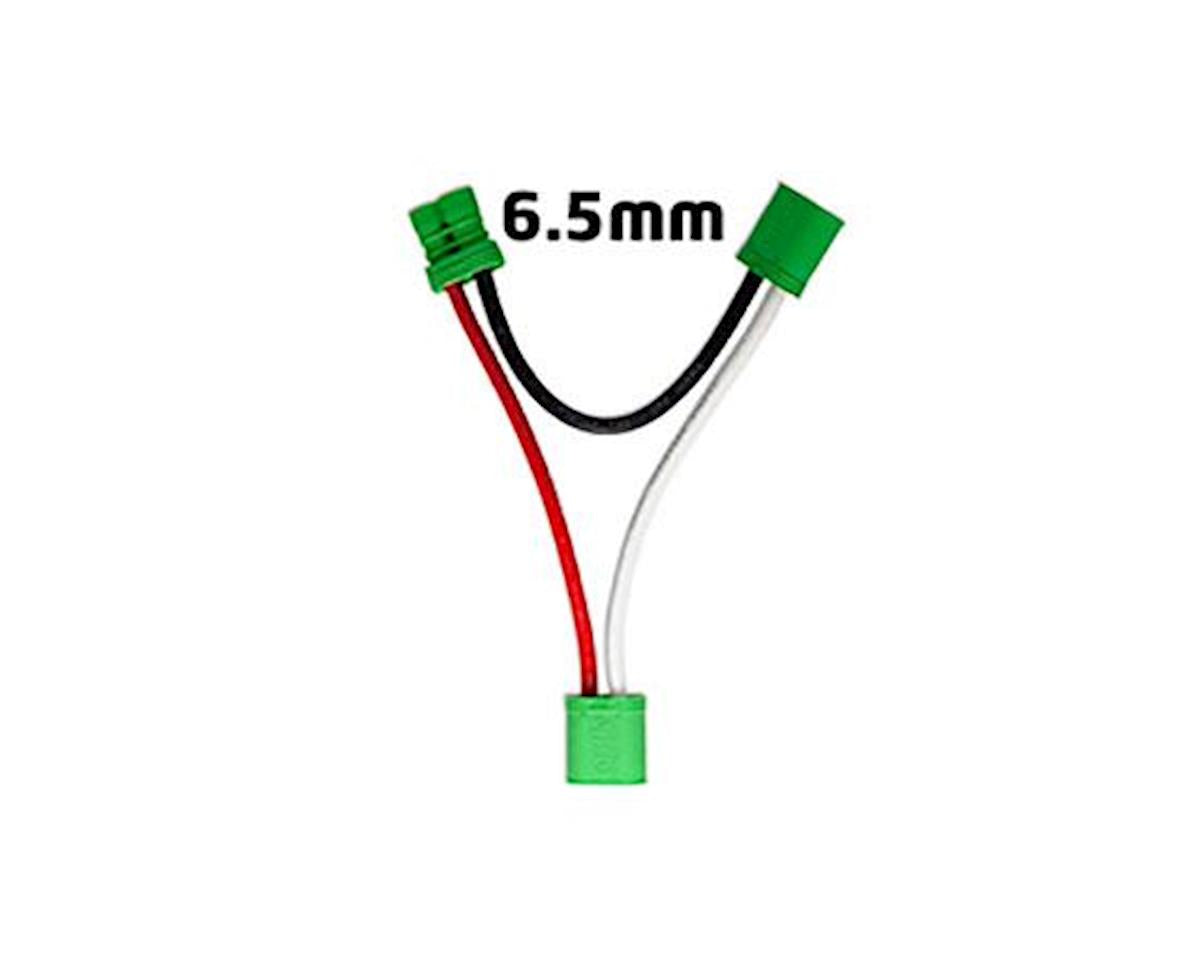

Castle Creations 6.5mm Polarized Series Wire Harness

The Castle Creations 6.5mm Polarized Series Wire Harness connects two battery packs in series, combining their voltage. Two 3S (11.1v) packs, for example, provide the output voltage of 6S (22.2v) when connected with this harness.

Features

• Factory-fitted with 6.5mm Polarized Castle Connectors
• Side ridges on the housing provide a secure grip
• Housing is marked “Battery” and “ESC” for easy reference

Specifications

• Connector size: 6.5mm
• Wire gauge: 10AWG
• Connector-to-connector wire length: 5" (127mm)
• Overall length: 6.75" (171mm)
• Weight: 2.01 oz. (57g)

Important Usage Information

A matching polarized male connector must be soldered to your ESC, and matching polarized female connectors must be soldered to your batteries. Ensure that your ESC and motor can handle the combined voltage of both batteries.

Always use identically prepared packs. Both packs must be fully charged and properly balanced, from the same manufacturer, have the same C ratings, and have the same capacity and level of charge at all times. Failure to follow these requirements may damage the batteries and/or ESC. Castle Creations is not responsible for damage resulting from misuse of this product.
