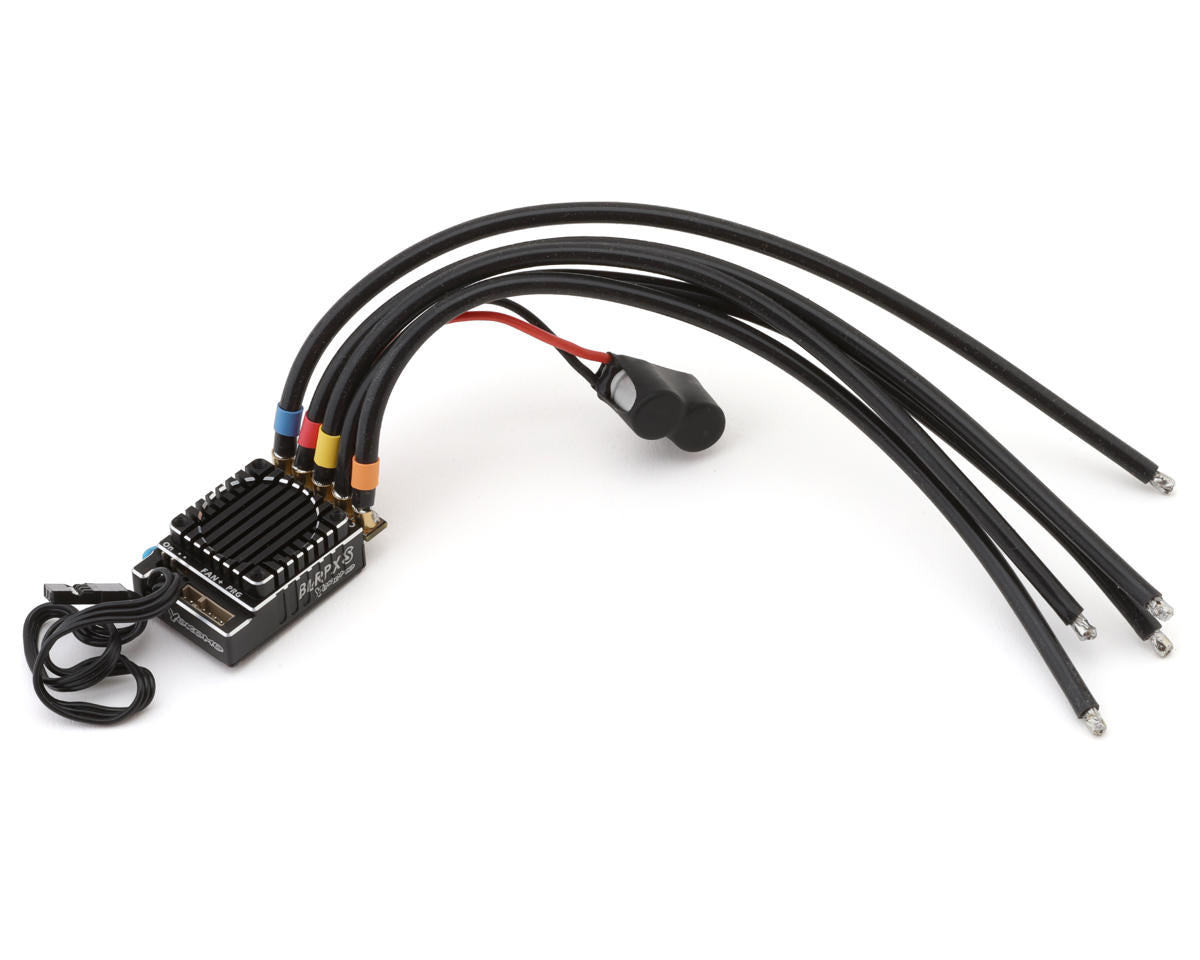

Yokomo RPX-S Brushless Electronic Speed Control

The Yokomo RPX-S Brushless Electronic Speed Control is a compact ESC for sensored brushless motors up to 10.5T. It features programmable throttle and brake feel, plus adjustable boost and turbo values for setup customization.

Ultra-soft 12AWG wiring and bare-wire motor and battery connections support a clean soldered installation. Programming is available with the dedicated Yokomo RPX3 ESC Programmer (YOK-BL-R26P3), sold separately.

Features

• Supports motors up to 10.5T
• Ultra-soft 12AWG black wiring
• Soldering connections for a clean setup
• Programmable throttle and brake feel
• Adjustable boost and turbo values
• Programmable with dedicated ESC programmer (YOK-BL-R26P3) sold separately

Specifications

• Motor Type: Brushless - Sensored
• Input Voltage: 2S LiPo or 6-Cell NiMH (4.8-11V)
• Dimensions (LxWxH): 1.01x1.36x0.58in (25.6x34.6x14.8mm)
• Motor Limits: 10.5T
• Motor Connector: Bare Wire
• Battery Connector: Bare Wire
• BEC Output: 6V/7V (5A)
• Motor Wire: 12AWG
• Battery Wire: 12AWG
• Weight: 0.9oz (25.4g)

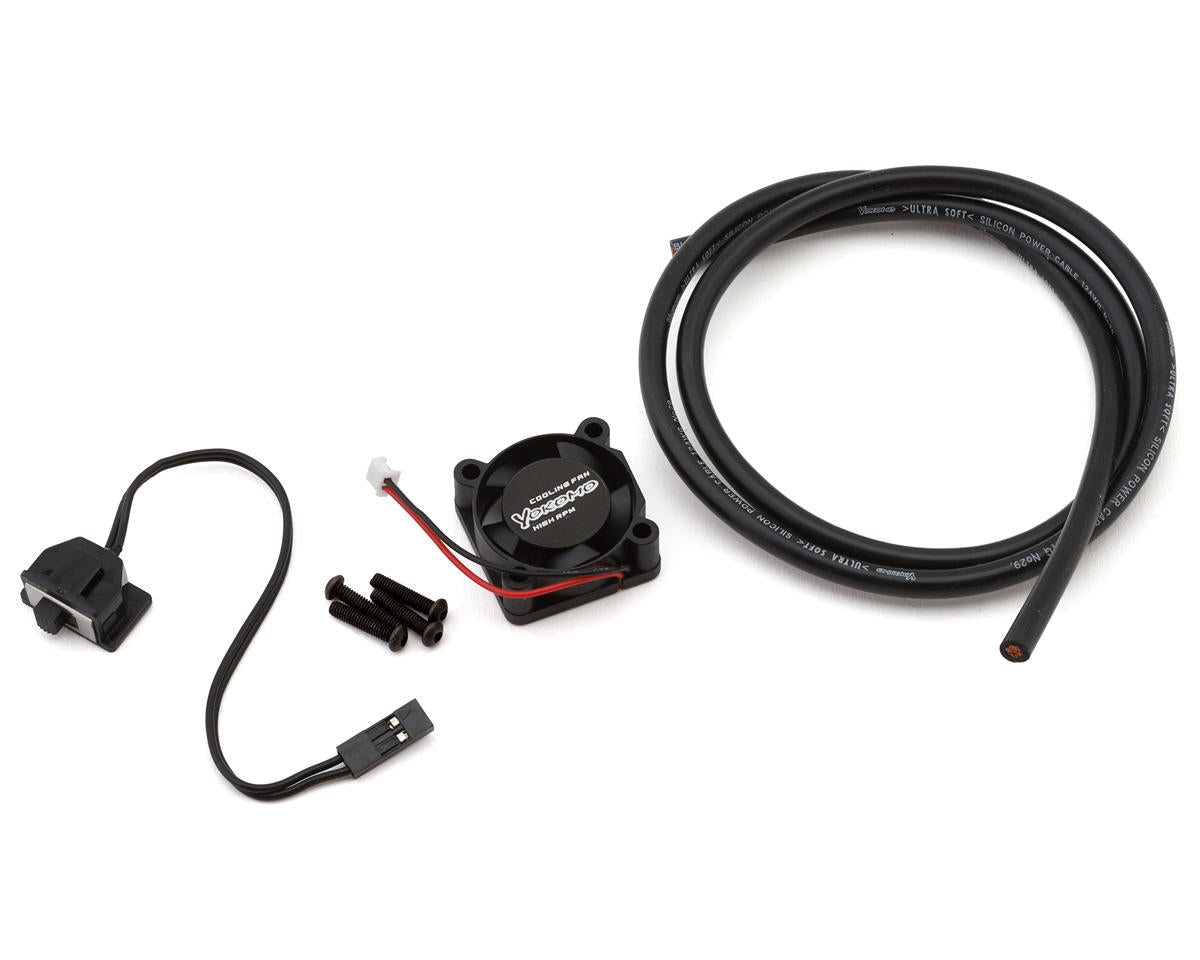

Includes

• (1) RPX-S Brushless Electronic Speed Control
• (1) High RPM Cooling Fan
• (1) Power Switch
• (1) 12AWG Wire
• Mounting Hardware
