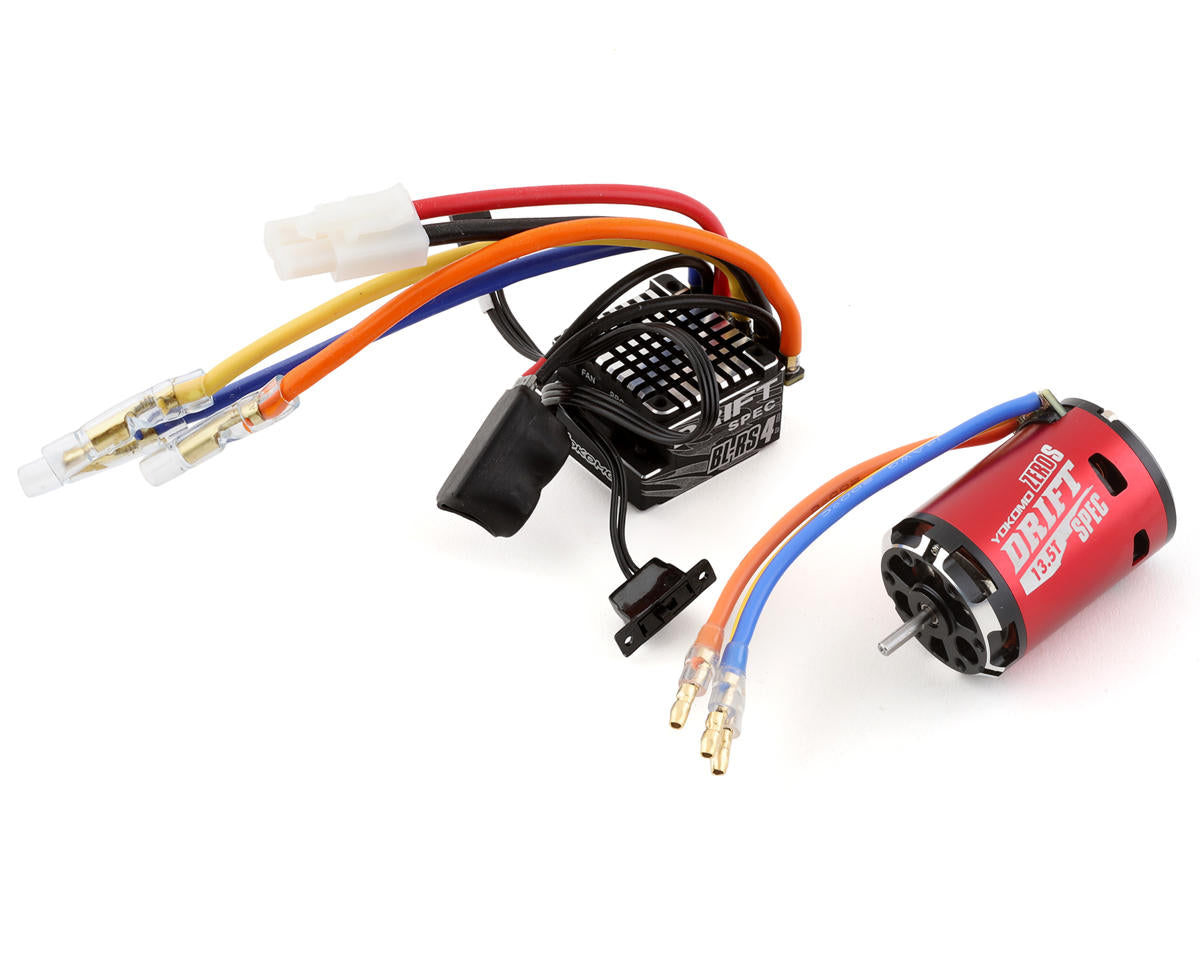

Yokomo BL-RS4 Drift Spec Sensored Brushless ESC/Zero S Drift Spec Motor Combo

The Yokomo BL-RS4 Drift Spec Sensored Brushless ESC and ZERO-S Drift 13.5T Motor Combo pairs drift-focused throttle control with smooth, consistent power for 2WD and 4WD applications.

Drift-Spec ESC

The BL-RS4 features a full aluminum case and drift-specific programming. Its low-speed throttle response is set to mild for easier drift-angle control, while the middle-speed range receives additional boost for powerful cornering. The sensored, 4-pole brushless ESC also includes a built-in DC booster, selectable 6V/7.4V BEC output, and a “Boost 0” mode.

ZERO-S Drift Motor

The ZERO-S Drift 13.5T sensored brushless motor delivers increased torque and smooth throttle response through the low-to-mid throttle range. Cooling vents in the motor case help promote cooling, and the motor wires are soldered in place.

Specifications

• ESC motor type: Sensored/4Pole Sensored Brushless
• Motor limit: >5.5t (specification when using the fan)
• Operating voltage: 3.7-7.4V
• Forward/Brake/Reverse: Yes
• Full aluminum case/heatsink: Yes
• Rated current per phase: 424A
• Fan: Plugged 30x30x10mm fan, optional
• BEC output: 6V/7.4V, built-in DC booster, continuous current of 3A
• BEC output short protection: Yes
• Multi-frequency system: Yes
• Power wires: 12 awg
• ESC case size: 32.9x34.6x21mm (without fan)
• ESC weight: 50g (without cables and fan)
• Motor: 240 Watts, 2590 kV, 12.5mm rotor diameter
• Motor resistance: 0.0361 (ohms)
• Motor weight: 165g

Program settings can be changed with the Yokomo Brushless Programmer (YOKBL-YBP4), sold separately. Remote programming is also supported with the Yokomo WiFi Module (YOKBL-WM) and smartphone application.
