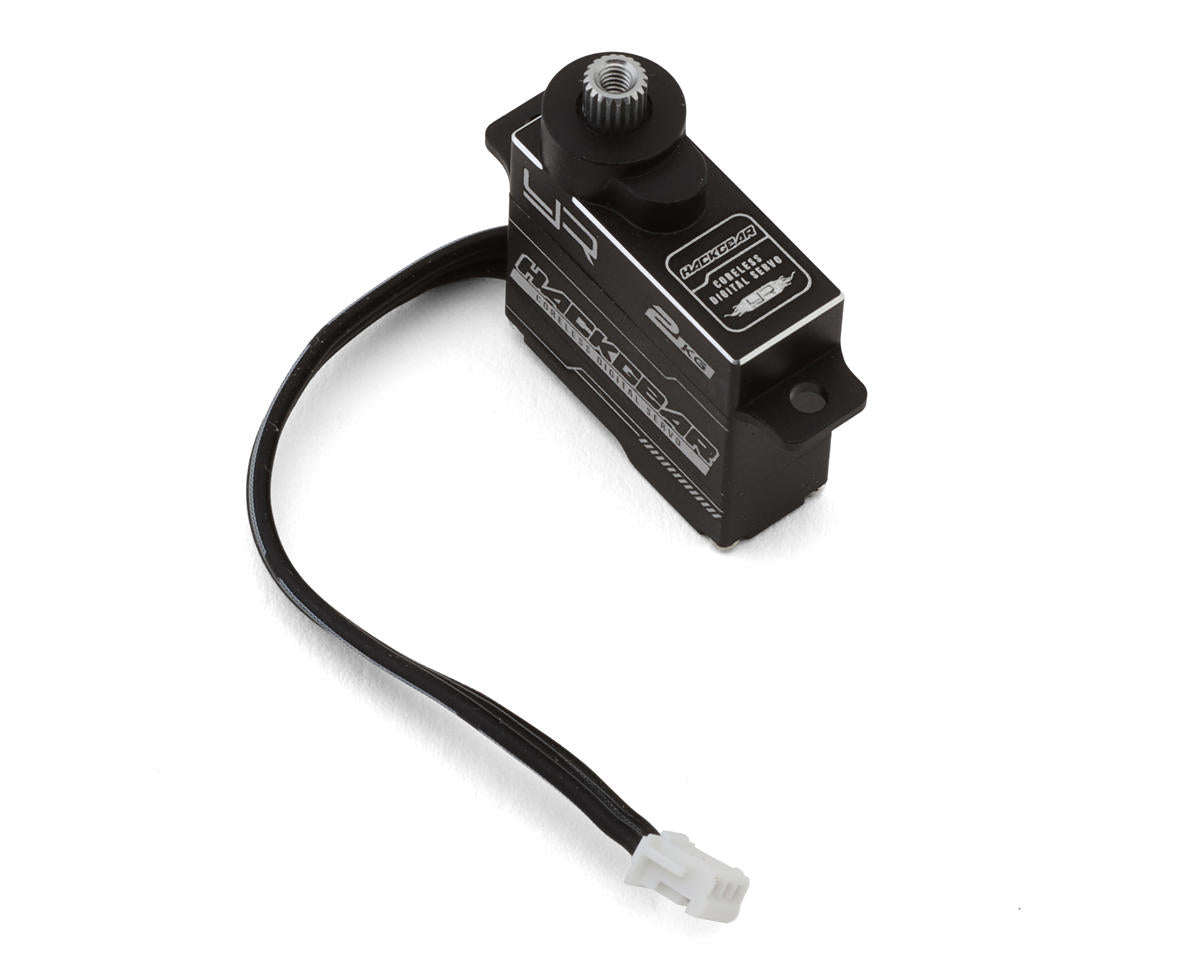

Yeah Racing Hackgear High Torque Aluminum Coreless Digital Micro Servo (HV)

The Yeah Racing Hackgear High Torque Aluminum Coreless Digital Micro Servo is designed for 1/24-1/28 scale micro racing applications. It features a full aluminum case, coreless digital motor, titanium/steel gears, a 20T output shaft spline, and soft silicone wire leads.

Features

• Full aluminum case construction
• Coreless digital servo design
• Titanium steel gear set
• High torque micro performance
• 20T spline output shaft
• 4.8-8.4V operating range
• Soft silicone wire leads
• Dust and water splash resistance

Specifications

• Application: 1/24-1/28 Scale Micro Racing
• Input Voltage: 4.8-8.4V
• Operating Speed @ 6.0V: 0.065sec/60°
• Operating Speed @ 7.4V: 0.055sec/60°
• Operating Speed @ 8.4V: 0.050sec/60°
• Dynamic Torque @ 6.0V: 31oz-in (2.2kg-cm)
• Dynamic Torque @ 7.4V: 35oz-in (2.5kg-cm)
• Dynamic Torque @ 8.4V: 42oz-in (3kg-cm)
• Pulse/Frequency: 1520uS / 333Hz
• Motor Type: Coreless
• Output Shaft Spline: 20T
• Gear Material: Titanium/Steel
• Dimensions: 0.78x0.31x0.7in (20x8x18.9mm)
• Weight: 0.24oz (7g)

Includes

• (1) Hackgear High Torque Aluminum Coreless Digital Micro Servo

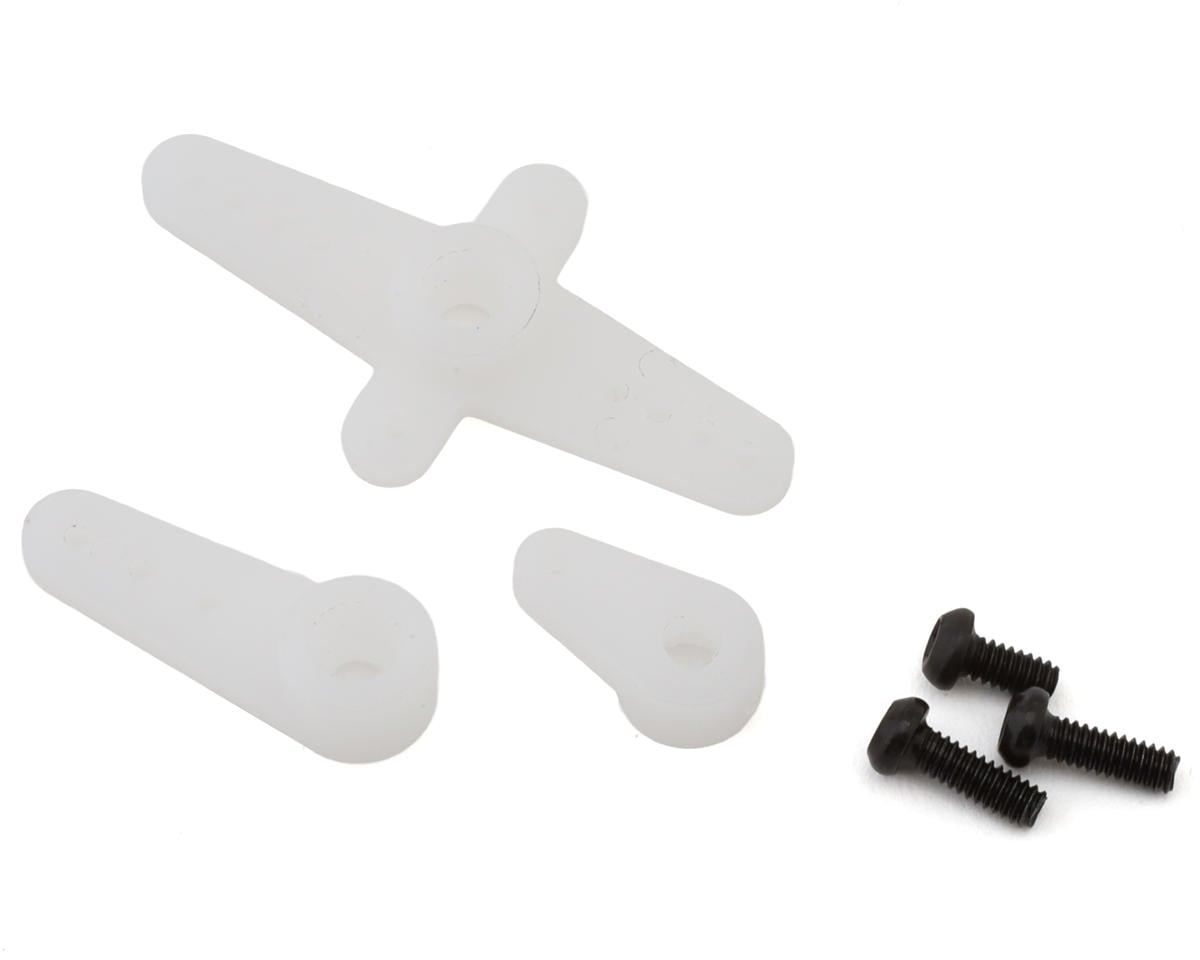

• (3) Servo Horns
• (3) Screws
