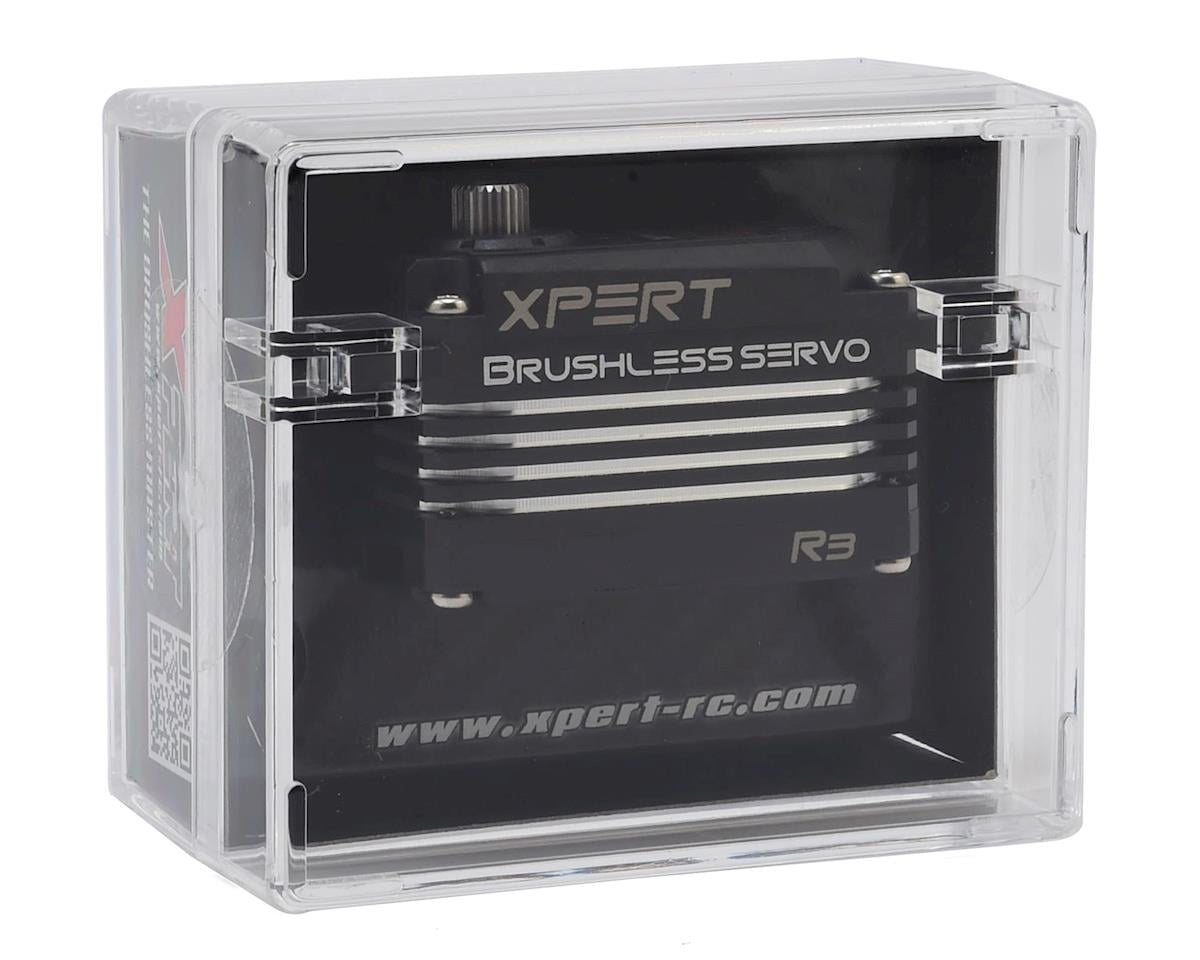

Xpert R3 Quick Release High Speed Low Profile Brushless Servo

The Xpert R3 Quick Release High Speed Low Profile Brushless Servo features a brushless motor, quick release connector, strong metal gears and high-voltage operation. It delivers up to 229.02oz-in / 16.5 kg-cm of torque at 6.6V.

Features

• Brushless motor design for high speed, efficiency and low power consumption
• Quick release connector for easy wiring
• Plastic upper and lower case with center aluminum design
• 4096 resolution and SIC (Single Integrated Circuit)
• Light weight design
• All Aluminum case for thermal dissipation and durability
• Strong Metal Gear
• Glitch-free sophisticated error correction
• High-Speed, High-precision 12-bit AD converter and CPU calculation
• Fail safe
• Over current protection
• Over temperature protection
• Sanwa SSR mode compatible

Specifications

• Dimensions: 40.8 x 20.2 x 26.8mm
• Frequency: 200/333 Hz
• Range: 50~400 Hz
• Center Position: 1520us
• Speed at 4.8V: .095sec/60°
• Speed at 6.0V: .070sec/60°
• Speed at 6.6V: .063 sec/60°
• Torque at 4.8V: 147.57oz-in /10.63 kg-cm
• Torque at 6.0V: 208.20 oz-in/15.00 kg-cm
• Torque at 6.6V: 229.02oz-in/ 16.5 kg-cm
