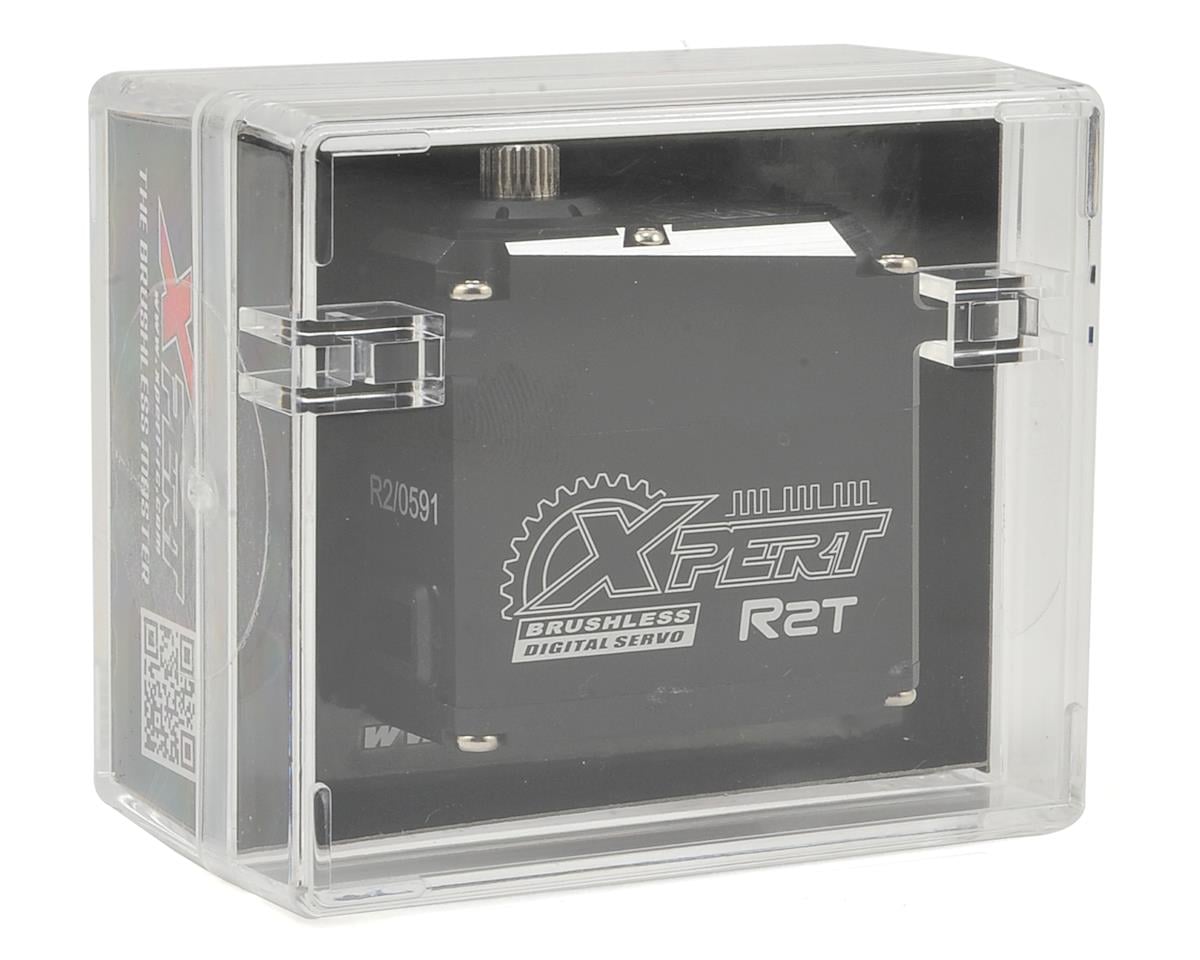

Xpert R2 Tail Metal Gear Brushless Servo (High Voltage)

The Xpert R2 Tail Metal Gear Brushless Servo is a high-voltage tail servo with a brushless motor, strong metal gear train, and quick-release cable. The detachable servo wire simplifies installation and removal without disconnecting it from the receiver.

Features

• Brushless motor design for high speed, efficiency, and low power consumption
• Quick-release cable for easy installation and removal
• 4096 resolution and SIC (Single Integrated Circuit)
• 760us narrow band
• Operating frequency up to 800Hz
• All aluminum case with a plastic bottom case
• Strong metal gear train
• Glitch-free operation and sophisticated error correction
• High-speed, high-precision 12-bit AD converter and CPU calculation
• Fail-safe, over-current protection, and over-temperature protection
• Lightweight design

Specifications

• Dimensions: 40x37.80x20 mm
• Weight: 70 g
• Speed: @6.0V: .056 sec/60; @7.4V: .045 sec/60; @8.4V: .040 sec/60
• Torque: @6.0V: 166.56 oz-in (12.00 kg-cm); @7.4V: 205.43 oz-in (14.80 kg-cm); @8.4V: 233.18 oz-in (16.80 kg-cm)

Includes

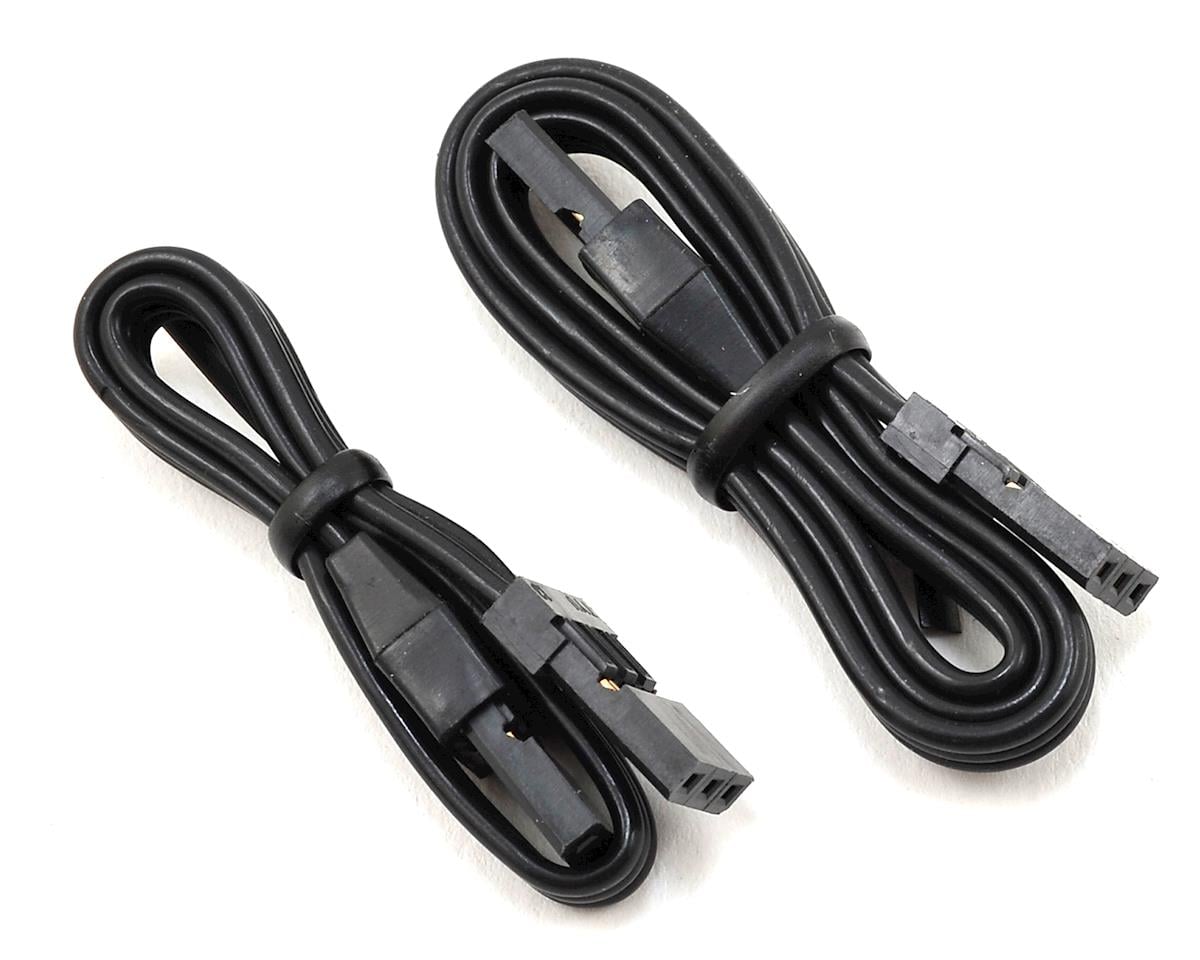

• 165mm connector lead
• 290mm connector lead
