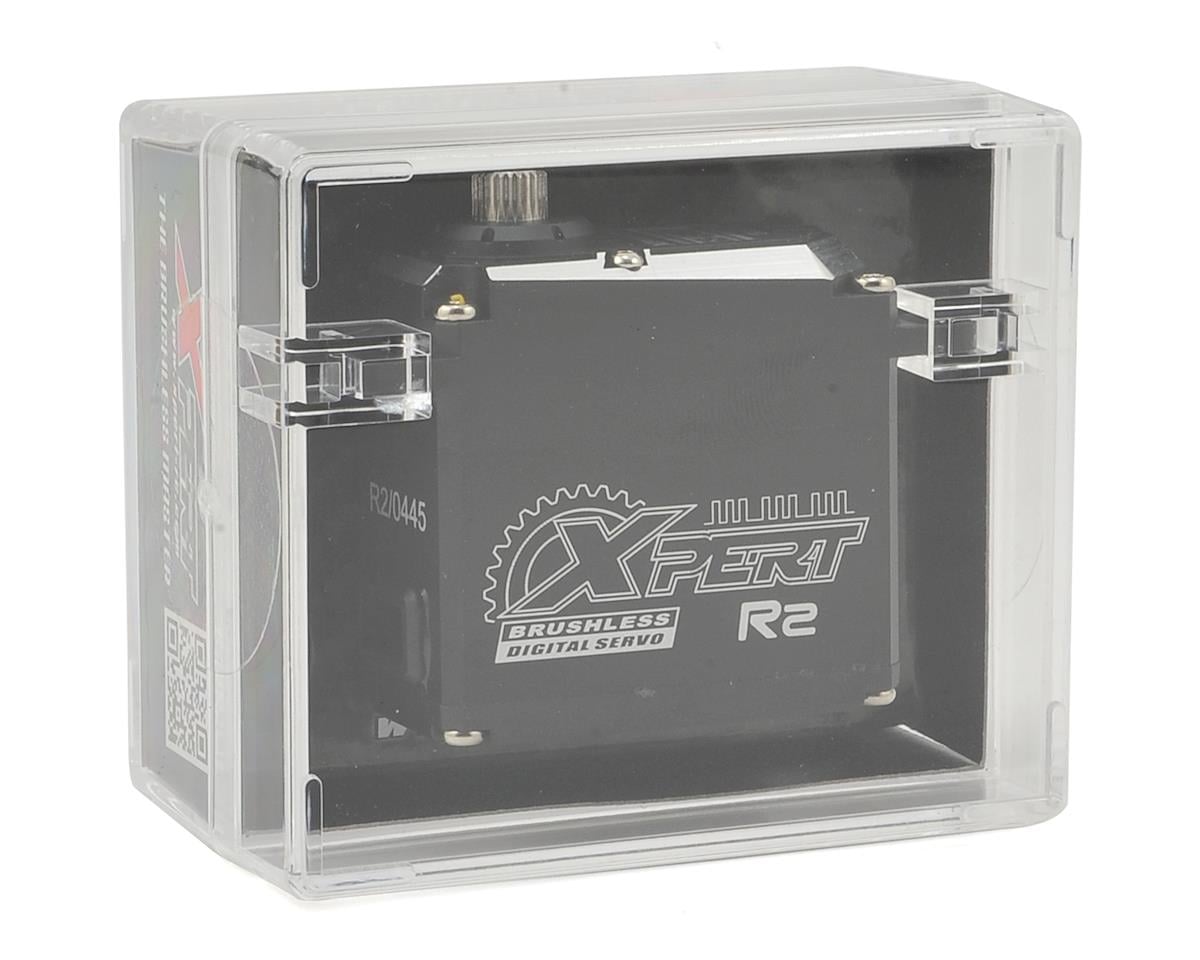

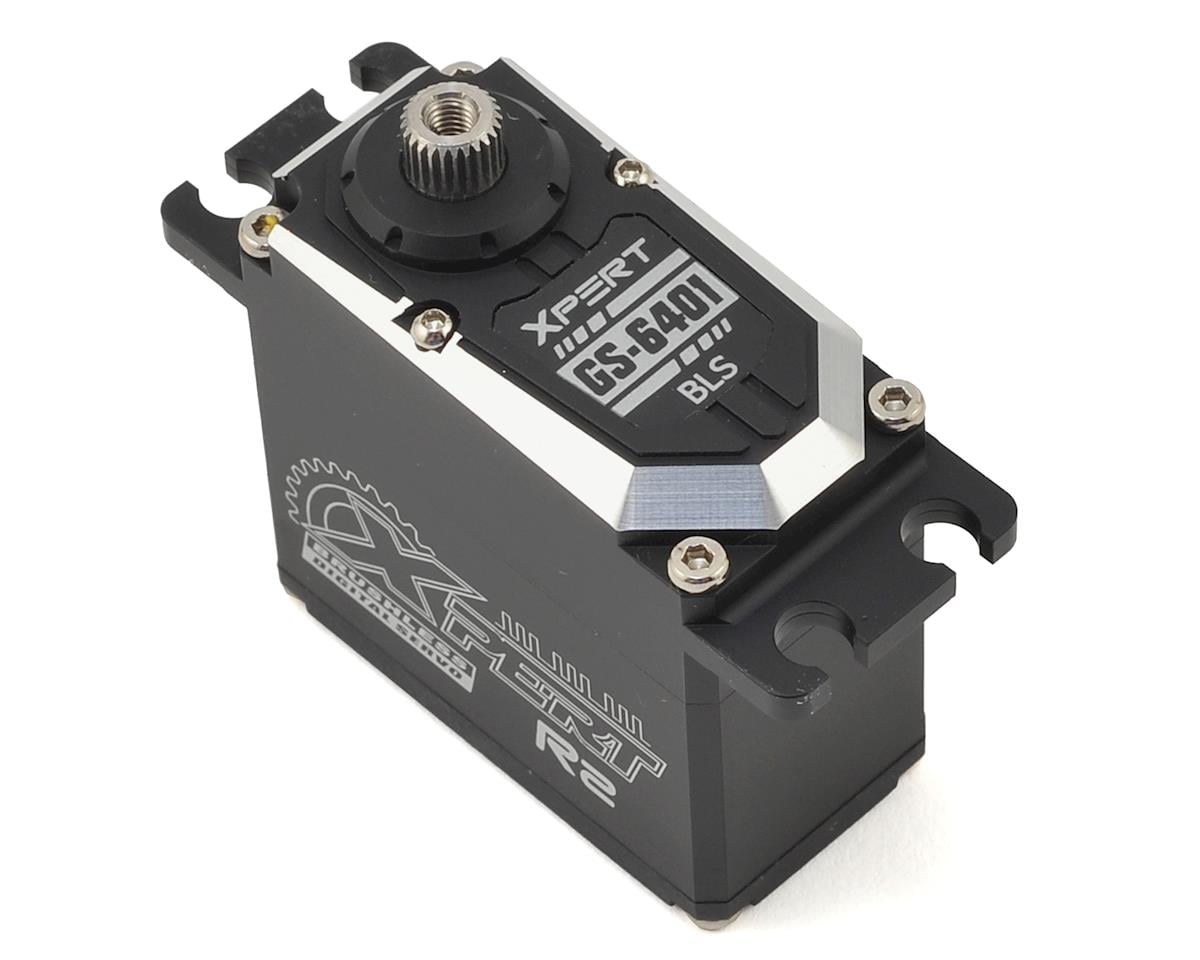

Xpert R2 Cyclic Metal Gear Brushless Servo (High Voltage)

The Xpert R2 Cyclic Metal Gear Brushless Servo is a high-voltage, standard-size servo designed for helicopter cyclic control. Its quick-release cable allows the servo wire to be detached at the servo instead of the receiver, simplifying installation and removal.

A brushless motor, strong metal gear train, 4096 resolution, SIC (Single Integrated Circuit), and operating frequency up to 400Hz support high-speed, high-precision operation. The servo features an aluminum case for thermal dissipation and durability, with a plastic bottom case to help reduce weight. It includes 165mm and 290mm connector leads.

Features

• Quick-release cable for easy installation and removal
• Brushless motor design
• 4096 resolution and SIC (Single Integrated Circuit)
• Aluminum case with plastic bottom case
• Strong metal gear train
• Glitch-free operation
• Sophisticated error correction
• High-speed, high-precision 12-bit AD converter and CPU calculation
• Fail safe
• Over current protection
• Over temperature protection
• Start sonorant
• Operating frequency up to 400Hz

Specifications

• Dimensions: 40x37.80x20mm
• Weight: 70 g
• Speed @6.0V: .086 sec/60
• Speed @7.4V: .07 sec/60
• Speed @8.4V: .062 sec/60
• Torque @6.0V: 296.45 oz-in (21.43 kg-cm)
• Torque @7.4V: 366.85 oz-in (26.43 kg-cm)
• Torque @8.4V: 416.40 oz-in (30.00 kg-cm)

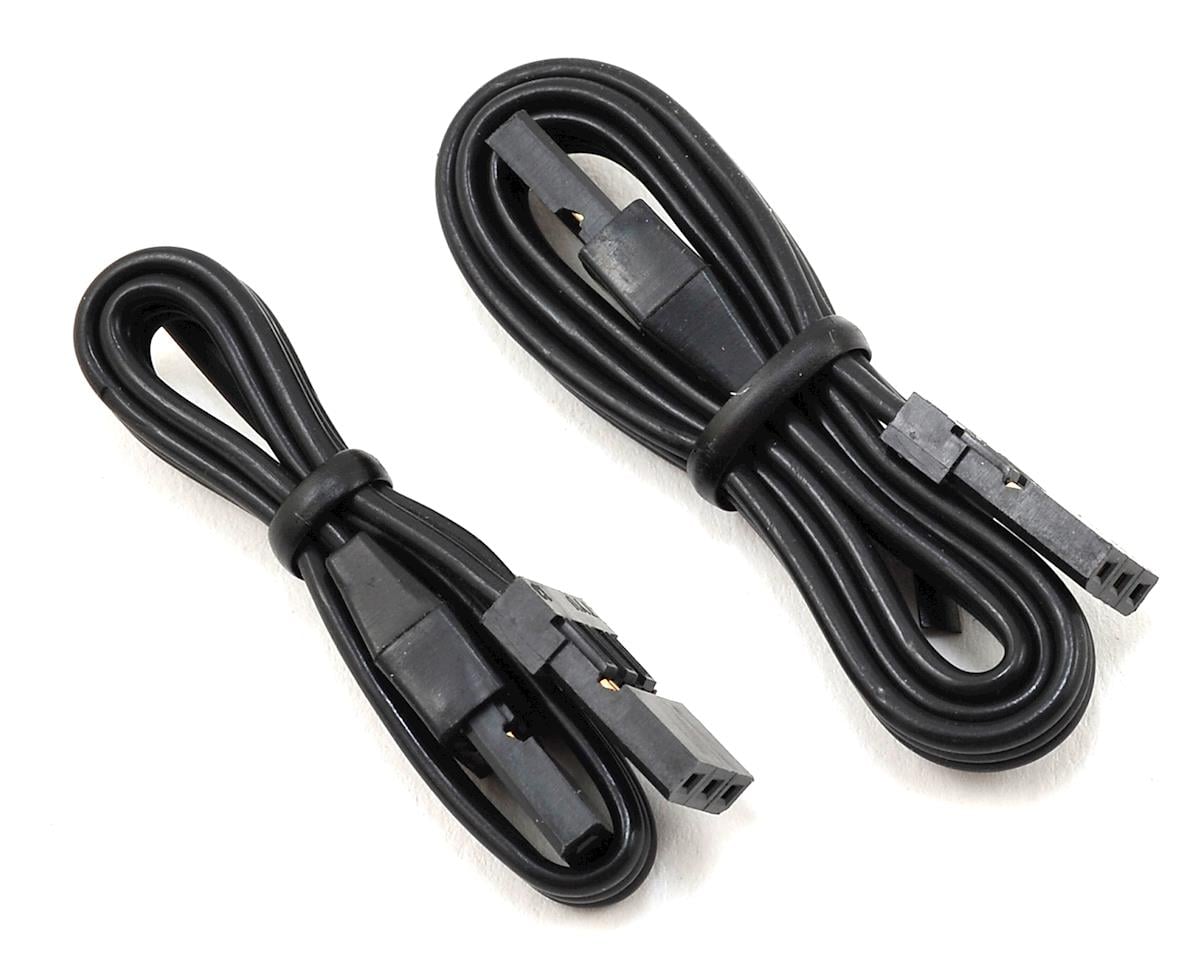

Includes

• 165mm connector lead
• 290mm connector lead
