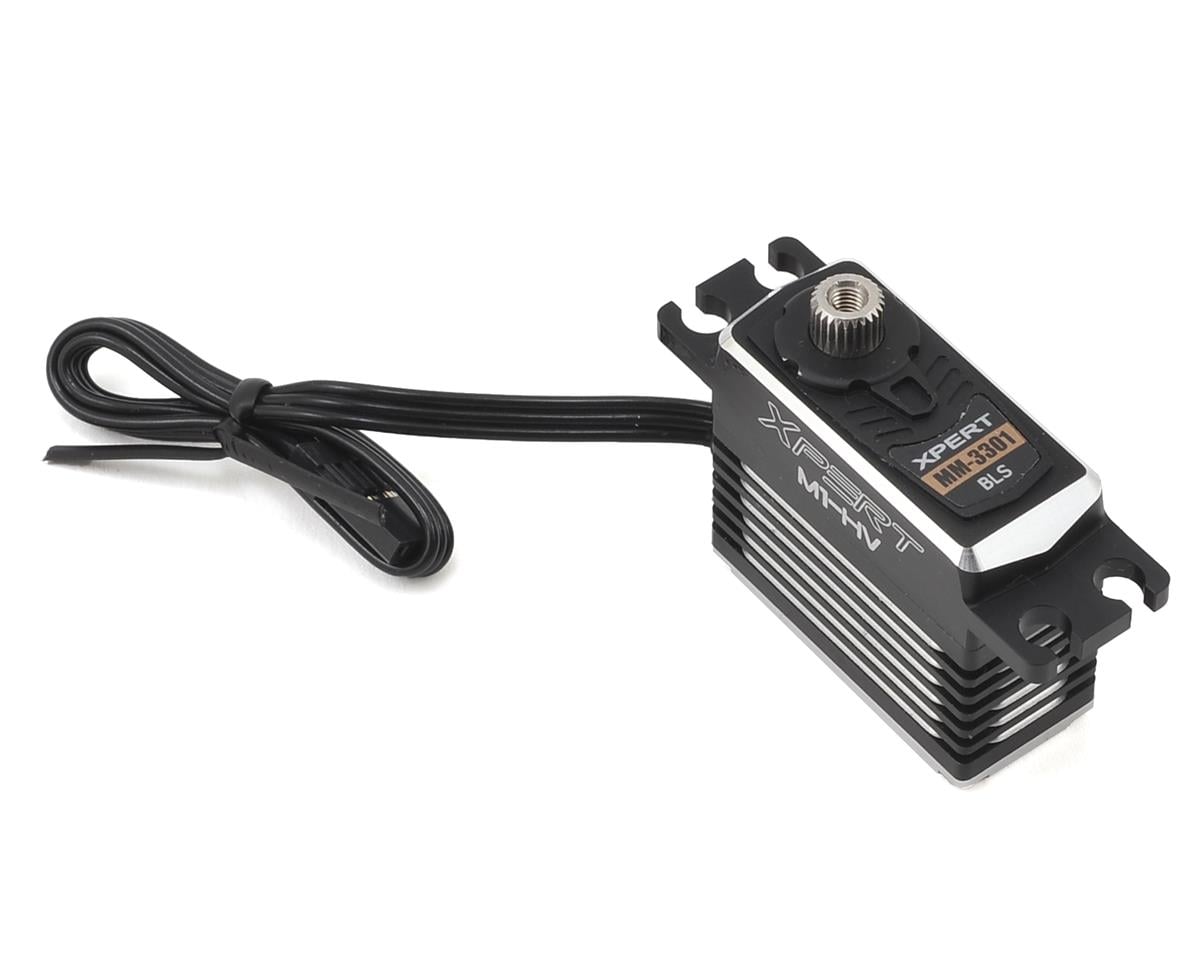

Xpert MM-3301 High Voltage Aluminum Case Mini Brushless Servo

The Xpert MM-3301 is a high-voltage mini brushless servo with an all-aluminum case, metal gears, and 4096 resolution. It delivers up to 198.48 oz-in of torque at 8.4V with a speed of 0.06 sec/60 degrees.

Features

• Brushless motor design
• 4096 resolution with SIC (Single Integrated Circuit)
• Lightweight design
• All-aluminum case for thermal dissipation and durability
• Strong metal gear
• Glitch-free operation
• Sophisticated error correction
• High-speed, high-precision 12-bit AD converter and CPU calculation
• Fail safe
• Over-current protection
• Over-temperature protection
• Start sonorant
• Operating frequency up to 333Hz

Specifications

• Dimensions: 33.6x15x29.5mm
• Weight: 40.5 g
• Speed at 6.0V: .084 sec/60
• Speed at 7.4V: .068 sec/60
• Speed at 8.4V: .06 sec/60
• Torque at 6.0V: 141.85 oz-in (21.43 kg-cm)
• Torque at 7.4V: 174.89 oz-in (26.43 kg-cm)
• Torque at 8.4V: 198.48 oz-in (30.00 kg-cm)
