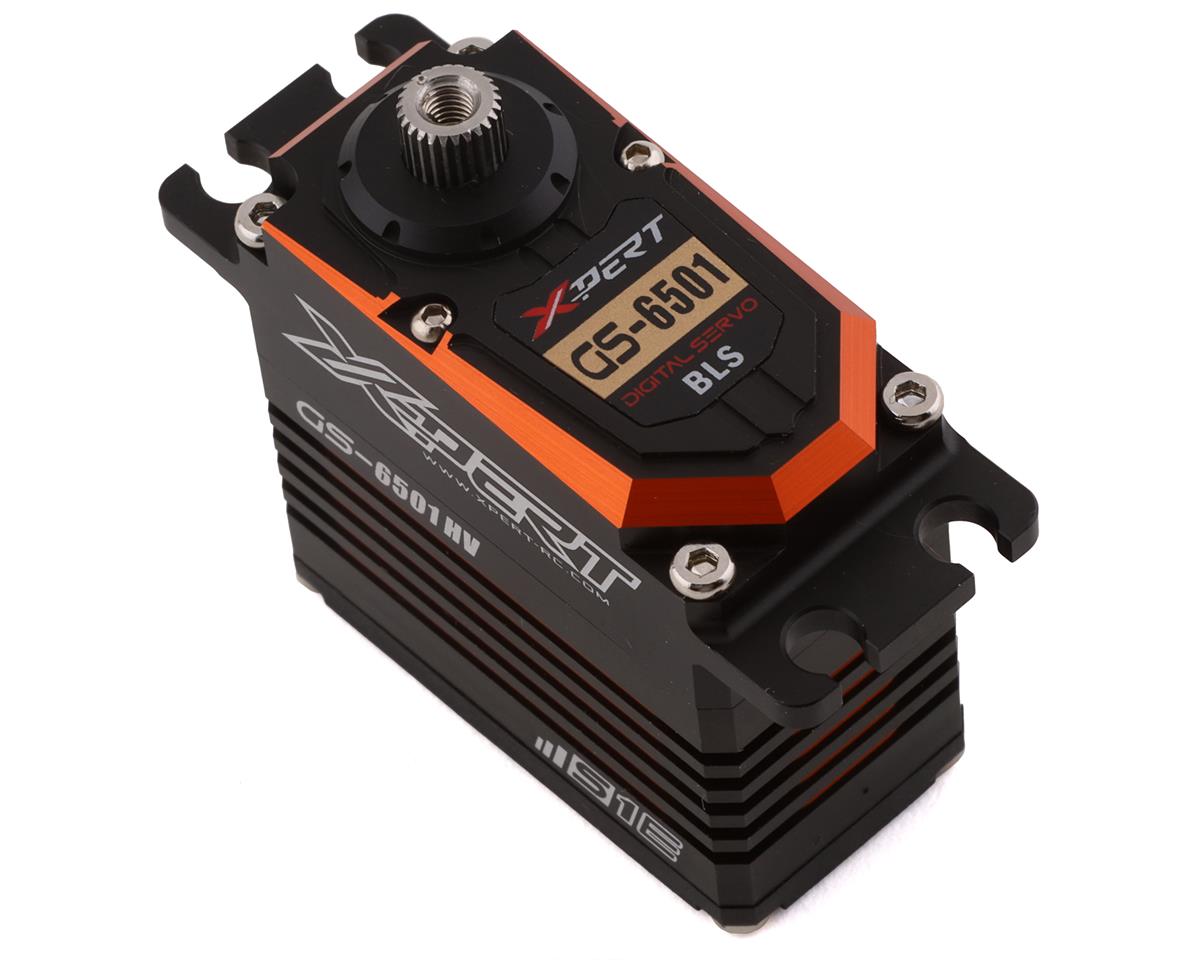

Xpert GS-6501-HV S1E Aluminum Case Servo (High Voltage)

The Xpert GS-6501-HV S1E Aluminum Case Servo is a high-voltage standard servo for 1/10 and 1/8 surface steering and throttle applications. It features full stainless steel gears, enlarged 2mm gear alignment pins, a water-resistance structure, over-current protection, and over-temperature protection.

Features

• Designed for 1/10 and 1/8 surface competitions
• Supports most high-speed response radio systems
• Full stainless steel gears
• Enlarged 2mm gear alignment pins for improved durability under impact
• Water-resistance structure
• Over-current protection
• Over-temperature protection

Specifications

• Type: Standard
• Output Spline: 25T
• Power Supply: 5.0-8.4V
• Speed: 6.0V: .139 sec/60°; 7.4V: .115 sec/60°; 8.4V: .113 sec/60°
• Torque: 6.0V: 350oz-in (25.2kg-cm); 7.4V: 394oz-in (28.4kg-cm); 8.4V: 417oz-in (30.0kg-cm)
• Dimensions: 40.0x20.0x44.3mm
• Weight: 71g
• Range: 250us-500us,500us-1000us, 1000u-2000us(auto adaptive)
• Applications: 1/8 and 1/10 Surface Steering and Throttle

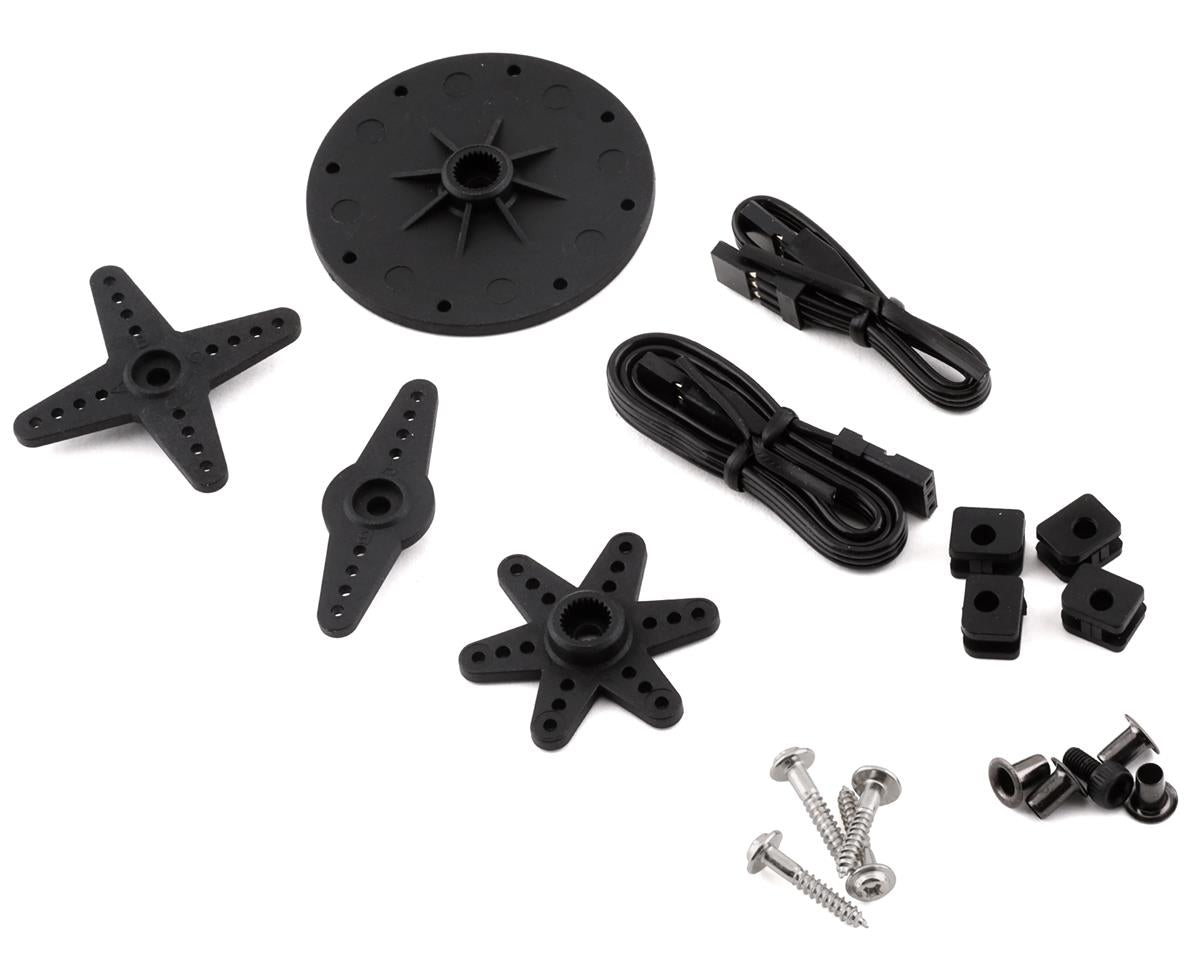

Package Includes

• One servo
• Two servo leads
• Four plastic servo horns
• Mounting hardware
