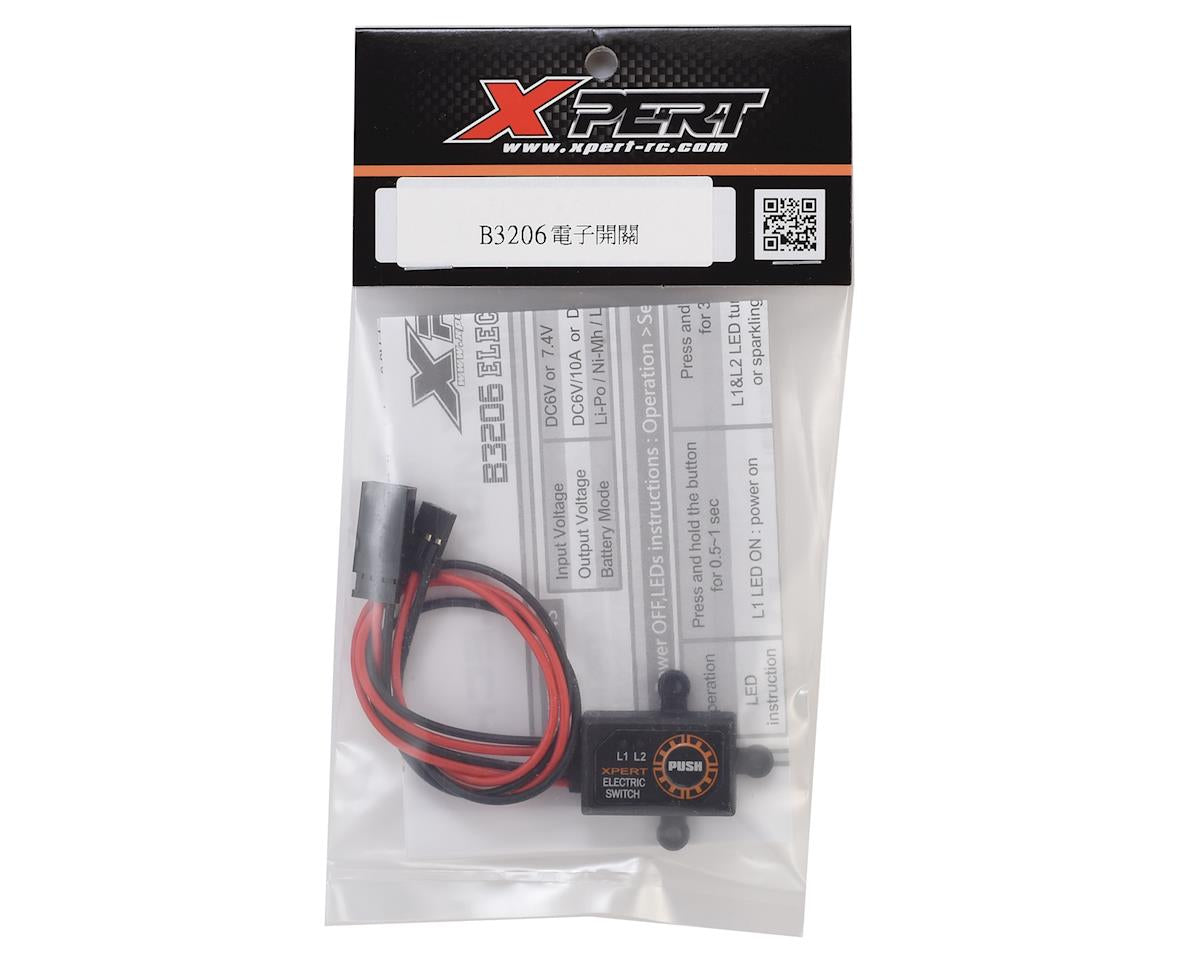

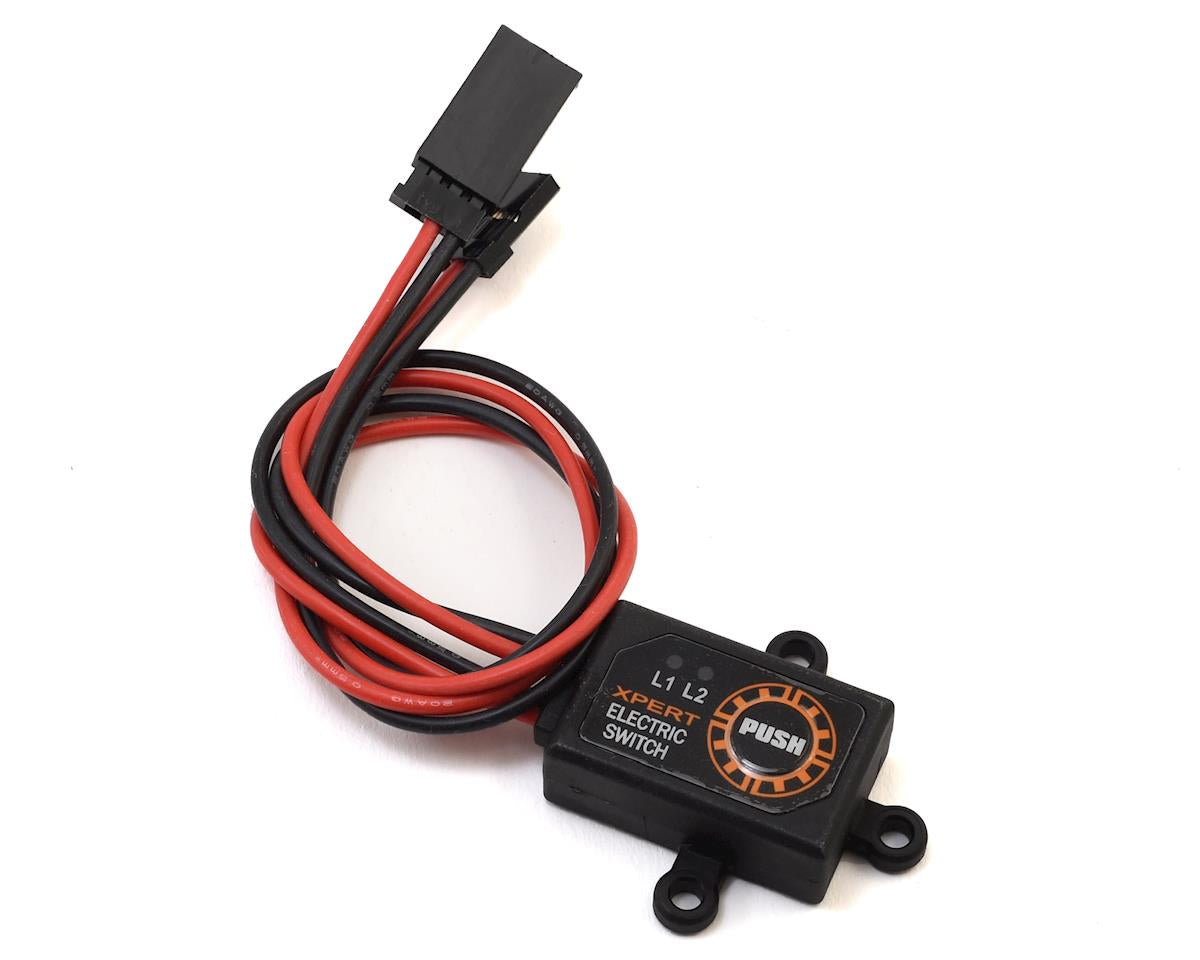

Xpert Electronic Switch

The Xpert Electronic Switch is compatible with 6.0V NiMH receiver packs and 7.4V LiPo batteries. LED indicators show the selected battery mode and provide low-voltage warnings.

Features

• Blue L1 LED: solid for LiPo mode and flashing for NiMH mode
• Red L2 LED flashes at 5.3V for NiMH and 6.8V for LiPo
• Red L2 LED stays lit at 4.8V for NiMH and 6.4V for LiPo
• Consumes a slight amount of power in standby mode

Specifications

• Input Voltage: DC 6.0V - 7.4V
• Output Voltage: DC 6V/10A - 7.4V/8A
• Battery Mode: NiMH/LiPo
• Dimensions (LxWxH): 29.4x19x11.3mm
• Mounting Dimensions: 28.5x16mm
• Weight: 10g

Note: This switch does not provide a low voltage cut off. The indicator light only shows the approximate battery voltage. Disconnect the battery plug after use to avoid over discharging the battery.
