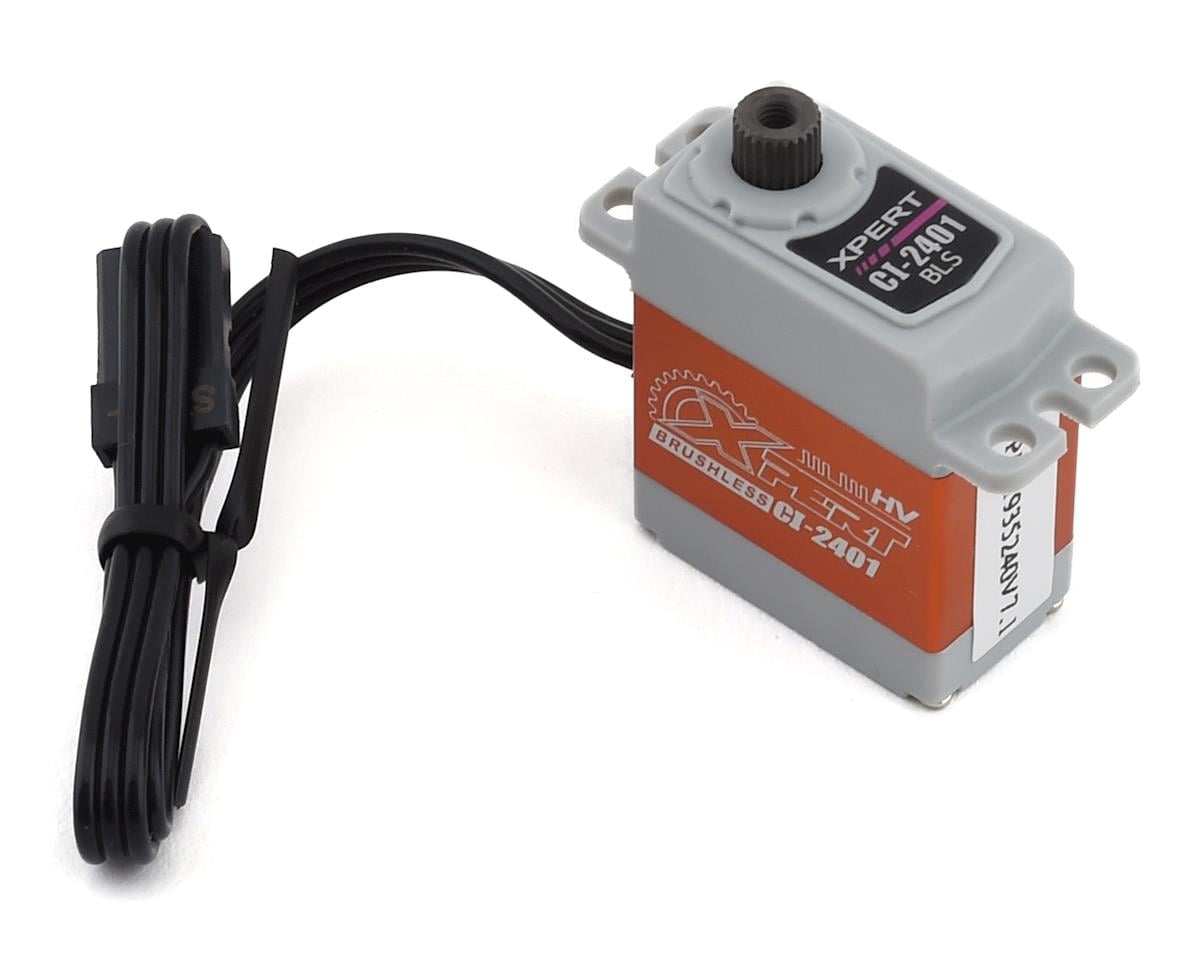

Xpert CI-2401 Aluminum Center Case Micro Brushless Servo (High Voltage)

The Xpert CI-2401 is a high-voltage micro brushless servo with an aluminum center case, 4096 resolution, strong metal gears, and a lightweight 21g design. It is suited to airplane, helicopter cyclic, steering, shifting, and dig servo applications.

Features

• Brushless motor design for high speed, efficiency, and low power consumption
• Plastic upper and lower case with an aluminum center case for heat dissipation and durability
• 4096 resolution and SIC (Single Integrated Circuit)
• Strong metal gear construction
• Glitch-free operation with sophisticated error correction
• High-speed, high-precision 12-bit AD converter and CPU calculation
• Fail safe, over current protection, and over temperature protection
• Standard size micro spline pattern

Specifications

• Input Voltage: 6.0V~8.4V
• Speed: @6.0V: .085sec/60°; @7.4V: .069 sec/60°; @8.4V: .061 sec/60°
• Torque: @6.0V: 83.56 oz-in (6.02 kg-cm); @7.4V: 83.56 oz-in (6.02 kg-cm); @8.4V: 114.79 oz-in (8.27 kg-cm)
• Dimensions: 23.15x29x13 mm
• Weight: 21g
• Frequency: 200/333 Hz
• Range: 50~400 Hz
• Center Position: 1520us
