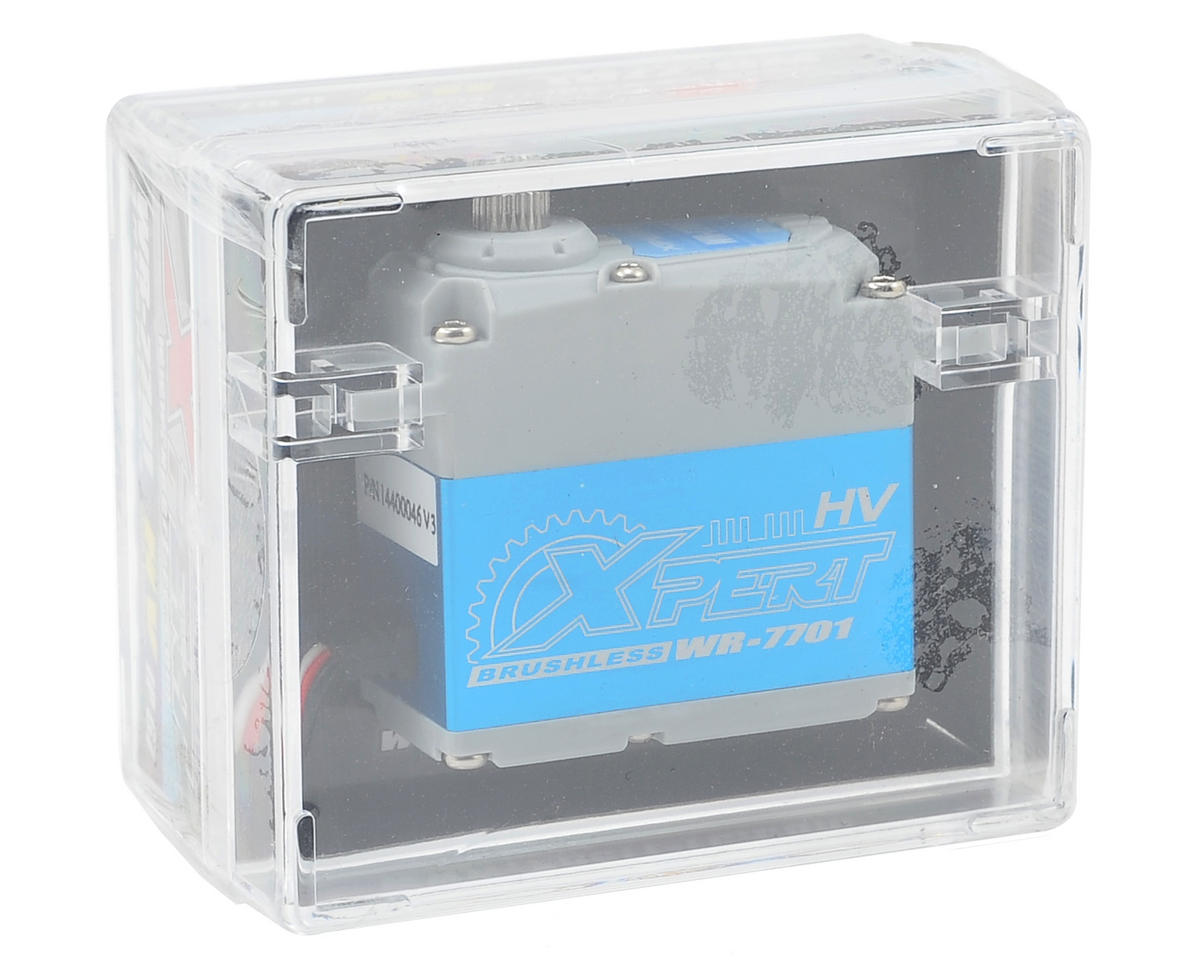

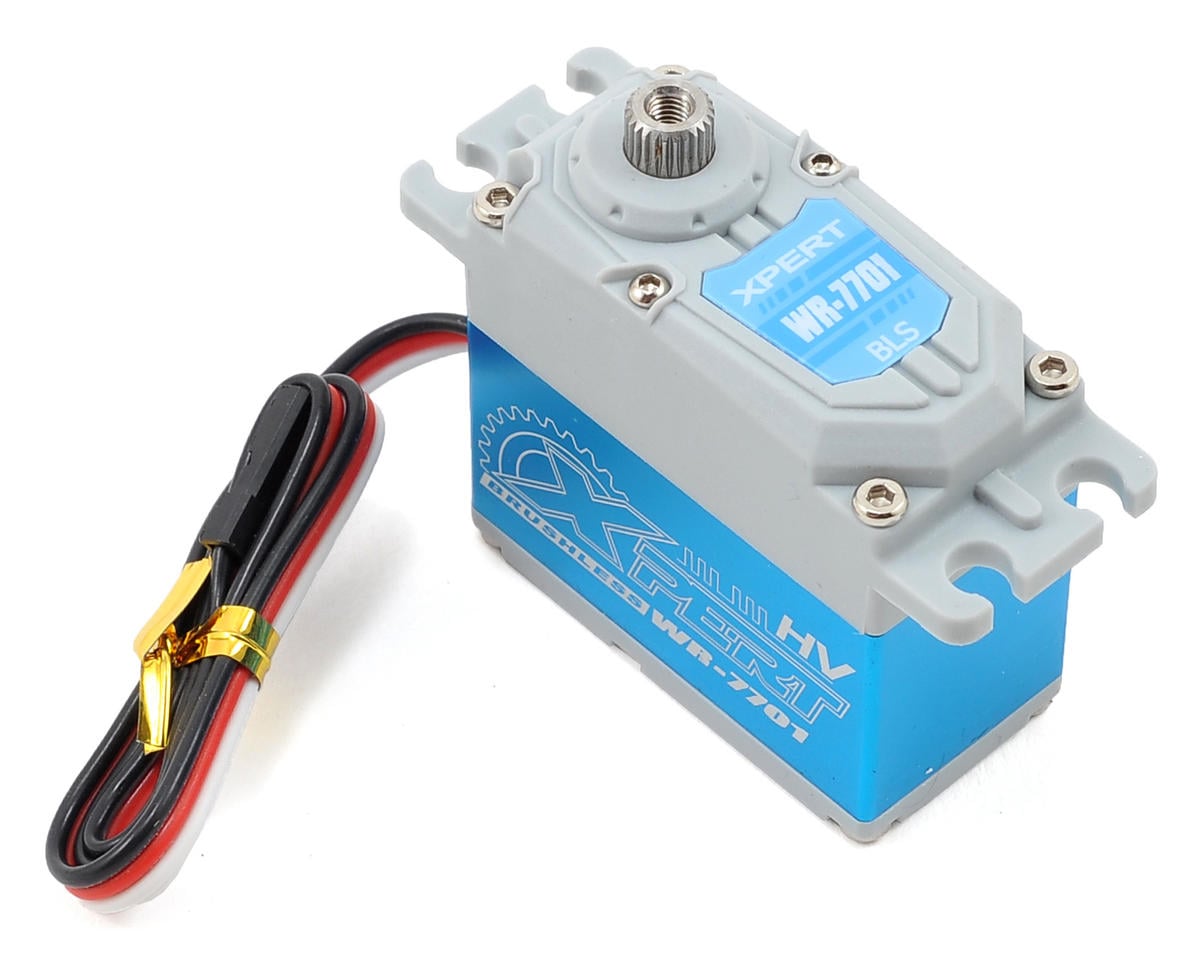

Xpert 7000 Series Mega Torque Waterproof Brushless Servo (High Voltage)

The Xpert 7000 Series Mega Torque Waterproof Brushless Servo features a high-voltage brushless motor, metal gears, and an all-aluminum case. Its waterproof design, 4096 resolution, and SIC (Single Integrated Circuit) support reliable operation in demanding conditions.

Features

• Waterproof design
• Brushless motor with high speed, efficiency, and low power consumption
• 4096 resolution and SIC (Single Integrated Circuit)
• Machined aluminum upper and lower case
• Aluminum middle case for optimized thermal dissipation
• Strong metal gear
• Glitch-free operation
• Sophisticated error correction
• High-Speed, High-precision 12-bit AD converter and CPU calculation
• Fail safe
• Over current protection
• Over temperature protection
• Start tone
• Light weight design

Specifications

• Dimensions: 40x37.8x20 mm
• Weight: 70.3 g
• Speed: @6.0V: 0.196 sec/60; @7.4V: 0.158 sec/60; @8.4V: 0.14 sec/60
• Torque: @6.0V: 22.14 kg-cm (307.3 oz-in); @7.4V: 27.31 kg-cm (379.06 oz-in); @8.4V: 32 kg-cm (430.28 oz-in)
• Matching Gear Set: XG73780
