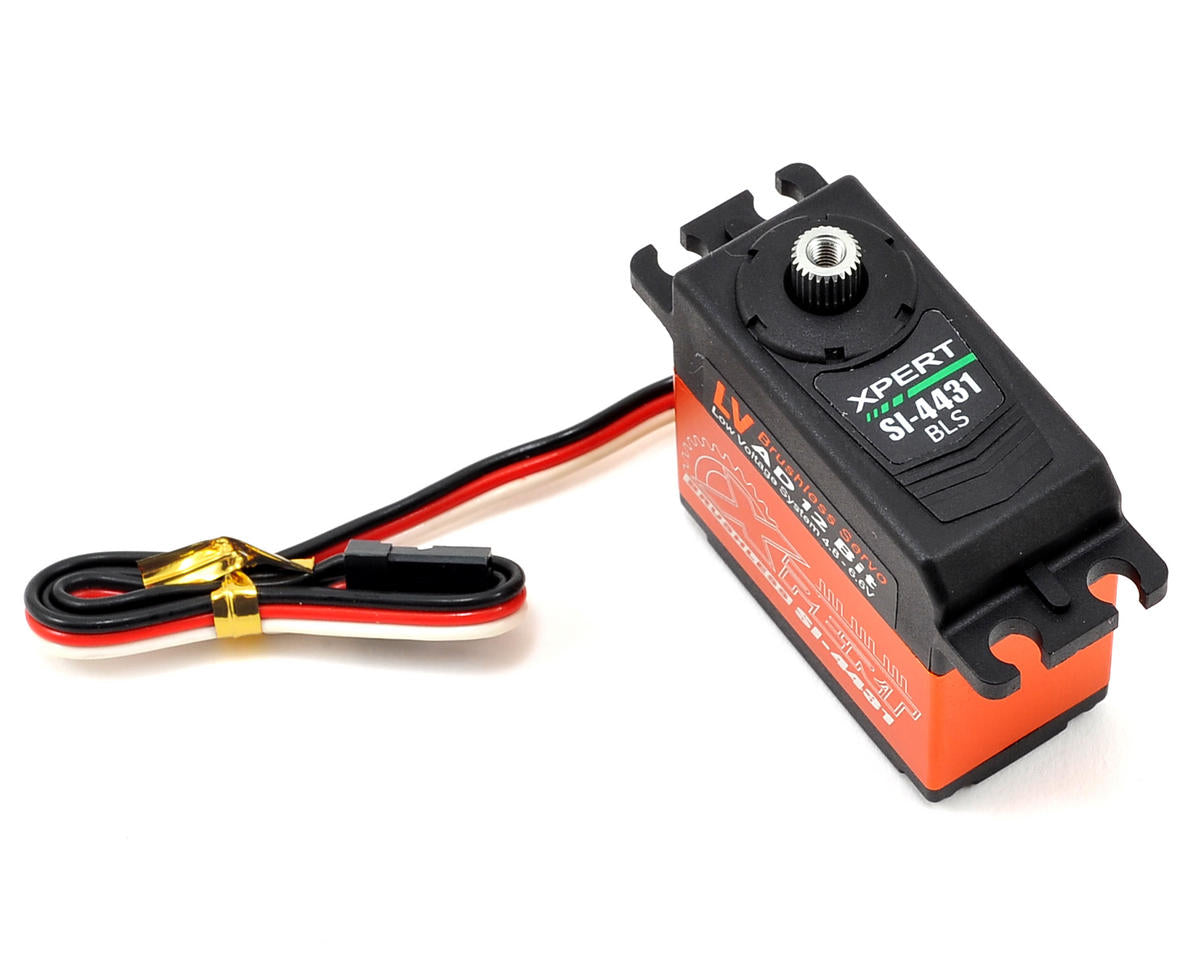

Xpert 4000 Series "High Speed" Aluminum Center Case Servo

The Xpert 4000 Series "High Speed" Aluminum Center Case Servo combines a brushless motor, metal gears, 4096 resolution and a SIC (Single Integrated Circuit) in a lightweight design. Its aluminum middle case supports optimized thermal dissipation, while built-in protection features add reliability.

Features

• Brushless motor design
• 4096 resolution and SIC (Single Integrated Circuit)
• Lightweight design with molded upper and lower case
• Aluminum middle case for optimized thermal dissipation
• Strong metal gear
• Glitch-free operation
• Sophisticated error correction
• High-speed, high-precision 12-bit AD converter and CPU calculation
• Fail safe
• Over current protection
• Over temperature protection
• Start tone

Specifications

• Speed: @4.8V: .100 sec/60; @6.0V: .080 sec/60; @6.6V: .070 sec/60
• Torque: @4.8V: 14.00 kg-cm (194.93 oz-in); @6.0V: 17.50 kg-cm (242.90 oz-in); @6.6V: 19.25 kg-cm (267.19 oz-in)
• Input voltage: 4.8 - 6.6V
• Dimensions: 40x37.80x20 mm
• Weight: 62.50 g
