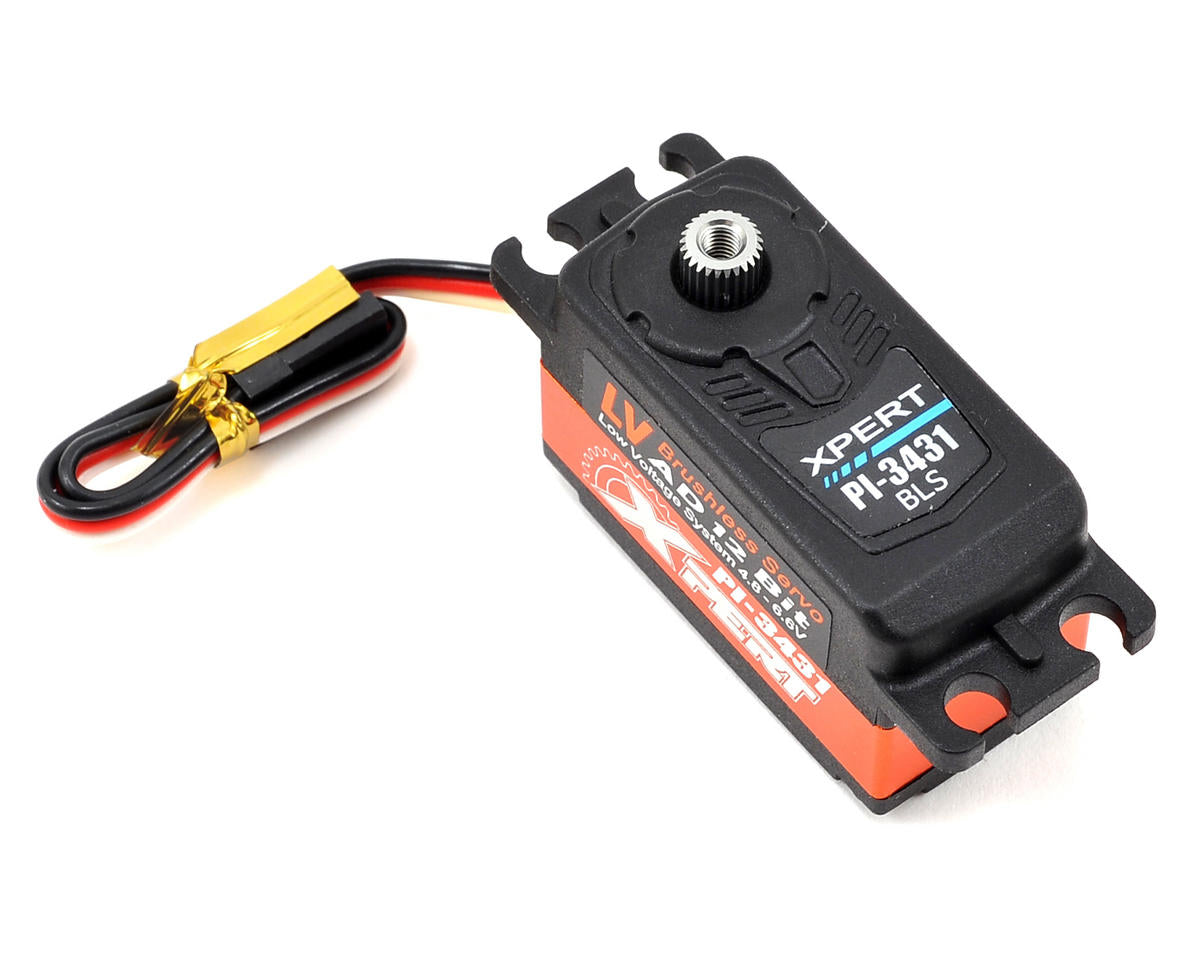

Xpert 3000 Series "Standard" Low Profile Aluminum Center Case Servo

The Xpert 3000 Series “Standard” Low Profile Aluminum Center Case Servo combines a brushless motor, metal gears, 4096 resolution and a SIC (Single Integrated Circuit) in a space-saving design. Its aluminum middle case supports optimized thermal dissipation, while over current protection, over temperature protection and a built-in fail safe provide added reliability.

Features

• Brushless motor design with high speed, efficiency and low power consumption
• 4096 resolution and SIC (Single Integrated Circuit)
• Low profile, lightweight design
• Aluminum middle case for optimized thermal dissipation
• Strong metal gear construction
• Glitch-free operation and sophisticated error correction
• High-speed, high-precision 12-bit AD converter and CPU calculation
• Fail safe
• Over current protection
• Over temperature protection
• Start tone

Specifications

• Speed: @4.8V: .080 sec/60; @6.0V: .070 sec/60
• Torque: @4.8V: 8.16 kg-cm (113.26 oz-in); @6.0V: 10.20 kg-cm (141.58 oz-in)
• Input Voltage: 4.8 - 6.0V
• Dimensions: 40.8x20.2x26.8mm
• Weight: 45 g
