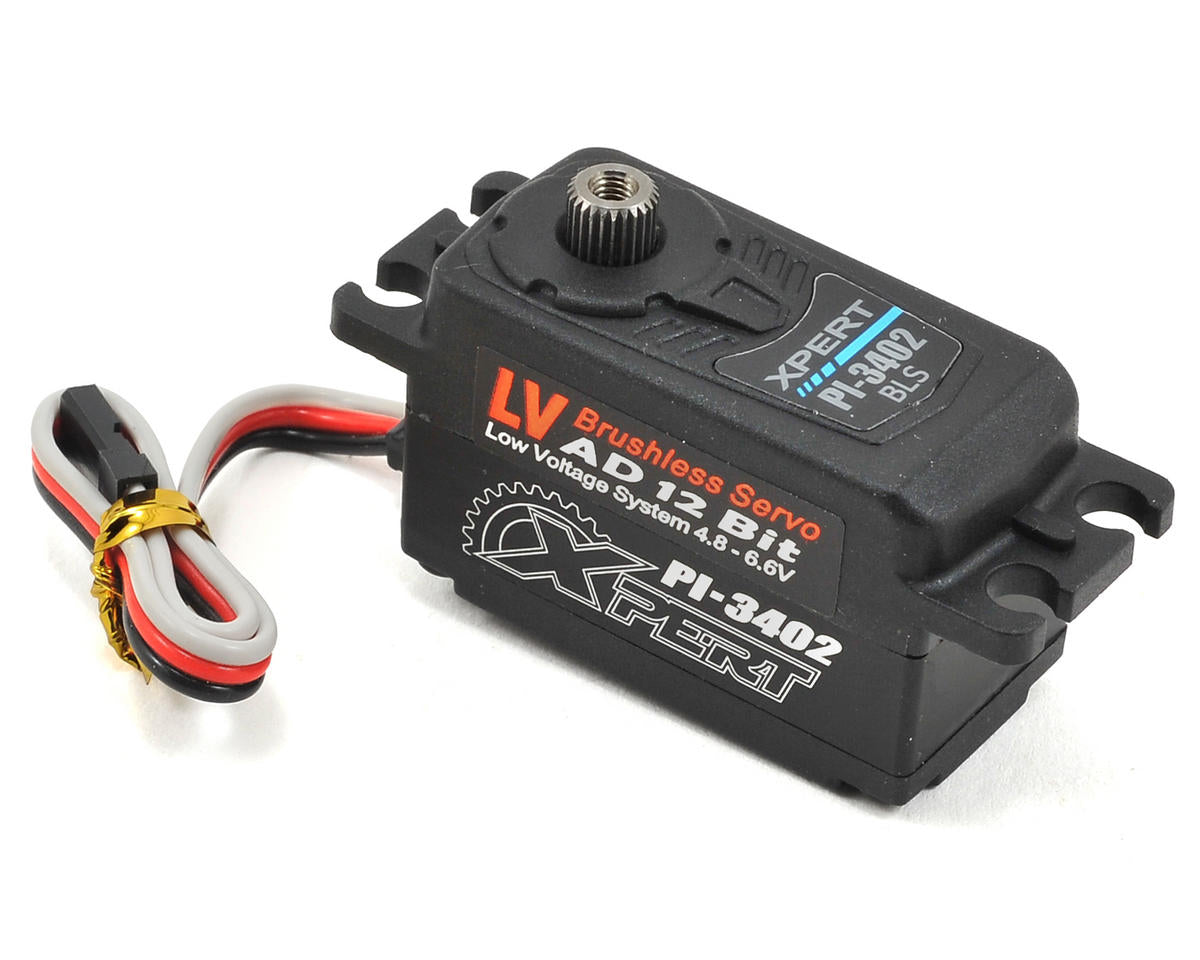

Xpert 3000 Series "High Speed" Low Profile Aluminum Center Case Servo

The Xpert 3000 Series “High Speed” Low Profile Aluminum Center Case Servo combines a brushless motor, metal gears, 4096 resolution and a SIC (Single Integrated Circuit) in a compact low profile design. Its aluminum middle case supports optimized thermal dissipation, while built-in protection features help provide dependable operation where space is limited.

Features

• Brushless motor design for high speed, efficiency and low power consumption
• 4096 resolution and SIC (Single Integrated Circuit)
• Composite upper and lower case with an aluminum middle case
• Metal gears
• Light weight design
• Glitch-free operation
• Sophisticated error correction
• High-speed, high-precision 12-bit AD converter and CPU calculation
• Fail safe
• Over current protection
• Over temperature protection
• Start tone

Specifications

• Speed: @4.8V: .08 sec/60; @6.0V: .07 sec/60
• Torque: @4.8V: 12 kg-cm (166.6 oz-in); @6.0V: 15 kg-cm (208.3 oz-in)
• Input Voltage: 4.8 - 6.0V
• Dimensions: 40.8x20.2x26.8mm
• Weight: 45 g
