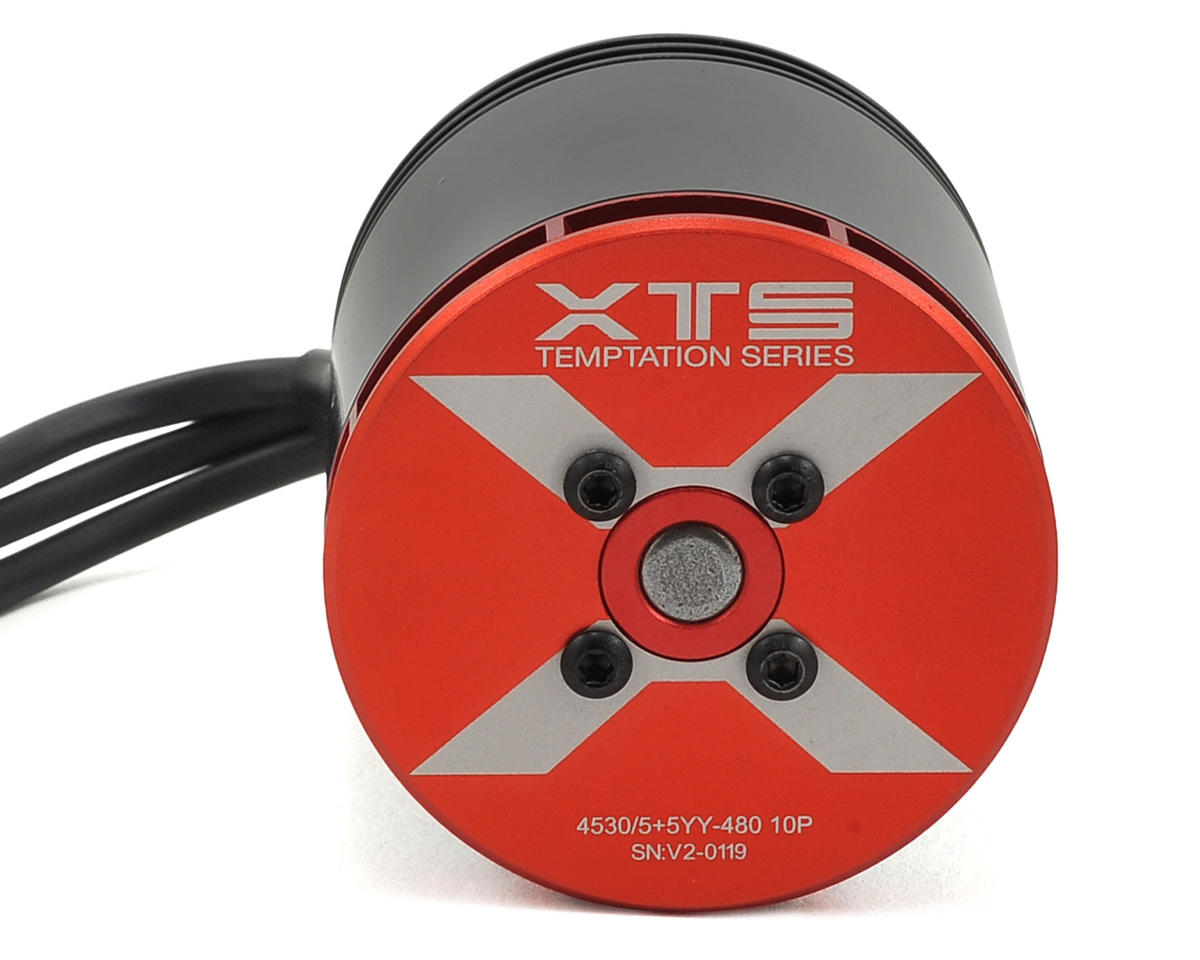

Xnova XTS 4530-480KV 5+5YY Brushless Motor w/6mm Shaft (Shaft A)

The Xnova XTS 4530-480KV 5+5YY Brushless Motor features a 6mm Type A shaft with a 38mm shaft length. It is developed for 700-800mm helicopters, optimized for 14S applications, and compatible with 12S to 14S setups.

Features

• Designed for extreme 3D flying
• 100% hand-wound
• High quality Neo Magnets, heat resistant up to 150 degree C
• Specialized wires, heat resistance up to 300 degree C
• Precise balanced
• High performance stator metal sheet
• High quality NMB bearings
• Marked leading high efficiency up to 93%
• Cooler running
• Improved torque and power output
• 1.4mm thick wire

Specifications

• Slots & Poles: 12n10p
• Winding T: 5+5 YY with 1.4mm thick wire
• RPM/V: 480
• Volt (V): 10 | 20 | 30 | 40
• Io(A): 1.4 | 2 | 2.8 | 3.5
• Rm (mohm): 12 | 12 | 12 | 12
• Weight (without connector): 535g
• Body Length (no shaft): 60.5mm
• Diameter: 55.7mm
• Shaft Length: 38mm
• Shaft Dia.: 6mm
• Mounting Holes CTC Distance: 30mm
• Mounting Screw: 4x07
• Max Eff. Curr.: 34.16 | 57.74 | 83.67 | 108.01
• Max Eff.: 91.80 | 93.07 | 93.31 | 93.52
• Kt (Nm/A): 0.0199
• Km (Nm/sqrt(w)): 0.1816
• Max Continuous Power (Watts): 5600
• Peak Continuous Power (Watts) (5 sec): 11000 (2sec)
• Max cont. current (A): 130
