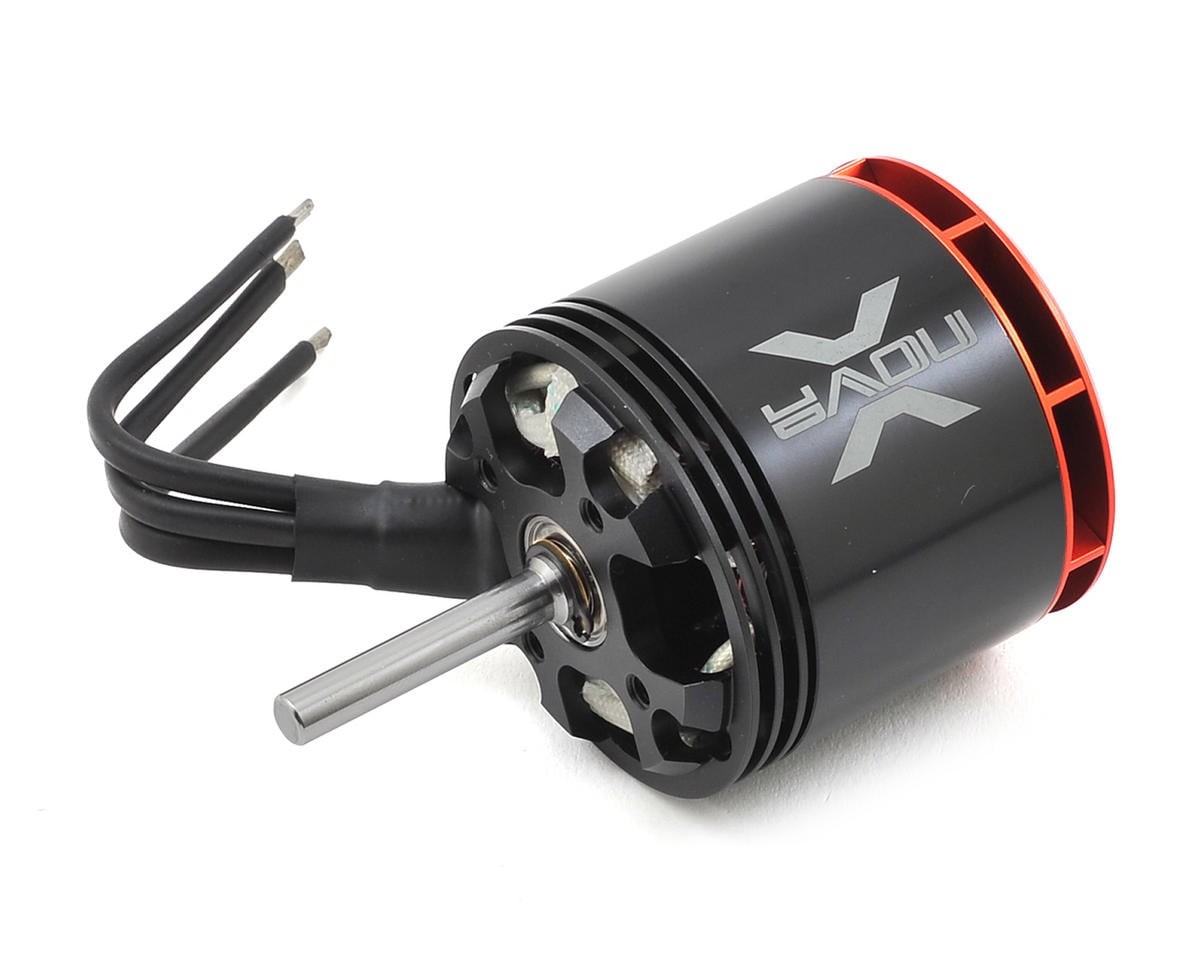

Xnova XTS 4525-530KV Brushless Motor (Shaft A)

The Xnova XTS 4525-530KV Brushless Motor features a 6mm Type A shaft measuring 36mm in length. Its 530 rpm/V YY winding is optimized for 12S applications and developed for 630-700mm helicopters, including extreme 3D flying.

Features

• 12n10p slots and poles
• 100% hand-wound construction
• High quality Neo Magnets, heat resistant up to 150 degree C
• Specialized wires, heat resistance up to 300 degree C
• Precise balanced design
• High performance stator metal sheet
• High quality NMB bearings
• Marked leading high efficiency up to 94%
• Cooler running
• Improved torque and power output
• Thick Single Strand Wire
• Complete quality control test before shipping

Specifications

• Model: XTS 4525-530KV
• Winding: YY with thick wire
• RPM/V: 530
• Weight without connector: 488g
• Body length, no shaft: 55.5mm
• Diameter: 55.7mm
• Shaft length: 36mm
• Shaft diameter: 6mm
• Mounting holes CTC distance: 30mm
• Mounting screw: 4x07
• Max continuous power: 4500 Watts
• Peak continuous power: 10000 Watts
• Max continuous current: 95A
