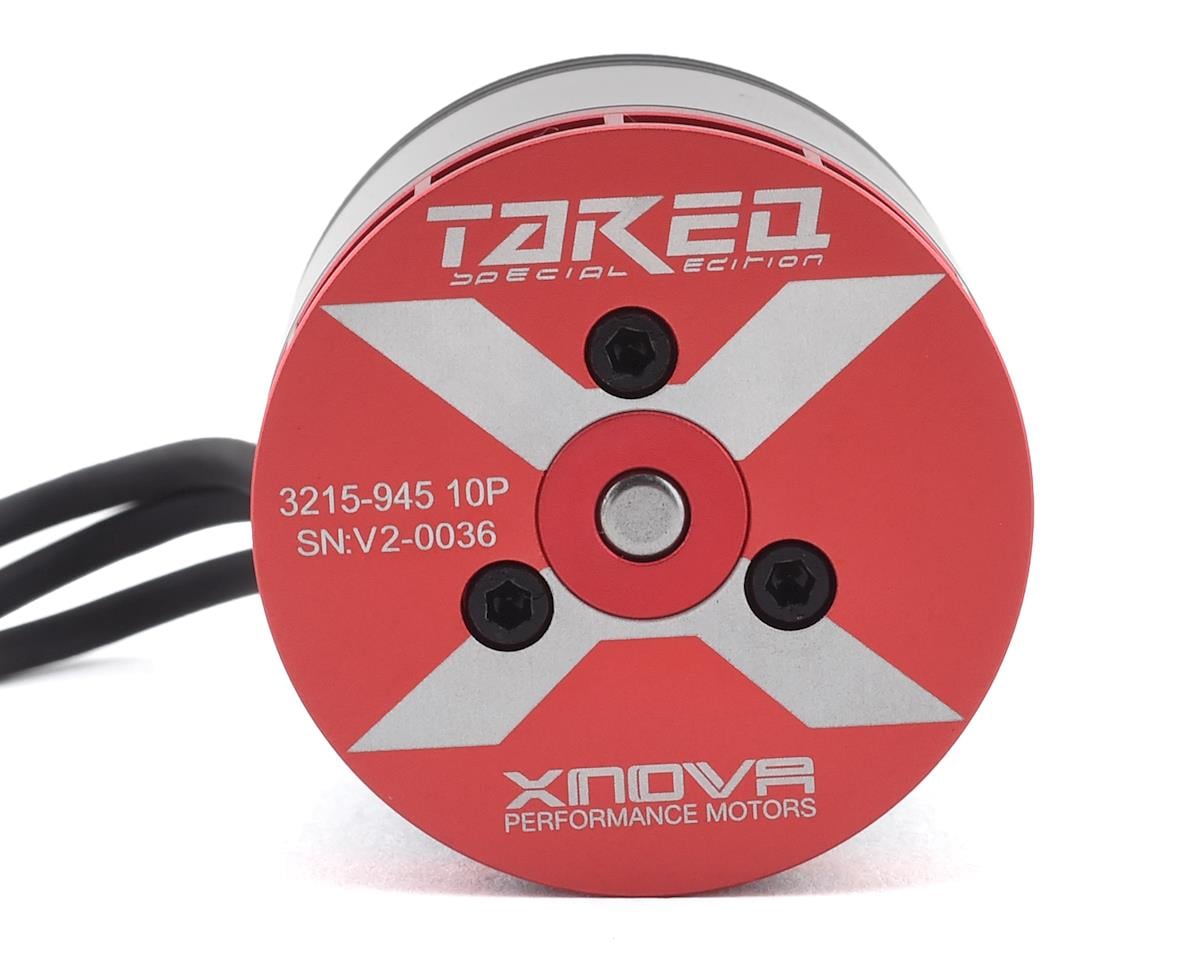

Xnova "Tareq Special Edition" 3215-945KV V2 Brushless Motor (945Kv)

The Xnova "Tareq Special Edition" 3215-945KV V2 Brushless Motor delivers an updated design for 360-380mm blade size helicopters, with a focus on efficiency and power-to-weight performance for extreme hard 3D flight.

Features

• Improved efficiency from thinner stator lamination
• Integrated cooling system for lower operating temperature
• Thicker hand-wound YY single-strand copper wires, heat resistant up to 250 degrees C
• High-performance neodymium magnets, heat resistant up to 150 degrees C
• 100% handwound construction

Specifications

• Slots & Poles: 12n10p
• Winding: YY
• RPM/V: 945
• Volt (V): 10 / 22.2
• Io (A): 1.4 / 2.4
• Rm (mohm): 24 / 24
• Weight (without connector): 166g
• Body Length (no shaft): 40mm
• Diameter: 40.5mm
• Shaft Length: 22mm
• Shaft Dia.: 5mm
• Mounting Holes CTC Distance: 25mm
• Mounting Screw: M3x0.5
• Max Eff. Curr.: 24.15 / 47.12
• Max Eff.: 88.41 / 89.81
• Kt (Nm/A): 0.0101
• Km (Nm/sqrt(w)): 0.0652
• Max Continuous Power: 1350 Watts
• Peak Continuous Power (2 sec): 1800 Watts
• Max Continuous Current: 60 Amps
