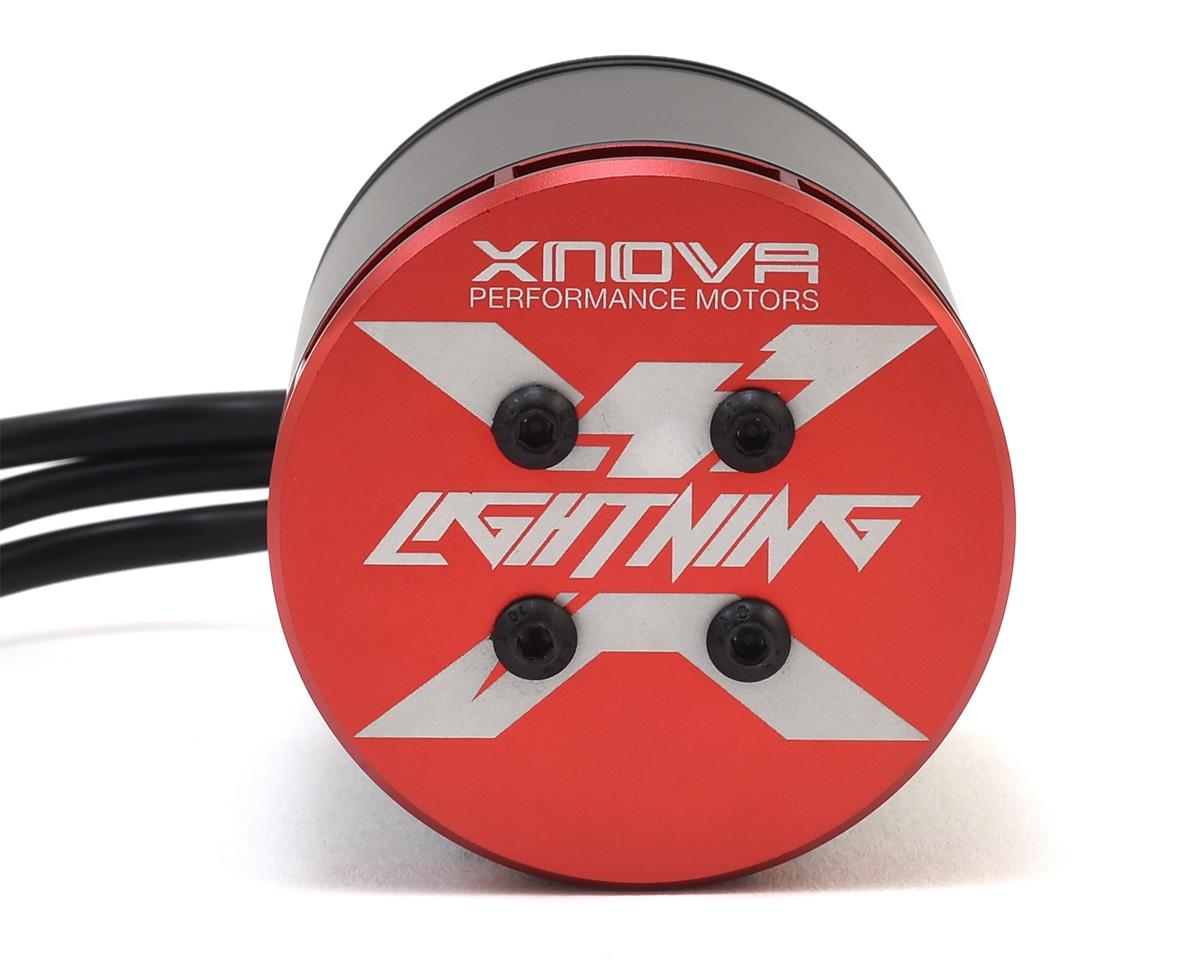

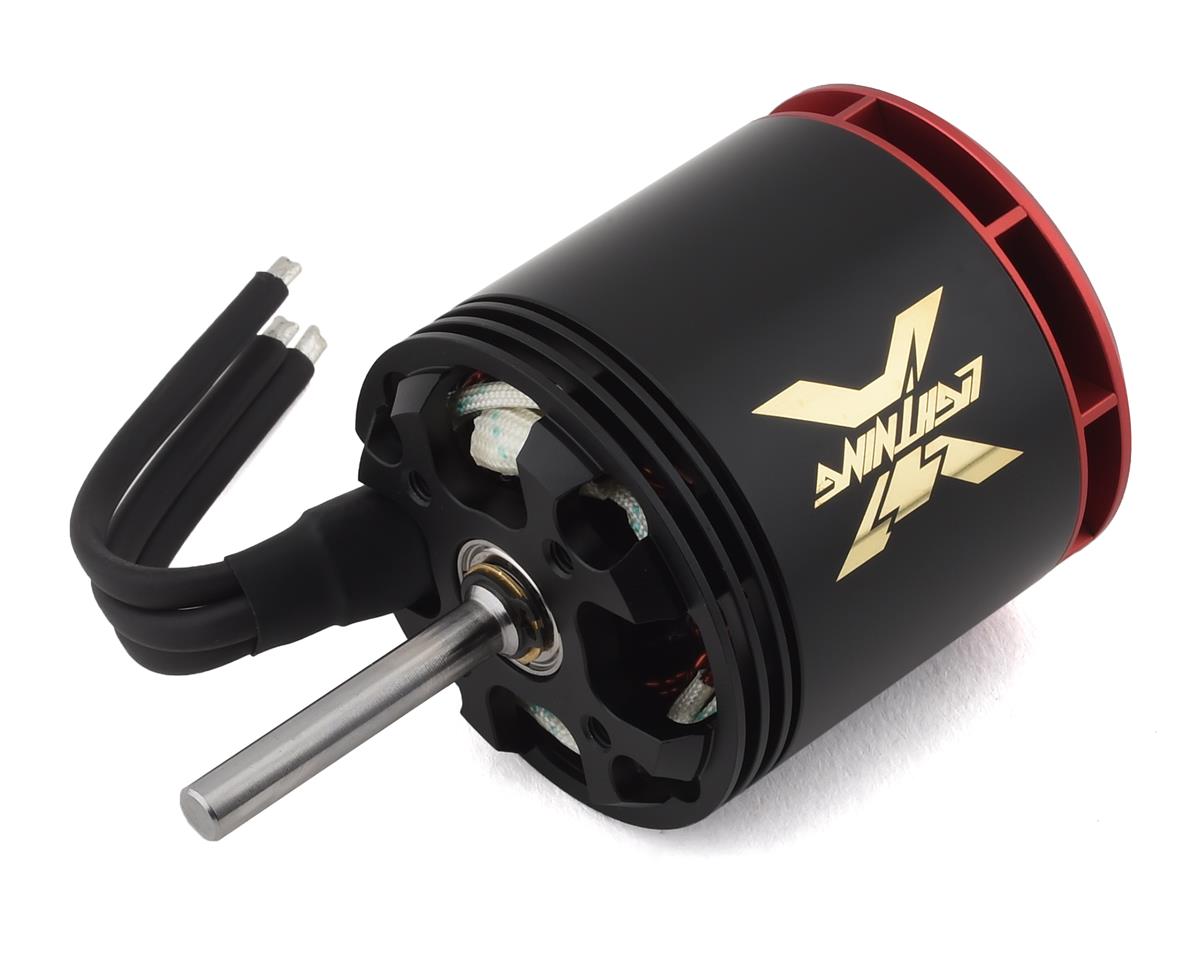

Xnova Lightning 4530-480kV Brushless Motor (Shaft E)

The Xnova Lightning 4530-480kV Brushless Motor features a 5+5YY winding, a 6mm Type E shaft, and a 50mm shaft length. It is optimized for 12S applications and developed for 630-700mm helicopters.

Features

• Designed for extreme 3D flying
• High quality Neo Magnets, heat resistant up to 150 degree C
• Specialized wires, heat resistance up to 300 degree C
• Precise balanced
• High performance stator metal sheet
• High quality NMB bearings
• Marked leading high efficiency up to 94%
• Cooler running
• Superb quality and machining of CNC parts
• Improved torque and power output
• 1.5mm thick wire
• 100% hand-wound

Specifications

• Slots & Poles: 12n10p
• Winding T: 5+5 YY with 1.5mm thick wire
• rpm/V: 480
• Volt (V): 20 | 30 | 40 | 50
• Io(A): 2.0 | 2.8 | 3.5 | 4.5
• Rm (mohm): 9.1 | 9.1 | 9.1 | 9.1
• Weight (without connector): 535g
• Body Length (no shaft): 60.5mm
• Diameter: 55.7mm
• Shaft Length: 50mm
• Shaft Dia.: 6mm
• Mounting Holes CTC Distance: 30mm
• Mounting Screw: 4x07
• Max Eff. Curr.: 66.3 | 96.08 | 124.03 | 157.24
• Max Eff.: 93.97 | 94.17 | 94.36 | 94.28
• Kt (Nm/A): 0.0199
• Km (Nm/sqrt(w)): 0.2085
• Max Continuous Power (Watts): 5600
• Peak Continuous Power (Watts) (5 sec): 11200 (2sec)
• Max cont. current (A): 140
