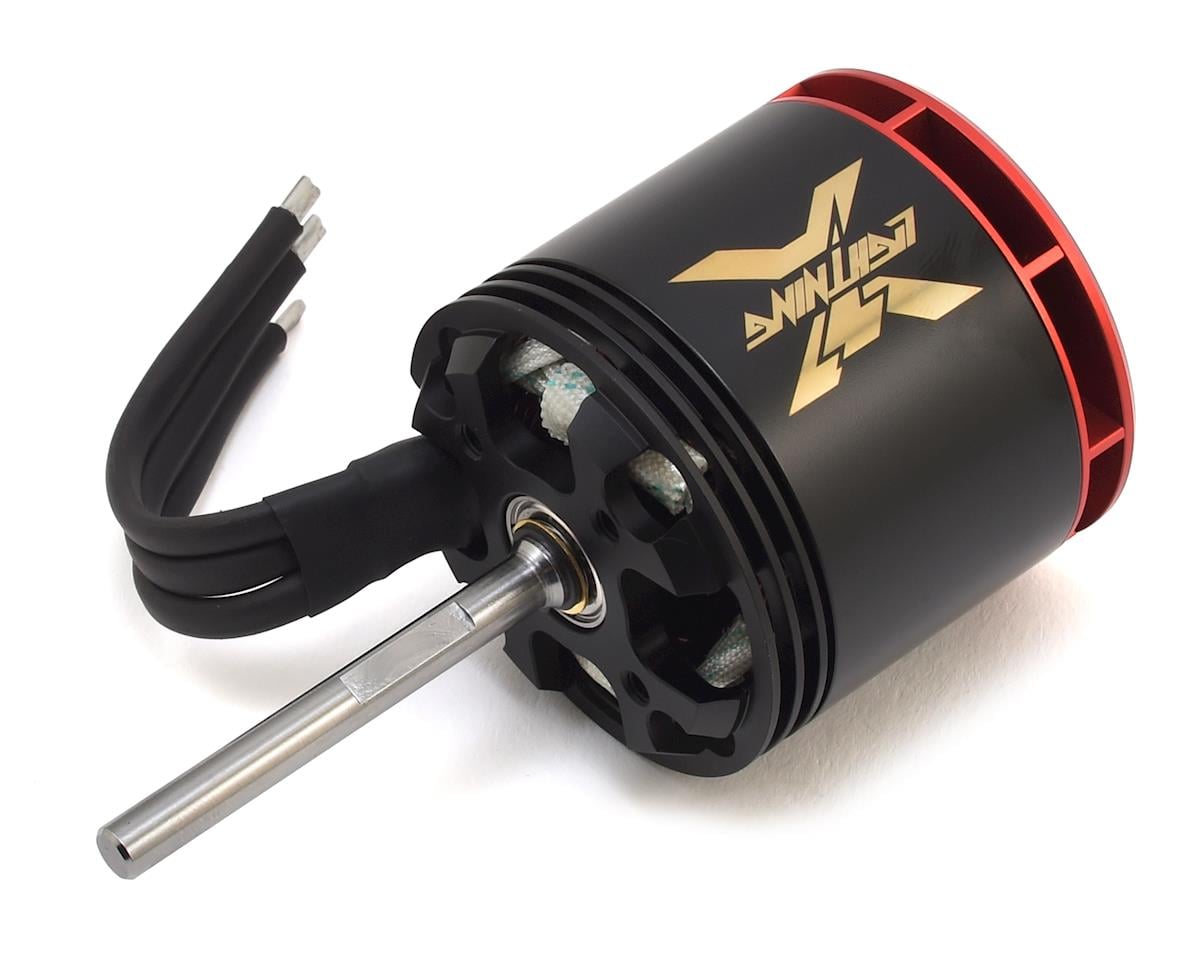

Xnova Lightning 4525-530KV Brushless Motor (Shaft F)

The Xnova Lightning 4525-530KV Brushless Motor (Shaft F) is designed for 630-700mm helicopters, extreme 3D flying, and 12S applications. It features a 6mm Type A shaft measuring 55mm in length.

Features

• Designed for extreme 3D flying
• Developed for 630-700mm helicopters
• Optimized for 12S applications
• 100% hand-wound with complete quality control testing
• High quality Neo Magnets heat resistant up to 150 degree C
• Specialized wires heat resistant up to 300 degree C
• Precise balanced construction
• High performance stator metal sheet
• High quality NMB bearings
• Marked leading high efficiency up to 94%
• Cooler running
• CNC-machined parts
• Improved torque and power output
• 1.5mm thick wire

Specifications

• Slots & Poles: 12n10p
• Winding: T: YY with thick wire
• RPM/V: 530
• Weight without connector: 500g
• Body Length, no shaft: 56mm
• Diameter: 55.7mm
• Shaft Length: 55mm
• Shaft Diameter: 6mm
• Mounting Holes CTC Distance: 30mm
• Mounting Screw: 4x07
• Max Continuous Power: 4500 Watts
• Peak Continuous Power: 10000 Watts
• Max Continuous Current: 95A
