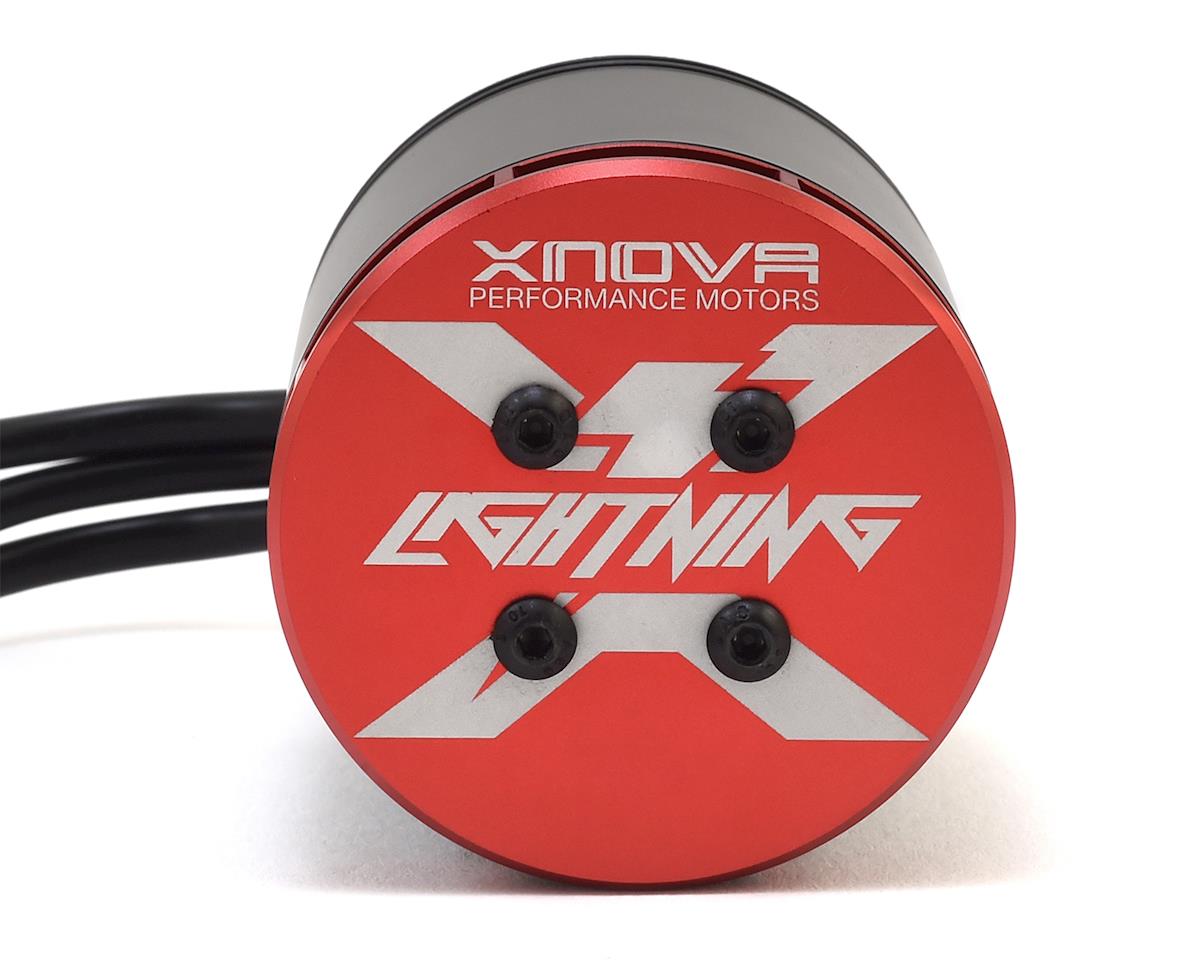

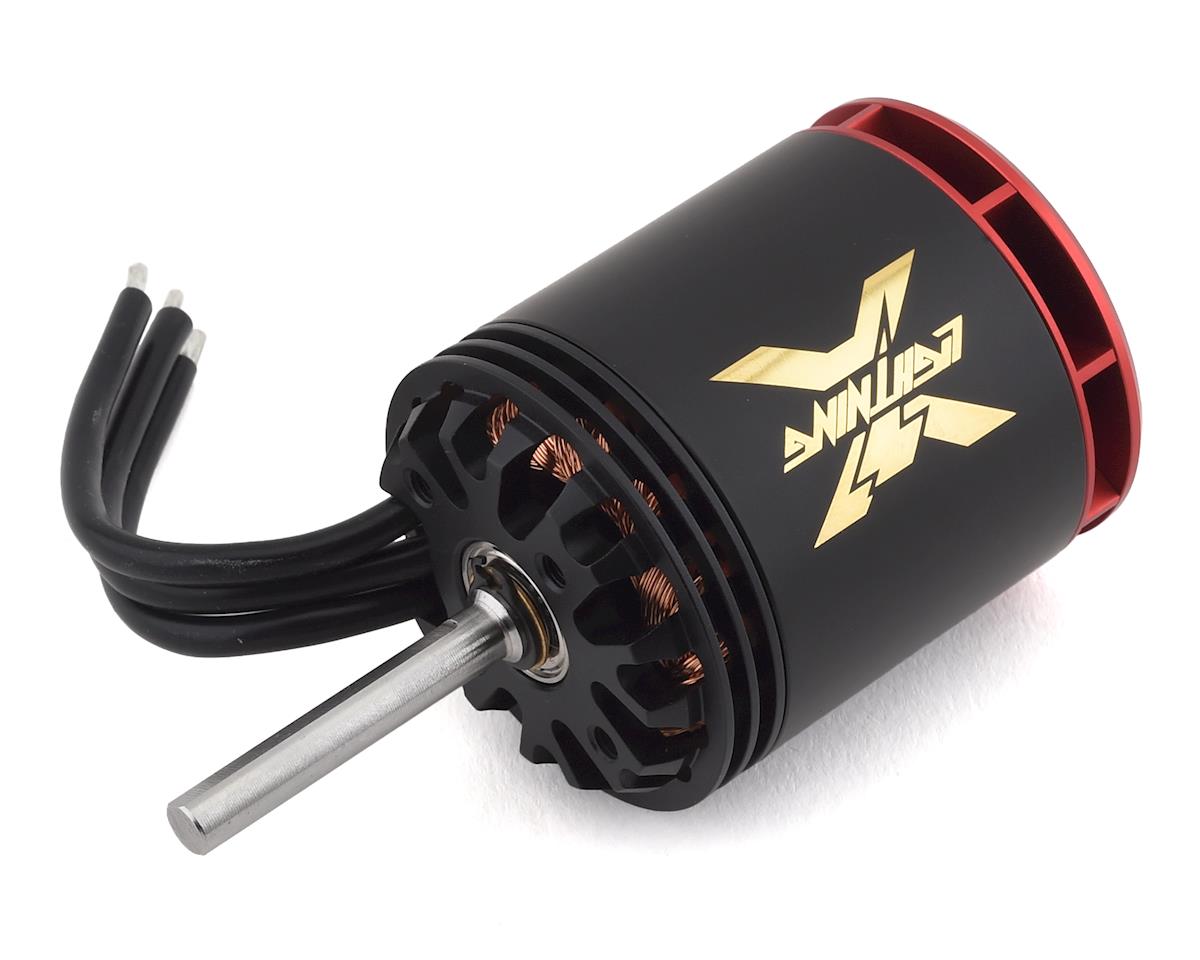

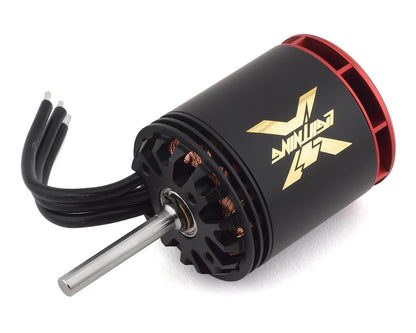

Xnova Lightning 4030-470kV Brushless Motor (Shaft A)

The Xnova Lightning 4030-470kV Brushless Motor features a 6mm Type A shaft with a 38mm shaft length. It was developed for 3D flying on 10-14S and uses a 3Y winding with a 24n8p slot and pole configuration.

Features

• Higher efficiency over the previous generation
• Thinner stator laminations
• Smooth operation with no cogging
• Specialized wires with heat resistance up to 250 degree C
• Precision balanced
• High performance stator metal sheet
• Optimized ventilation
• High quality NMB bearings
• High quality machining of CNC parts

Specifications

• Slots & Poles: 24n8p
• Winding: 3Y
• rpm/V: 470
• Volt (V): 10 | 20 | 25
• Io (A): 0.8 | 1.1 | 1.4
• Rm (mohm): 22 | 22 | 22
• Weight (without connector): 445g
• Body Length (no shaft): 60.75mm
• Diameter: 49.5mm
• Shaft Length: 38mm
• Shaft Diameter: 6mm
• Max Eff. Curr.: 19.70 | 31.62 | 43.69
• Max Eff.: 91.61 | 93.04 | 93.59
• Kt (Nm/A): 0.0203
• Km (Nm/sqrt(w)): 0.137
• Max Continuous Power (Watts): 3200
• Peak Continuous Power (Watts) (5 sec): 5000
• Max cont. current (A): 75
