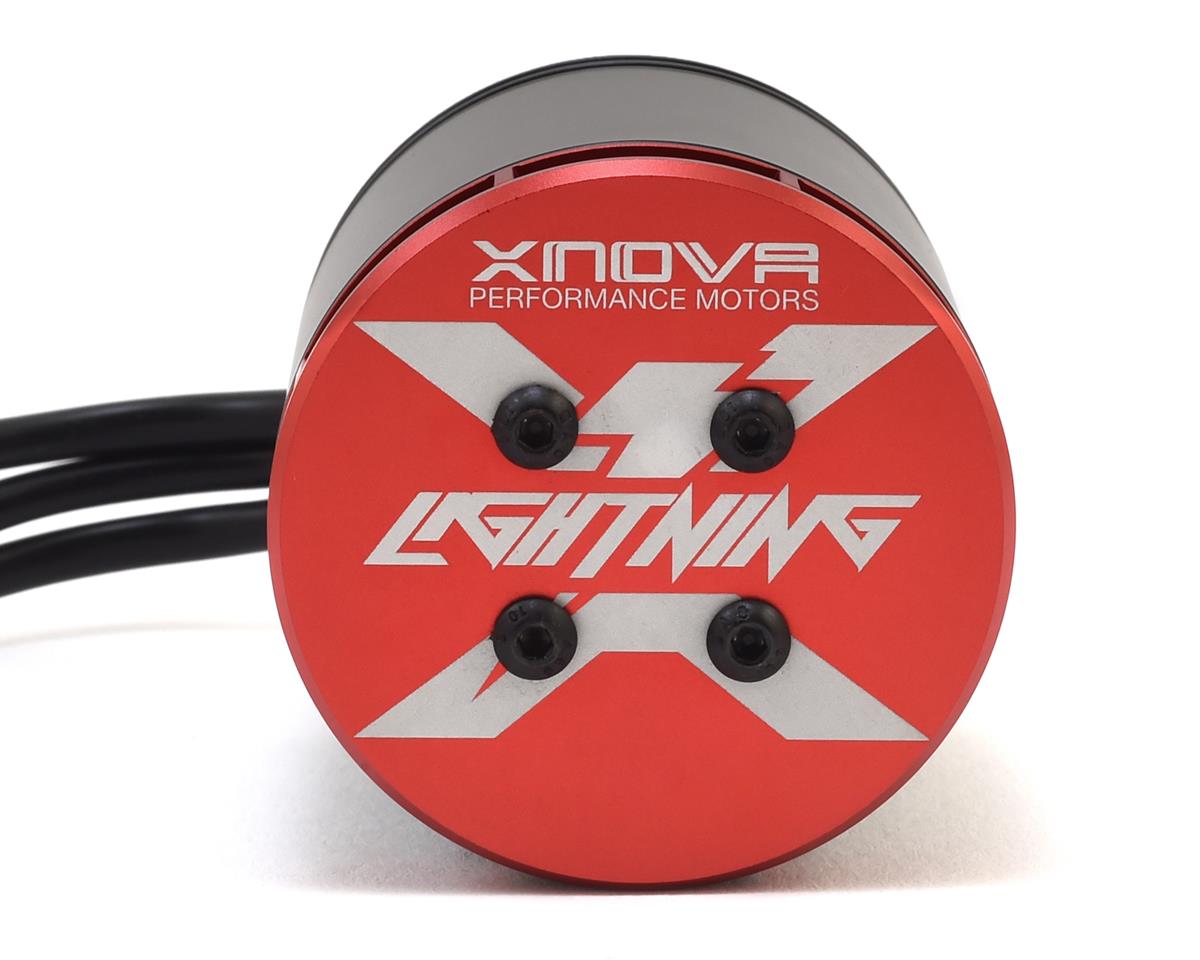

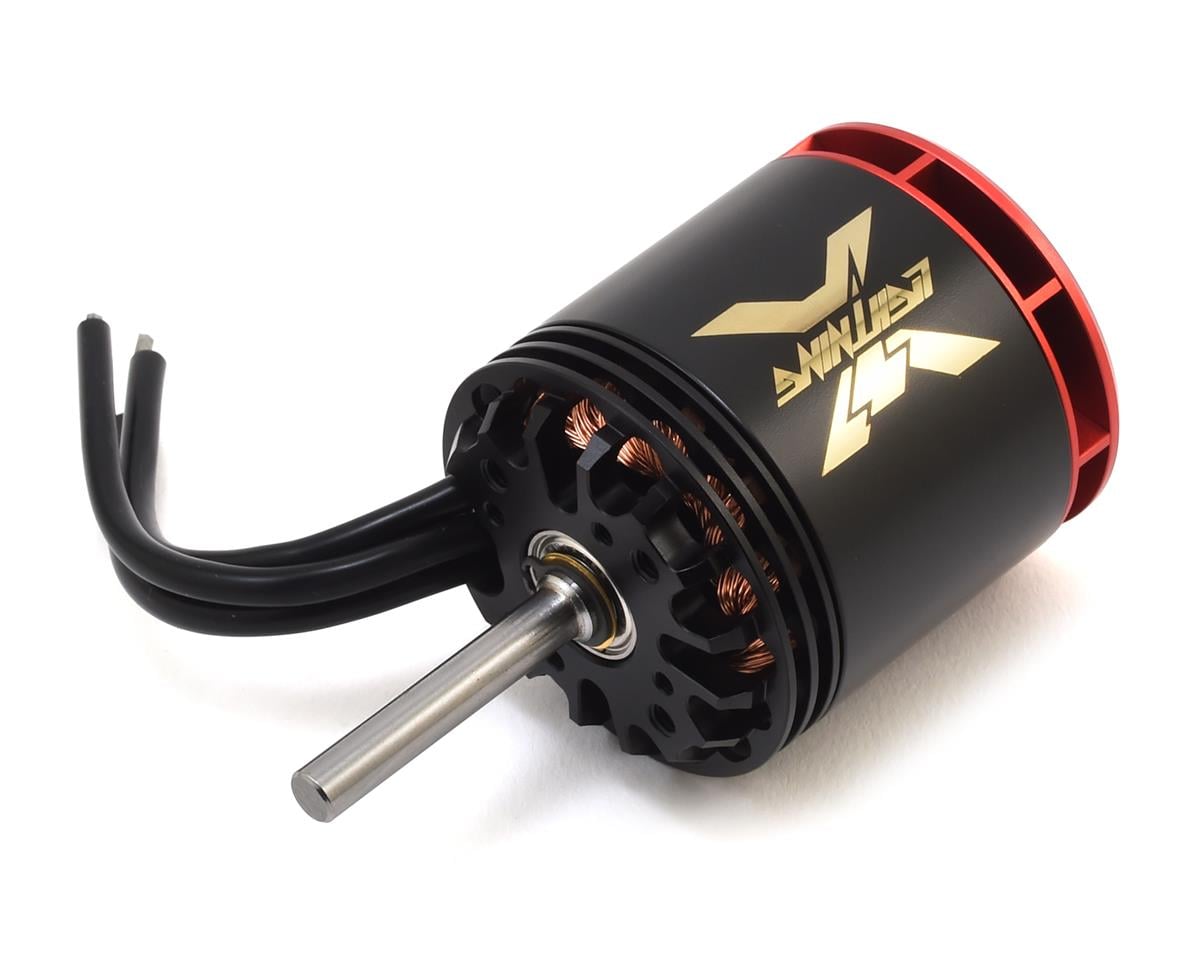

Xnova Lightning 4025-830KV Brushless Motor w/6mm Shaft (Shaft B)

The Xnova Lightning 4025-830KV 2Y brushless motor features a 6mm Type B shaft with a 28mm shaft length. It is developed for 520-600mm applications using 8S LiPo power.

Features

• Type B shaft
• Suitable for hard 3D on 8S
• High-quality Neo magnets heat resistant up to 150 degree C
• Specialized wires with heat resistance up to 250 degree C
• Precision balanced design
• High-performance stator metal sheet
• Optimized ventilation
• High-quality NMB bearings
• Efficiency up to 93.5%
• CNC-machined parts

Specifications

• Slots & Poles: 24n8p
• Winding: 2Y
• RPM/V: 830
• Voltage (V): 10 | 20 | 30
• Io (A): 1.5 | 2.3 | 3.3
• Rm (mohm): 9 | 9 | 9
• Weight without connector: 400g
• Body length without shaft: 56.2mm
• Diameter: 49.5mm
• Shaft length: 28mm
• Shaft diameter: 6mm
• Max Eff. Curr. (A): 40.82 | 71.49 | 104.88
• Max Eff. (%): 92.65 | 93.57 | 93.71
• Kt (Nm/A): 0.0115
• Km (Nm/sqrt(w)): 0.1213
• Max continuous power: 3000 Watts
• Peak continuous power (5 sec): 4000 Watts
• Max continuous current: 98A
