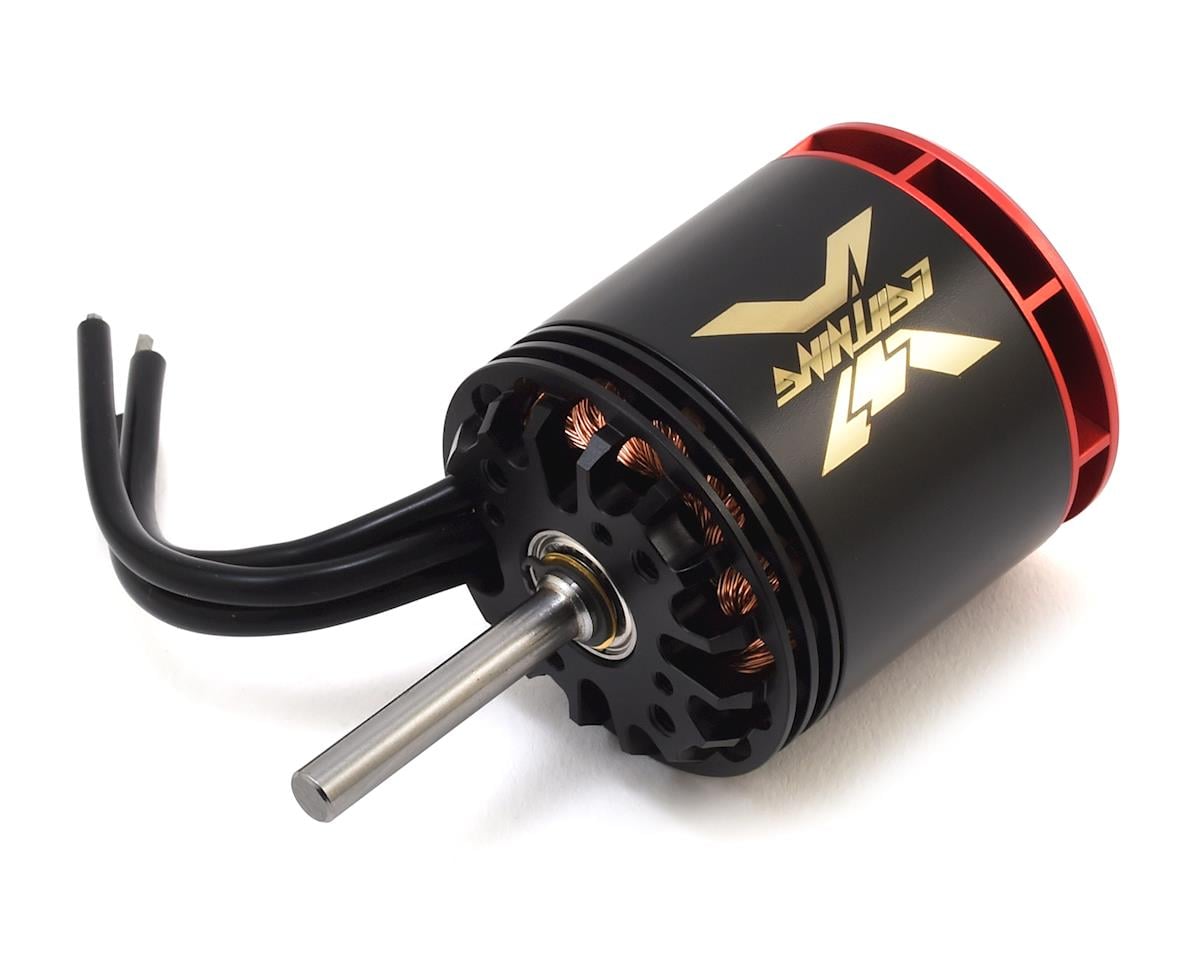

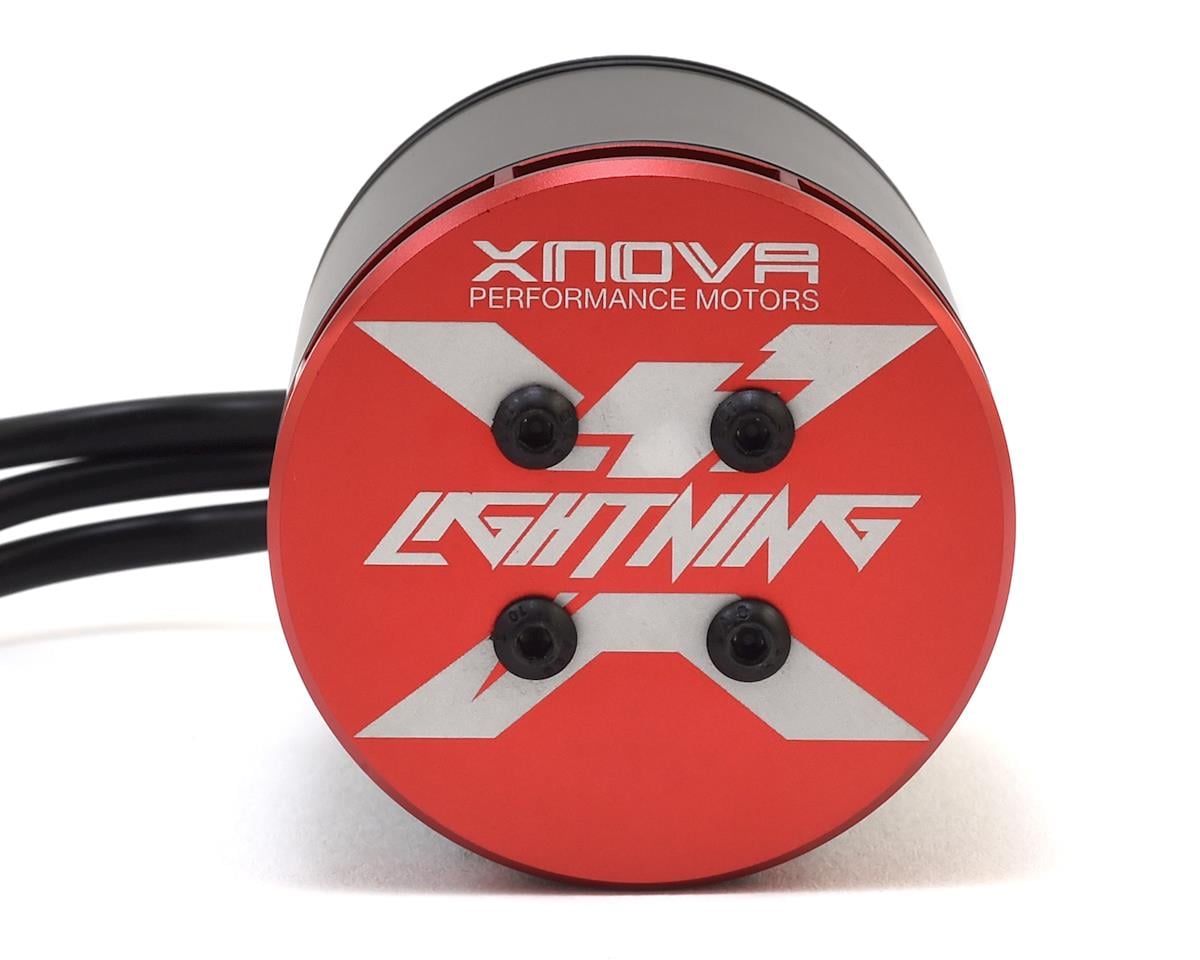

Xnova Lightning 4025-560KV Brushless Motor w/6mm Shaft (Shaft B)

The Xnova Lightning 4025-560KV Brushless Motor features a 6mm Type B shaft with a 28mm shaft length. It was developed for 520-600mm applications using 12s LiPo and is designed for hard 3D performance on 12S.

Features

• 6mm Type B shaft
• High-quality Neo magnets, heat resistant up to 150 degree C
• Specialized wires, heat resistance up to 250 degree C
• Precision balanced
• High-performance stator metal sheet
• Optimized ventilation
• High-quality NMB bearings
• Marked leading high efficiency up to 93.5%
• CNC parts

Specifications

• Slots & Poles: 24n8p
• Winding: 3Y
• RPM/V: 560
• Voltage: 10 | 20 | 25 V
• Io: 0.9 | 1.2 | 2.8 A
• Rm: 19 | 19 | 19 mohm
• Weight without connector: 400g
• Body length without shaft: 56.2mm
• Diameter: 49.5mm
• Shaft length: 28mm
• Shaft diameter: 6mm
• Max Eff. Curr.: 21.76 | 35.54 | 76.78
• Max Eff.: 91.73 | 93.25 | 92.71
• Kt: 0.0171 Nm/A
• Km: 0.1237 Nm/sqrt(w)
• Max Continuous Power: 3000 Watts
• Peak Continuous Power, 5 sec: 4000 Watts
• Max cont. current: 68 A
