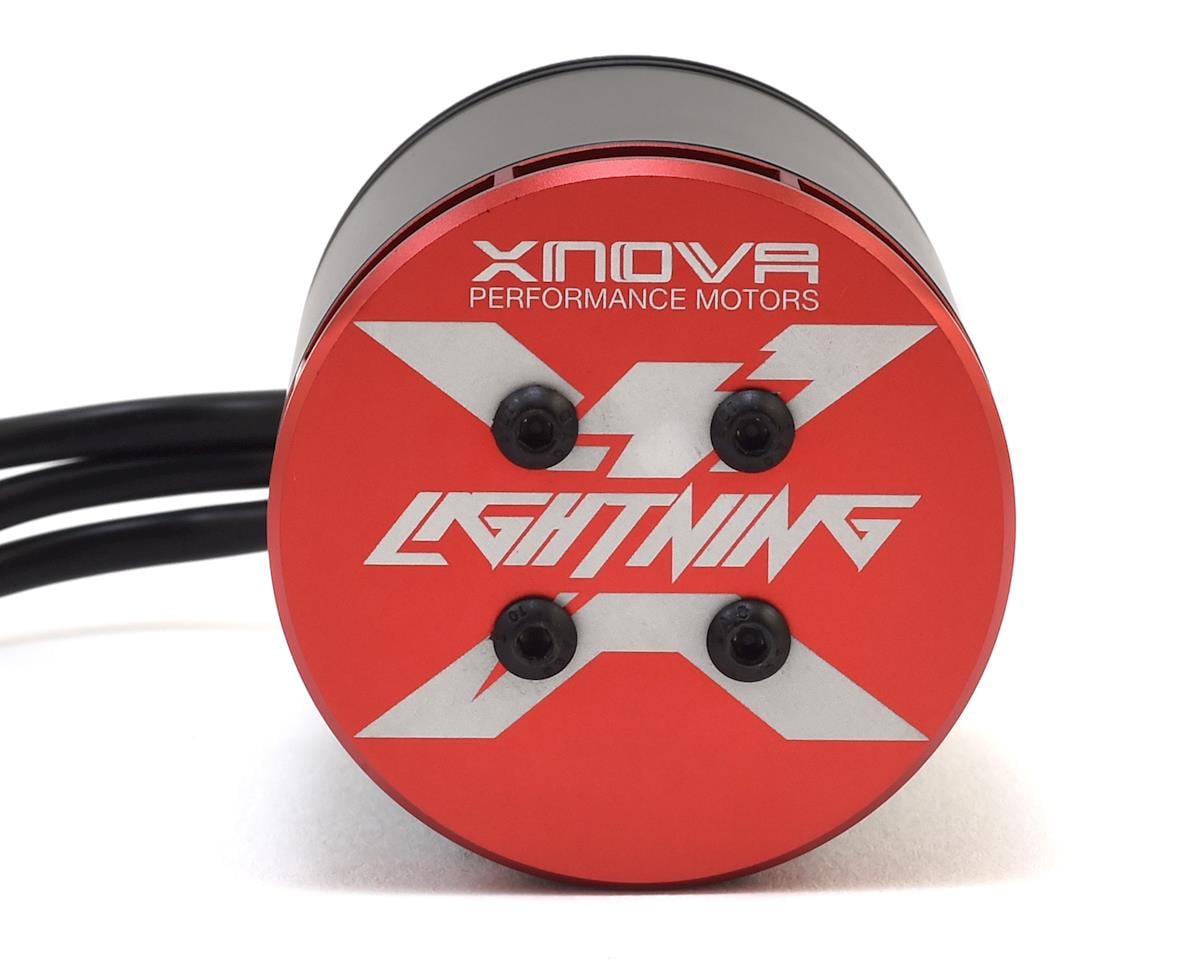

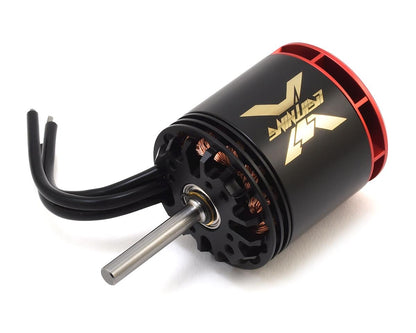

Xnova Lightning 4025-560KV Brushless Motor w/6mm Shaft (Shaft A)

The Xnova Lightning 4025-560KV Brushless Motor features a 6mm Type A shaft with a 36mm shaft length. It was developed for 520-600mm models using 12S LiPo power and is suited for hard 3D operation on 12S.

Features

• Type A shaft
• High-quality Neo Magnets with heat resistance up to 150 degree C
• Specialized wires with heat resistance up to 250 degree C
• Precision balanced design
• High-performance stator metal sheet
• Optimized ventilation
• High-quality NMB bearings
• Marked leading high efficiency up to 93.5%
• Machined CNC parts

Specifications

• Slots & Poles: 24n8p
• Winding: 3Y
• RPM/V: 560
• Volt (V): 10 | 20 | 25
• Io (A): 0.9 | 1.2 | 2.8
• Rm (mohm): 19 | 19 | 19
• Weight (without connector): 400g
• Body Length (no shaft): 56.2mm
• Diameter: 49.5mm
• Shaft Length: 36mm
• Shaft Diameter: 6mm
• Max Eff. Curr.: 21.76 | 35.54 | 76.78
• Max Eff.: 91.73 | 93.25 | 92.71
• Kt (Nm/A): 0.0171
• Km (Nm/sqrt(w)): 0.1237
• Max Continuous Power (Watts): 3000
• Peak Continuous Power (Watts) (5 sec): 4000
• Max cont. current (A): 68
