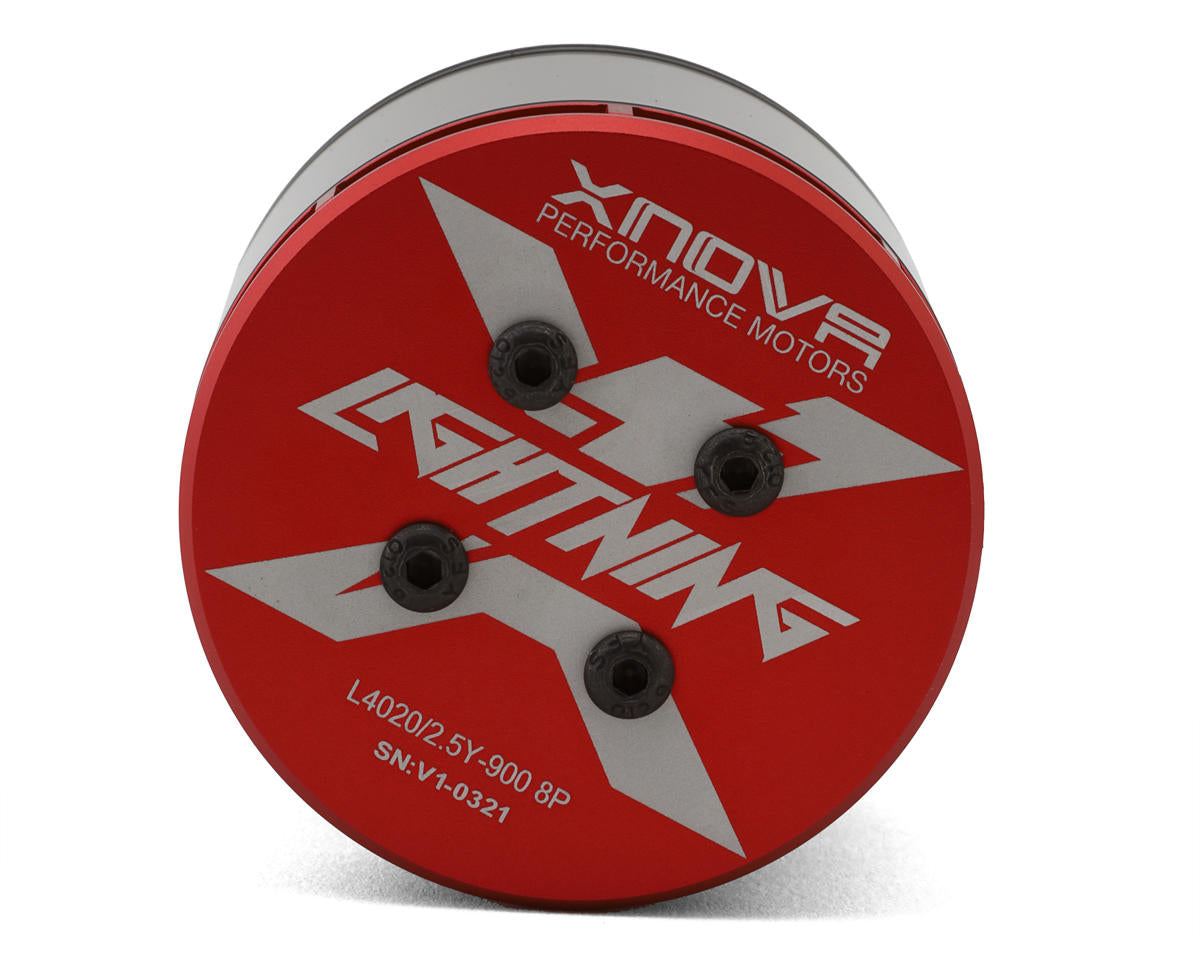

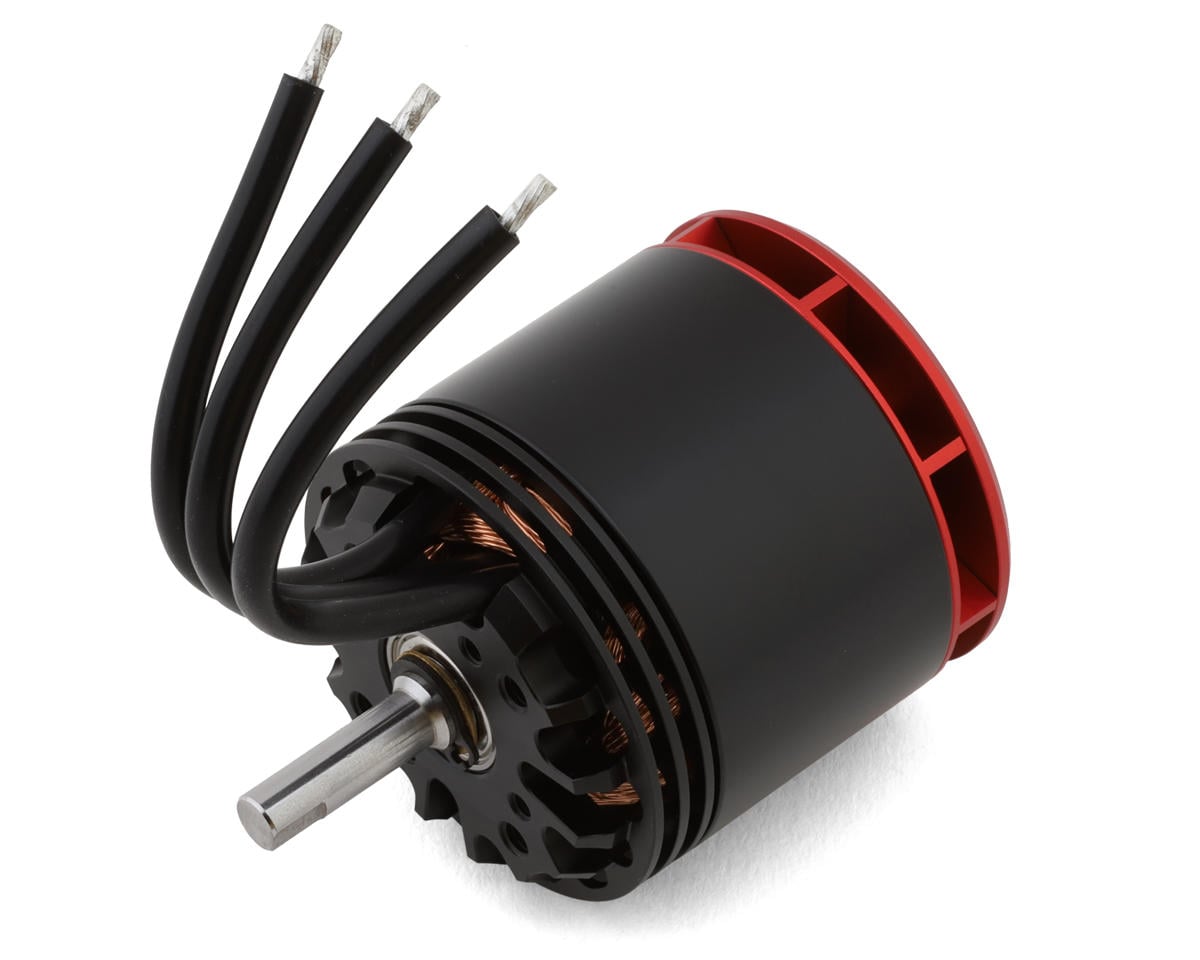

Xnova Lightning 4020-900kV Brushless Motor (Shaft B) (6mm)

The Xnova Lightning 4020-900kV Brushless Motor features an outrunner design for 480mm up to 600mm Blade Helicopters on 6S to 8S power setups. Its thinner stator laminations support enhanced efficiency and reduced operating temperature, while the hand-wound construction, low cogging torque, and higher degree magnets are designed for smooth, consistent operation.

Features

• Thinner stator lamination design for enhanced efficiency and reduced operating temperature
• Unique hand-wound construction
• Low cogging torque for smooth running
• Higher degree magnets for improved performance
• For 480mm up to 600mm Blade Helicopters on 6S to 8S power setups

Specifications

• Motor Type: Outrunner
• kV Rating: 900kV
• Input Voltage: 6S (22.2V)
• Diameter: 49.5mm
• Length (Without Shaft): 51.2mm
• Shaft Diameter: 6mm
• Shaft Length: 22mm
• Continuous Current: 80W
• Peak Current: 2600W
• Slots: 24
• Pols: 8
• Weight: 330g

Includes

• (1) Xnova Lightning 4020-900kV Brushless Motor (Shaft B)
