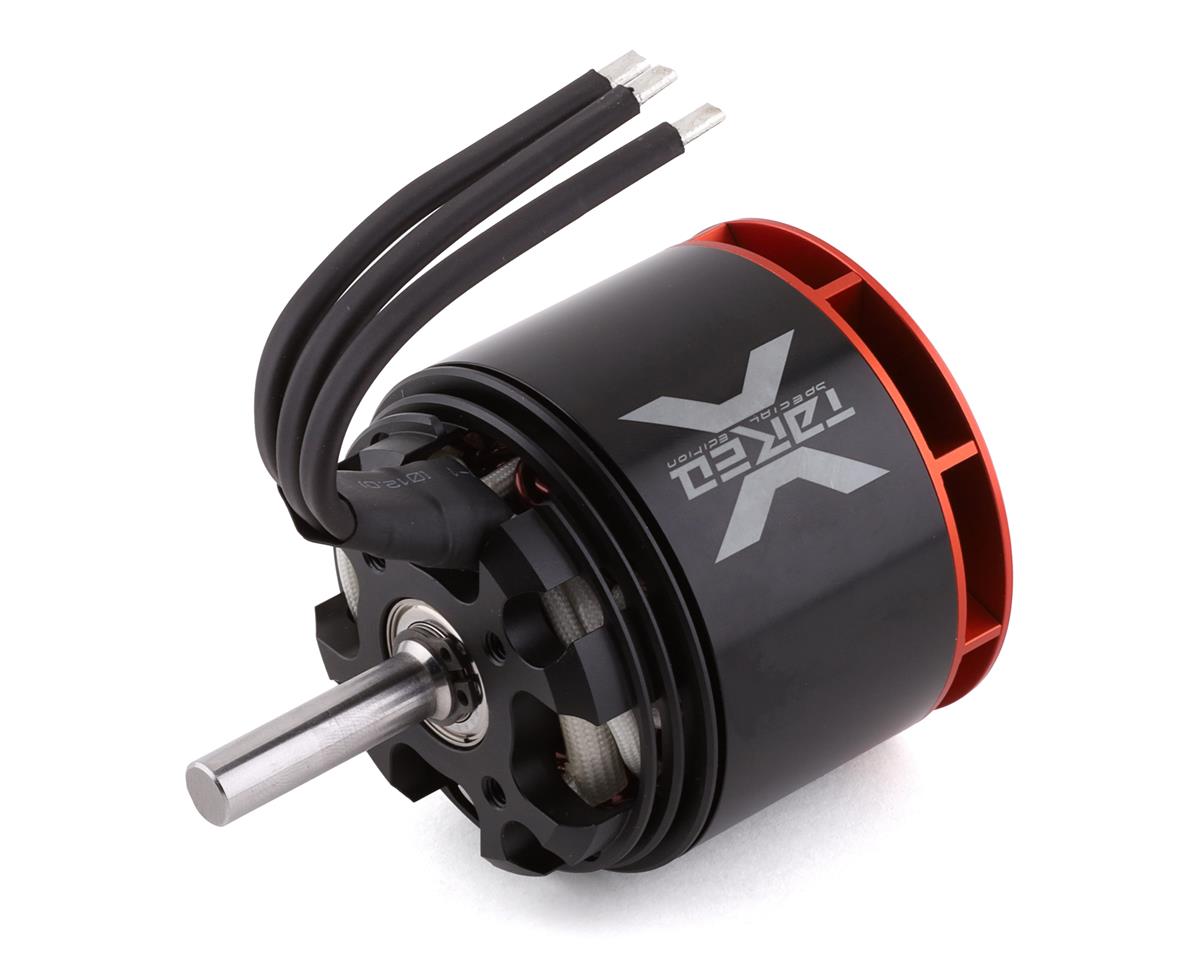

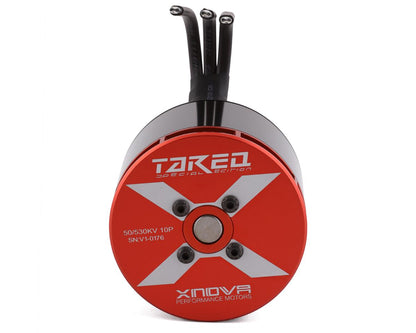

Xnova 50XX "Tareq Special Edition" 530KV Brushless Motor (Shaft A)

The Xnova 50XX "Tareq Special Edition" 530KV Brushless Motor (Shaft A) is designed for demanding 700 to 800 size electric helicopters using 12s or 14s LiPo configurations. It combines high-quality neodymium magnets, specialized YY single strand wiring, precision balancing and NMB bearings.

Features

• High quality neodymium magnets with heat resistance up to 180 degrees Celsius
• Specialized YY single strand wiring with heat resistance up to 300 degrees Celsius
• Precision balanced
• High quality NMB bearings
• Efficiency up to 93%

Specifications

• RPM/V: 530
• Weight without connector: 640g
• Body length, no shaft: 61mm
• Diameter: 63mm
• Shaft length: 32mm
• Shaft diameter: 8mm
• Mounting holes CTC distance: 30mm
• Mounting screw: 4mm
• Max continuous power: 8000 Watts
• Peak continuous power: 13000 Watts
