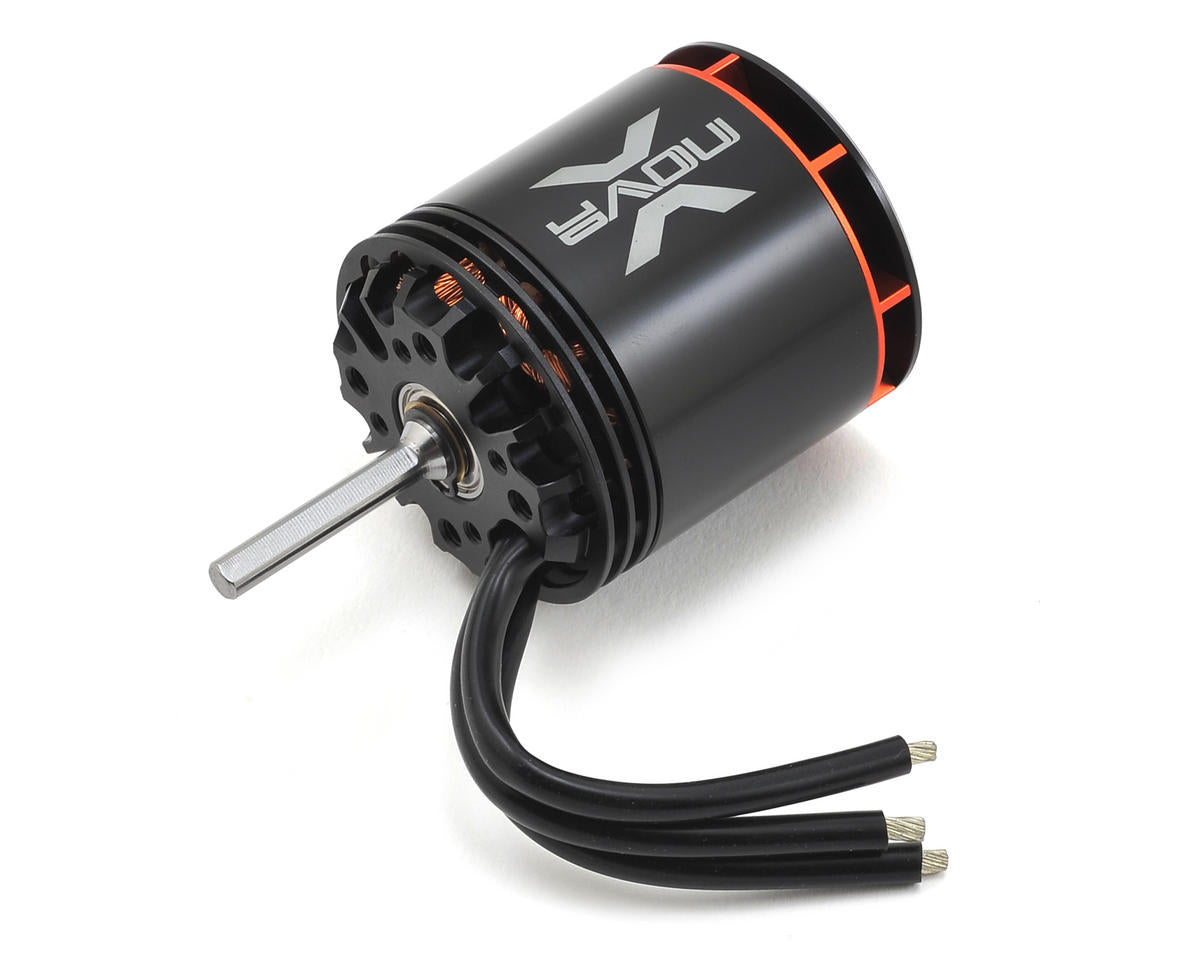

Xnova 4025-1120KV 1.5Y V3 Brushless Motor w/5mm Shaft (Shaft C/Logo 550)

The Xnova 4025-1120KV 1.5Y V3 Brushless Motor features a 5mm shaft and is developed for Logo 550 and Gaui X5 helicopters. It is recommended for hard 3D flying on 6S.

Features

• Type C shaft
• High-quality neo magnets with heat resistance up to 150 degree C
• Specialized wires with heat resistance up to 250 degree C
• Precision balanced
• High-performance stator metal sheet
• Optimized ventilation
• High-quality NMB bearings
• Marked leading high efficiency up to 93.5%
• CNC-machined parts

Specifications

• Slots & Poles: 24n8p
• Winding: 1.5Y
• rpm/V: 1120
• Volt (V): 10 | 20 | 25
• Io (A): 2.7 | 3.2 | 3.6
• Rm (mohm): 7.3 | 7.3 | 7.3
• Weight (without connector): 384g
• Body Length (no shaft): 55.75mm
• Diameter: 49.5mm
• Shaft Length: 28mm
• Shaft Diameter: 5mm
• Max Eff. Curr.: 60.82 | 93.63 | 111.03
• Max Eff.: 91.12 | 93.16 | 93.52
• Kt (Nm/A): 0.0085
• Km (Nm/sqrt(w)): 0.0998
• Max Continuous Power (Watts): 3000
• Peak Continuous Power (Watts) (5 sec): 4000
• Max cont. current (A): 110
