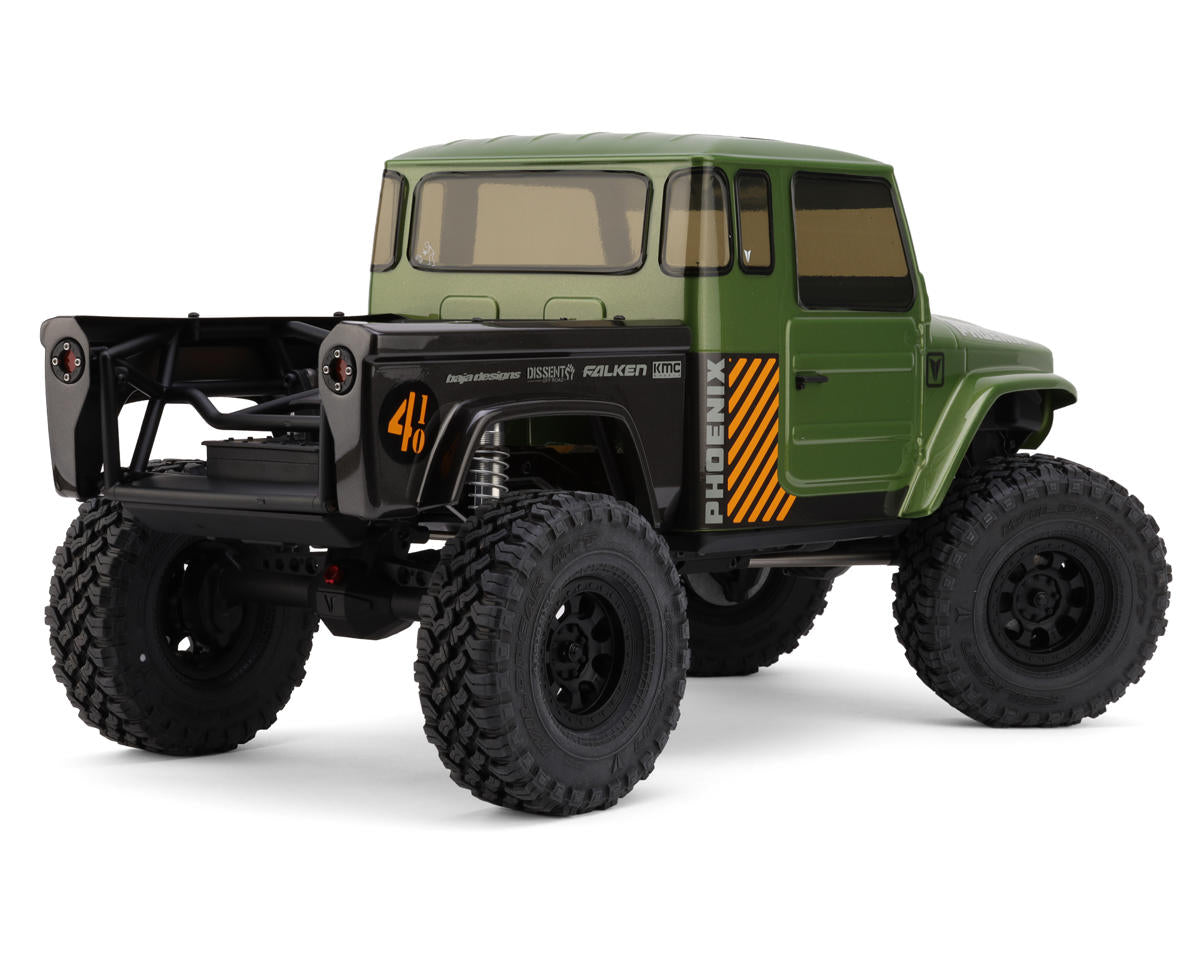

Vanquish Products VS4-10 Phoenix Portal 1/10 RTR Brushed Rock Crawler

The Vanquish Products VS4-10 Phoenix Portal 1/10 RTR Brushed Rock Crawler combines scale-inspired styling with a performance-focused portal-axle drivetrain. Its forward-mounted 35T brushed motor, 6.5% overdrive VFD Spec transmission, and 1.9 Falken Wildpeak M/T tires are designed for technical crawling and trail driving.

Features

• 6.5% overdrive built into the VFD Spec transmission
• Forward-mounted motor for improved weight distribution
• Chromoly universal axle shafts with 49° steering angle
• Brass inner axle tube reinforcements for added strength and low center of gravity
• Full metal internal transmission gears
• High-pinion hypoid machined gear design for improved gear mesh and clearance
• CV-style driveshaft joints for smooth articulation and reduced torque twist
• Hidden body clip system with quick-access hinged front design
• High-clearance bumpers and rock sliders
• Double shear shock mounts for increased suspension strength and stability

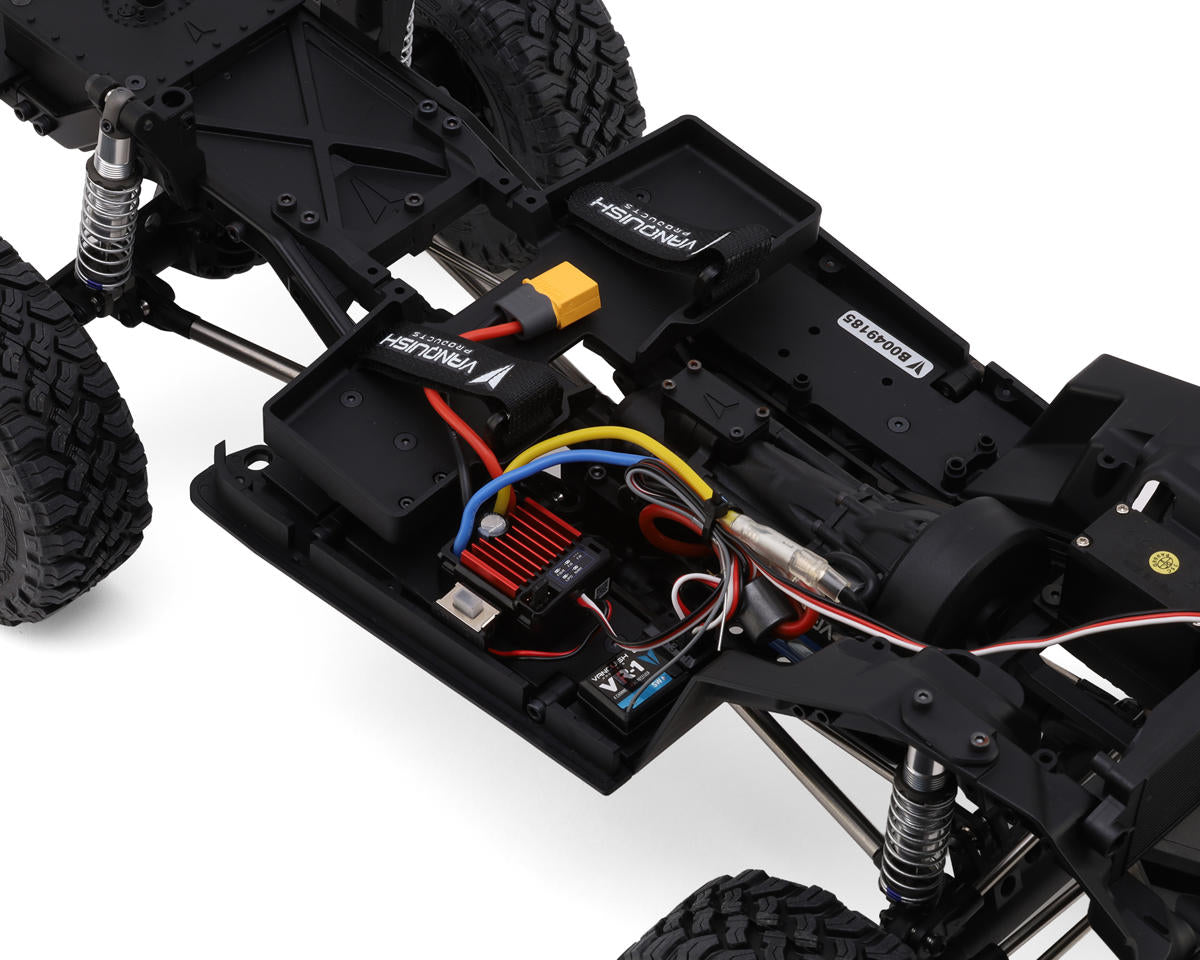

Electronics

• Pre-installed VM-1 35T brushed motor
• Pre-installed 3S-capable VE-1 ESC with XT60 connector
• Pre-installed VS-1 metal gear servo

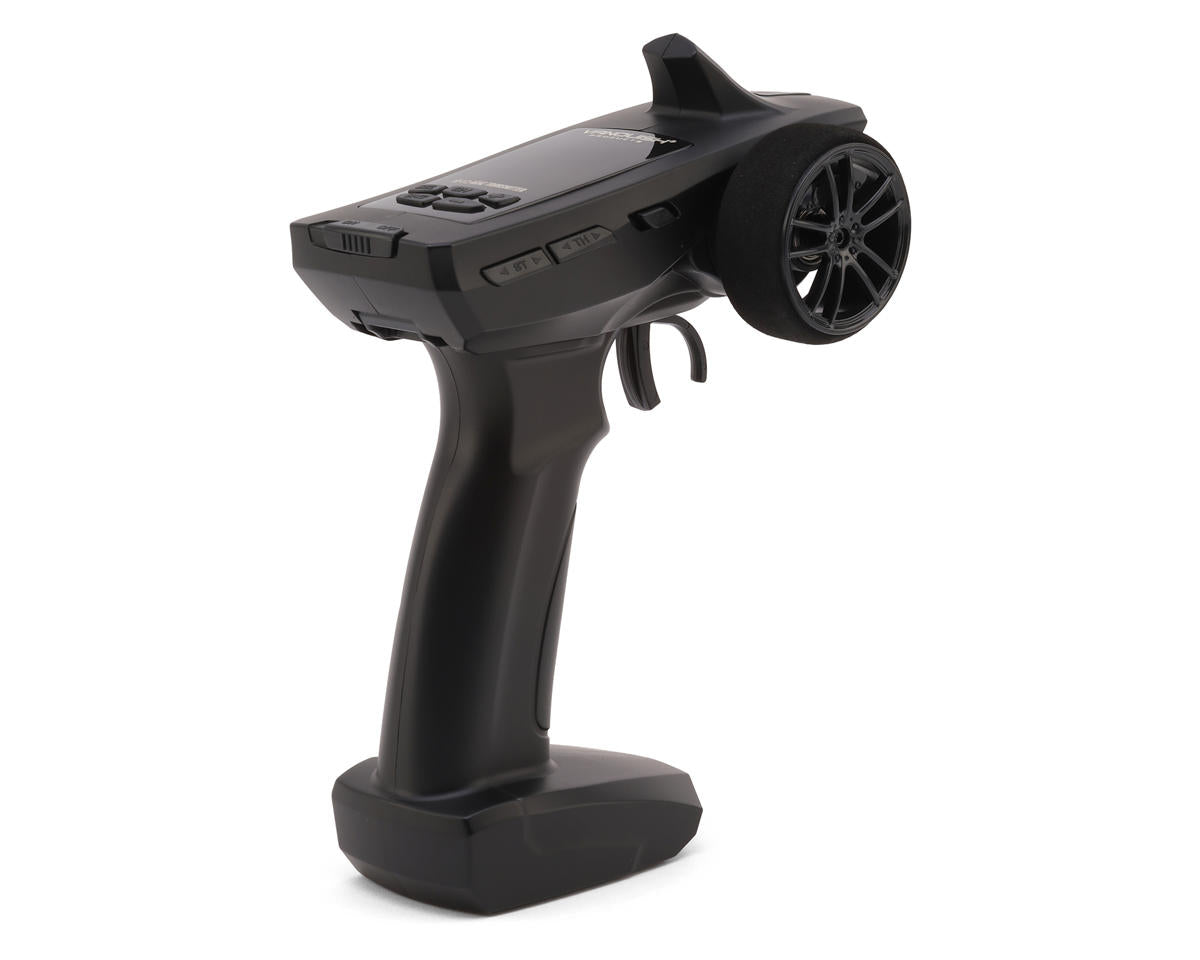

• VT-1 digital four-channel transmitter with model memory, multi-position switches, and endpoint adjustments
• Transmitter supports add-ons such as a winch or dig unit

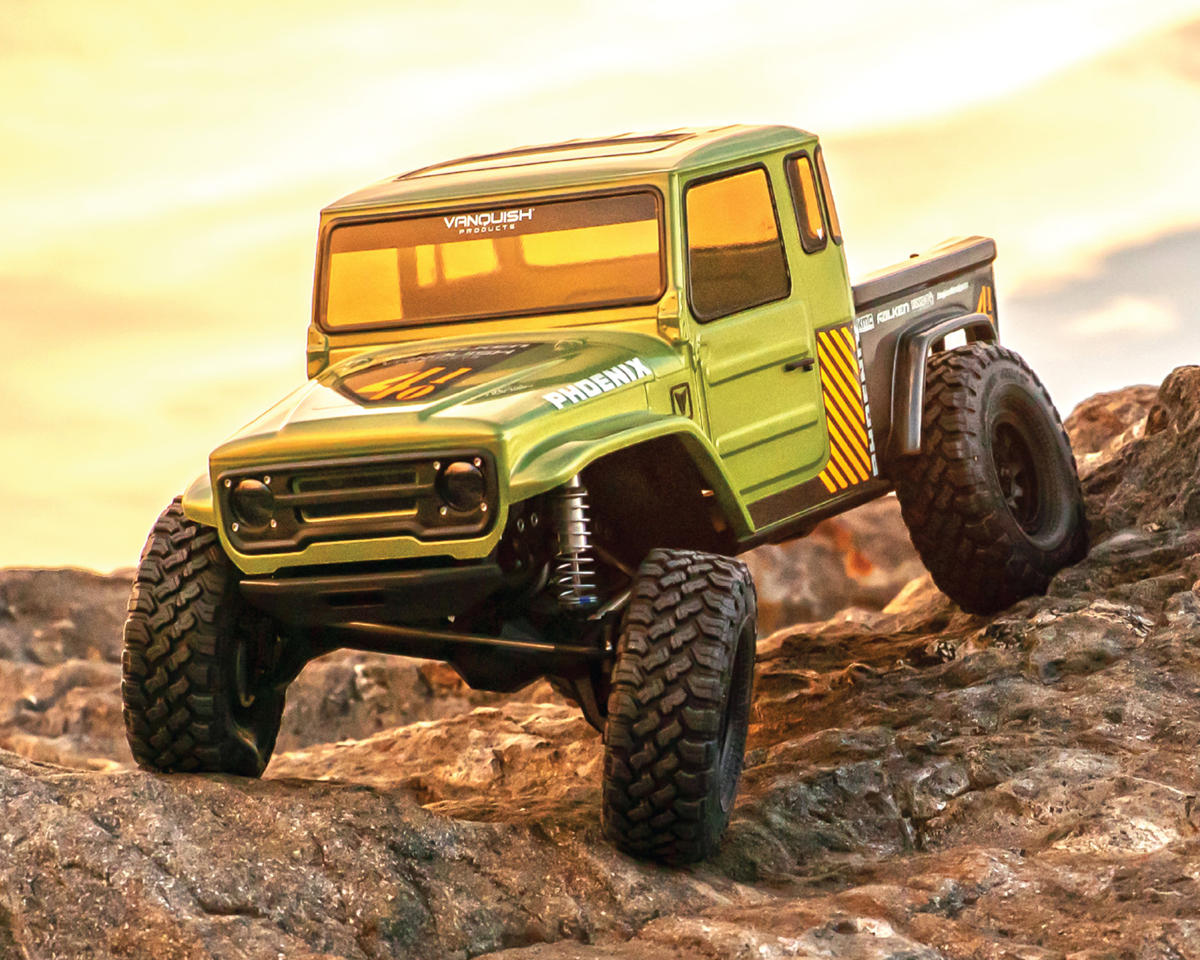

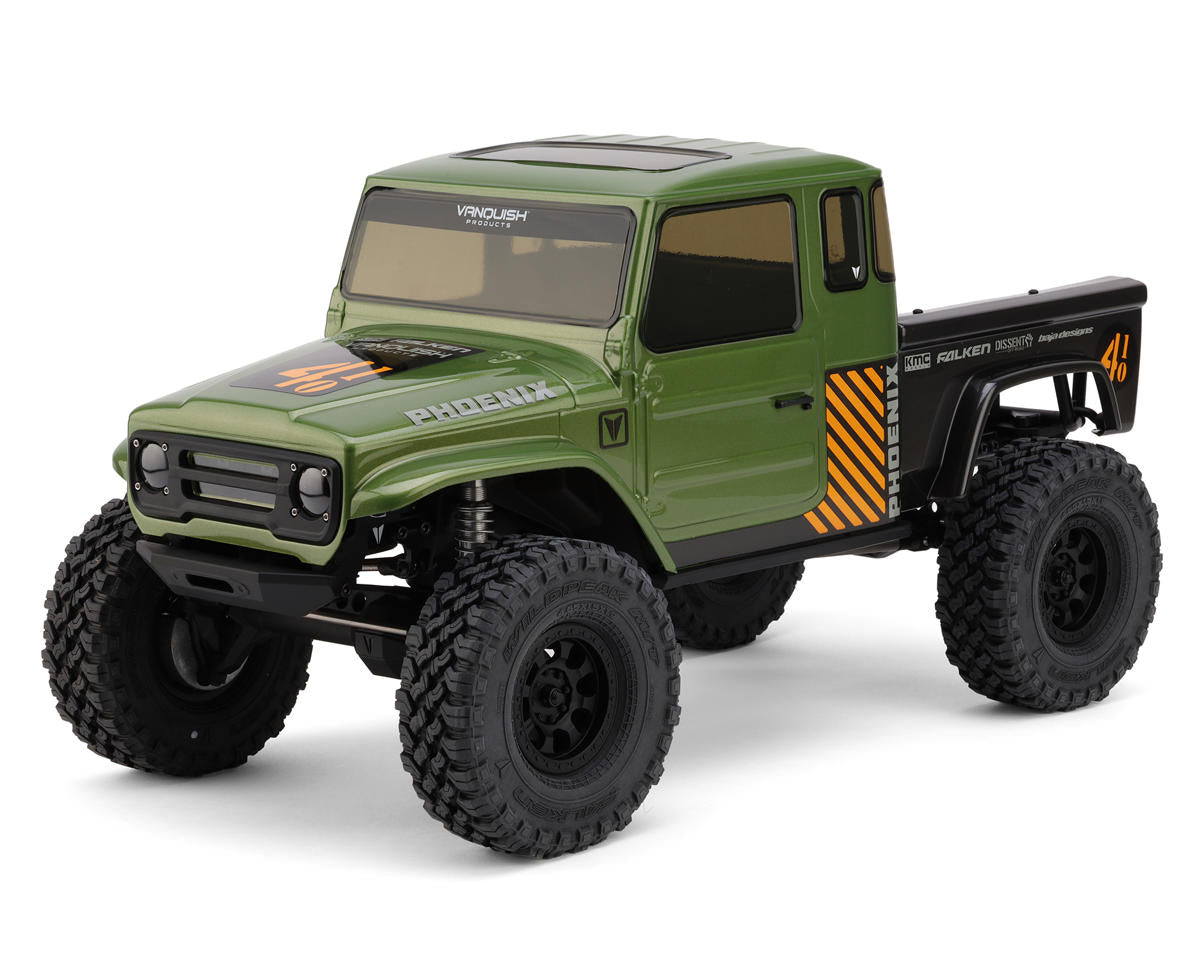

Scale Details

• Pre-painted three-piece body with VRD1 rear cage, painted cab, and bedsides
• Molded grille, headlight buckets, and tail light buckets
• Hidden body clips and hinged mounting system with quick-release front pivot pin
• Incision KMC KM237 Hex Beadlock wheels
• 1.9 Falken Wildpeak M/T tires

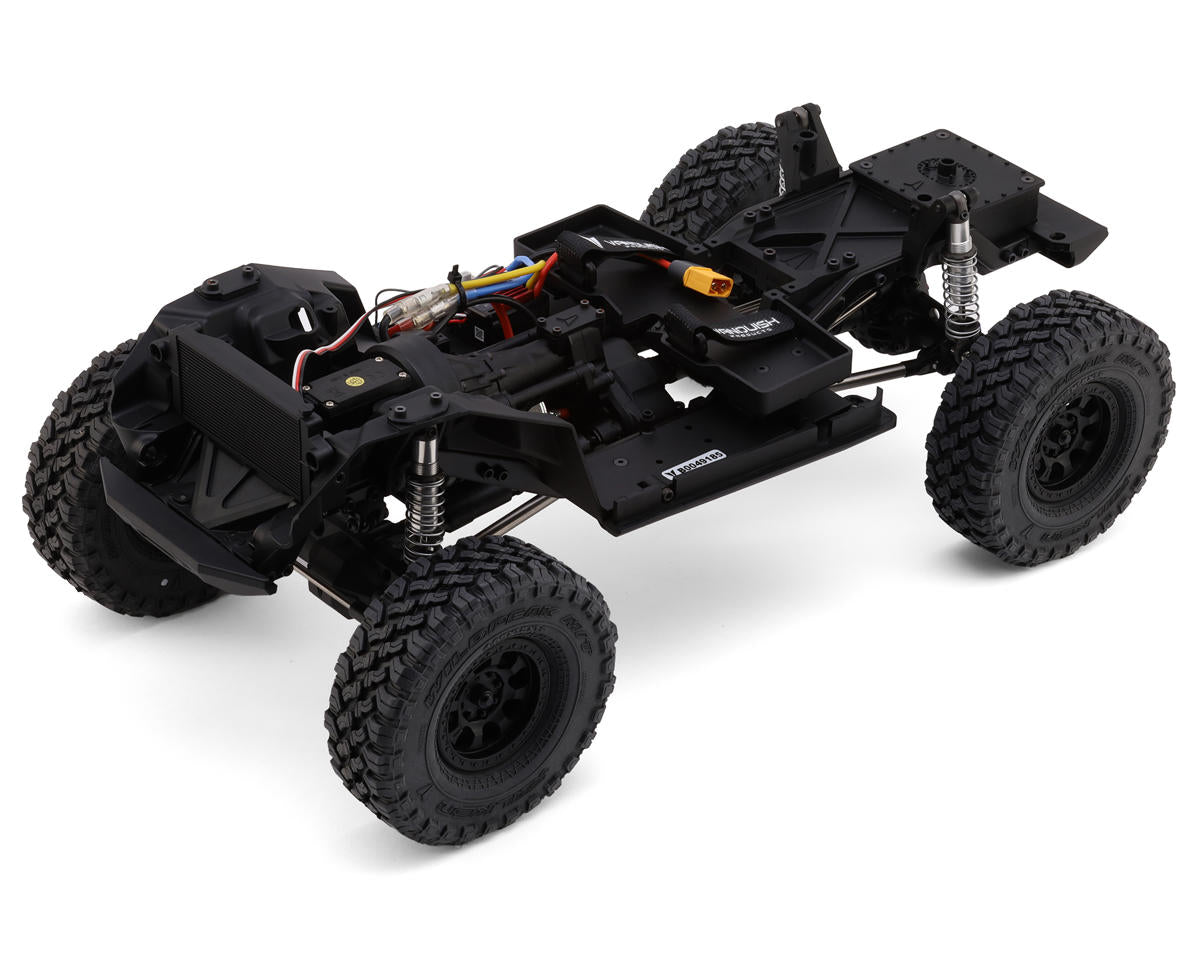

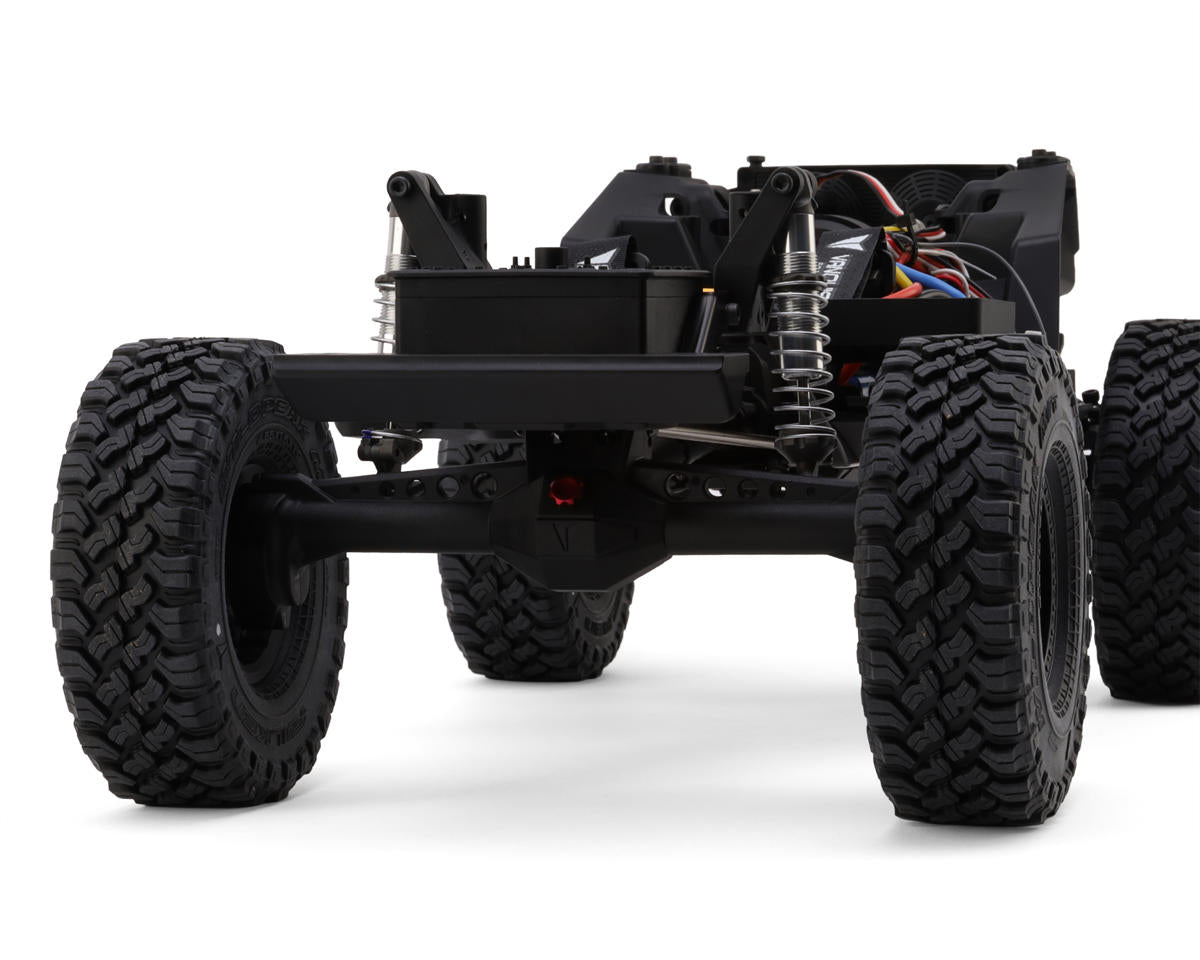

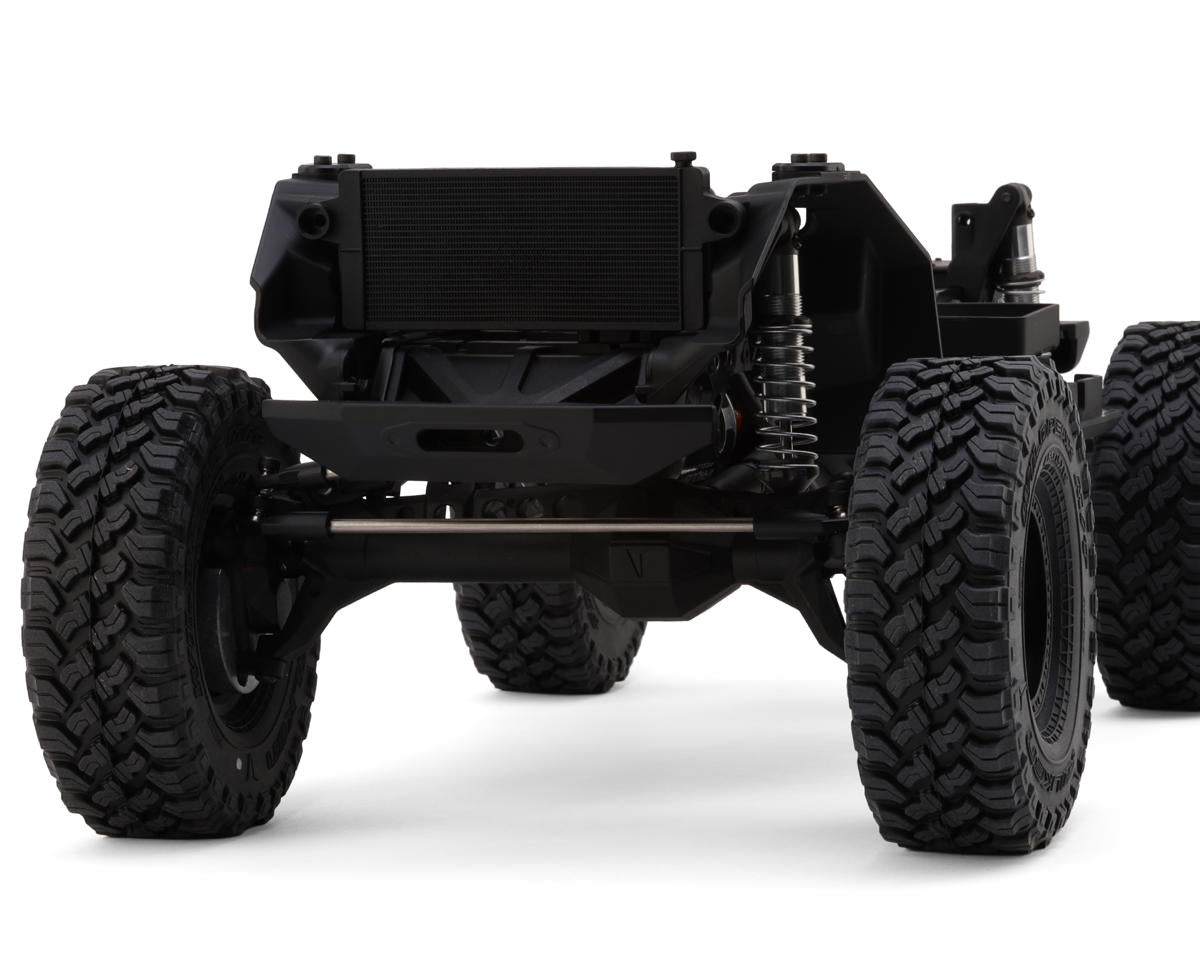

Drivetrain and Suspension

• Molded F10 portal axles with chromoly universal axle shafts
• Brass reinforcement tubes and machined gears throughout the axles
• ISD10 driveshafts with machined CV joints and molded splined shafts
• 80mm S8E shocks with dual O-ring cartridges and sealed upper bleeder screws
• Stainless steel suspension links and machined aluminum panhard mount

Includes

• VS4-10 Phoenix Portal 1/10 RTR Brushed Rock Crawler
• Pre-installed 3S-capable VE-1 ESC with XT60 connector
• Pre-installed VM-1 35T brushed motor
• Pre-installed VS-1 metal gear servo
• VT-1 4-channel transmitter
• Product manual

Needed to Complete

• 2-3S LiPo or 6-Cell NiMH battery with XT60 connector
• Compatible battery charger

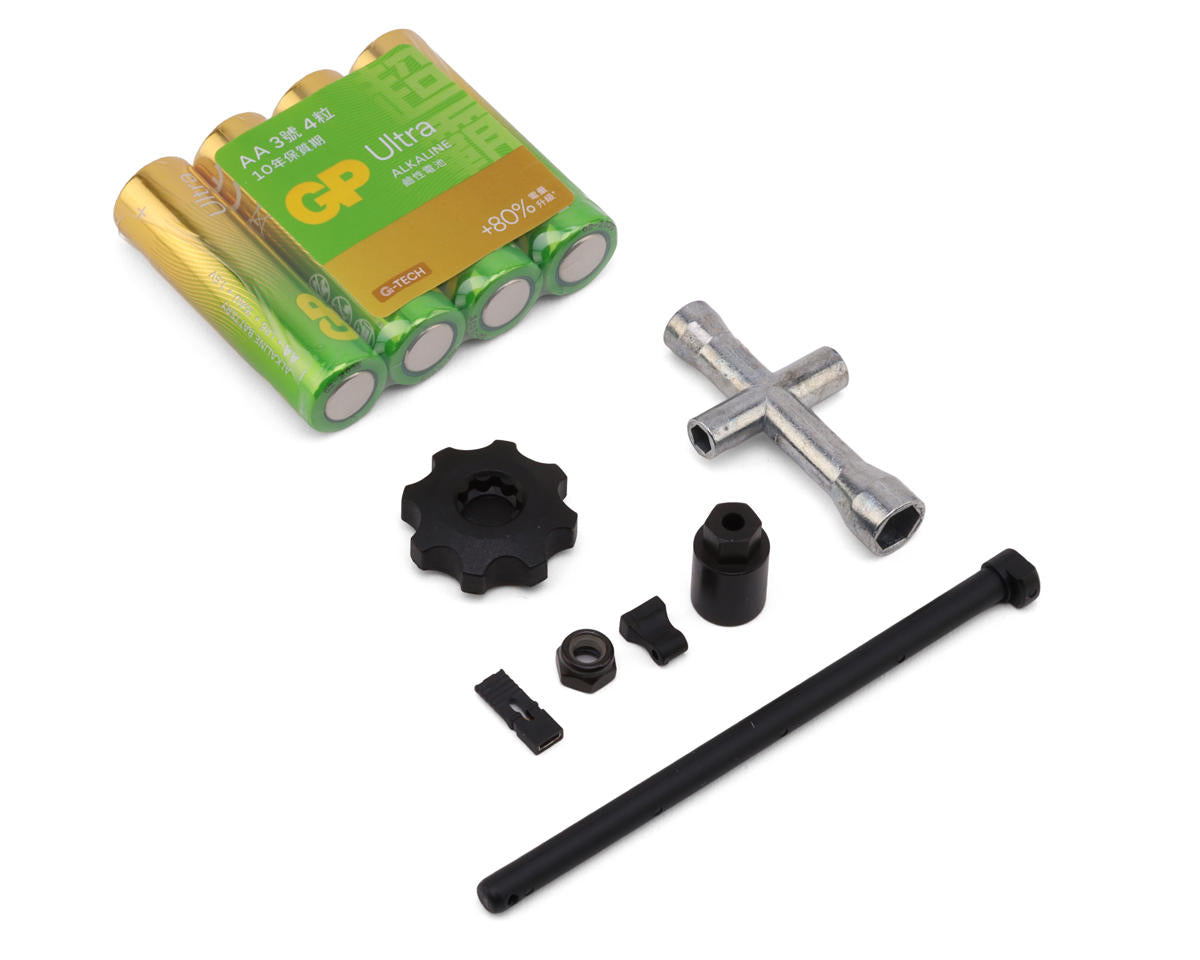

• Four AA batteries for the transmitter

Specifications

• Scale: 1:10
• Power Source: 2S-3S LiPo (7.4-11.1V)
• Wheelbase: 12.32in (313mm)
• Width: 9.84in (250mm)
• Height: 9.84in (250mm)
• Weight: 95.24oz (2700g)
• Motor: Brushed
• ESC: Brushed
• Connector: XT60
• Servo: VS-1 Metal Gear
• Front Tires: Falken Wildpeak M/T
• Rear Tires: Falken Wildpeak M/T
• Hex: 12mm
• Assembly Level: RTR

Ready-to-Run models include the electronics and transmitter needed for use. Review the needed-to-complete items before operating.
