Vanquish Products VS4-10 Origin Classic 1/10 4WD Rock Crawler Kit (Clear)

The Vanquish Products VS4-10 Origin Classic 1/10 4WD Rock Crawler Kit combines a classic clear body with a low-forward VFD transmission, F10 molded straight axles, and an adjustable chassis designed for technical trail builds.

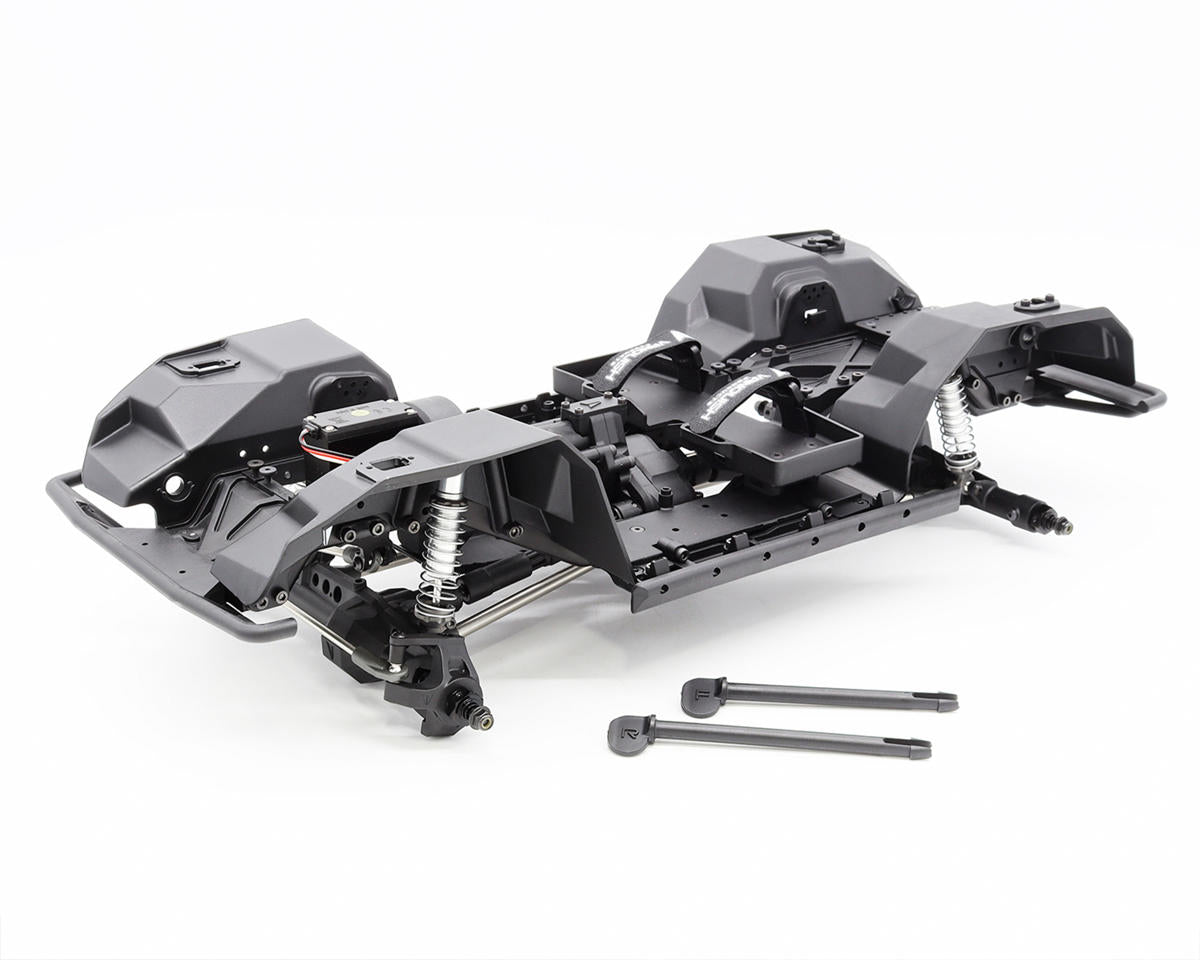

Chassis and Drivetrain

• Low-forward motor placement for improved weight distribution
• 6.5% factory overdrive
• VFD transmission with hardened chromoly shafts and sintered internal gears
• Molded F10 straight axles with integrated truss
• 49° of steering angle
• Heavy-duty steel C-channel frame rails
• Integrated clipless body mounting system

Suspension and Body Features

• Incision 90mm S8E shocks with dual O-ring seals
• Adjustable shock tower positions molded into the inner fenders
• 3-link front suspension with panhard bar
• Molded rock sliders with replaceable outer sections
• Machined aluminum panhard mount

Kit Includes

• VS4-10 Origin Classic 1/10 4WD Rock Crawler Kit
• Clear Origin Classic Body
• VFD Transmission Assembly
• F10 Molded Axles
• Four Incision 90mm S8E Shocks
• Four Molded Inner Fenders and Shock Towers
• Stainless Steel Links and Pivot Hardware Set
• 15T 32P Pinion Gear
• 52T 32P Spur Gear
• 25T Servo Horn
• 30wt Shock Oil Bottle
• Threadlock Container
• Grease Container
• Product Manual

Specifications

• Scale: 1:10
• Drive: 4WD
• Power Source: 2-4S LiPo (7.4V-20V)
• Wheelbase: 12.32in (313mm)
• Width (Hex to Hex): 7.17in (182mm)
• Assembly Level: Kit

Needed to Complete

• 2+ Channel Transmitter/Receiver System
• 2-4S (7.4V - 20V) LiPo Battery
• 540 Class Motor
• ESC (Electronic Speed Control)
• Compatible Steering Servo (25T Servo Horn Included)
• Four 1.9x4.65" Tires
• Four 1.9" SLW Hub Compatible Wheels
• Compatible Battery Charger
• Paint for Body
• Assembly Tools

This is an unassembled Remote Control Model that requires assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only.
