Vanquish Products VS4-10 Currie F9 Front Axle (Silver)

The Vanquish Products VS4-10 Currie F9 Front Axle Assembly in silver is officially licensed by Currie Enterprises and designed for use with a Vanquish Products VS4-10 Chassis. Its diamond-shaped pumpkin houses AR44 style gears, while the integrated C-hubs, one-piece bearing retainers, double-shear shock mounts, panhard mount, and upper link mount provide scale-focused construction.

Features

• Fully licensed by Currie Enterprises
• One-piece bearing retainers
• Integrated C-hub design
• Replaceable threaded chromoly steel C-hub inserts
• Double-shear shock mounts
• Integrated panhard mount
• Upper link mount built into the housing

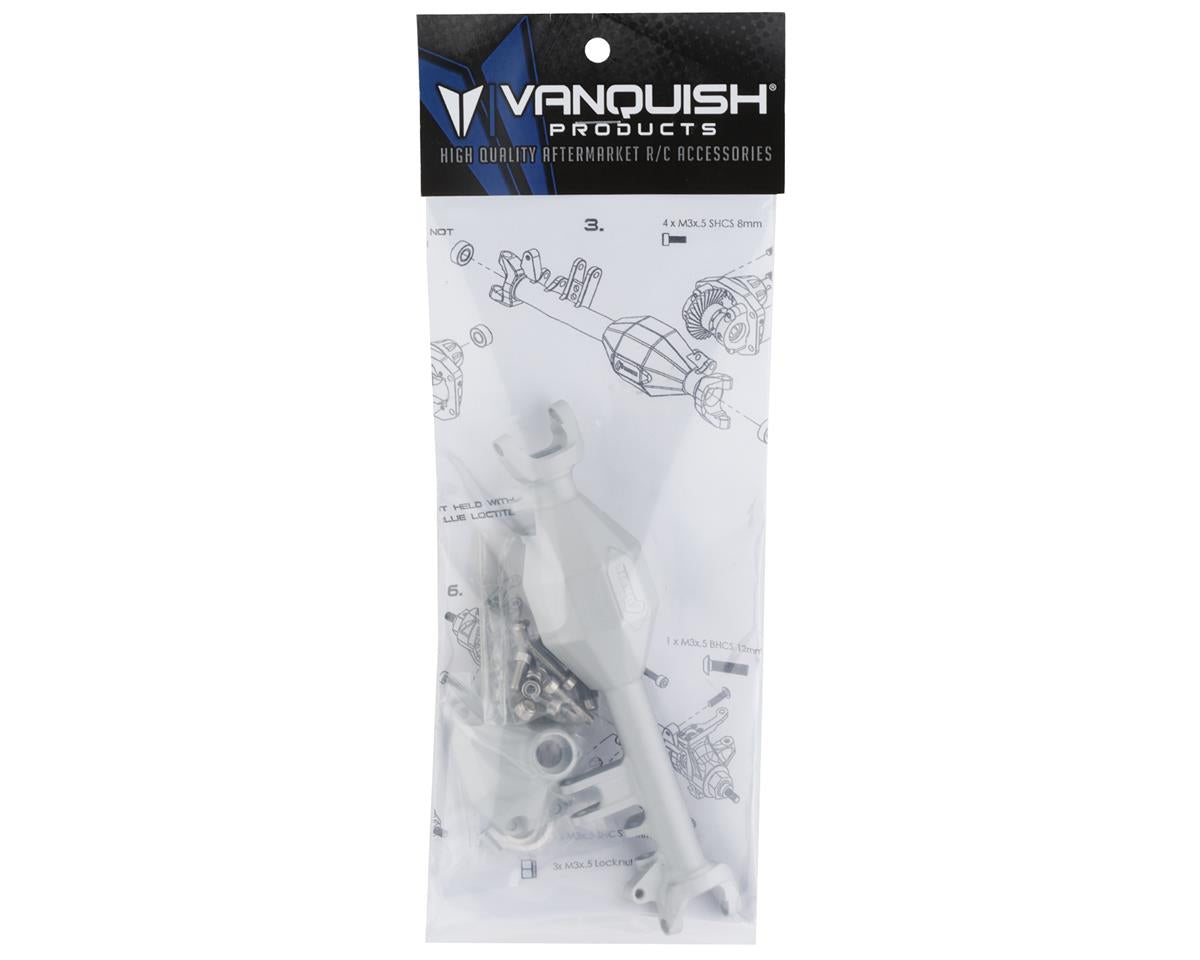

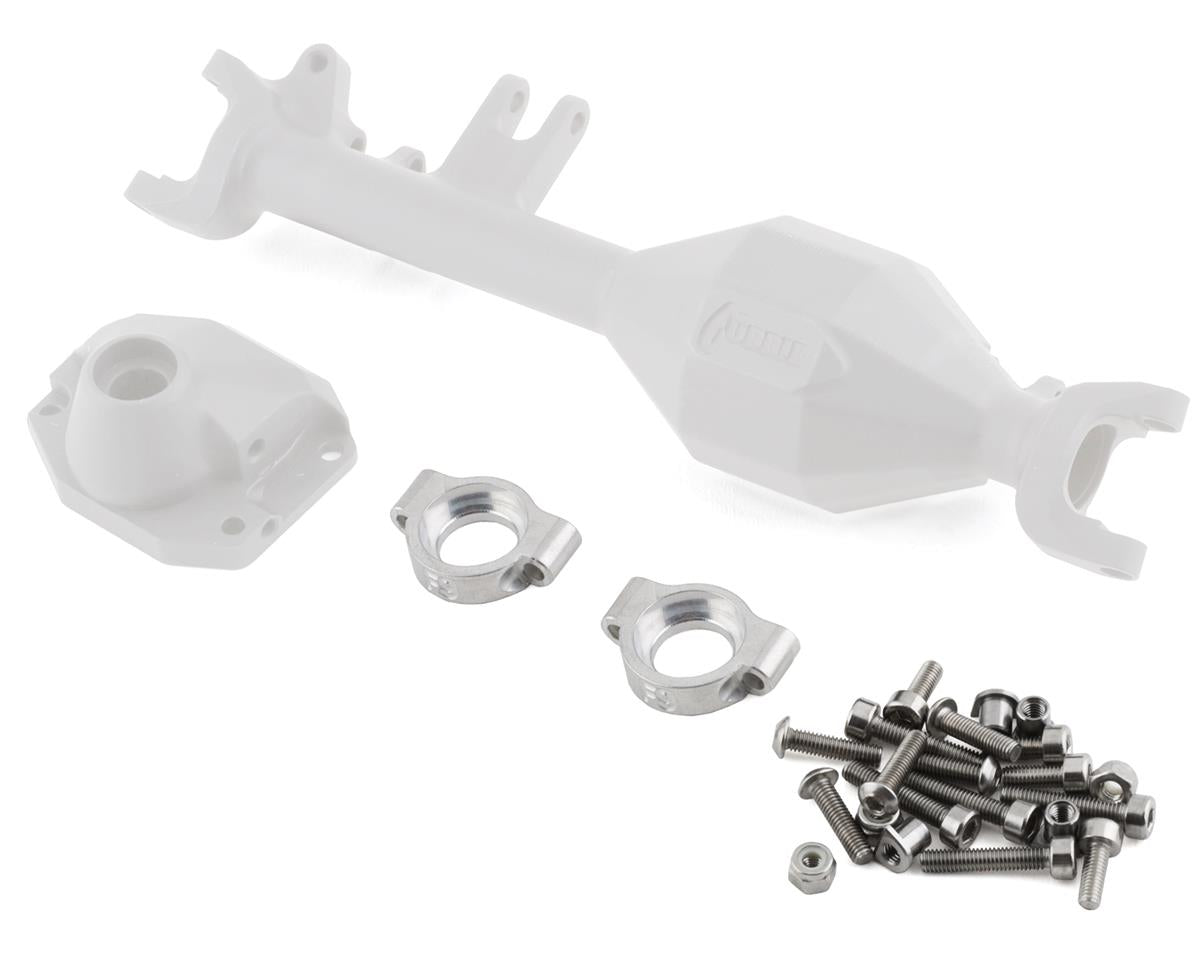

Includes

• Currie front housing
• 2 bearing retainers
• 4 threaded inserts
• Required hardware
• Instructions

Needed to Complete

• VDI universal axle shafts, short and long side: INCIRC00181
• Hexes, hex pins, bearings, kingpin, knuckles, ring and pinion or locker
• 0.280" pivot balls and rod ends
• Required bearings: (2) 7x14x3.5mm, (1) 5x14x5mm, and (3) 5x11x4mm

Important Notes

• Intended for use with a Vanquish Products VS4-10 Chassis. The offset pumpkin requires additional clearance and may not function properly with many other chassis designs.
• Not for use with Vanquish Products Brass Pivot Balls (0.300" width).
• Due to the AR44 gear design, proper pinion gear shimming may be required for optimal results.
• Pair with the Vanquish Products Currie F9 Rear Axle (VPS07853) for a matching axle combination.
